YO2086s-1GV(R2W)
Production Lead Time:
14 day(s)
产品型号:
YO2086s-1GV(R2W)
品牌名称:
Yoswit
尺寸:
L: 86mm x W: 86mm x H: 32mm
港口:
Hong Kong, Zhongshan, China
付款方式:
PayPal, Bank Transfer
Minimum Order Quantity:
1 piece
工作温度:
-10°C to 40°C
最大电流:
6A
防护等级:
IP20
Package:
Yes
Customised:
Yes
最大电压:
100-240V AC (50/60Hz)
Description
Contact Supplier
Description

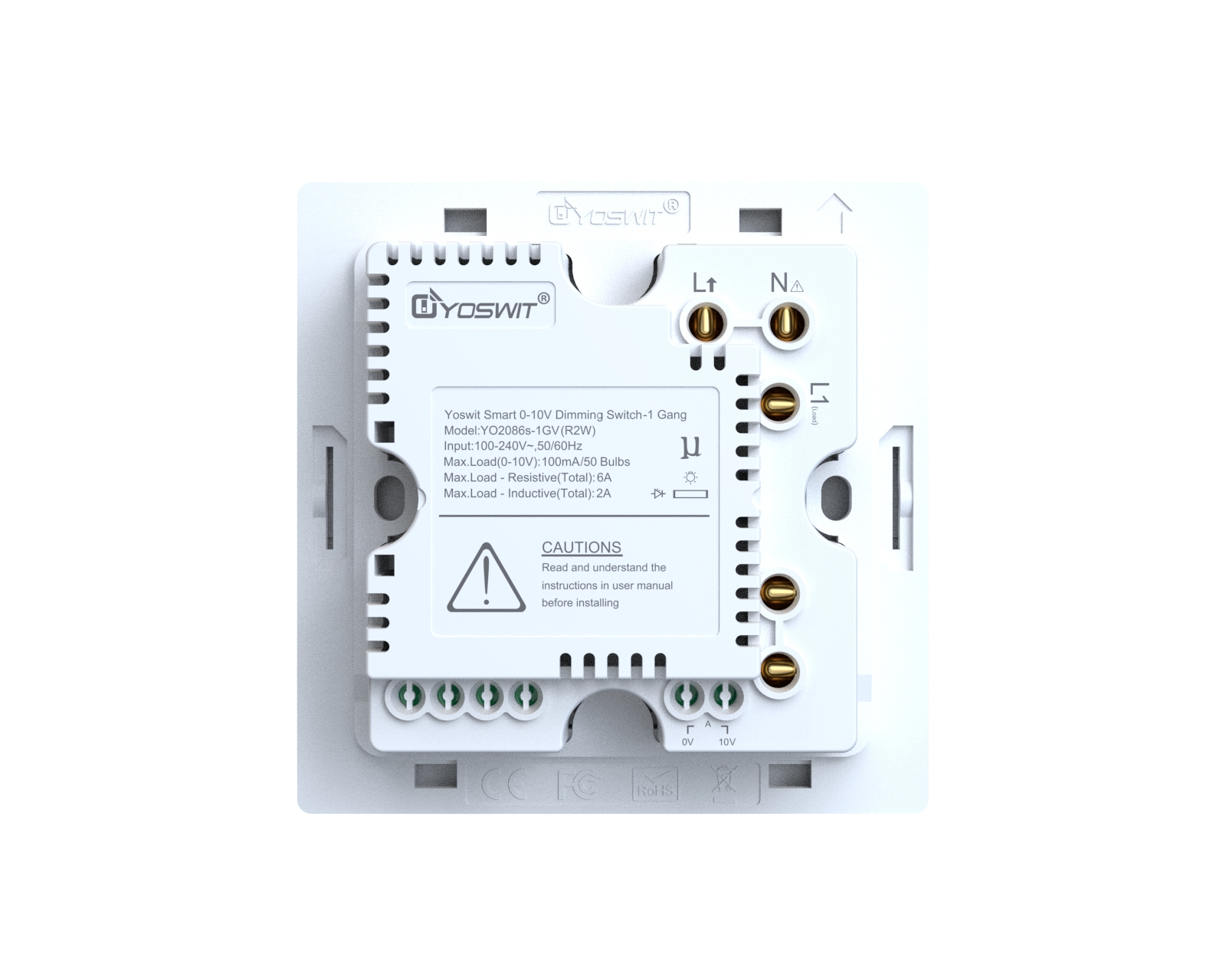

Yoswit Smart YO2086s-1GV (R2W) Dimmer Switch
Model: YO2086s-1GV (R2W)
Revision: V7.0
Panel Type: 86-type
Designed by: Yoswit in Hong Kong, China
Assembled in: Guangdong, China
Certifications: CE (EMC + LVD), FCC, RoHS
Product Summary
Smart lighting dimmer switch for whole-home atmosphere control. Replaces traditional dimmer switches without gateway, rewiring, complex setup, or manual pairing.
Key Features
High compatibility: Incandescent, dimmable LED, dimmable CFL; supports leading-edge and trailing-edge dimming
Works with dimming drivers: No brand-locked driver required
Custom dimming step: Adjust brightness increment via Yoswit App
High-precision dimming: Stable performance, no flicker
Voice & remote control: Via Yoswit App; smart speaker linkage when paired with gateway
Brightness memory: Remembers last brightness level after off/on
Low power consumption: ≤1W standby/module power
No hub required: BLE-based, auto-detected by Yoswit App
No rewiring / no pairing / no complex configuration
Electrical Specifications
Item | Value |
Input Voltage | 100–240V AC, 50/60Hz |
Power Consumption | ≤1W |
Max Load | 6A |
Max 0–10V Load | 100 mA / up to 50 lamps |
Mechanical Specifications
Item | Value |
Operating Environment | Indoor only |
Operating Temperature | -10°C ~ 40°C |
Operating Humidity | 0–95% RH, non-condensing |
Ingress Protection | IP20 |
Product Size | 86 × 86 mm (86-type panel) |
Control Method | App / Manual |
Wireless Specifications
Item | Value |
Bluetooth Version | Bluetooth 4.2 (BLE) |
Frequency | 2.4 GHz |
Range | >50 m open area / 3–20 m indoor |
App Compatibility
iOS 13.0 or later
Android 7.0 or later
Yoswit App (App Store / Android APK)
Package Contents
Smart dimmer switch main unit
Mounting screws
User manual (EN / Simplified Chinese)
Datasheet / leaflet / product catalogue
Optional LED stabilizer accessory referenced for 2-wire instability cases
Installation Warnings
Turn off circuit breaker before installation; install by licensed electrician
Follow local electrical code for proper grounding

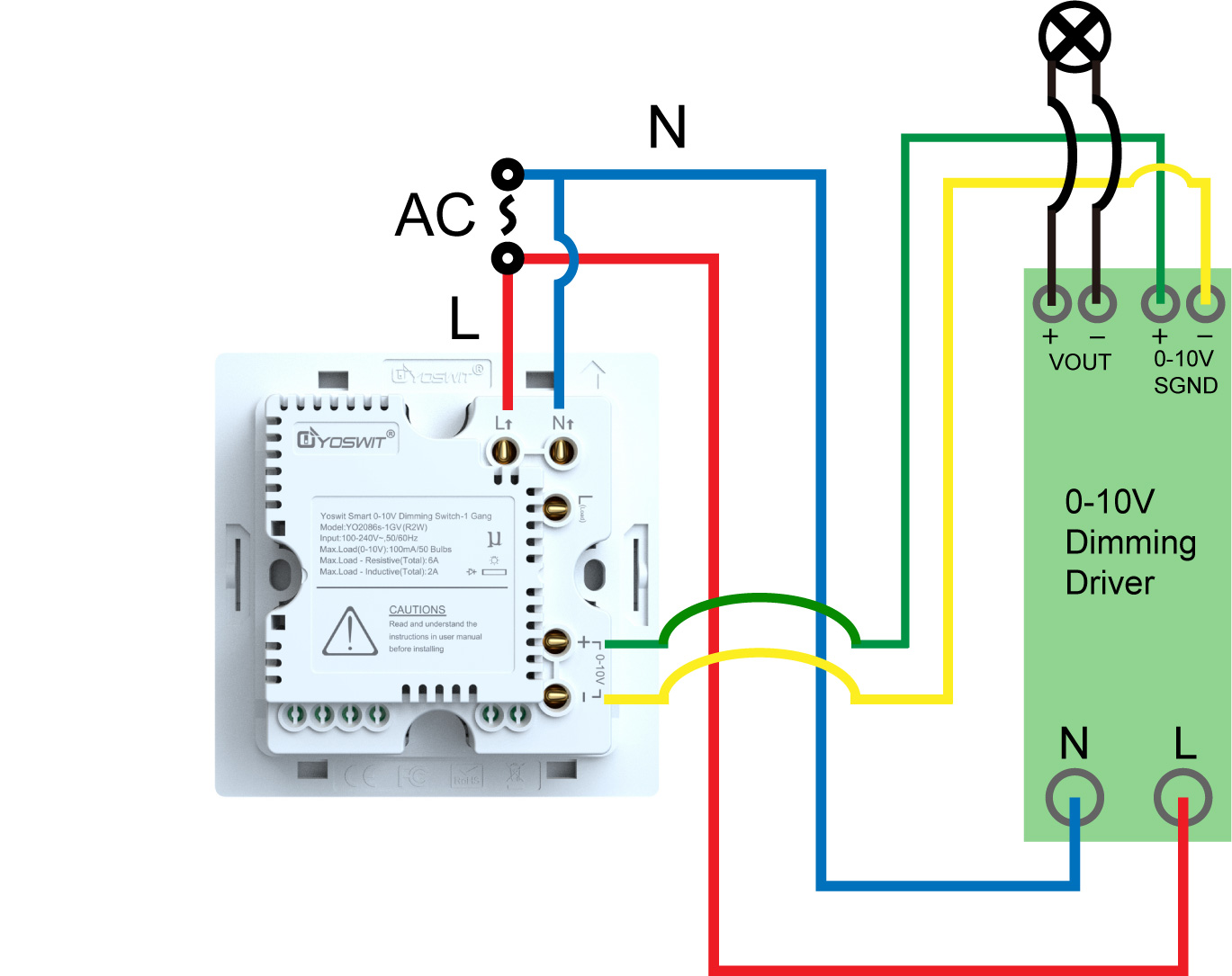

For 2-wire no-neutral: if flicker/no-light occurs, use 3-wire wiring or install LED stabilizer across lamp terminals
After install: press button 2–3 times to verify; launch Yoswit App for auto-detection
Competitive Notes (vs Schneider / Legrand / Leviton / Lutron)
No gateway
No rewiring
No manual pairing
2-in-1 TRIAC + 0–10V
Compatible with no-neutral (TRIAC) and neutral-wire setups
Supports leading-edge & trailing-edge dimming
BLE 4.2 core technology
