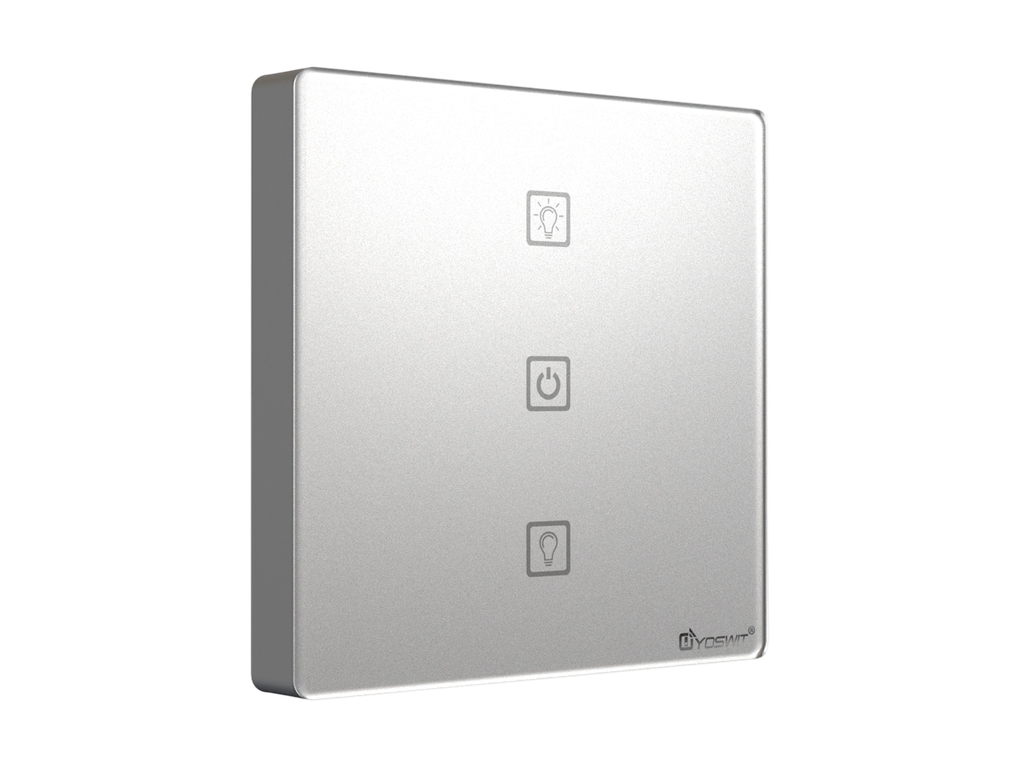

Yoswit Smart Touch 0–10V Dimmer Switch — 1 Gang

Product Name: Yoswit Smart Touch 0–10V Dimmer Switch

Model: YO2086s-1GVT (R2W)

Panel Type: 86-type

Revision: V7.0

Manufacturer: Designed by Yoswit in Hong Kong, assembled in Guangdong, China

Certifications: CE EMC, CE LVD, FCC, RoHS

Tagline

Effortlessly control brightness with a smart dimmer switch — perfect for creating the ideal ambience throughout the home.

Key Features

• High compatibility
  Works with incandescent lamps, dimmable LED lamps and dimmable CFL lamps. Supports both leading-edge and trailing-edge dimming.
• Works with dimming drivers
  Compatible with common 0–10V / dimming drivers — no proprietary driver required. Simply replace the traditional dimmer switch with Yoswit.
• Custom dimming step
  Adjust the brightness increment in the Yoswit App for smooth, soft dimming and the right atmosphere while saving energy.
• High-precision adjustment
  Delivers excellent dimming accuracy for stable lighting performance with no flicker.
• Voice and remote control via Yoswit App
  With a gateway, it can work with smart speakers; remote control is also available through the Yoswit App.
• Brightness memory
  When the dimmer is turned off, Yoswit remembers the current brightness level and restores it automatically next time the light is switched on.
• Low power consumption
  Energy-efficient design reduces electricity cost without compromising performance.

Specifications

Installation Warnings

• Disconnect power at the service panel before installation.
• Installation must be carried out by a licensed electrician.
• Ground the unit according to local regulations. Missing ground wire = unsafe installation / risk of injury.

Installation Steps

1. Remove the old switch, disconnect the wires, and expose about 5 mm of bare conductor.
2. Use a small flat-head screwdriver to pry the faceplate from the frame notch.
3. Connect the wires to the switch terminals according to the wiring diagram.
4. Secure the switch firmly into the wall box.
5. Restore power at the circuit breaker / RCD.
6. Press the button 2–3 times to confirm the light turns on/off correctly.
7. Snap the faceplate onto the switch; a “click” at the corners indicates correct placement.

Optional: LED Stabilizer

If using 2-wire wiring without Neutral (N):

• If the lamp flickers or stays off, either:
  • use 3-wire wiring with Neutral (N), or
  • connect the optional LED stabilizer across either lamp as shown in the diagram
