YO2086s-2GM(R2)
Production Lead Time:
14 day(s)
产品型号:
YO2086s-1GC（R2W)
Brand:
Yoswit
Size:
L: 86mm x W: 86mm x H: 32mm
Port:
Hong Kong, Zhongshan, China
Type of Payment:
PayPal, Bank Transfer
Minimum Order Quantity:
1 piece
Operating Temperature:
-10°C to 40°C
Max. Current:
6A
防护等级:
IP20
Package:
Yes
Customised:
Yes
Max. Voltage:
AC100 - 240V
Description
Contact Supplier
Description
Model: YO2086s-2GM(R2) | Revision: V7.0 | Socket Type: Socket 86
General
Table 1: General
Item | Value |

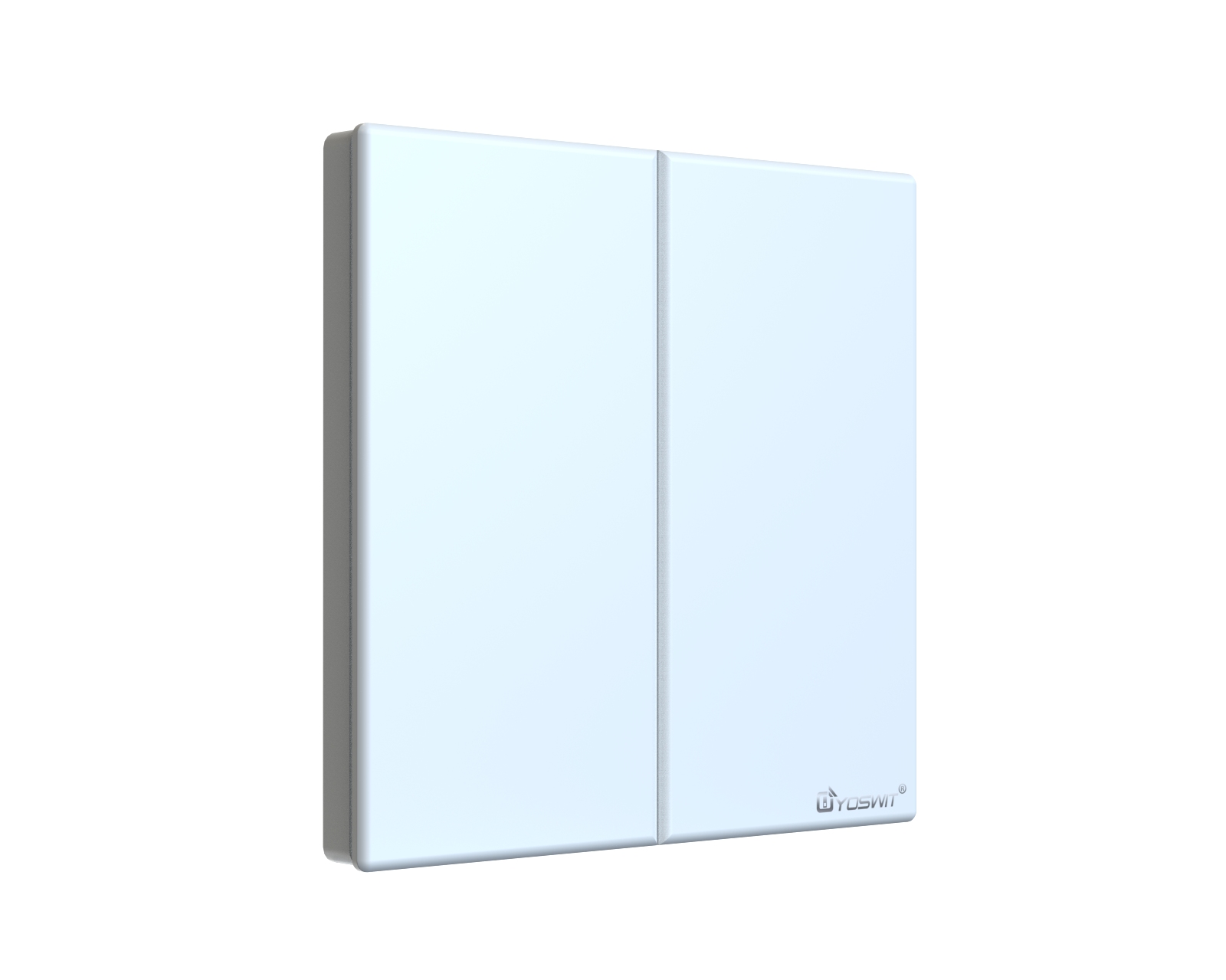

Product Name | Yoswit Smart Light Switch |
Model | YO2086s-2GM(R2) |
Revision | V7.0 |
Socket Type | Socket 86 |
Manufacturer | Designed by Yoswit in Hong Kong, China / Assembled in Guangdong, China |
Features

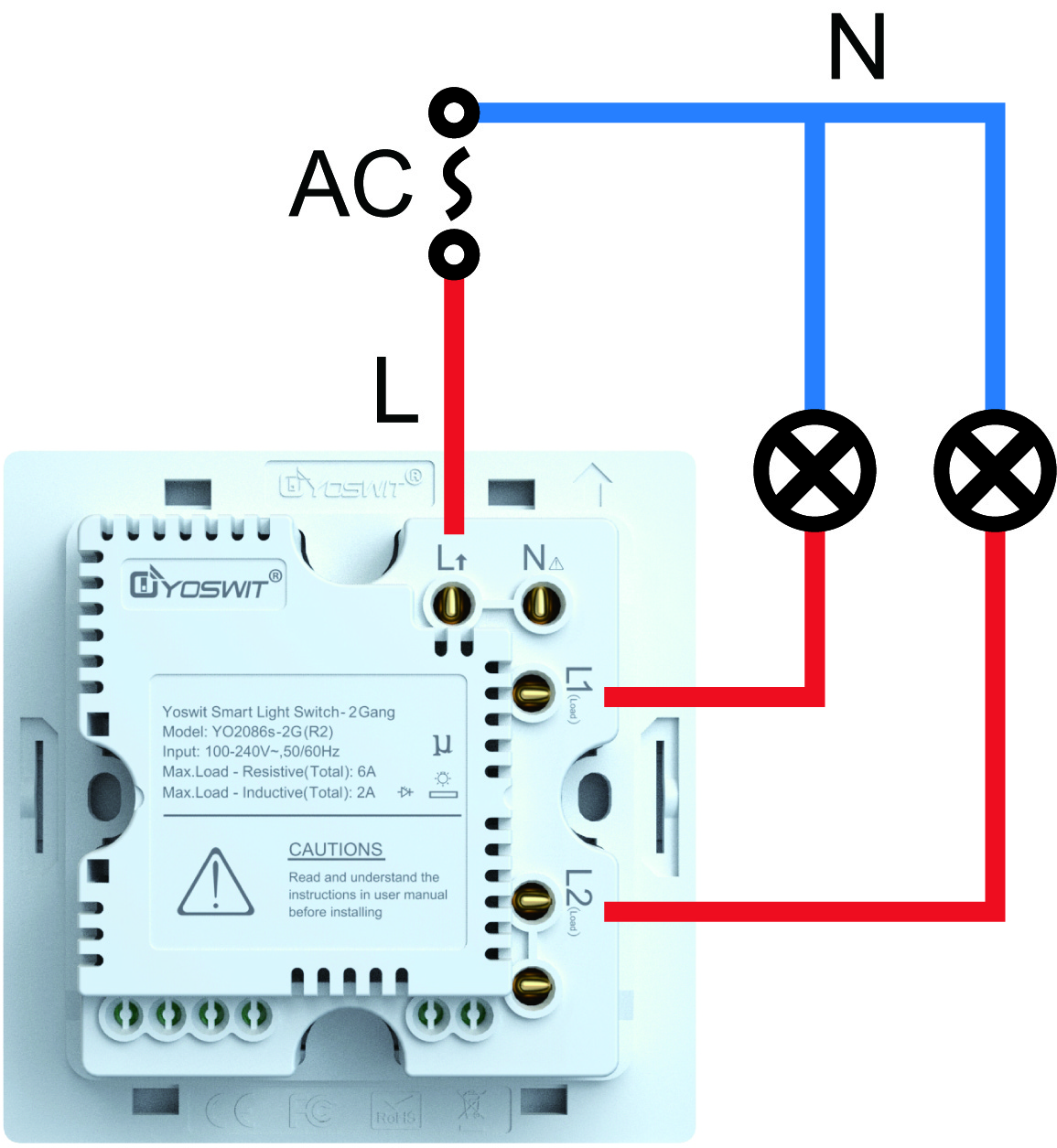

- No neutral wire needed. Compatible with 2-wire and 3-wire installation.
- Directly works with smartphone via built-in Bluetooth. No hub, no pairing, no configuration needed (auto-detected by Yoswit App).
- Enable wireless control of on/off, time delay & countdown, schedule, scene and away detection functions.
- Dual operating modes: physical button manual operation + APP remote control; supports multi-location control from 3 or more locations.
- High compatibility with all common bulb types (incandescent to LED); supports low-watt LED down to 3W under 2-wire wiring.
- Additional features: switch lock, customized LED indicator, default power-up state.
Mechanical Data
Table 2: Mechanical Data
Item | Value |
Body | Not specified on page |
Operating Environment | Indoor |
Operating Temperature Range | -10°C to 40°C |
Operating Humidity | 0-95% RH, Non-Condensing |
Ingress Protection (IP) | IP20 |
Product Size | 86 × 86 mm (Socket 86 panel) |
Electrical Data
Table 3: Electrical Data
Item | Value |
Input Voltage | 100-240V AC (50/60Hz) |
Frequency | 50/60Hz |
Power Consumption | ≤1W |
Resistive Load Current | Max. 6A |
Inductive Load Current | Max. 2A |
Minimum Load Power | 3 watt (*for 2-wire [without neutral wire] installation only) |
Bluetooth Data
Item | Value |
Version | Bluetooth 4.2 |
Frequency | 2.4GHz |
Range | Open area (>50m); indoor (3-20m) |
Connection | BLE (Bluetooth Low Energy) |
Chips Manufacturer | Not specified on page |
Chips Certification | Not specified on page |
Certification
- CE (CE EMC, CE LVD)
- FCC
- RoHS
Note: CCC and R&TTE are not listed on this product page.
Package
Item | Value |
What's in the Box | Product ×1, Screw ×2, User Manual ×1, Safety Capacitor ×1, Warranty Card ×1 |
Package Size | 142 × 108 × 52 mm |
App Support
Item | Value |
Compatible App | Yoswit App (App Store / Android APK) |
iOS Support | iOS 13.0 or later |
Android Support | Android 7 or later |
