Features
·Housing made from SAMSUNG/COVESTRO'S V0 flame retardant PC materials.
·High efficiency up to 85 %
·Built-in active PFC function
·Protections: Short circuit, over load, over Voltage
·Suitable for indoor LED lighting application, such as down light, panel light, and so on

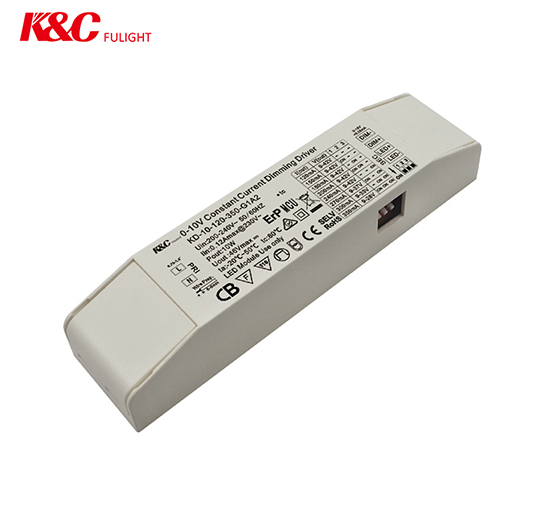

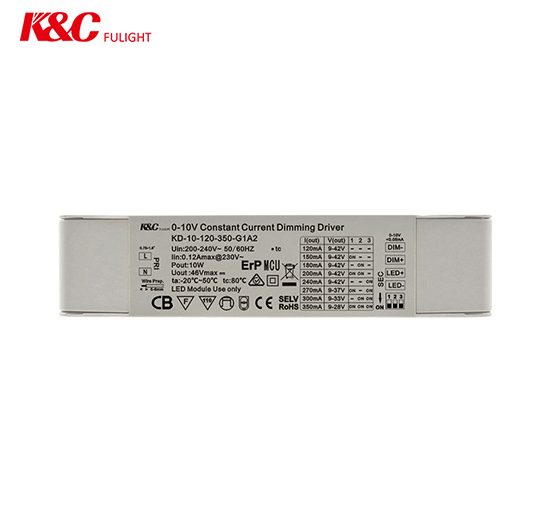

10W 120/150/180/200/240/270/300/350mA 0/1-10V LED Dimming Driver
KD-10-120-350-G1A2 is a constant current output mode LED driver. The output current can be easily set via DIP switch, and the driver can be adjusted by the external 0/1-10VDC active signal, PWM signal, or adjustable resistance to achieve the smooth dimming effect.
Technical Parameters
Model | KD-10-120-350-G1A2 | |
Input | Efficiency | 85%@230VAC, Full load |
Voltage | 220VAC-240VAC | |
Frequency Range(Hz) | 50/60Hz | |
Power Factor | >0.9@230VAC,Full load | |
THD(full load) | <10%@230VAC, Full load | |
AC Current(max) | 0.06Amax@230VAC | |
Inrush Current(max) | Cold start,18A(twidth=14us measured at 50% Ipeak)@230VAC | |
Output | Current/Voltage/Power | 120mA/9-42VDC/5.04W 150mA/9-42VDC/6.3W 180mA/9-40VDC/7.56W 200mA/9-42VDC/8.4W 240mA/9-41VDC/9.84W 270mA/9-37VDC/9.99W 300mA/9-33VDC/9.99W 350mA/9-28VDC/9.8W |
Ripple Current | <3% | |
Channel | 1 | |
Current Tolerance | ±5% | |
No Load Output Voltage | 50V Max | |
Standby Power | <1.5W | |
Function | Dimming Type | 0/1-10V active signal, adjustable resistance, PWM |
Dimming Range | 0.3%-100% Dimming to off | |
Protection | Short Circuit | after fault removed Close output ,the output current recovers automatically |
Over Load | When the output voltage is exceeded, the output current decreases and, recovers automatically when the load is reduced. | |
Over Temperature | Shut down the output, recovers automatically when temp. back to normal. | |
Other | Working Temp. | -20℃~50℃ |
Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | |
Tc | 75℃ | |
Material | PC | |
IP Rating | IP20 | |
Lifetime | 30,000h@tc:70℃ | |
Warranty Condition | 5 years | |
Warranty Condition | >25,000 times | |
Packing Size | 375*330*180mm(L*W*H), 4.5Kg/Carton/100PCS | |

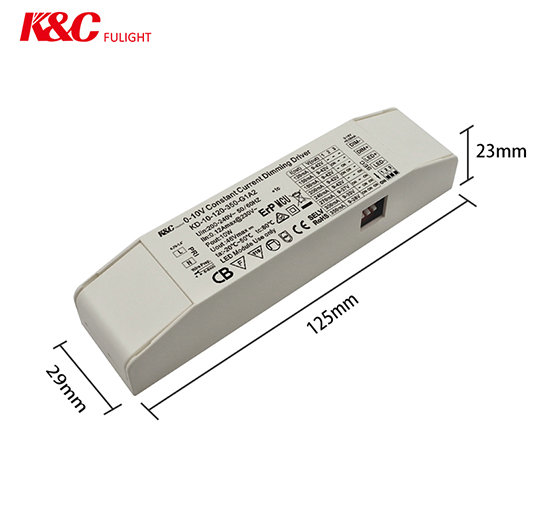

Dimensions | 125*30*23mm(L*W*H) | |
G.W | 60g |
