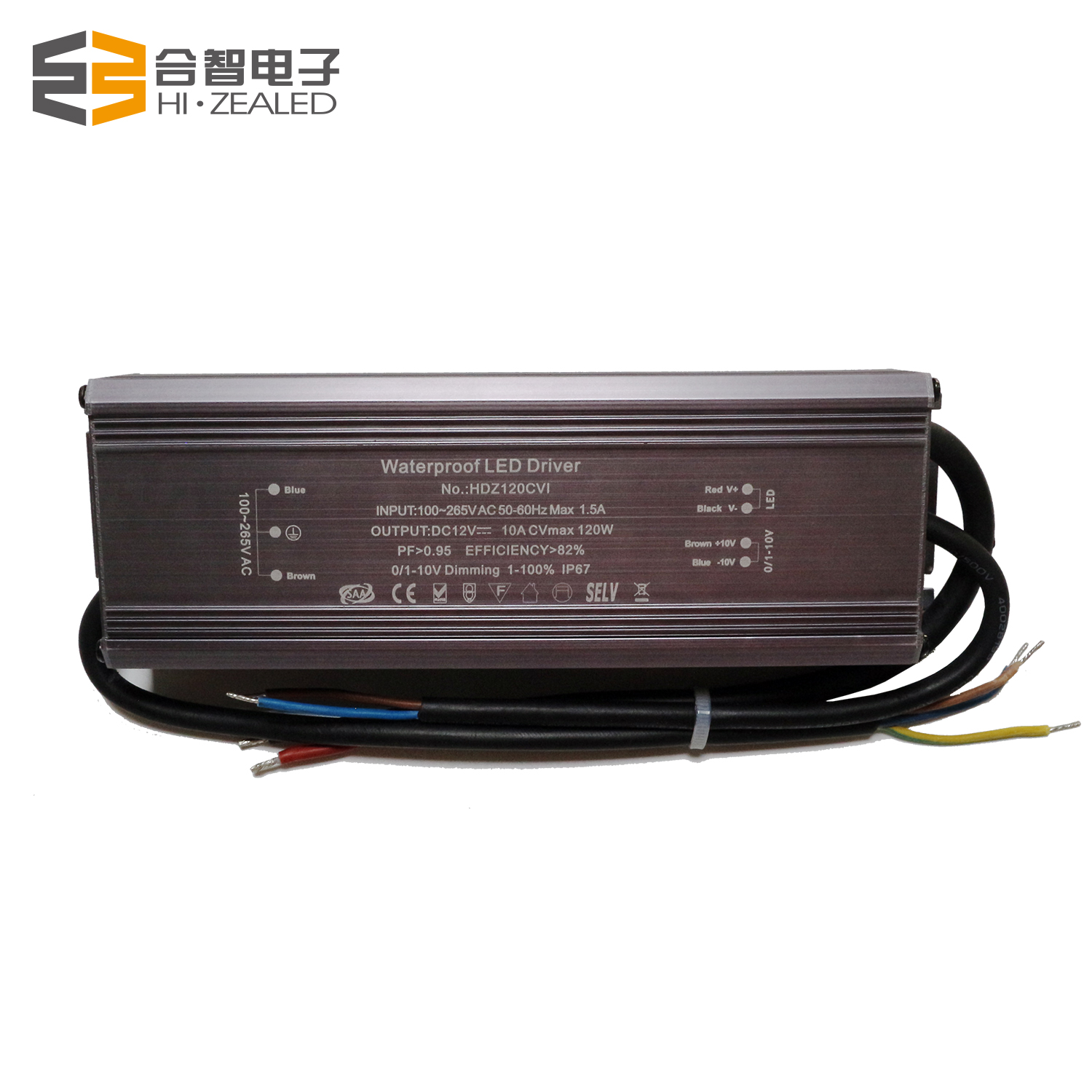

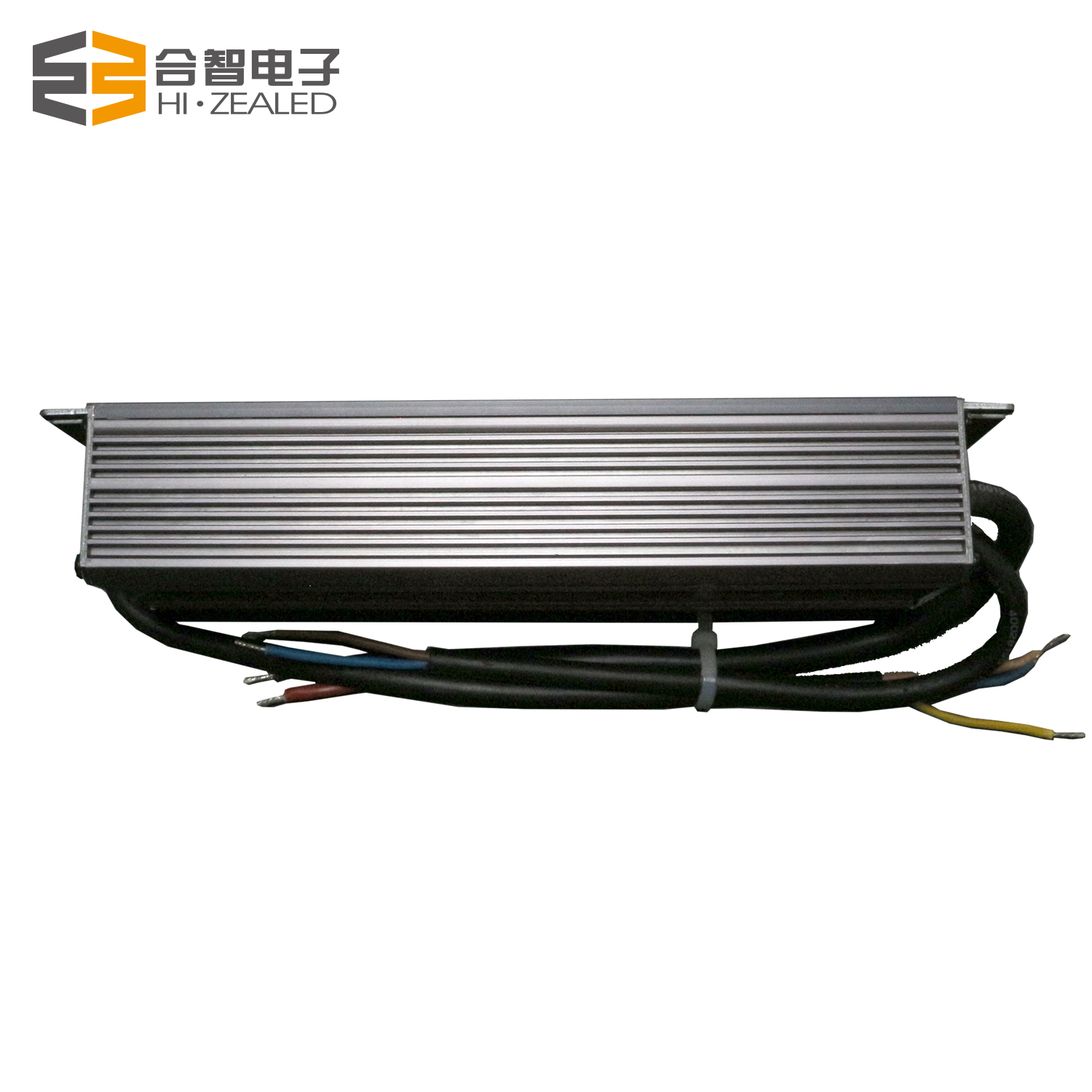

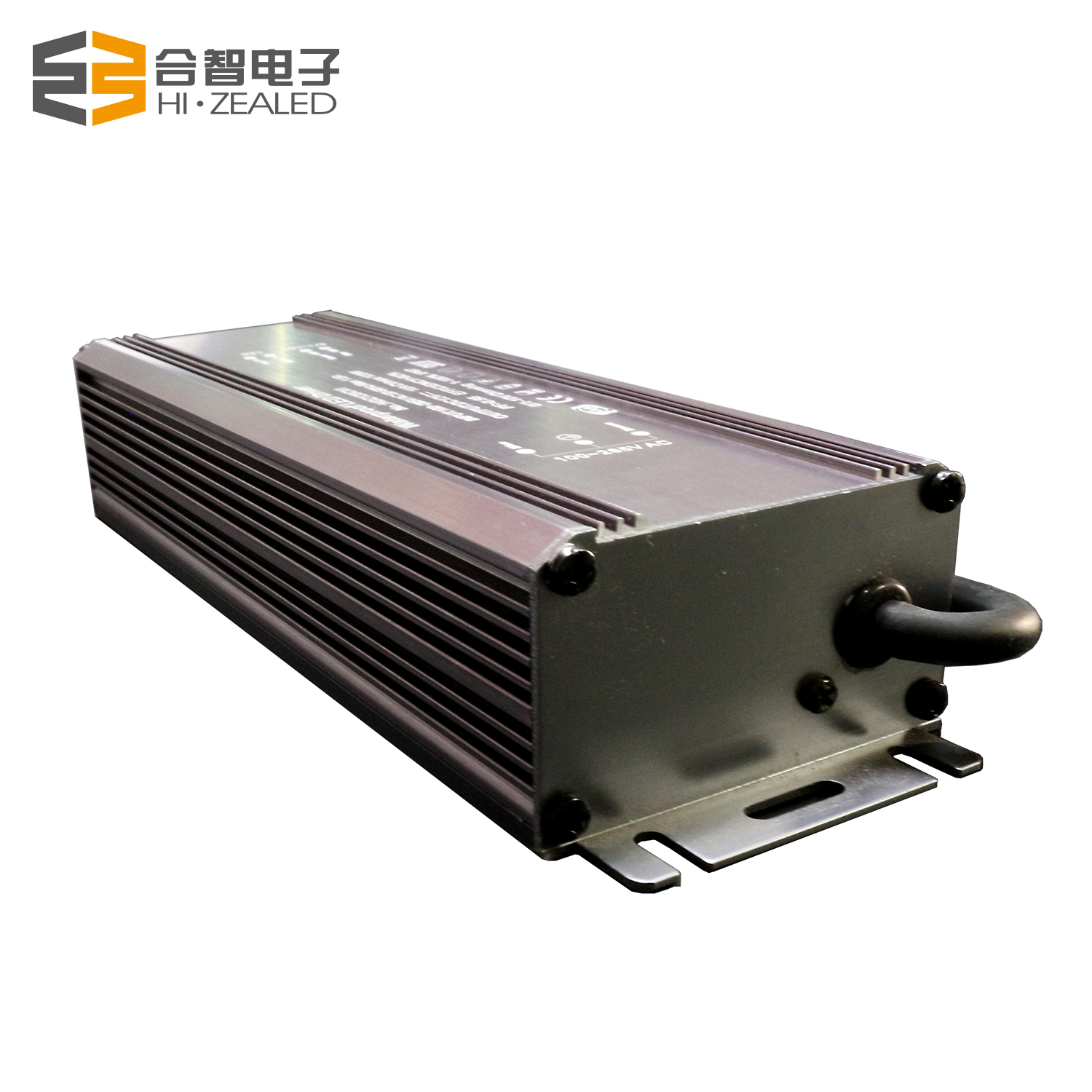

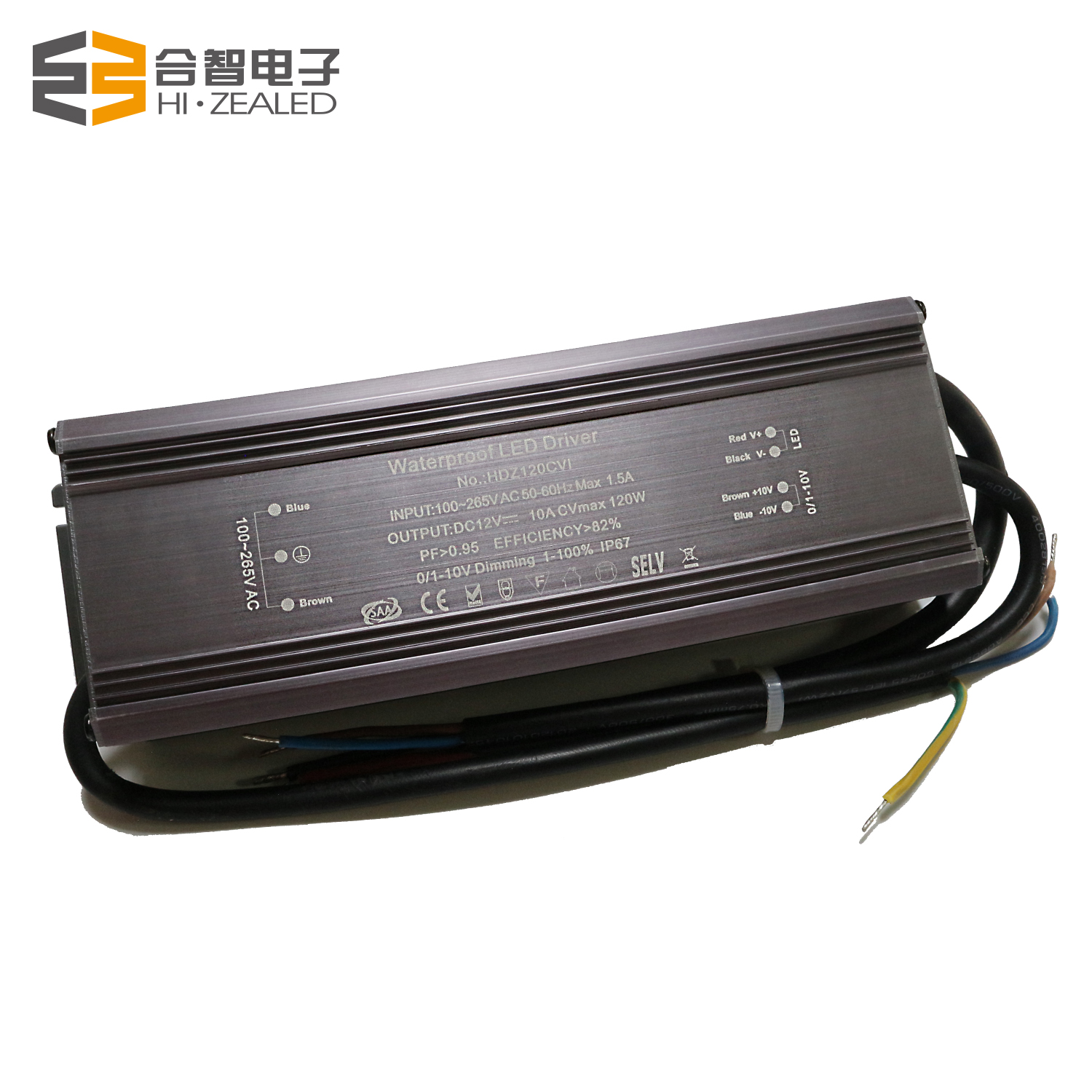

0-10V Dimmable LED Power Supply
Production Lead Time:
15 day(s)
Model No.:
HZD120CVI
Brand:
Hi-zealed
Size:
250 x 72 x 42mm
Port:
Shenzhen
Type of Payment:
T/T,Western Union,PayPal
Power:
High Power
Certification:
CE, EMC, FCC, LVD, RoHS , SAA
Warranty:
5 years
Output Voltage(V):
12 / 24
Input Voltage(V):
100 - 265
Output Signal:
0-10V
Description
Contact Supplier
Description
120W 0-10V Dimmable LED Power Supply Features:
Product Details:
- Wide Application: LED strip, machine, control system and other device
- IP67 waterproof for outdoor use available
- Extremely high PF0.95, power saving version
- Bipolar PFC design, no flicker
- 5 years warranty available
- Small orders possible
- OEM + ODM welcomed
Product Details:
- Model No.: HZD120CVI
- Power: 120W
- IP Grade : IP67
- Dimming Mode: 0-10V
- Warranty: 5 years
- Voltage (Input): 100 - 265V
- Voltage (Output): 12V / 24V DC
- Current(Output): 10A / 5A
- Frequency: 50 / 60Hz
- Efficiency: 80-86%
- Power Factor: 0.95
- Size(L x W x H): 250 x 72 x 42mm
- Application: Strip light,constant voltage control circuit/other device
- Protection: Short Circuit ;Over current ;Over termperature
