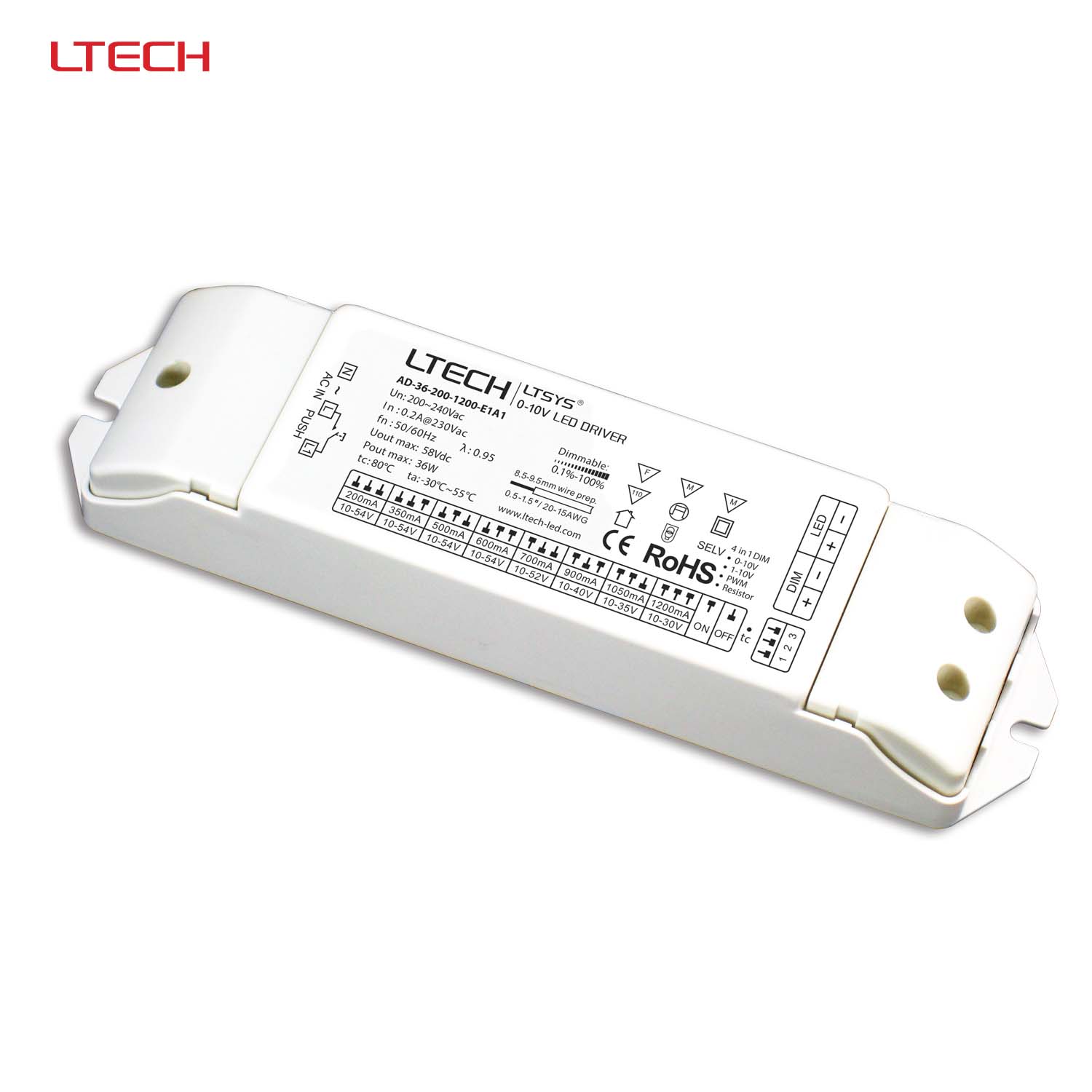

0-10V LED Intelligent Dimming Driver
Model No.:
AD-36-200-1200-E1A1
Brand:
LTECH
Certification:
CE, EMC, FCC, LVD, SAA
Warranty:
3 Years
Output Voltage(V):
10-54
Input Voltage(V):
100-277
Input Signal:
0-10V, 1-10V, 10V PWM, Push
Output Signal:
PWM
Description
Contact Supplier
Description
0-10V, 1-10V to PWM dimming driver which has solved the compatible problem of fluorescent dimming system. and LED illumination, LED lamps can be controlled by many traditional intelligent dimming system.
- Dimming interface: 0-10V, 1-10V, 10VPWM OR PUSH
- Dimming range: 0-100%
- LED Start-up Current0.1%
- Input voltage: 100-277VAC
- Efficiency: 0.95
- Current Accuracy: ±3%
- Output voltage: 10-54VDC
- CC output: 200mA-1200mA
- Output power: 2W-36W
- Working temperature: -30--55 degree centigrade
- Dimension: 175x44x30mm(LxWxH)
- Package Size: 178x48x33mm(LxWxH)
- Weight (G.W): 150g
