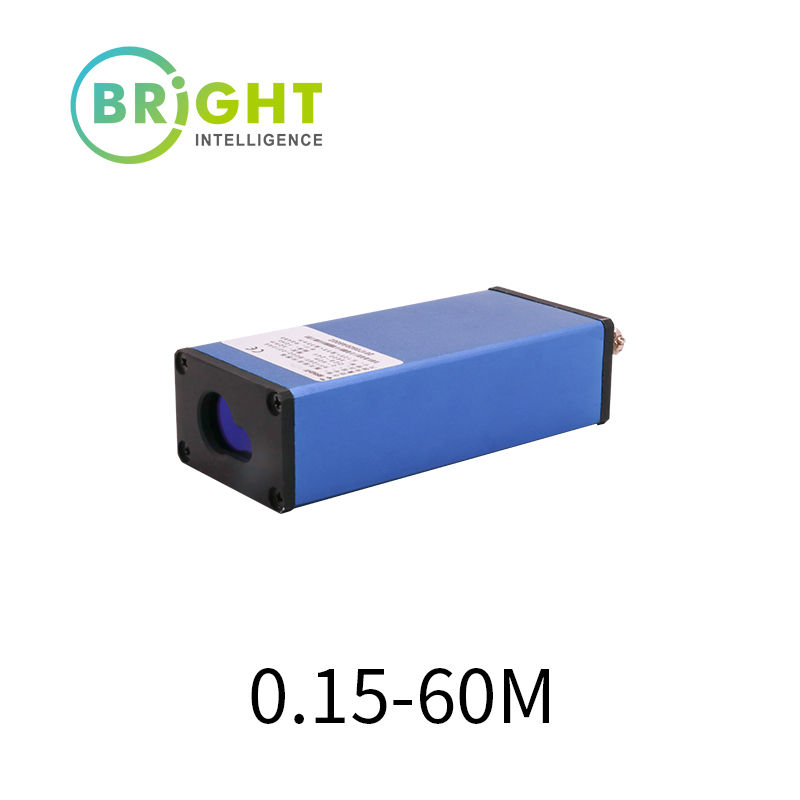

0.15-60m Laser Range Finder Sensor
Production Lead Time:
14 day(s)
Model No.:
RF1060-B002-0010A6
Brand:
Bright laser
Colour:
Blue
Size:
125 x 55 x 35
Customised:
Yes
Measuring Range:
0.15-60m
Description
Contact Supplier
Description
- Part number: RF1060-B002-0010A6
- Accuracy: ±1.0mm (<10m) ; ±2.0mm (>10m)
- Repeatable accuracy: ±1mm
- Resolution: 0.5mm
- Frequency: 10Hz(optional)
- Range: White subject indoor:0.15-60m(optional)
- Wavelength: 650nm
- Laser Class: Class1
- Beam angle: <1 mrad
- Baud: -
- Data interface: RS232/RS485/TTL/4-20mA Optical fiber interface
- Operating temperature: -30～+60℃
- Storage temperature: -40～+70℃
- Water and dust proof: IP67
- Can material: Al alloy (blue)
- Dimensions: 125*55*35 mm
- Installation dimensions: 4-M3*H5 mm
- Weight: 500g
- Power consumption: <1W
- Voltage: DC9-24V
