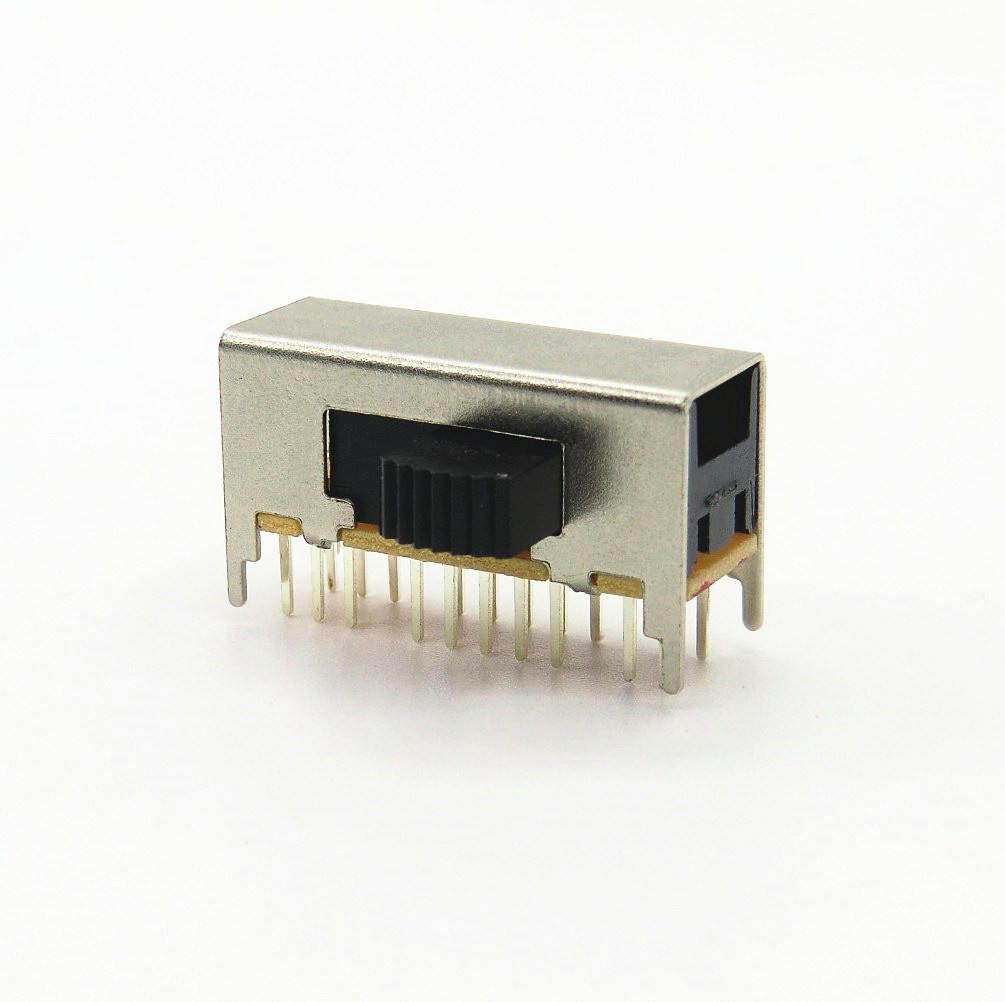

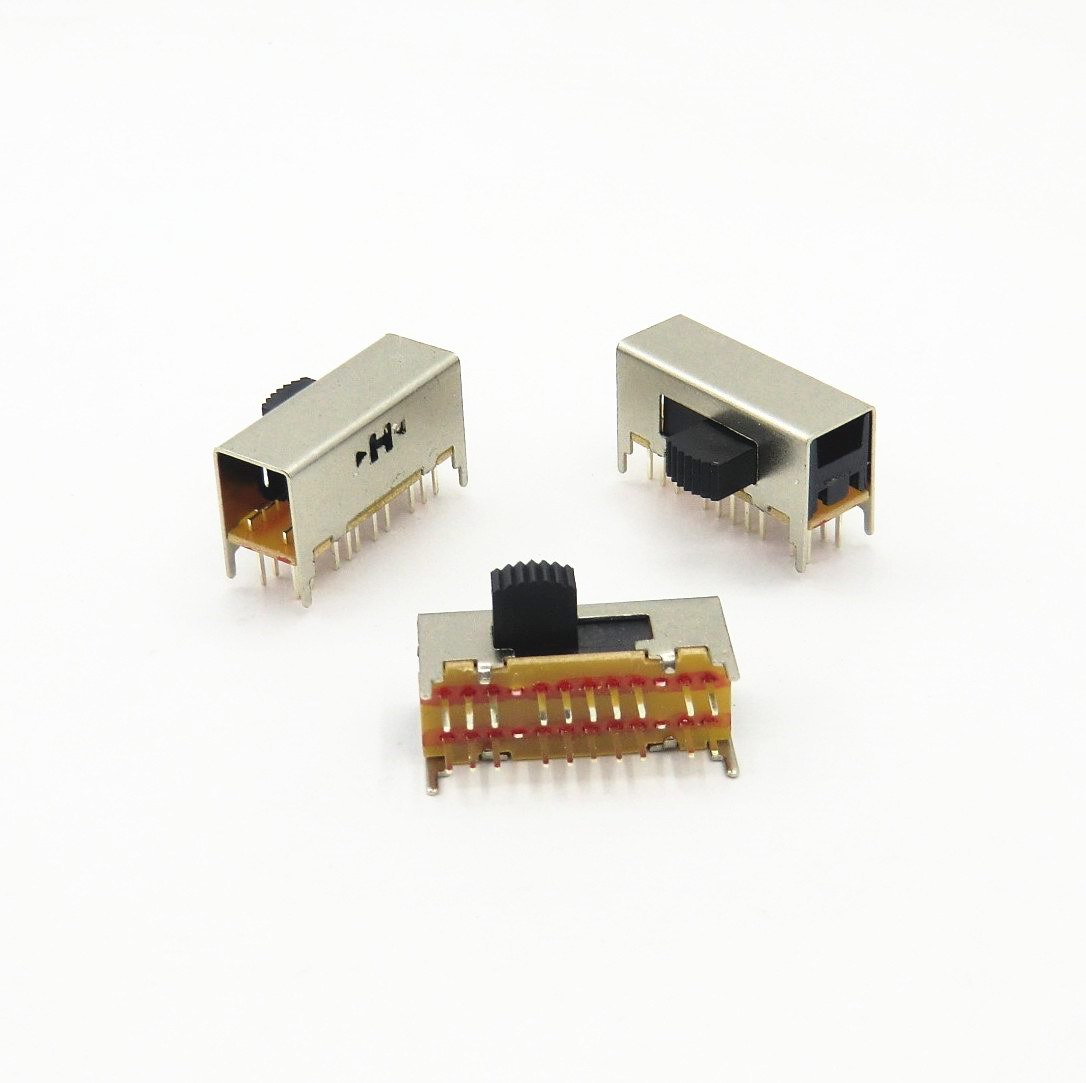

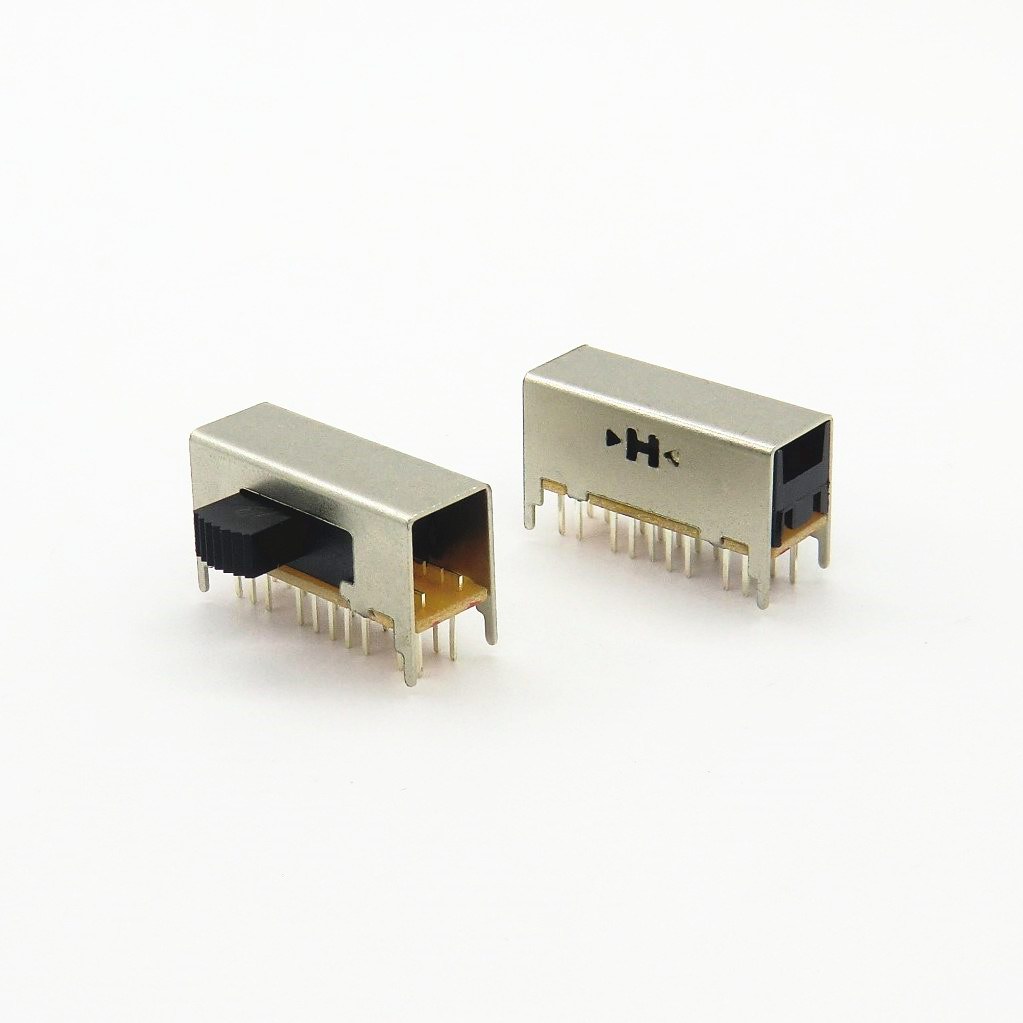

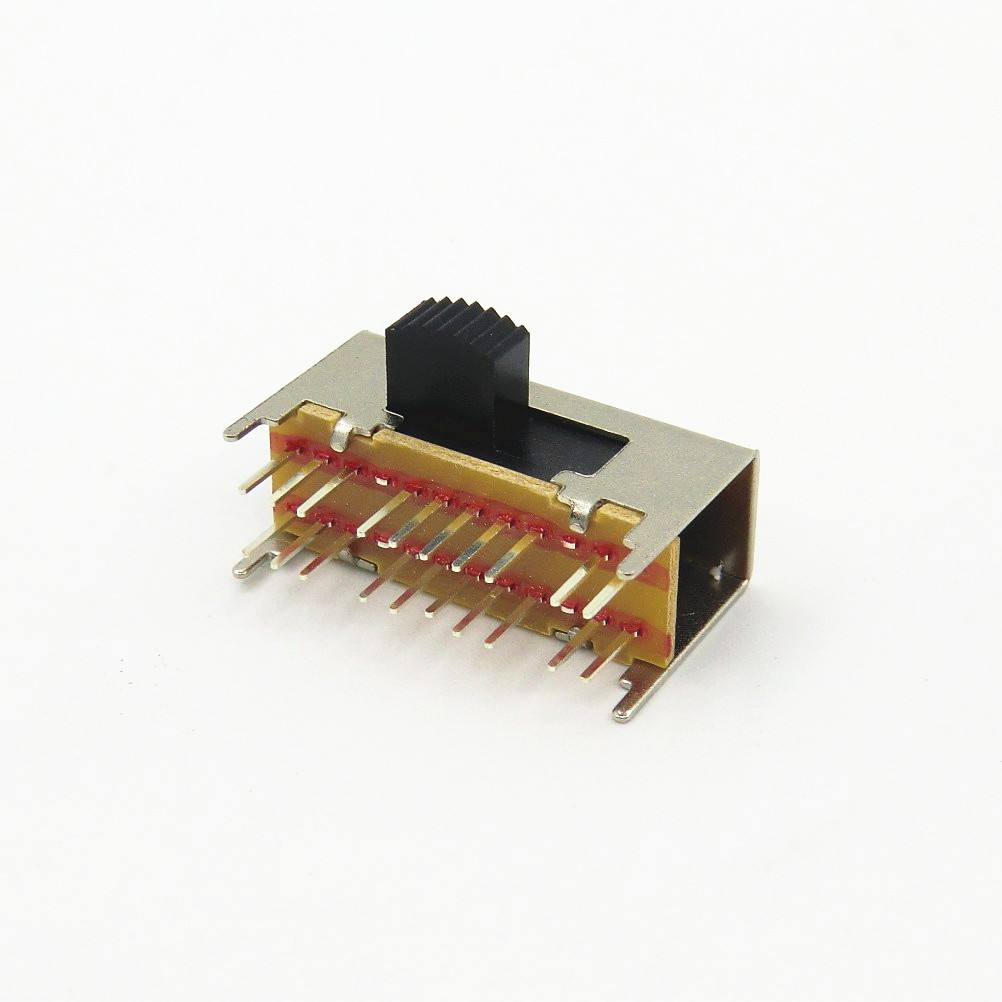

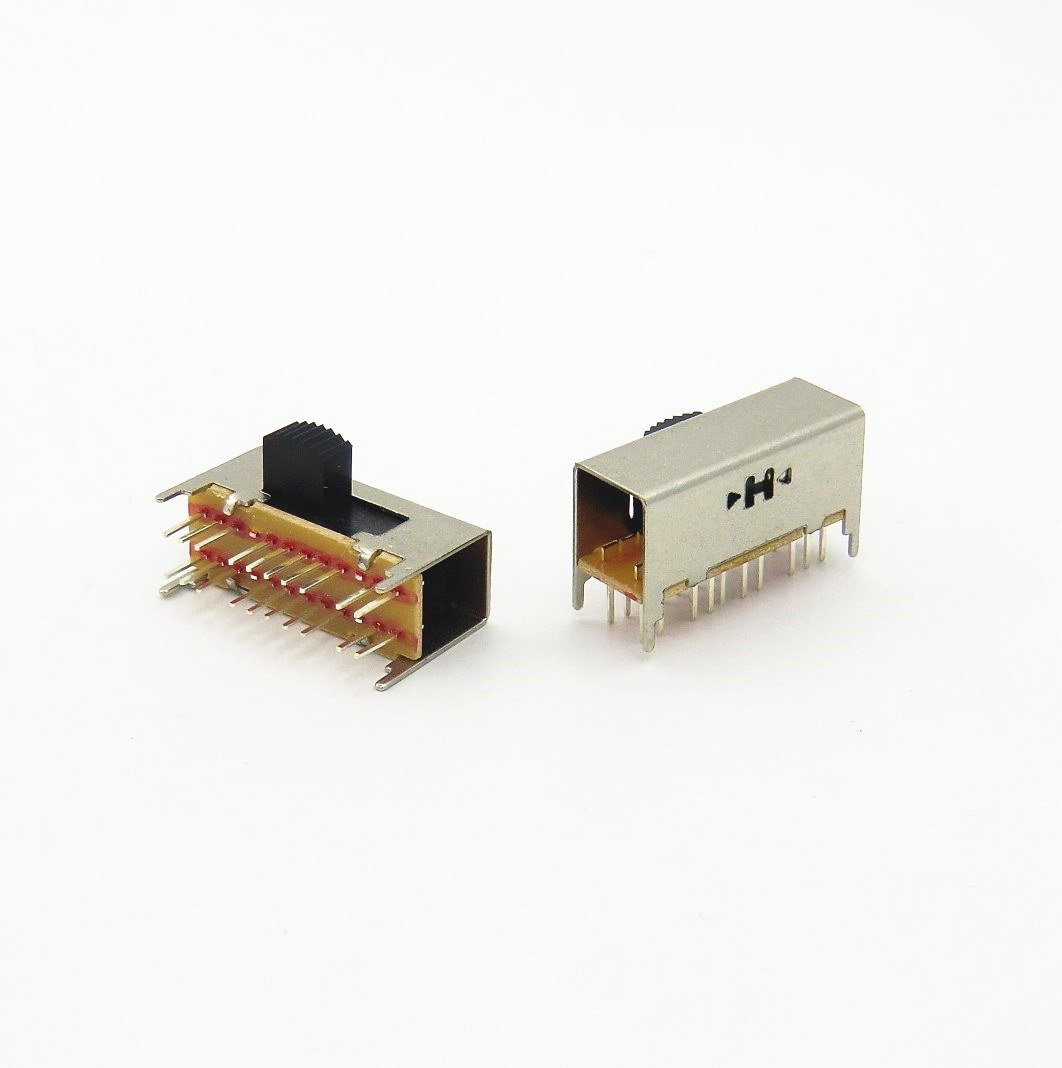

0.3A 50VDC Slide Switch

US $0.05 - US $0.06

Production Lead Time:

15 day(s)

Shipping Method:

EXW

Application:

Power tool,Communication equipment,Medical device industry,The electronic toy industry

Brand:

Model No.:

SK44D04

Customised:

Yes

Size:

26.0*9.3*12.0

港口:

Shenzhen or HK

付款方式:

T/T

最小订单量:

10k Piece(s)

Description

Contact Supplier

ITEM	PERFORMANCE
Title	HORIZONTAL SLIDE SWITCH
Model	SK44D04
Rating	0.3A 50V DC
Function	4P4T
Timing	Shorting
ContactResistance(mohms)	30mΩ max
Insulation Resistanc(Mohms)	100MΩ min at 500V DC
Dielectric Strength(V)	AC 500V for 1 min
LifeTest	10000 Cycles
