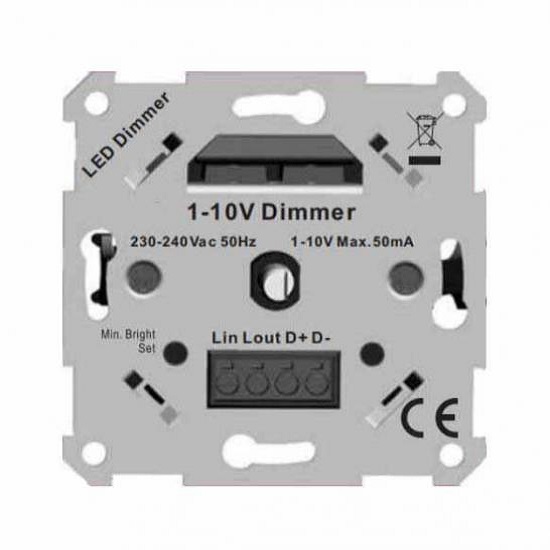

1-10V LED dimmer Features:

1. Standard 1-10V passive dimming controller without power supply.

2. The dimming range is 5-100%.

3. No neutral wiring, 2 wires.

4. Overheating protection, automatic overload protection and short-circuit protection.

5. Dimmer control: rotary.

6. Control type: push.

7. Flush mounting.

Technical Data:

1. Maximum switching load power: 110V 1000W, 220V 2000W

2. High current switch: 10A for reliable shutdown (complete turn off)

3. Effective dimming signal current: ≤ 50mA

4. Adjust voltage: 0.5-10V

5. Dimming range: 5-100% stepless dimming, no stroboscopic

6. Minimum brightness preset range: 5%-50%

7. 100% compatible with drives with standard 0/1-10V dimming signal on the market

8. Standard EU type panel, size 84*84mm

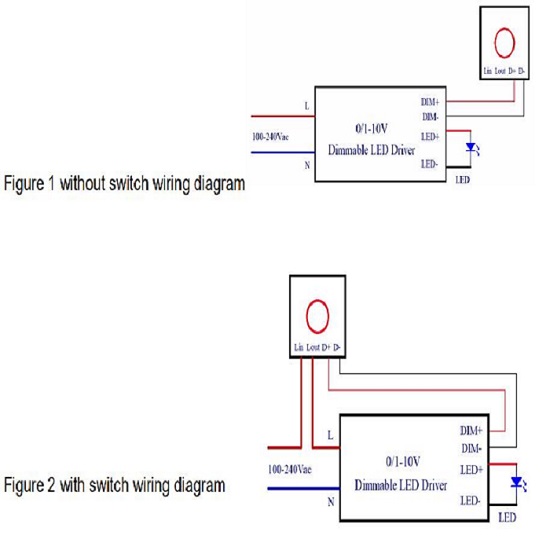

Wiring Diagram:
