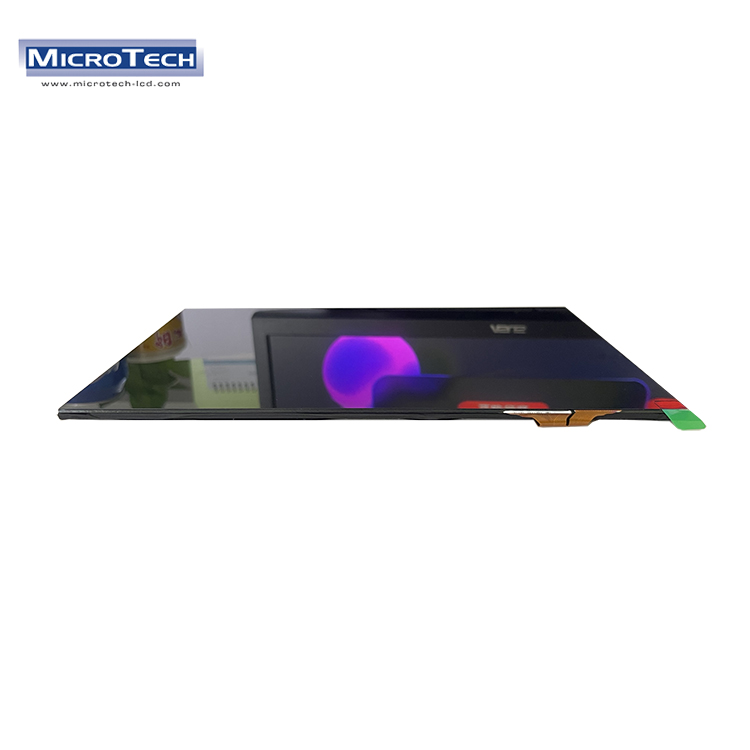

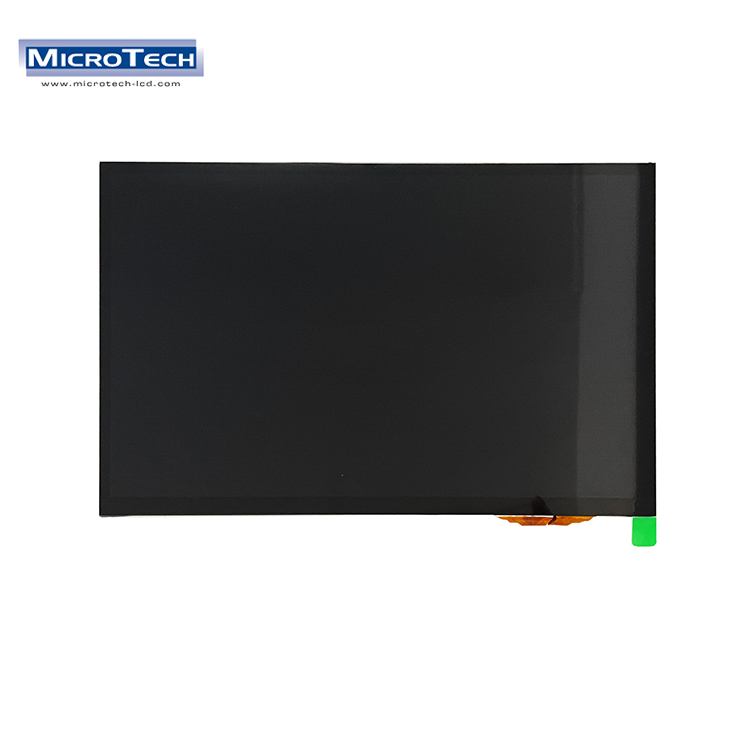

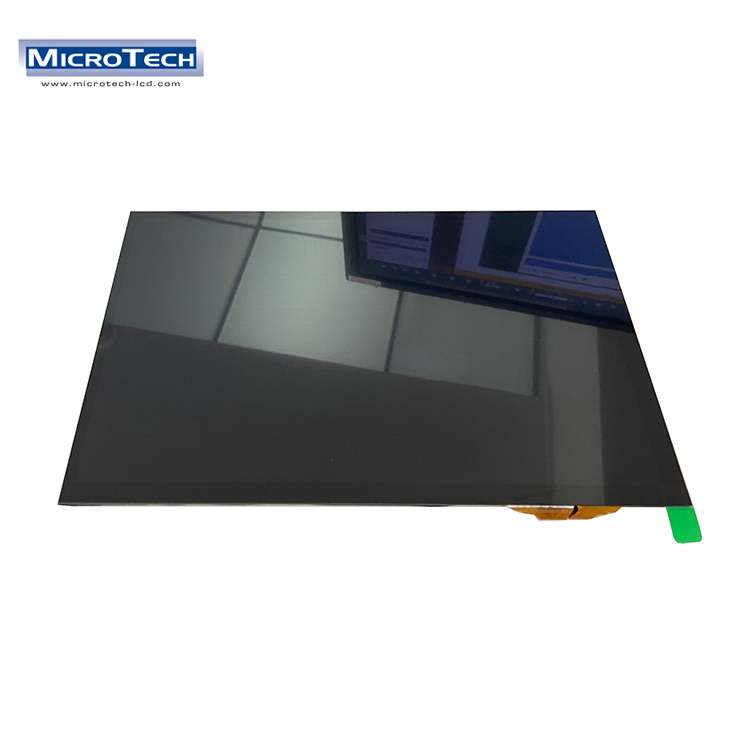

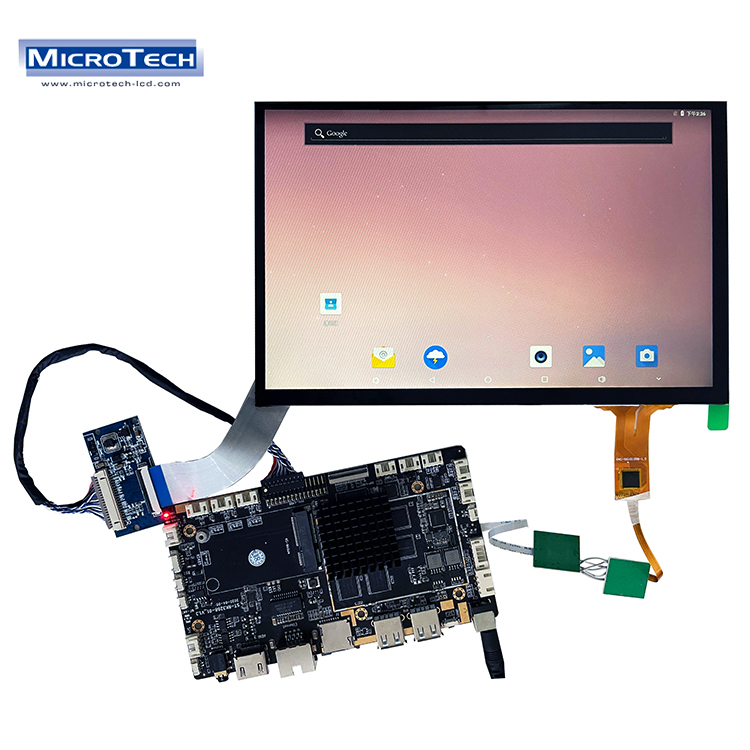

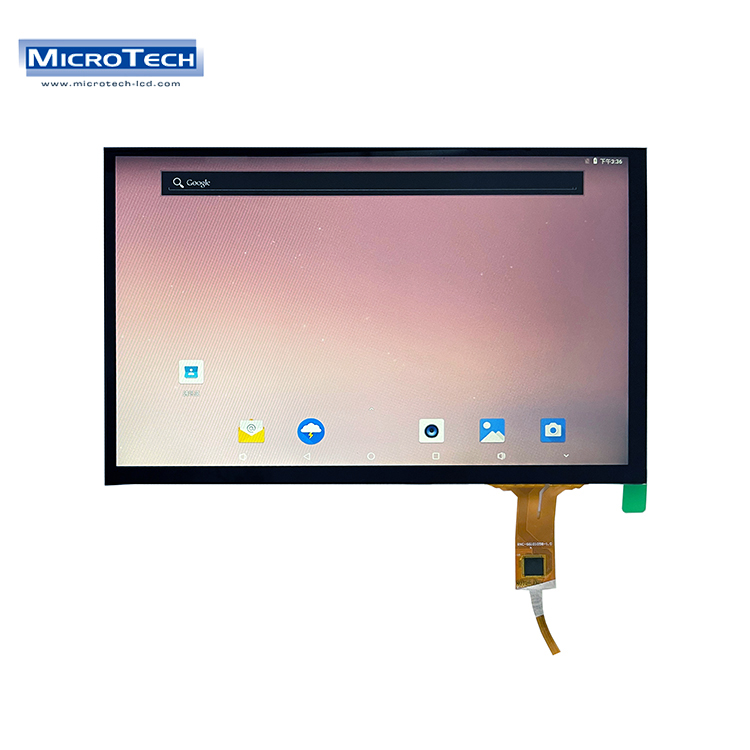

10.1"TFT LCD touch screen 1280*800 and android system 4K main board assembly PCB Board with LVDS/EDP control board
US $30.00 - US $500.00
Production Lead Time:
25-45 day(s)
Shipping Method:
Support Express · Sea freight · Land freight · Air freight
Brand:
Microtech
Model No.:
MTF101IA-01B
Customised:
Yes
Size:
10.1inch
Description
Contact Supplier
Description
No. | Item | Specification | Remark |
1 | LCD size | 10.1 inch(Diagonal) | |
2 | Driver element | a-Si I FI active matrix | |
3 | Resolution | 1280 x 800 | |
4 | Display mode | Normally Black, Transmissive | |
5 | Dot pitch | 0.0565(W) x 0.1695(H) mm | |
6 | Active area | 216.96(W) x 135.60(H) mm | |
7 | Panel size | 229.26(W) x148.9(H) x2.5(D) mm | Note 1 |
8 | Surface treatment | HC | |
9 | Color arrangement | RGB-stripe | |
10 | Interface | LVDS | |
11 | View direction(Gray Inversion) | free | |
12 | Panel power consumption | 0.7W (Typ) | Note 2 |
13 | Weight | 80g(Typ) | |
14 | Brightness | 350 cd/m2 |
Note 1: Refer to Mechanical Drawing.
Note 2: Including T-con Board power consumption
| Network | Ethernet 10/100/1000Mbps |
| 2.4G Wi-Fi,802.11b/g/n (5G Wi-Fi is optional) | |
| Bluetooth 4.0 | |
| Display | 1*eDP port (eDP1.3,4lanes with 2.7Gbps), 5V/12V power simply 1*LVDS port (Signal/Dual channel,6 bit/8 bit),7"-108"LCD up to 1080P 60Hz .support 3.3V/5V/12V power supply 1*HDMI 2.0 support 4K 60Hz output |
| Support for dual-screen display | |
| Integrated Backlight control | 12V LCD backlight power supply |
| Display Rotate | Support 0/90/180/270 degree rotation |
| Audio | 1*Speaker output (2*6W4R THD<10%) 1* 3.5mm earphone socket (with MIC input) 1*MIC input |
| Touch panel | I2C or USB capacitive touch screen |
| Camera | Support 8Mega pixel-USB camera |
| RTC | Build-in RTC battery, support timing power on/off |
| USB | 4*USB-2.0 HOST, 1*USB-OTG (Default is HOST, user can choose the function in |
| system-settings-security) | |
| IR remote | 1*IR remote socket |
| LED | 1*Red LED(Power indicate) 1*Blue LED(system status) |
| Keys | 1*Rest, 1*power kev.1*unarade |
| Serial ports | 2*RS232,1*UART TTL |
| GPIO | 6*GPIO |
| SPI | 1*SPI Dort |
| Power input | DC12Vwith 5.5mm DC plug 2A-5A Warning :surge voltage less than 18V, ripple voltage less than 100mV |
| OS | Android 6.0 |
| Audio Decode | MP3,WMA,WAV,APE, FLAC, AAC, OGG,M4A,3GPP etc. |
| Video Decode | 4K1 Obits H265/H264 VP8, MAV, WMV, AVS , H.263 , MPEG4 @1080P/2160P |
| Picture | Support JPG> BMP、PNG |
| language | Android multi-language |
| Input method | Android screen keyboard |
| Software features | Original Android system, support root |
| System crash self - recovery, 7*24 hours unattended | |
| Support Wi-Fi display | |
