10.1 inch LCD Display 1280*800 TFT LCD Screen with 1 Lane eDP 1.2 interface

US $55.00 - US $70.00

Production Lead Time:

25-45 day(s)

Shipping Method:

Support Express · Sea freight · Land freight · Air freight

Brand:

Microtech

Model No.:

MTF101WX33A-V1

Customised:

Yes

Size:

10.1inch

Description

Contact Supplier

10.1" MTF101WX33A-V1 is a color active matrix TFT LCD module using amorphous silicon TFT's (Thin Film Transistors) as an active switching devices. This module has a 10.07 inch diagonally measured active area with WXGA resolutions (1280 horizontal by 800 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this module can display 16.7M colors. The TFT-LCD panel used for this module is adapted for a low reflection and higher color type.

Parameter	Specification	Unit	Remarks
Active area	216.96(H) X135.60(V)	mm
Number of pixels	1280(H) x 800(V)	pixels
Pixel pitch	56.5(H) X169.5(V)	um
Pixel arrangement	Pixels RGB stripe arrangement
Display colors	16.7M(6bits + Hi-FRC)	colors
Display mode	Transmission mode. Normally Black

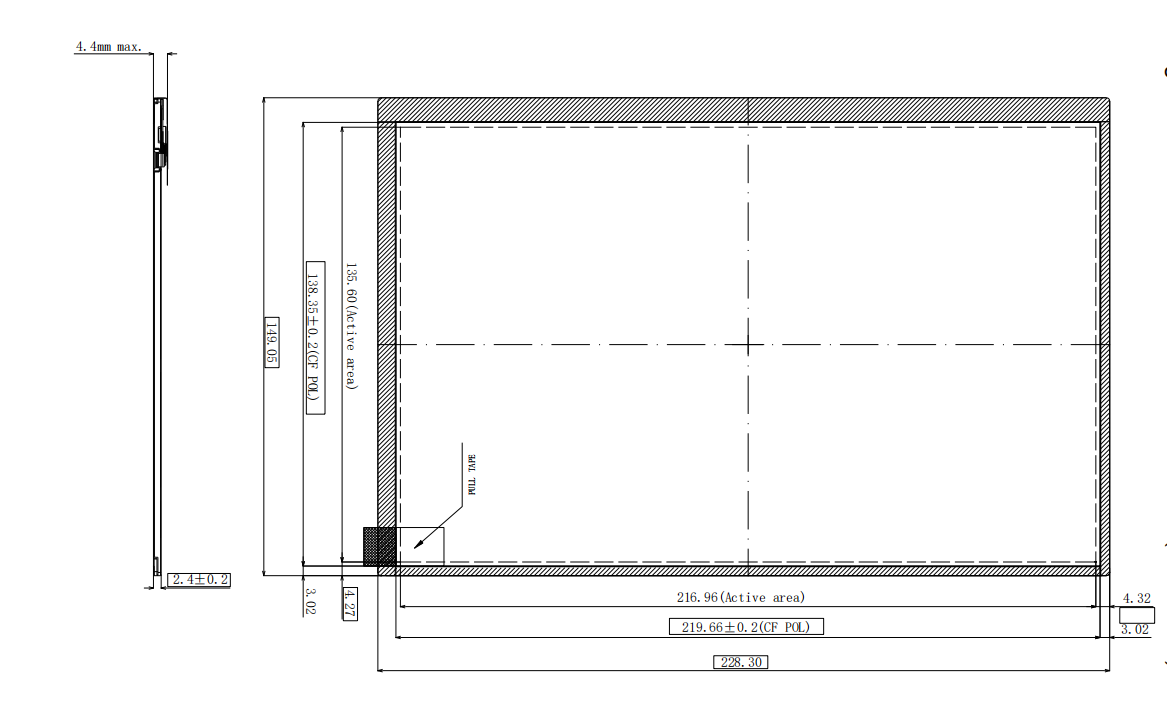

Outline Dimension	228.3X149.05 X2.4typ.	mm
Weight	155(max)	gram
Surface Treatment	HC Glare
Back-light	Bottom edge side, 1-LED Lighting Bar Type		36* LED Array
