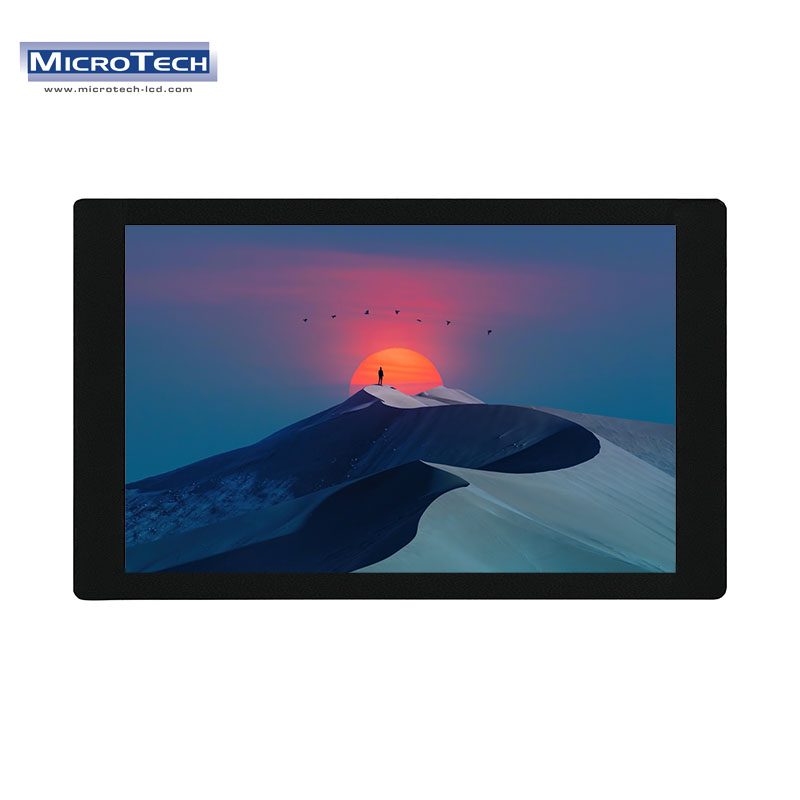

10.1inch 800*1280 TFT LCD touch Screen 250nits MIPI interface CTP LCD display

US $30.00 - US $60.00

Production Lead Time:

25-45 day(s)

Shipping Method:

Support Express·Sea freight·Land freight·Air freight

Brand:

Microtech

Model No.:

MTF101WX25A-V1

Customised:

Yes

Size:

10.1inch

Description

Contact Supplier

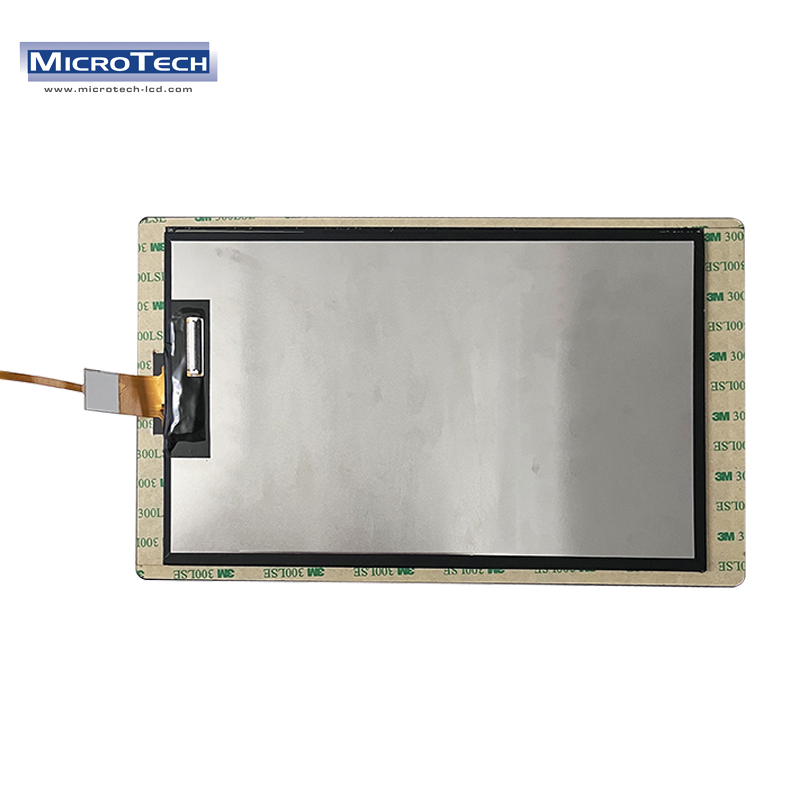

MTF101WX25A-V1 color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel and a driving circuit. This TFT LCD has a 10.1 (10:16) inch diagonally measured active display area with (800 horizontal by 1280 vertical pixel) resolution.

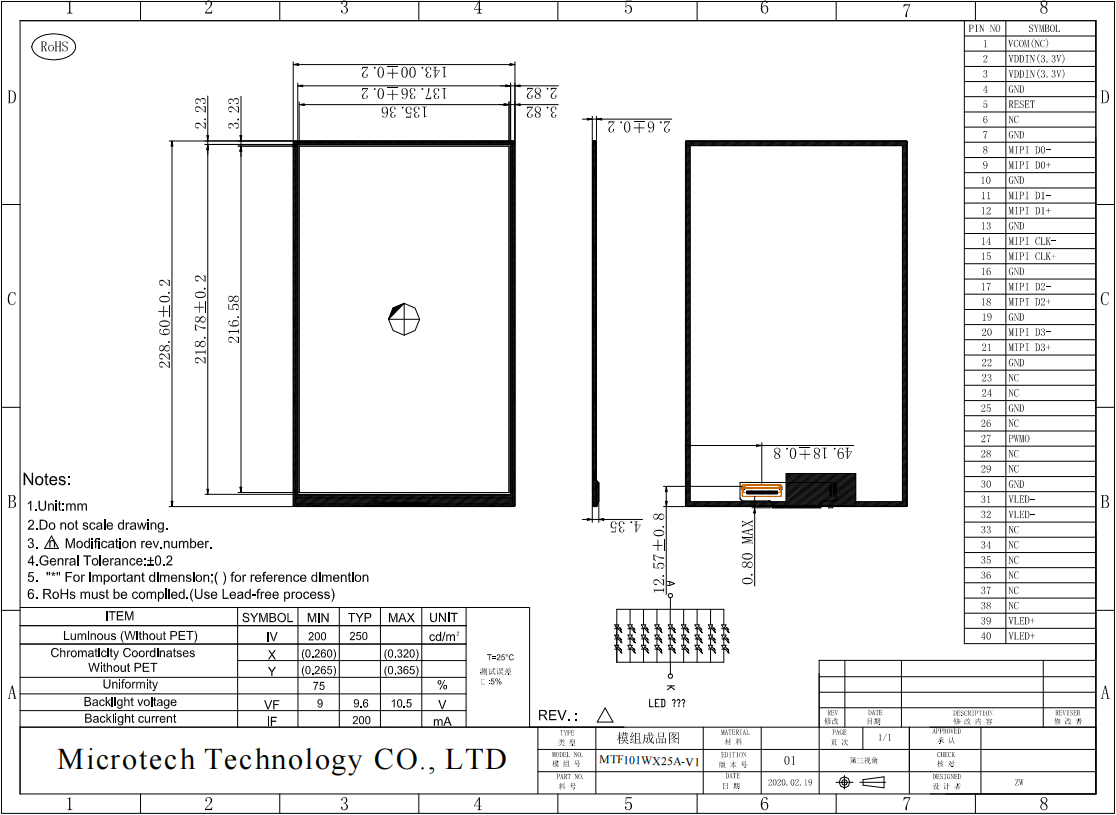

Item	Specification	Unit
Outline Dimension	143.0(H) x 228.6V) x2.60(D)	mm
Display area	135.36(H) x 216.58 (V)	mm
Number of Pixel	800(H) x3(RGB)x 1280 (V)	pixels
Pixel pitch	0.1175(H) x3(RGB)x 0.1088 (V)	mm
Pixel arrangement	RGB Vertical stripe
Display mode	IPS(Normal Black)
Color Filter Array	RGB vertical stripes
Luminous	TYP=250	nits
Weight	TBD	g
Interface	MIPI
