10 Meters Range PWAS Proximity Warning Alert System C57A

This product is a radar proximity warning system equipped with a

high-performance 77GHZ millimeter-wave sensor and digital Led display. This product

display the distance data of the reversing obstacle on the digital LED display, and

reminds the situation in time through the built-in buzzer of the Led display, so that the

driver can accurately grasp the reversing situation. This product will respond to

stationary or moving objects.

This product can detect longer distances and wider widths, especially suitable for

large trucks, forklifts, special vehicles, etc. It is a good helper for drivers.

Specifications:

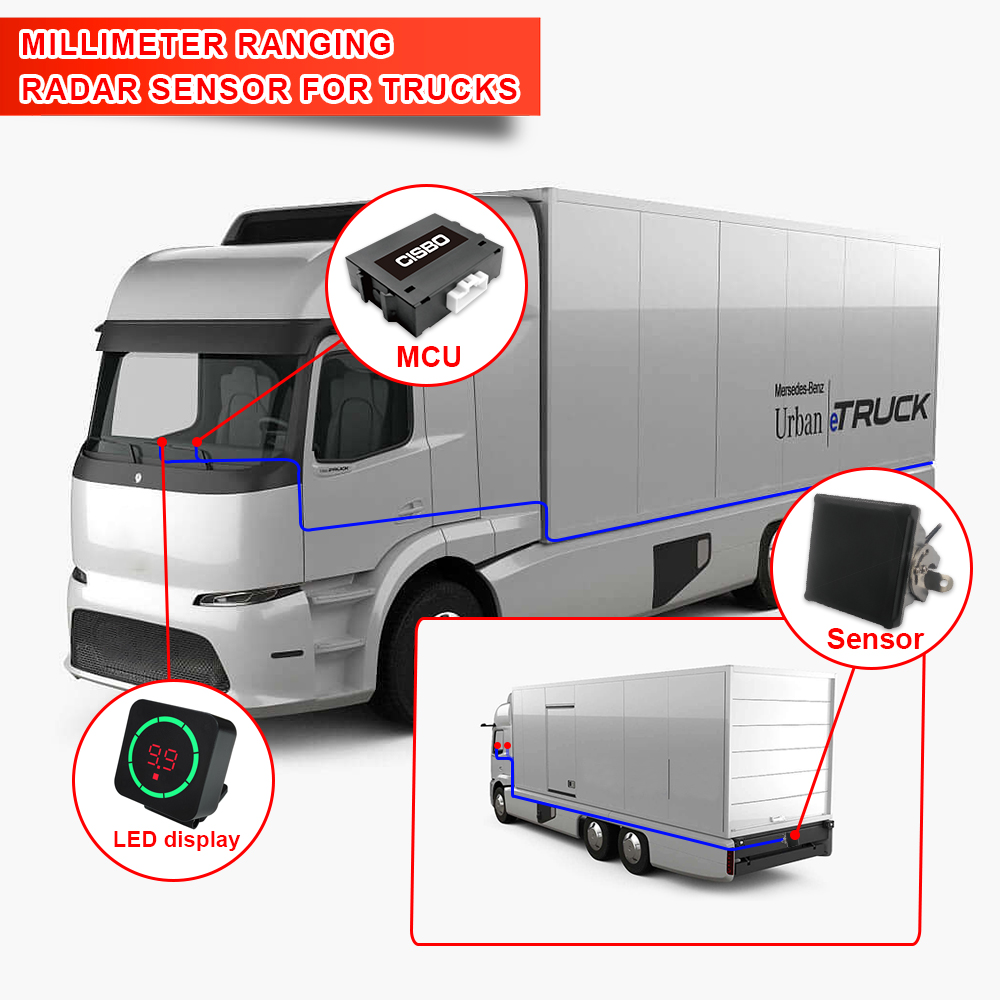

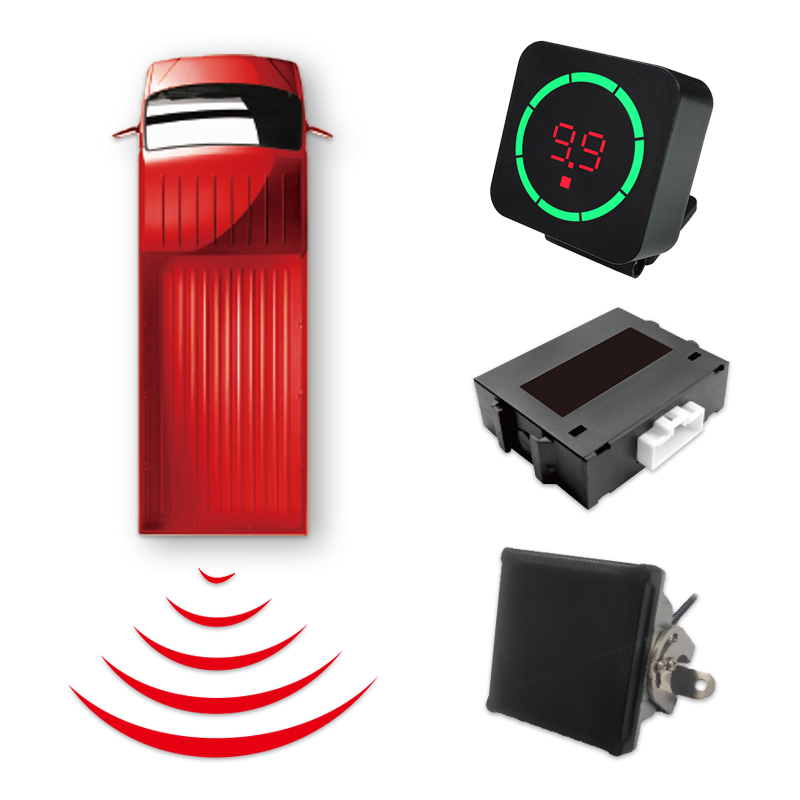

1, This system combine the 1 radar sensors, 1 LED display and 1 control box.

2, Wider detecting range is: length is 10 meter and width is 3 meter.

3, It will respond to stationary and moving objects.

4, Low power consumption, suitable for long-term power work.

5, All cable sockets have self-locking function. To avoid poor contact when the car

vibration.

6, High quality and easy to install

Technical Parameters:

1, Operating Voltage Range: DC 9V - 36V

2, Rated Current: ≤300mA

3, Detecting Distance: length: 10M for truck and 7m for human.

4 ,Radar Frequency: 77 GHz

5, Radar sensor horizontal Angle: ±60°

6. Radar sensor vertical Angle: ±10°

6，Sensor size: 86*67*25 mm

7.Working temperature: -40 - 85 °C

8. Waterproof: IP68

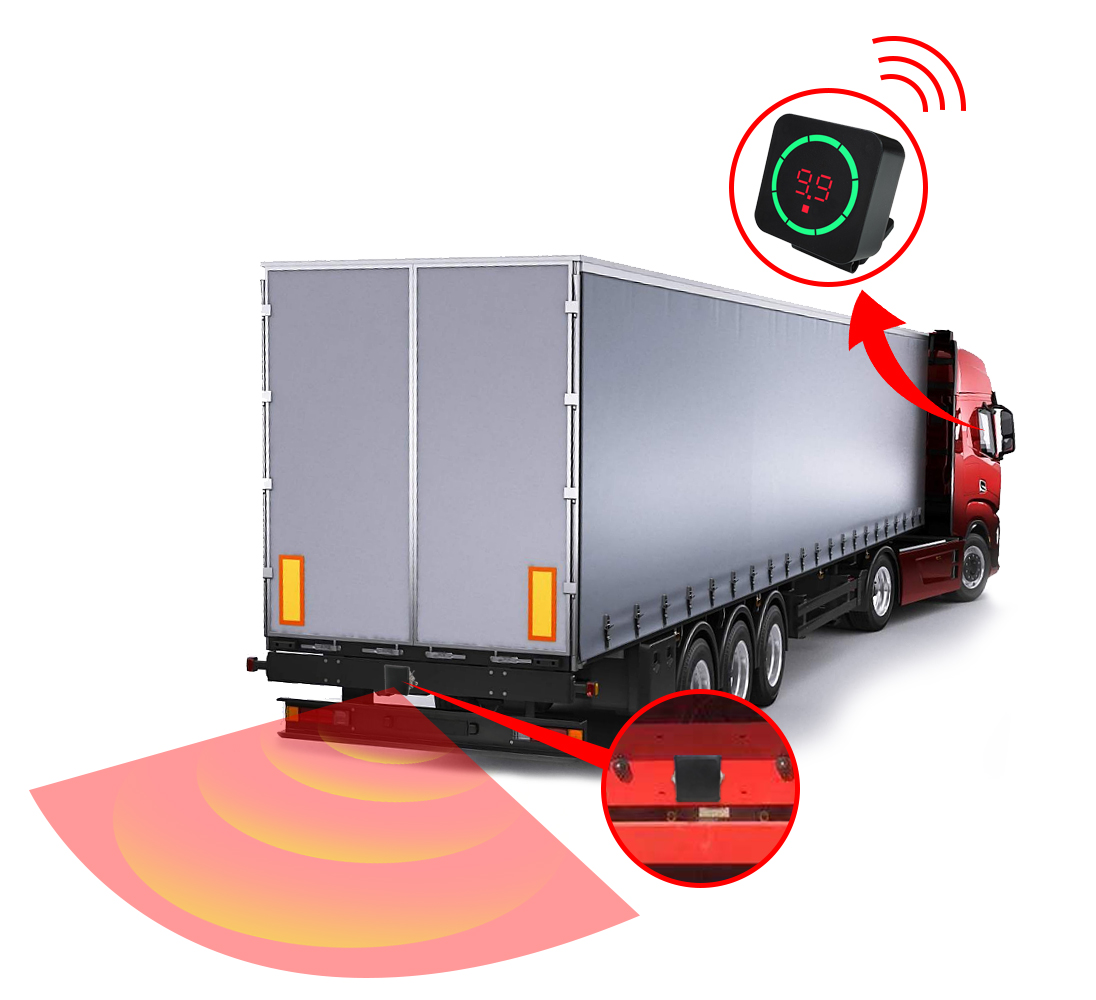

Installation diagram:

The sensor installation heigh is from ground 0.8 – 1.2 meter.

Mode :

Detail Function information:

When reversing, the detection range of obstacles is the maximum area of 3*10 m.
