100-277Vac Led Power Supply Plastic case 40w 1400mA DMX Dimmable Led Driver for Indoor

Output:

constant current

PFC design:

Built-in active PFC function

Efficiency:

Up to 81%

Protections:

Short circuit/ Over load/ Over temperature/Over voltage

Heat dissipation:

Cooling by free air convection

Waterproof performance:

IP20(EU); For dry and damp location(US)

Design features:

DMX signal-end isolation,Driver parameters can be adjusted by NFC APP.

Dimming function:

DMX dimming, RDM dimming, flicker free

Dimming range:

0.3%-100%

Description

Contact Supplier

Model		SMT-DI040W140-DMXP-T
Certificate		UL/FCC/CE /ClassP/Class2/TYPE HL/SELV/ RoHS / Reach/ENEC/ICES/UKCA
Output	Rated current	140mA-1400mA
	DC Voltage	12V-54V
	Rated power	40Wmax
	Voltage Tolerance	±30mA
	No-load voltage	60Vmax
	Line Regulation	<0.1%
	Load Regulation	<0.1%
Input	Voltage Range	100-277VAC
	Frequency Range	50/60Hz
	Power Factor @ full load	≥0.95
	THD(Typ.) @ full load	<10%
	Efficiency @ full load	>85.5%@120VAC 60Hz >86.5%@230VAC 50HZ >86.5%@277VAC 60HZ
	No load power (Max)	≤1.5W
	Standby power (max.)	<0.5W
	AC Current (Max.)	<0.56A
	Inrush Current (Typ.)	28.8A, 256us@50%Ipeak@120V 55.2A, 130us@50%Ipeak@230V
	Inrush Current (Typ.)	66.5A, 259us@50%Ipeak@277V
	Leakage current	<0.5mA
Protection	Short Circuit	Hiccup mode, restarts automatically after fault condition is removed
	Over load	Hiccup or Constant power mode, restarts automatically after fault condition is removed
	Over temperature	Ambient temp.Over 55 ± 5℃, output current will be reduced to 50%;
		Ambient temp.Over 45 ± 5℃, recovers automatically after temp. drops.
		Ambient temp.Over 75 ± 5℃, output current will be reduced to 0%;
		Ambient temp.Over 45 ± 5℃, recovers automatically after temp. drops.
Environment	Working TEMP	-40~+60℃ (see below derating curve)
	Working Humidity	20 -90%RH non-condensing
	Storage TEM.,Humidity	-40 - +80℃,10 - 95% RH
	TEMP.coefficient	±0.03%/℃(0 - 50℃)
	Vibration	10~500Hz, 2G 12min./1 cycle, period for 72min. each along X,Y,Z axes
Safety & EMC	Safety standards	EN61347-1 EN61347-2-13 (EU) & UL8750 (US)
	Withstand voltage	I/P-O/P:3.75KVAC (EU) & I/P-O/P:1.8KVAC (US)
	Isolation resistance	I/P-O/P:100MΩ / 500VDC / 25℃ / 70%RH
	EMC Emission	EN55015 EN61000-3-2,3(EU) & FCC Part 15 ,Subpart B; ANSI C63.4:2014 (US)
	EMC Immunity	IEC/EN61000-4-2,3,4,5,6,8,11; EN/EN61547(EU)
Power supply	Strobe test standard	IEEE 1789 Flicker free
	Strobe test standard	IEEE 1789 Flicker free
	lightning surge	Line to line:2KV
Others	Net Weight	0.32KG
	Dimension	324.734.824.1mm (LWH)
	Packing	3626327 50pcs /CTN
Notes	1. All parameters NOT specially mentioned are measured at rated load and 25℃of ambient temperature.
	2. To extend the driver's using life, please reduce the loading at lower input voltage .
	3. LED driver Meets the harmonic emissions requirements of ANSI C82.77-10.

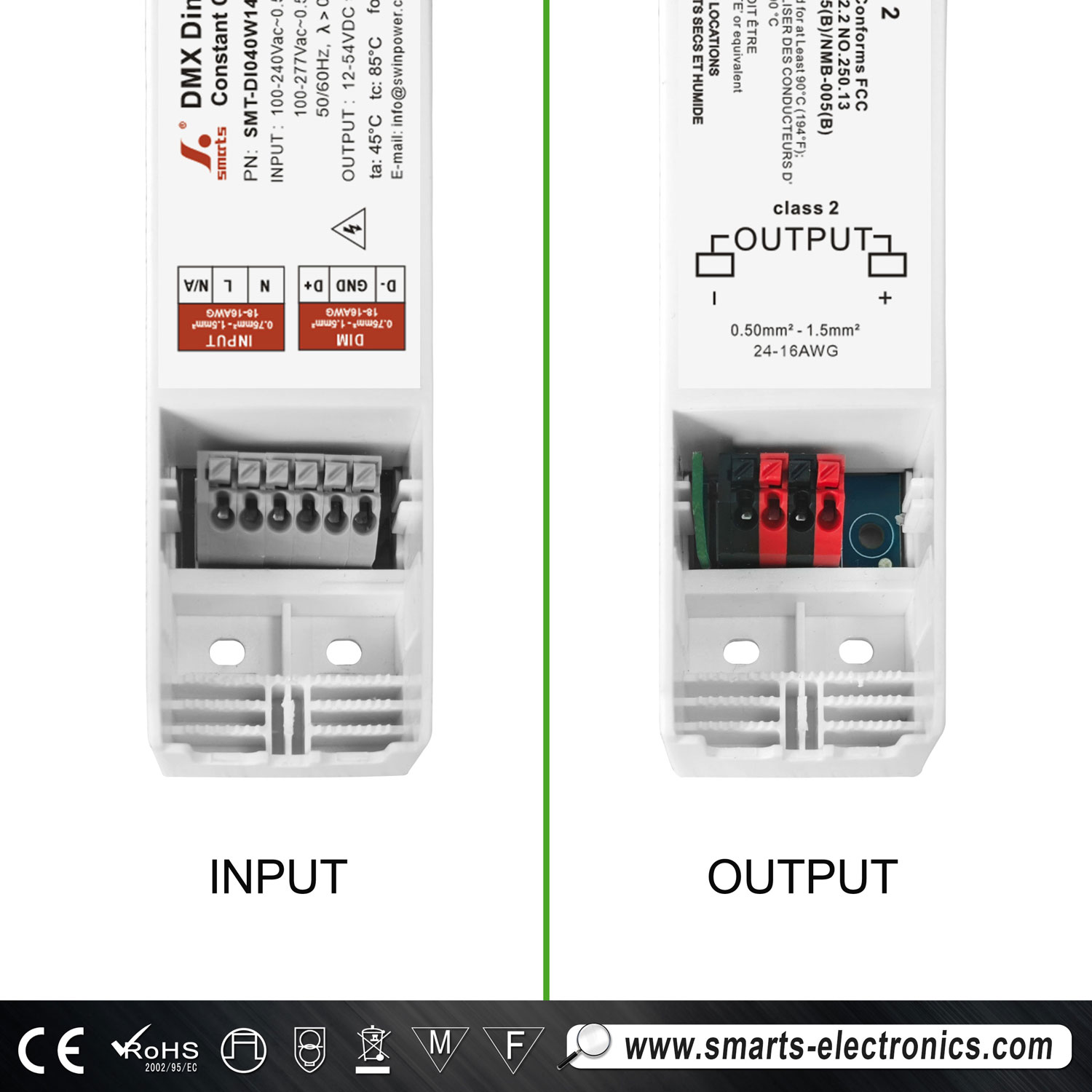

	4. Dimming electrical circuit:
	Notice: This control circuit is isolated,but didn't evaluate Class 2.
	Please refer to the installation manual to connect the dimmer.
	CAUTlON: More than one power supply present.
	ATTENTION: presence de plusieurs alimentations électriques.
