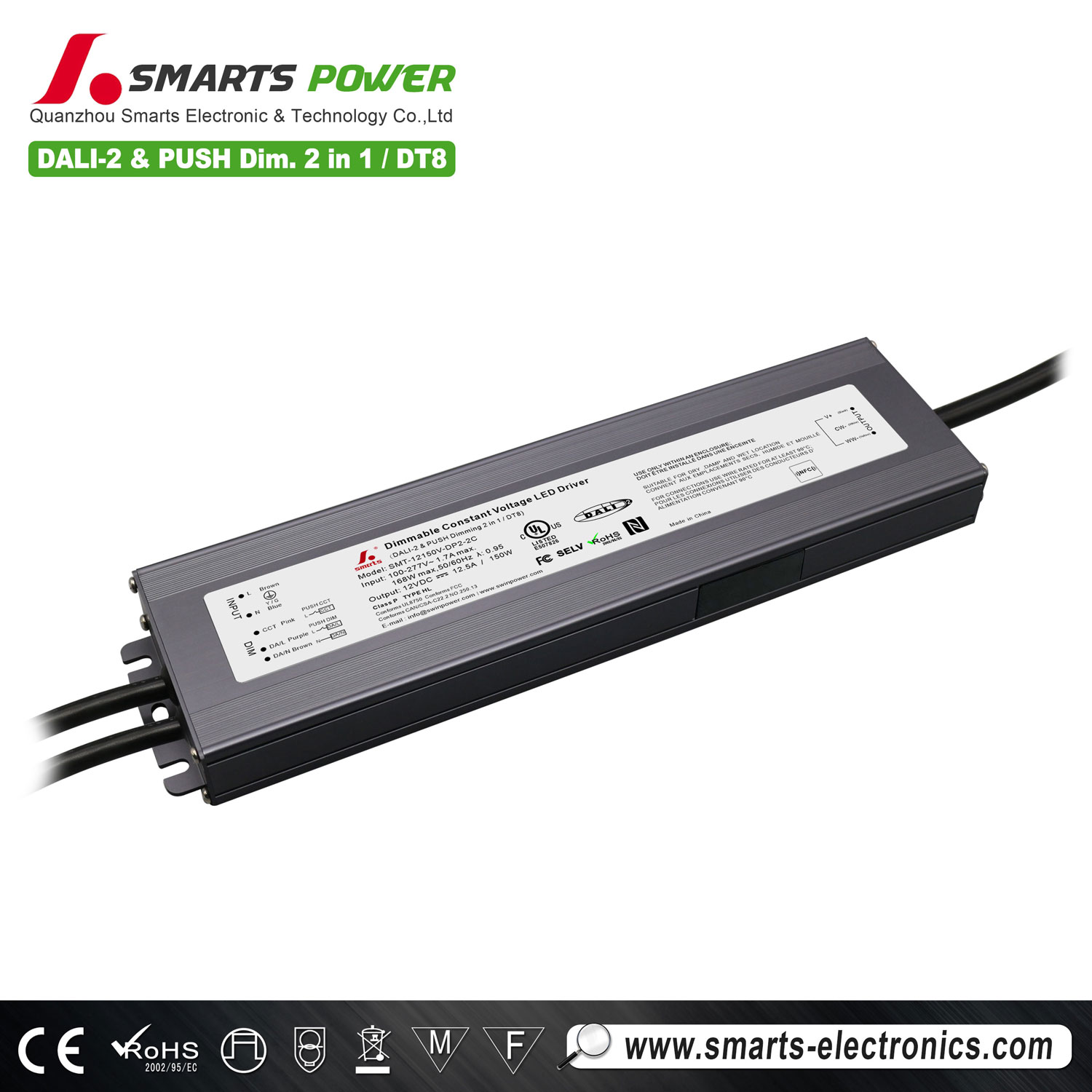

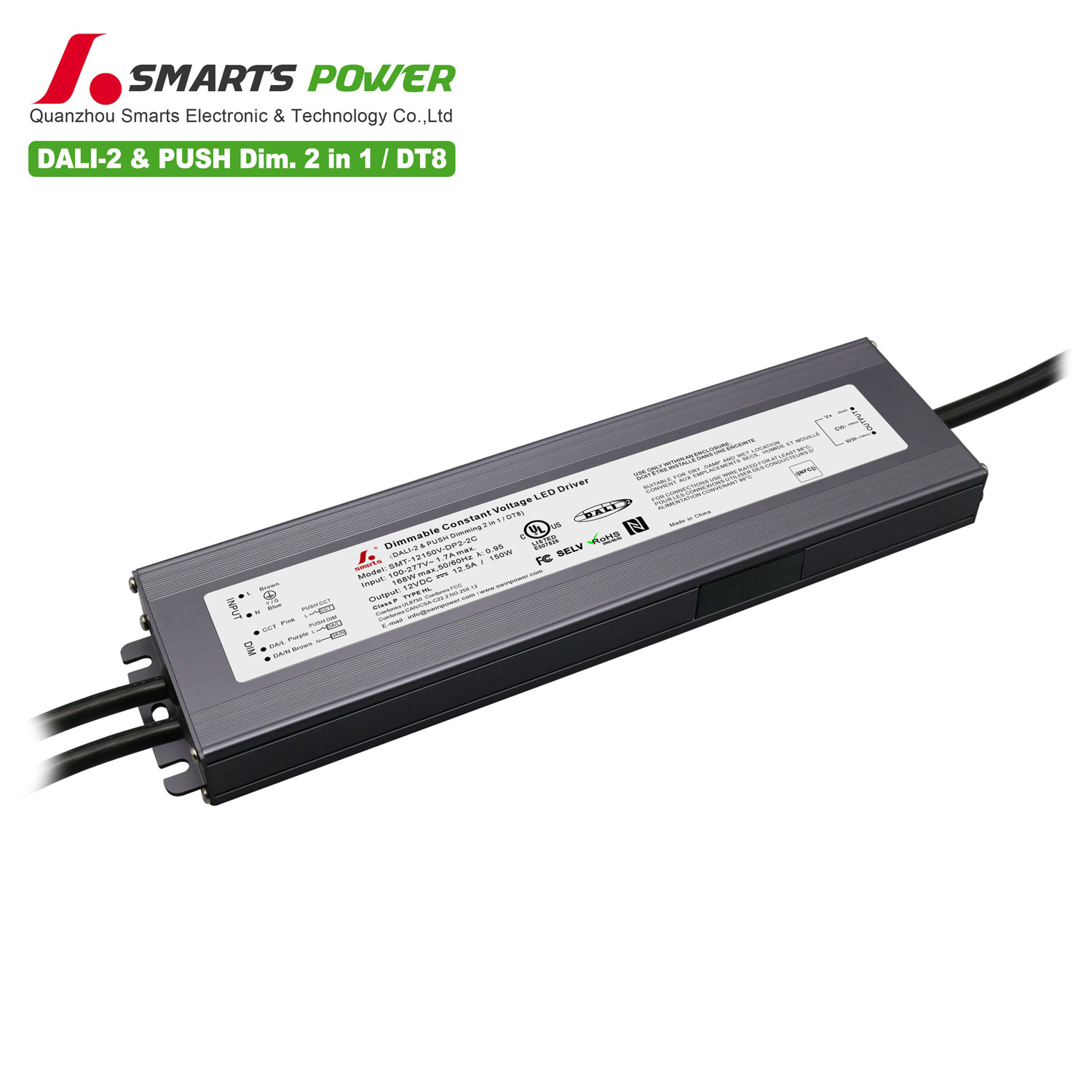

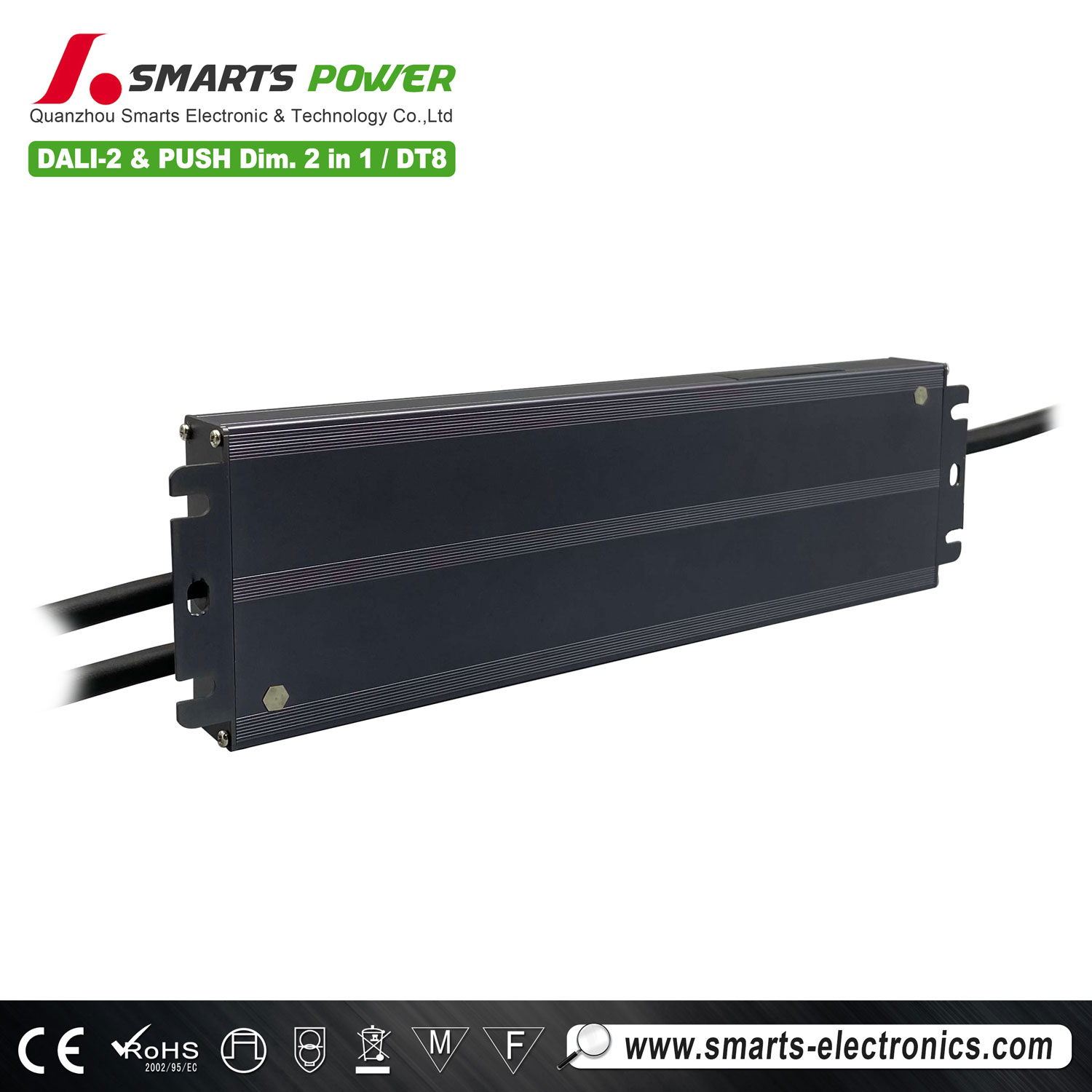

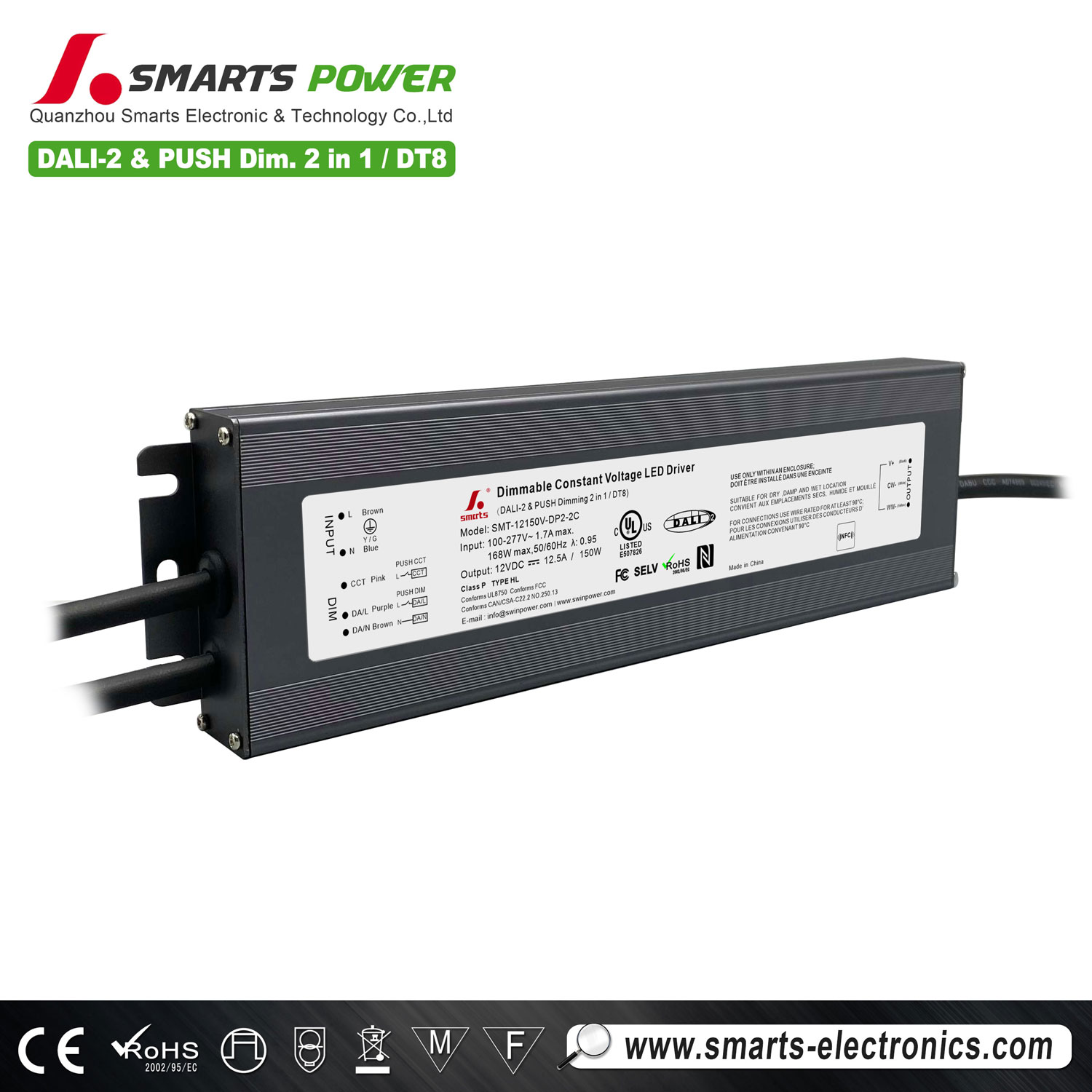

277vac dali-2 & push dimmable led driver Packaged in metal case with built-in NFC capability to set address code and adjust output voltage via application

Features

·Output constant Voltage (NFC regulation)

·Range: 100-277VAC

·Built-in active PFC function

·Efficiency up to 91%

·Standby power consumption≤0.5 W

·Protections: short circuit/ over load / over temperature

··Cooling by free air convection; IP67 for indoor & outdoor

·Dimming curve: Logarithmic (default) and Linear

·Dimming protocol: DALI Protocol IEC6    2386; PUSH-DIM

·NFC function to adjust output voltage and set address

·Dimming range: 0-100%, LED start at 0.1% possible

·Flicker-free, PWM output frequency, 4K Hz Stroboscopic exemption

·Suitable for intelligent LED lighting

※Input & Output wiring

※Input Rubber cable 3*1.0mm², the green/yellow cable connect with (FG) ,Brown with AC (L),Blue with AC(N) (EU);

Input SJOW Rubber cable 3*18AWG, the green cable connect with (FG) ,Black with AC (L), White with AC(N) (US);

※Output electronic cable 3*14AWG, to be connected to LED Light (12V output voltage);

  Output electronic cable 3*16AWG, to be connected to LED Light (24~48V output voltage)

※Dimming cable

※Dimming electronic cable 3*18AWG, Brown DA/N and Purple DA/L (No polar) connected to the DALI BUS when use DALI function.

Brown (N) is connected to AC (N) while Purple (L) and Gray (CCT Push )connected to CCT Push dim switch dimmer( L) when use Push function.

※Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged.

CCT (TW) dimming: electronic cable, Black is output ( V+) Positive, While (CW-) and Yellow (WW-) are output (V-) negative

Note:  there is external antenna at output side.  Don't disassemble!
