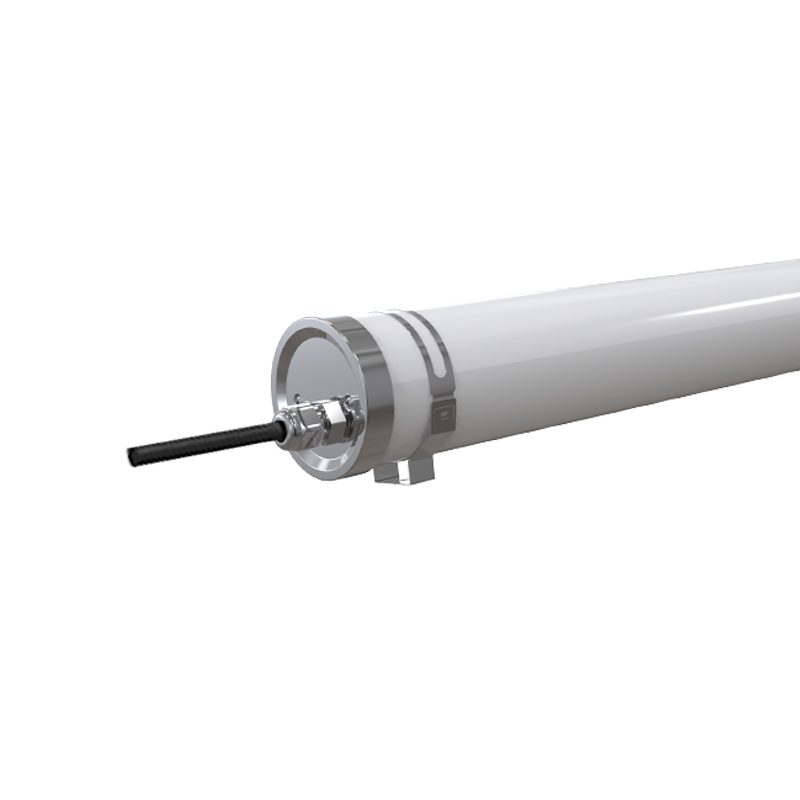

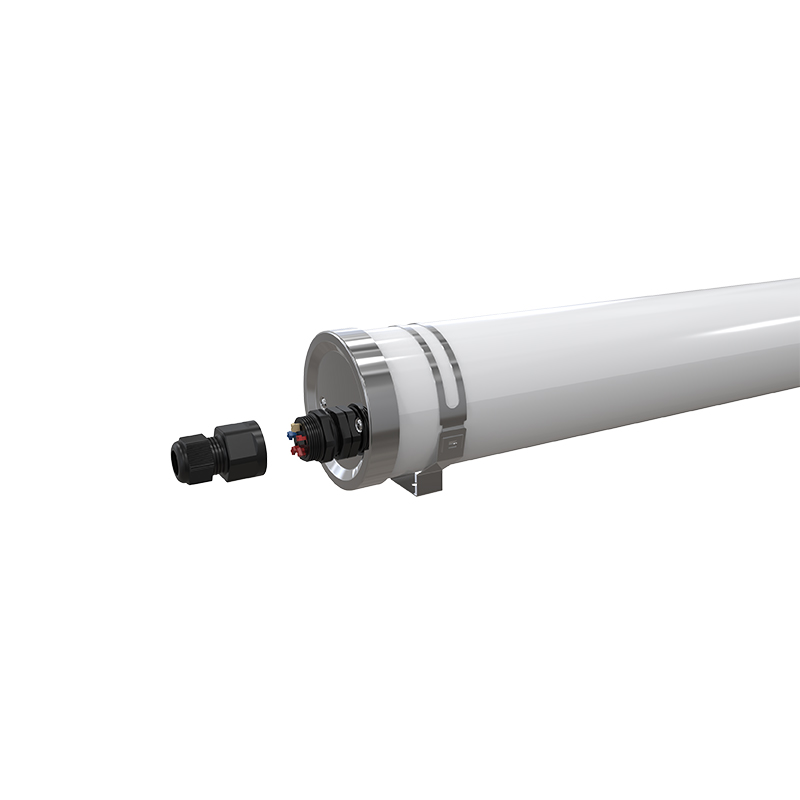

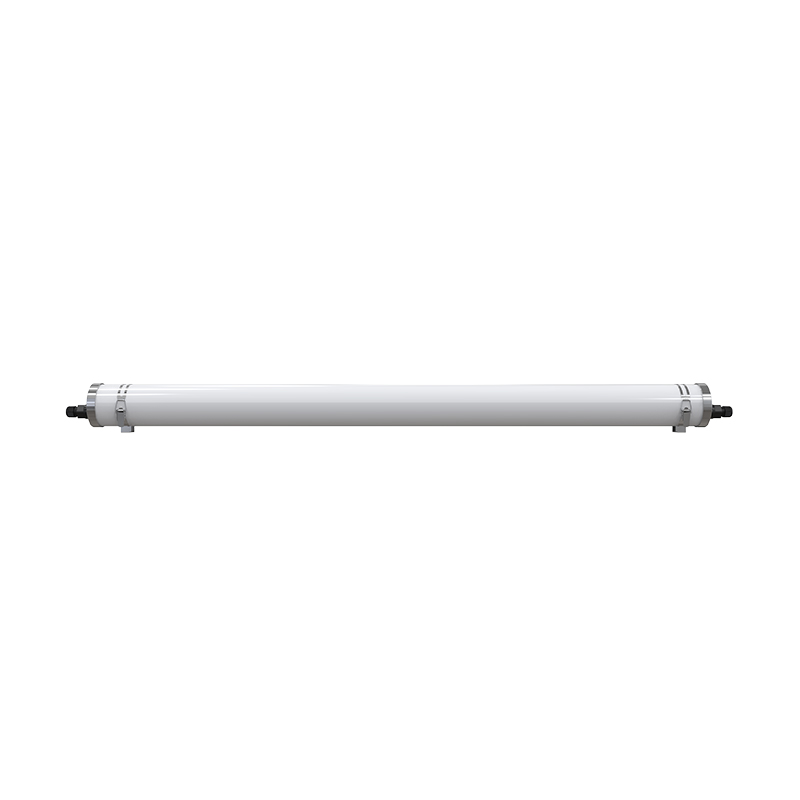

105mm Diameter Tubular LED Tri-Proof Light
US $18.05 - US $161.50
US $19.00 - US $170.00
Production Lead Time:
25-30 day(s)
Shipping Method:
EXW
Brand:
TUBU
Beam Angle:
120°C
CCT:
3000K/4000K/5000K/6000K
Description
Contact Supplier
Description
The Tubular Tri-proof Light has a diameter of 105 mm and is made of PMMA IK08/PC IK10 material, which guarantees excellent impact resistance and ensures long-lasting reliability, withstanding water pressures up to 100 bar (1450 psi) and temperatures of 80°C, very suitable for outdoor and industrial applications. Its ammonia resistance makes it a reliable lighting solution in harsh environments.
With system efficiencies of up to 170 lm/W, TUBU's 105mm diameter tubular tri-proof light offer excellent energy efficiency, ensuring cost savings in the long run. Its high CRI of over 80 enhances color rendering for a visually pleasing and realistic lighting experience. It also features an adjustable CCT to customize the right light source for the environment, and it contains no mercury, UV or IR emissions. This makes it a safe and sustainable choice for both indoor and outdoor environments.
Features
IP67 & IP69K &IK10
100mm diameter round tube

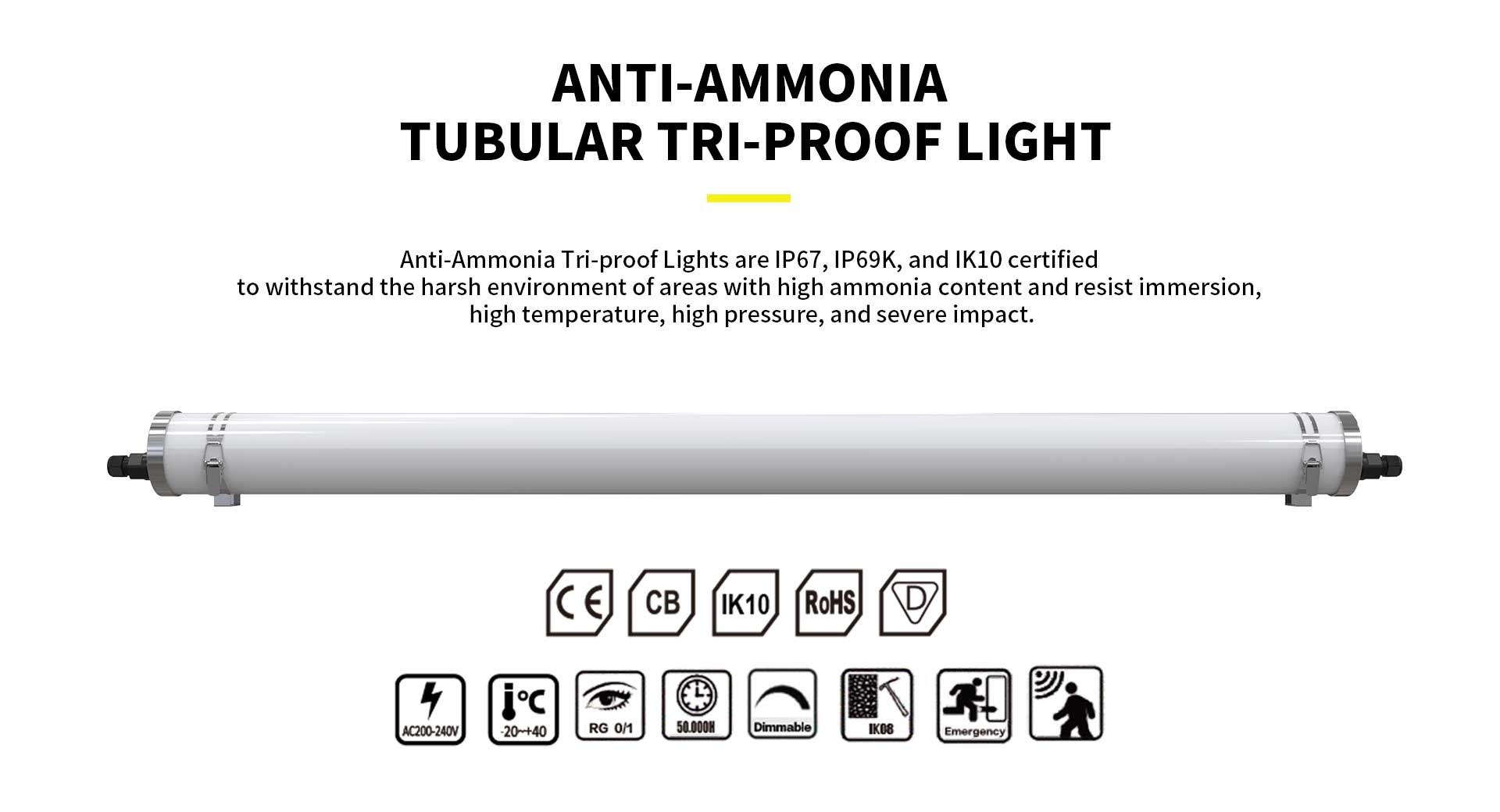

Anti-ammonia
Against water pressure of 100bar(1450psi) and temperature of 80C
System efficiency up to 140lm/W or 170lm/W
High CRI >80
Environmentally friendly, no mercury, No UV, No IR
Wide beam angle 120°
Energy Efficiency Grade: C
Quick Start instant 100% Luminous flux
5Year Warranty on complete fixture. (LEDs, Driver, & Housing)
Certificate: CE, RoHS Certified
Surface Mount or Suspension Mount
Tech Specs
| Product Code | TBL9P2F-30W | TBL9P4F-60W | TBL9P5F-80W | TBL9P2F-30W(Linkable) | TBL9P4F-60W(Linkable) | TBL9P5F-80W(Linkable) | |||
| Power | 30W | 60W | 80W | 30W | 60W | 80W | |||
| Input Voltage | 200-240VAC/100-277VAC (50/60HZ) | ||||||||
| Input Current | 0.15A@220VAC | 0.3A@220VAC | 0.4A@220VAC | 0.15A@220VAC | 0.3A@220VAC | 0.4A@220VAC | |||
| PF | 0.90@220VAC | ||||||||
| Dimming Option | 0-10V/Dali | ||||||||

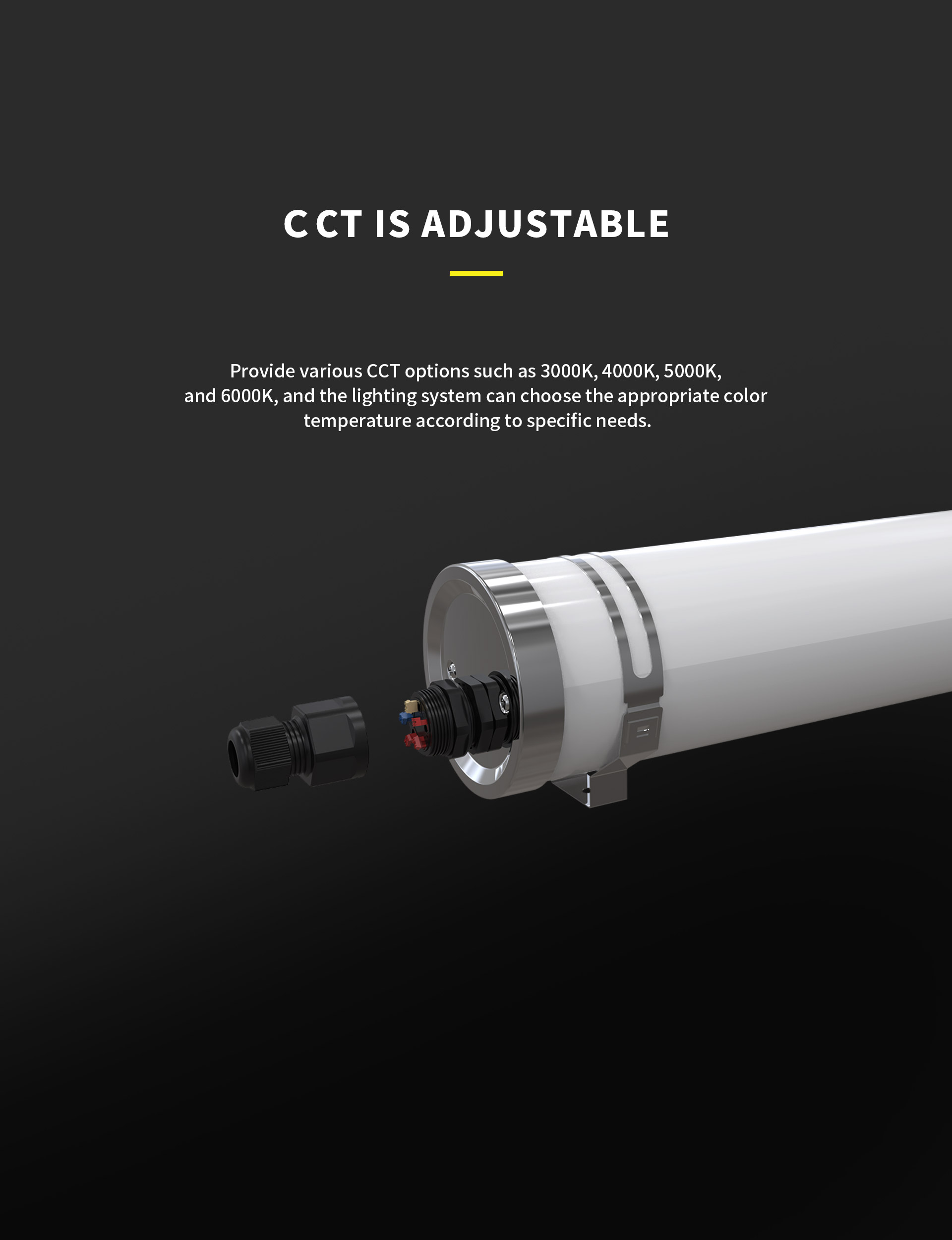

| CCT | 3000K/4000K/5000K/6000K | ||||||||
| Ra > 80 | Luminous Flux | 4200Lm±5% | 8400Lm±5% | 11200Lm±5% | |||||
| Efficiency | 140Lm/W±5% | ||||||||
| Ra > 80 | Luminous Flux | 5100Lm/W±5% | 10200Lm/W±5% | 13600Lm/W±5% | |||||
| Efficiency | 170Lm/W±5% | ||||||||
| LED Brand | Lumileds/Hongli 2835 | ||||||||
| Beam Angle | 120° | ||||||||
| Operation Temp | -20C~+40C | ||||||||
| Storage Temp | -20C~+60C | ||||||||
| Life Span | Ta 40C L70>54000Hours | ||||||||
| IP Class | IP67&IP69K | ||||||||
| IK Class | PMMA IK08/PC IK10 | ||||||||
| Certificate | CE, RoHs, CB, IK10, IP69K, ENEC, RCM | ||||||||
| Lamp Body Color | Milky PC/PMMA Housing & 304/316 Stainless Steel End Caps | ||||||||
| Product Size (mm) | ø105*552 | ø105*1152 | ø105*1452 | ø105*1452 | |||||
| Packing Size (mm) | 730*345*240 | 1330*345*240 | 1630*345*240 | 1630*345*240 | |||||
| Quantity/carton | 9PCS | 6PCS | 6PCS | 6PCS | |||||
| Gross weight (kg) ±0.3 | 14 | 15 | 17.5 | 18 | |||||
| Installation mode | Surface Mount/Suspension Mount | ||||||||
