11.6 inch LCD capacitive screen 1366*768 TFT LCD screen 30pin eDP interface can bring Adapter board

US $30.00 - US $70.00

Production Lead Time:

25-45 day(s)

Shipping Method:

Support Express·Sea freight·Land freight·Air freight

Brand:

Microtech

Model No.:

MTF116WF05A-V1

Customised:

Yes

Size:

11.6inch

Description

Contact Supplier

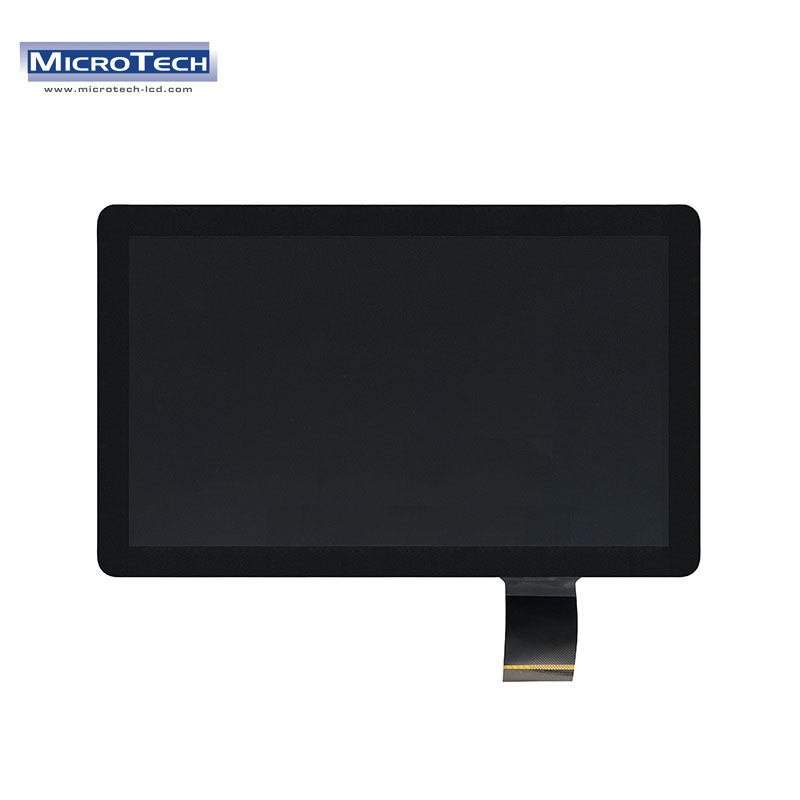

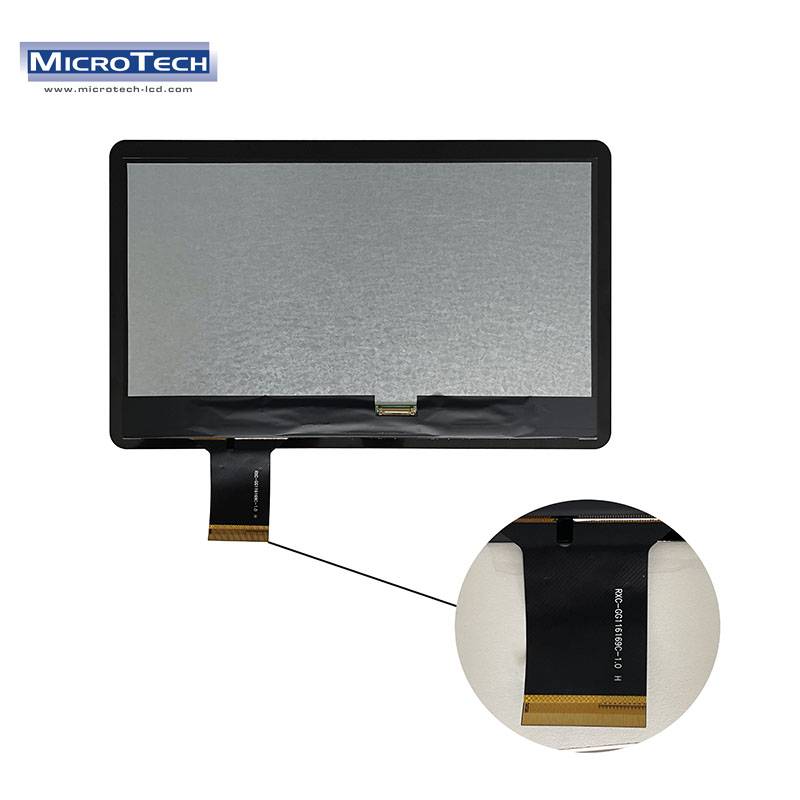

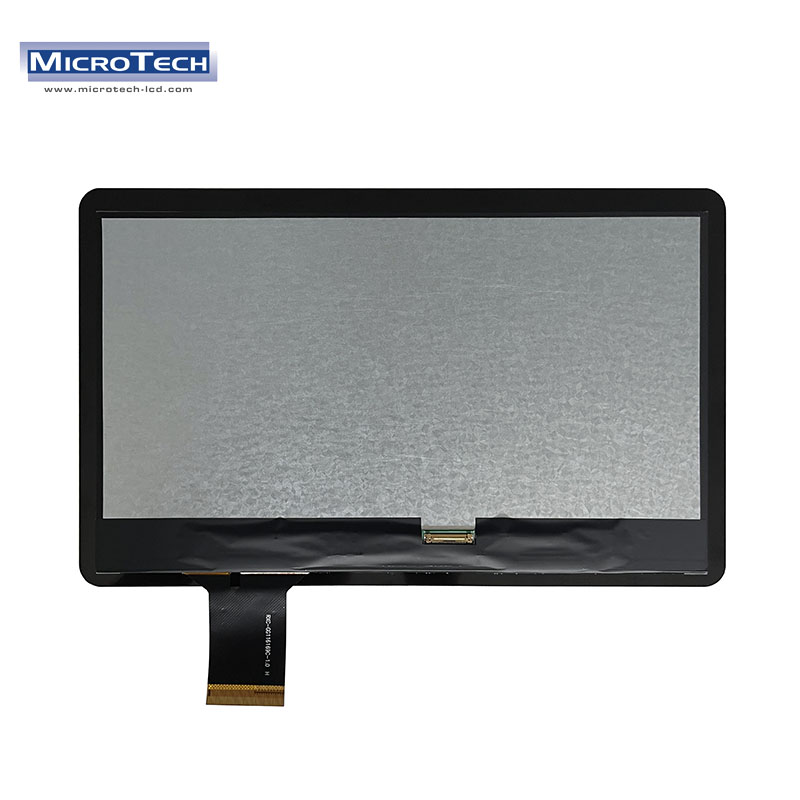

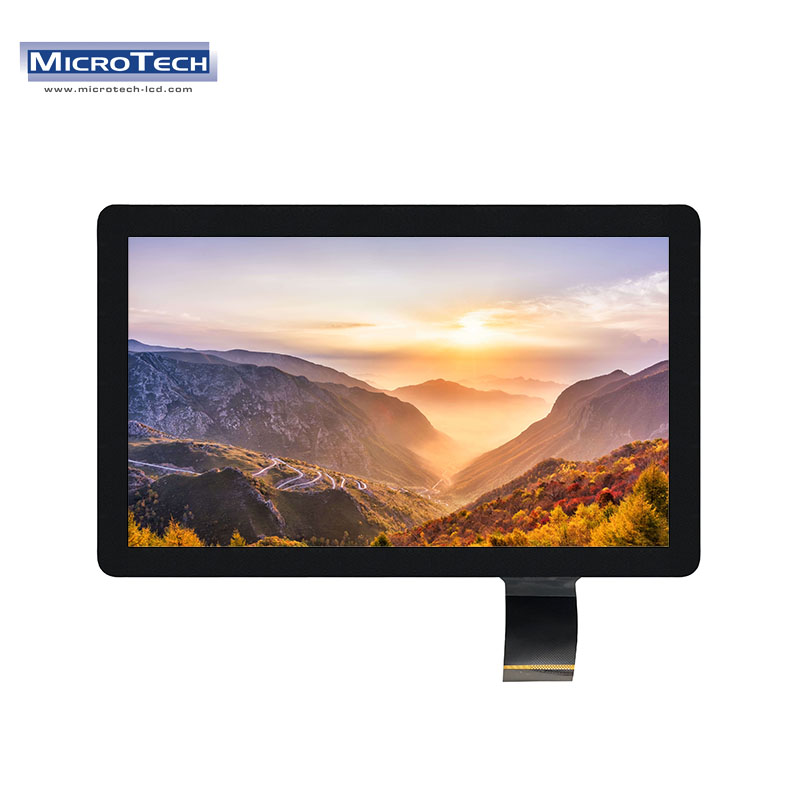

MTF116WF05A-V1 is a 11.6” (11.6” diagonal) TFT Liquid Crystal Display NB module with LED Backlight unit and 30 pins eDP interface. This module supports 1366 x 768 WH mode and can display 16,777,216 colors.

Item	Specification	Unit	Note
Screen Size	11.6 diagonal
Driver Element	a-si TFT active matrix	-	-
Pixel Number	1366 x R.G.B. x 768	pixel	-
Pixel Pitch	0.1875(H) x 0.1875(V)	mm	-
Pixel Arrangement	RGB vertical stripe	-	-
Display Colors	16,777,216	color	-
Transmissive Mode	Normally black	-	-
Surface Treatment	Hard coating (H), Anti-Glare	-	-
Luminance, White	220	Cd/m2
Color Gamut	72%	NTSC
Power Consumption	Total 3.5 W (Max.) @ cell 1.1W(Max.), BL 24W (Max.)	W	(1)

Note (1) The specified power consumption (with converter efficiency) is under the conditions at VCCS = 3.3 V, fv = 60 Hz, LED_VCCS = Typ, fPWM = 200 Hz, Duty=100% and Ta = 25 ± 2 ºC, whereas Mosaic pattern is displayed.

Note (2) Display port interface signals should follow VESA DisplayPort Standard Version1. Revision 1a and VESA Embedded DisplayPortTM Standard Version 1.2 (eDP1.2). There are many optional items described in eDP1.2. If some optional item is requested, please contact us.

Item		Min.	Typ.	Max.	Unit	Note
Module Size	Horizontal (H)	267.42	267.92	268.42	mm	(1)(2)
	Vertical (V) (with PCB)	156.77	157.27	157.77	mm
	Thickness (T)	2.6	2.8	3	mm
Active Area	Horizontal	256.13	256.13	256.13	mm
Active Area	Vertical	144.00	144.00	144.00	mm
Weight			205	220	g
