12.1 inch LCD display 1280*800 TFT LCD screen 500 brightness IC EK79202 with LVDS interface

US $30.00 - US $50.00

Production Lead Time:

25-45 day(s)

Shipping Method:

Support Express · Sea freight · Land freight · Air freight

Brand:

Microtech

Model No.:

MTF121WX04A-V1

Customised:

Yes

Size:

12.1inch

Description

Contact Supplier

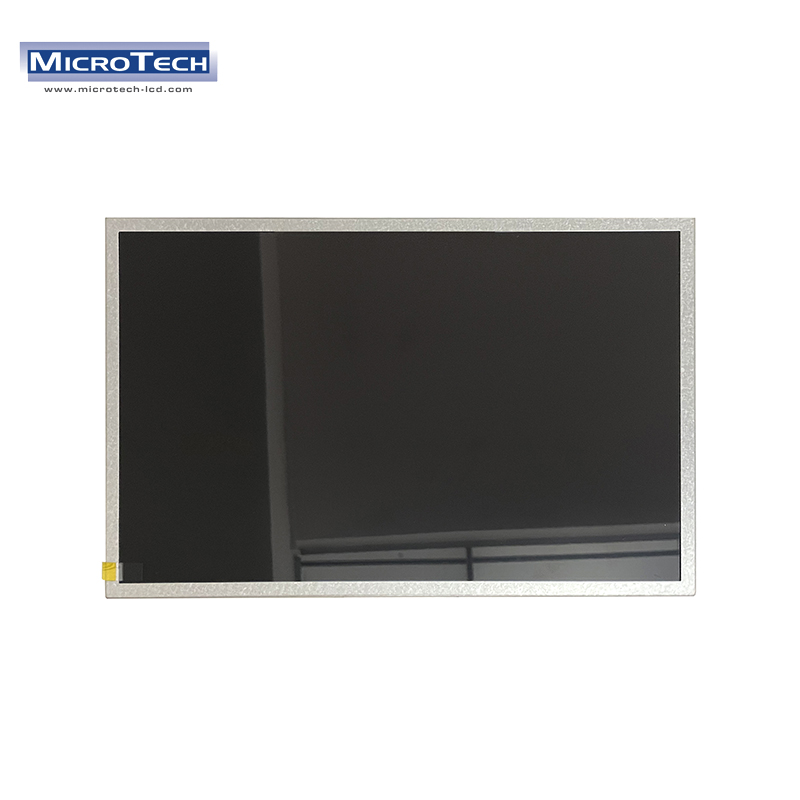

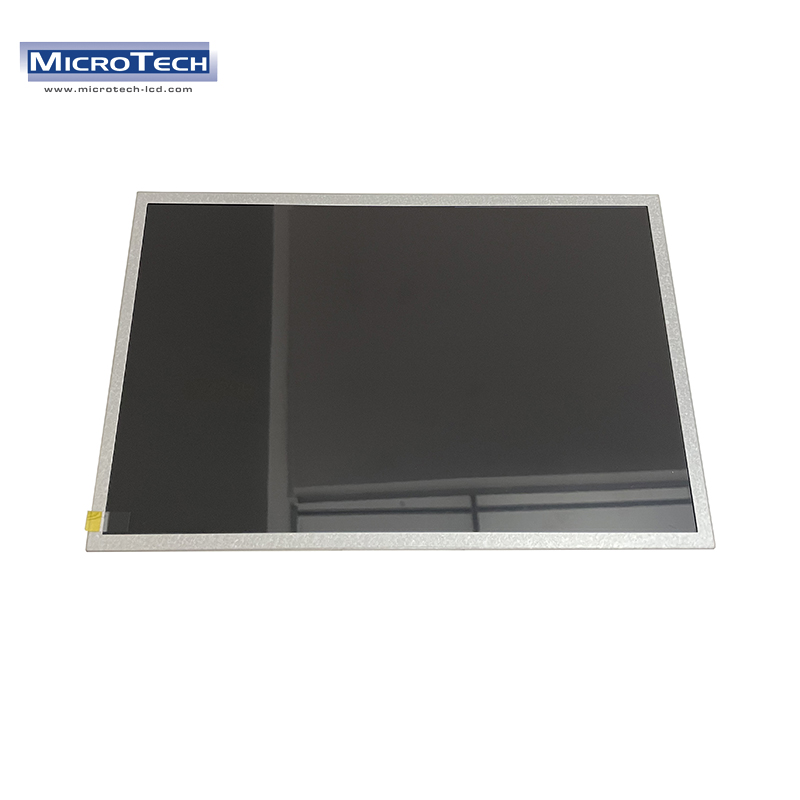

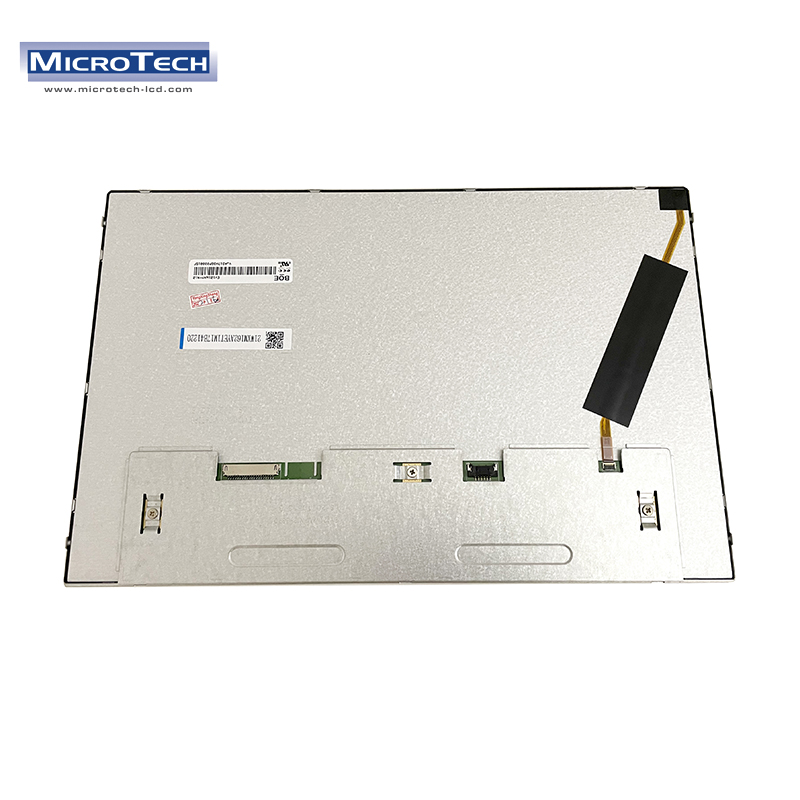

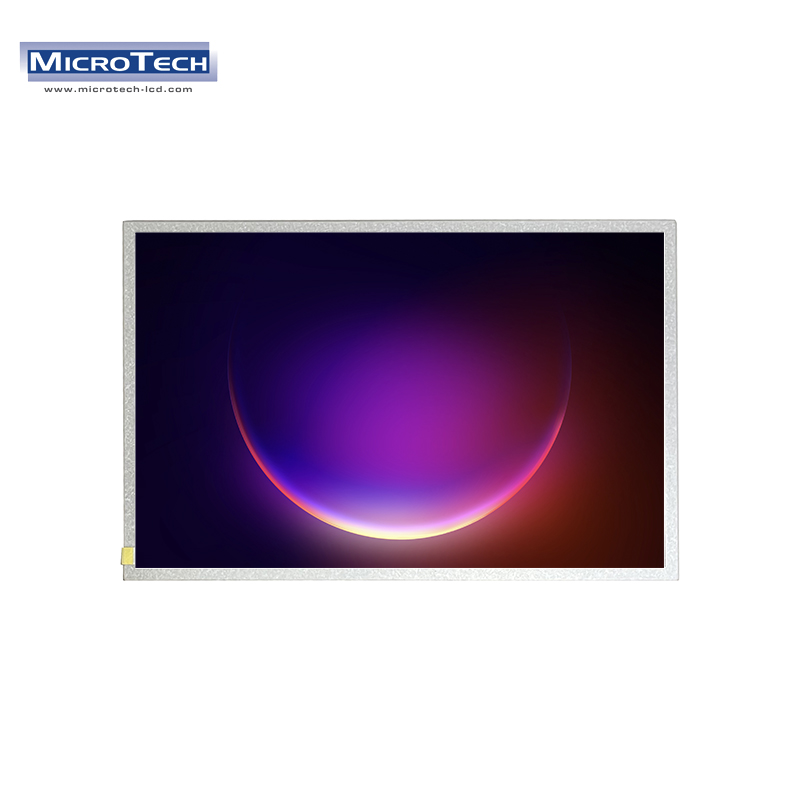

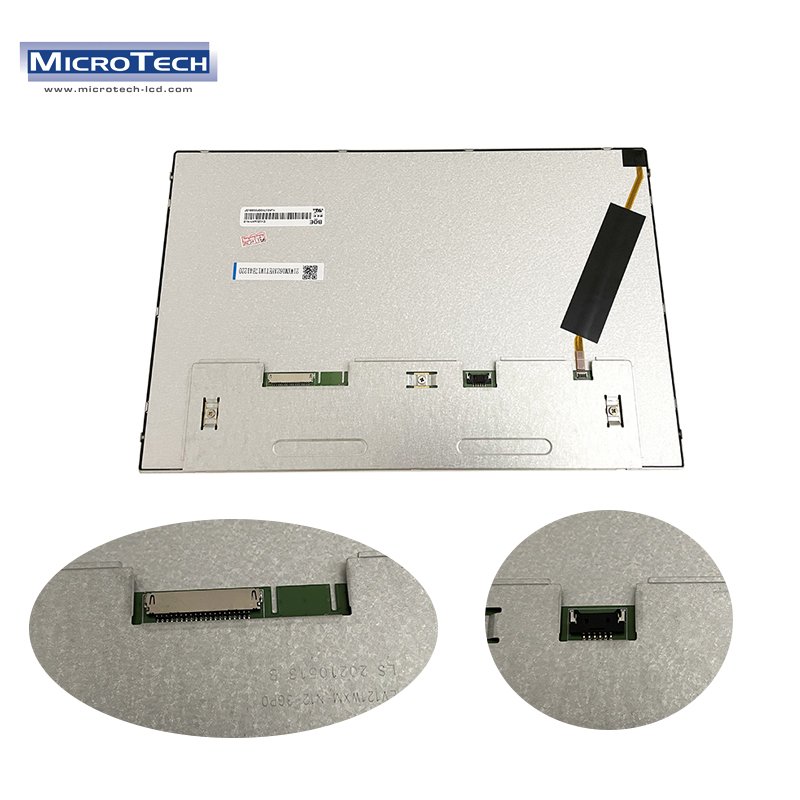

12.1 inch LCD display 1280*800 TFT LCD screen with LVDS interface

MTF121WX04A-V1 is a color active matrix TFT LCD module using amorphous silicon TFT‘s (Thin Film Transistors) as an active switching devices. This module has a 12.1inch diagonally measured active area with WVGA resolutions (1280 horizontal by 800 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this module can display colors.

Parameter	Specification	Unit	Remarks
Active Area	261.12(H) x 163.20 (V)	mm
Number Of Pixels	1280(H) x800(V)	pixels
Pixel Pitch	68*204	mm
Pixel Arrangement	Transmissive
Display Mode	Normally Black
Display Colors	16.7M(6bit +Hi-FRC)	colors	6+FRC
Surface Treatment	AG25
Contrast Ratio	1200typ/1000min
Viewing Angle(CR>10)	85°/85°/85°/85°	deg.	U/D/L/R
Response Time	30typ/35max	ms
Color Gamut	72%		NTSC
Brightness	500	cd/m2	Typ.
Brightness Uniformity	80%		Typ.
Power Consumption	8.11	watt	Max.

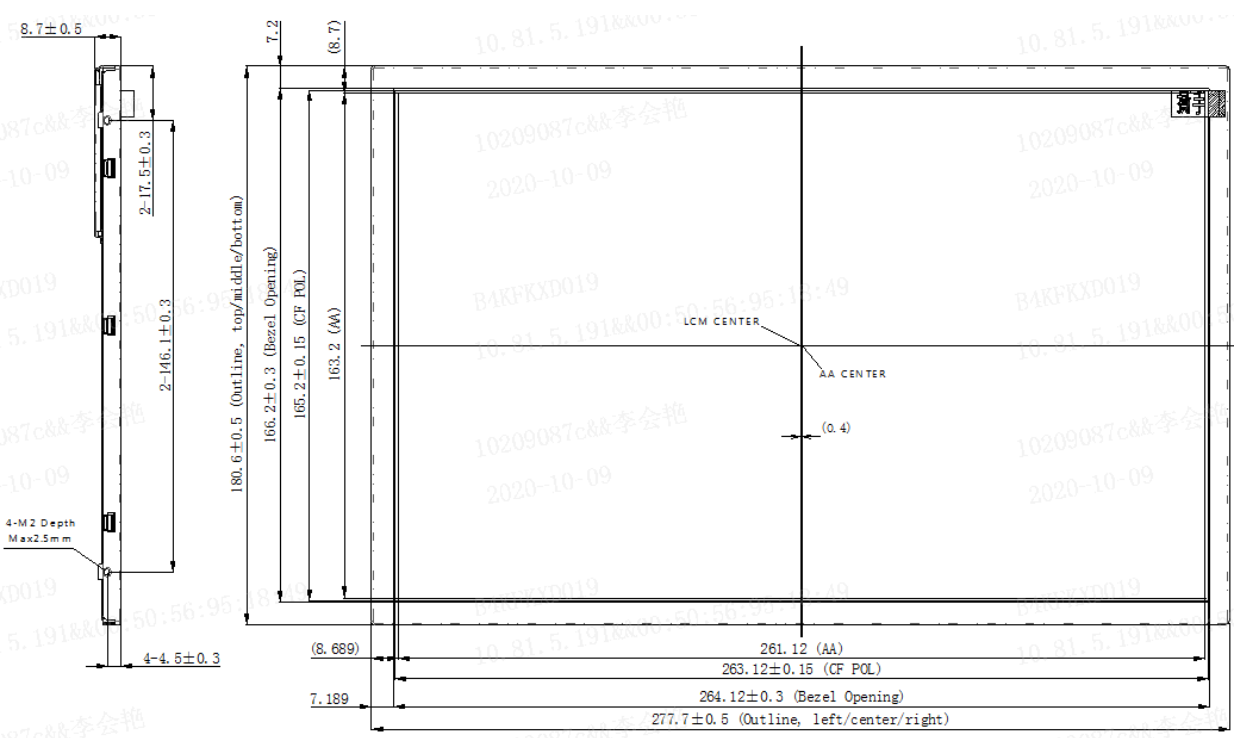

Outline Dimension	277.7 (H) x 180.6(V)	mm
Weight	TBD	gram
Display Orientation	Landscape Only
