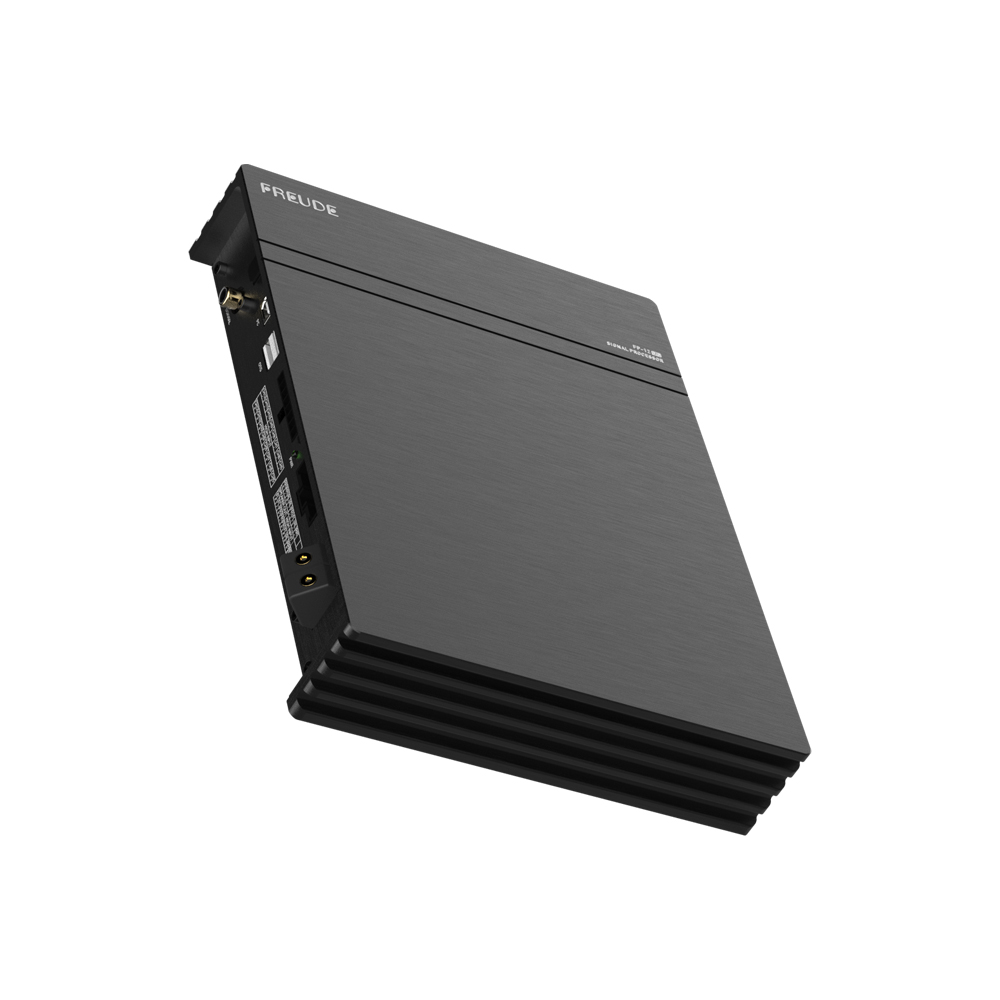

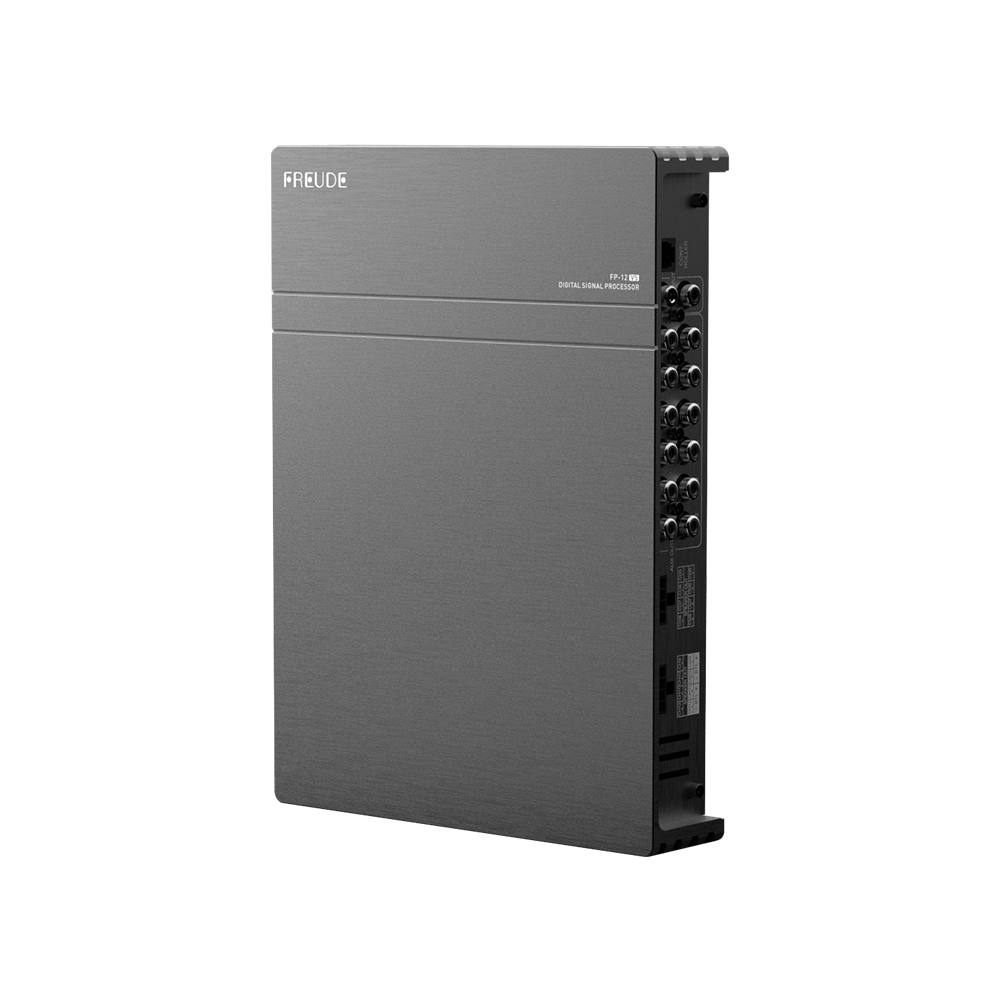

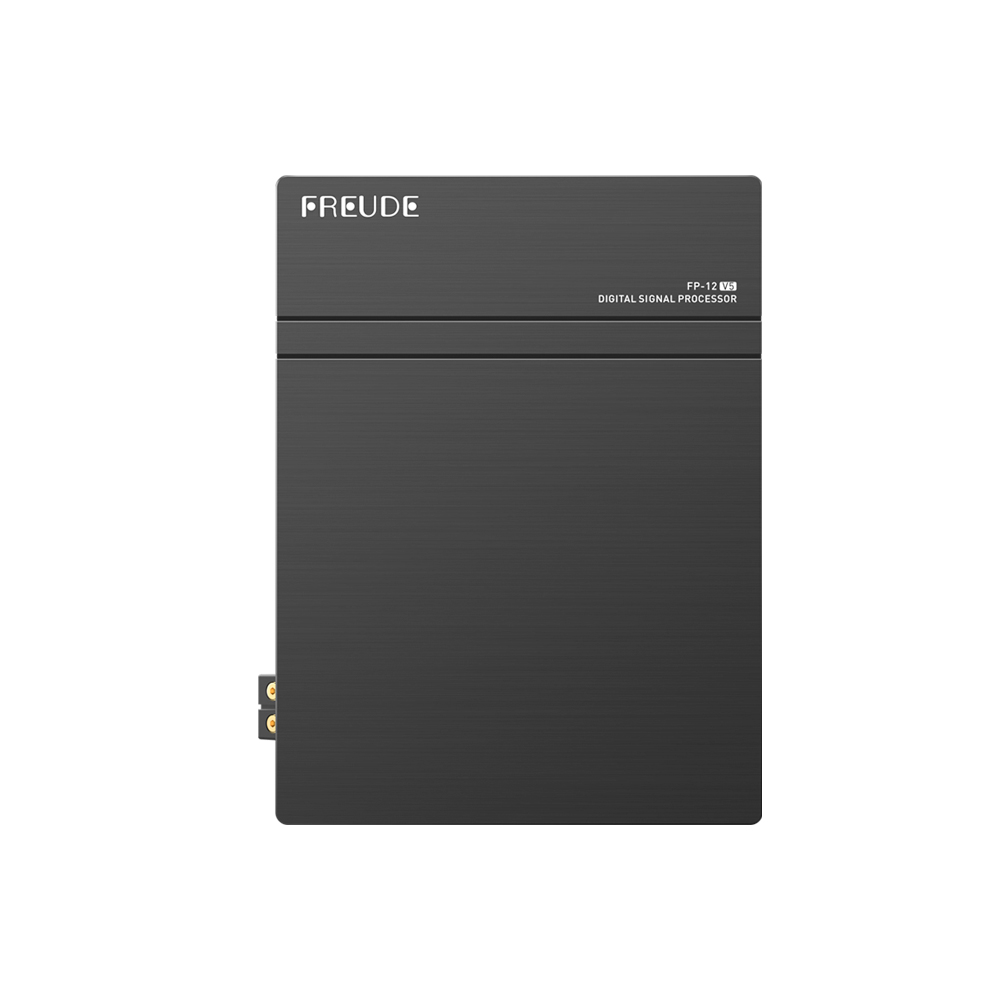

FP-12 V5
■ Wide voltage design: 9V – 17V DC
■ Built-in Class D amplifier: Max Power up to 8 × 80W + 4 × 150W

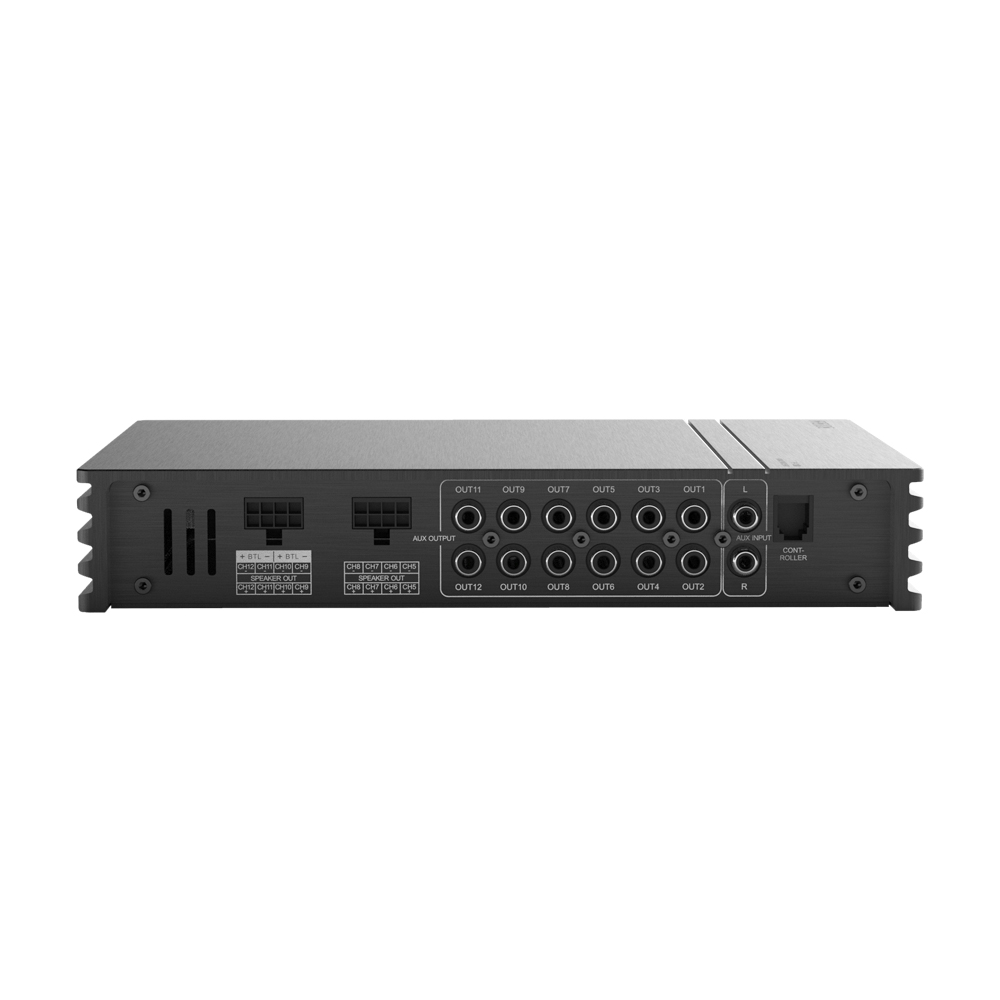

■ 12-ch low-level outputs, 12-ch high-level outputs

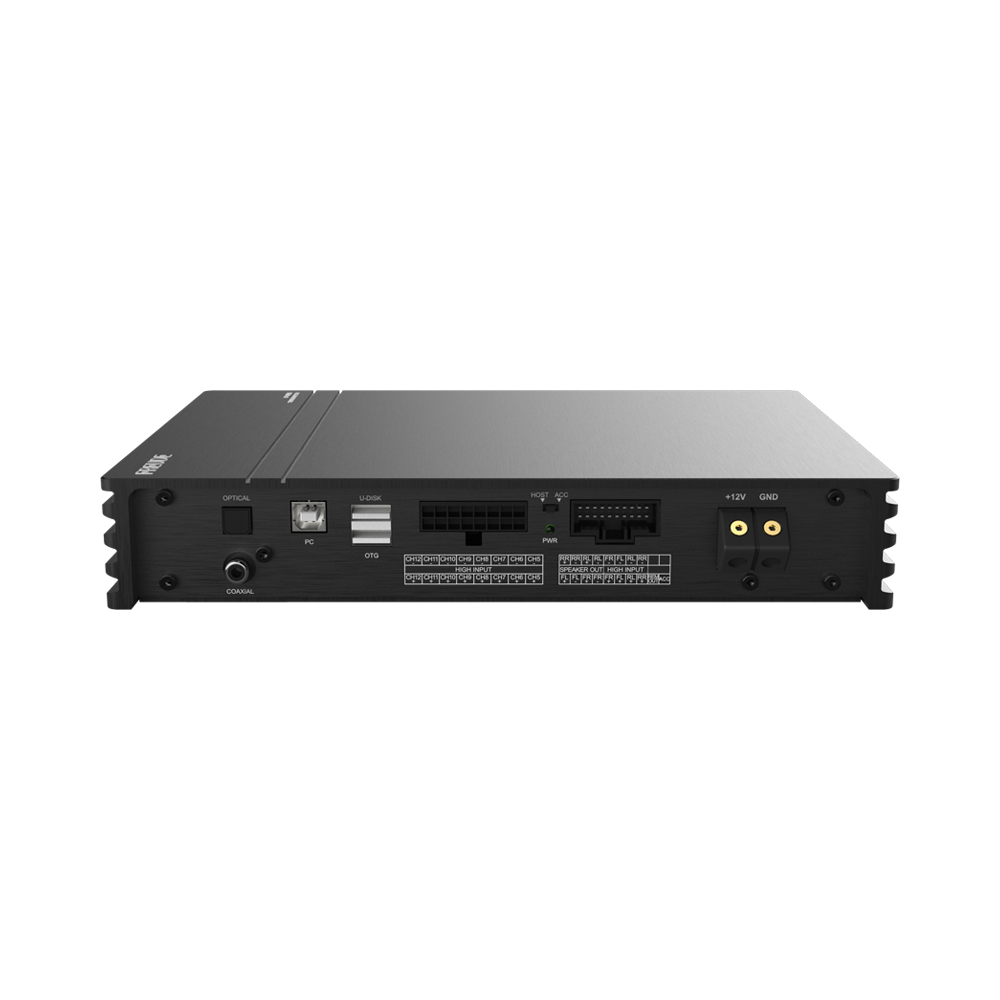

■ 12-ch of high-level, 2-ch of low-level, optical, Bluetooth, USB, OTG
■ High-quality electronic components

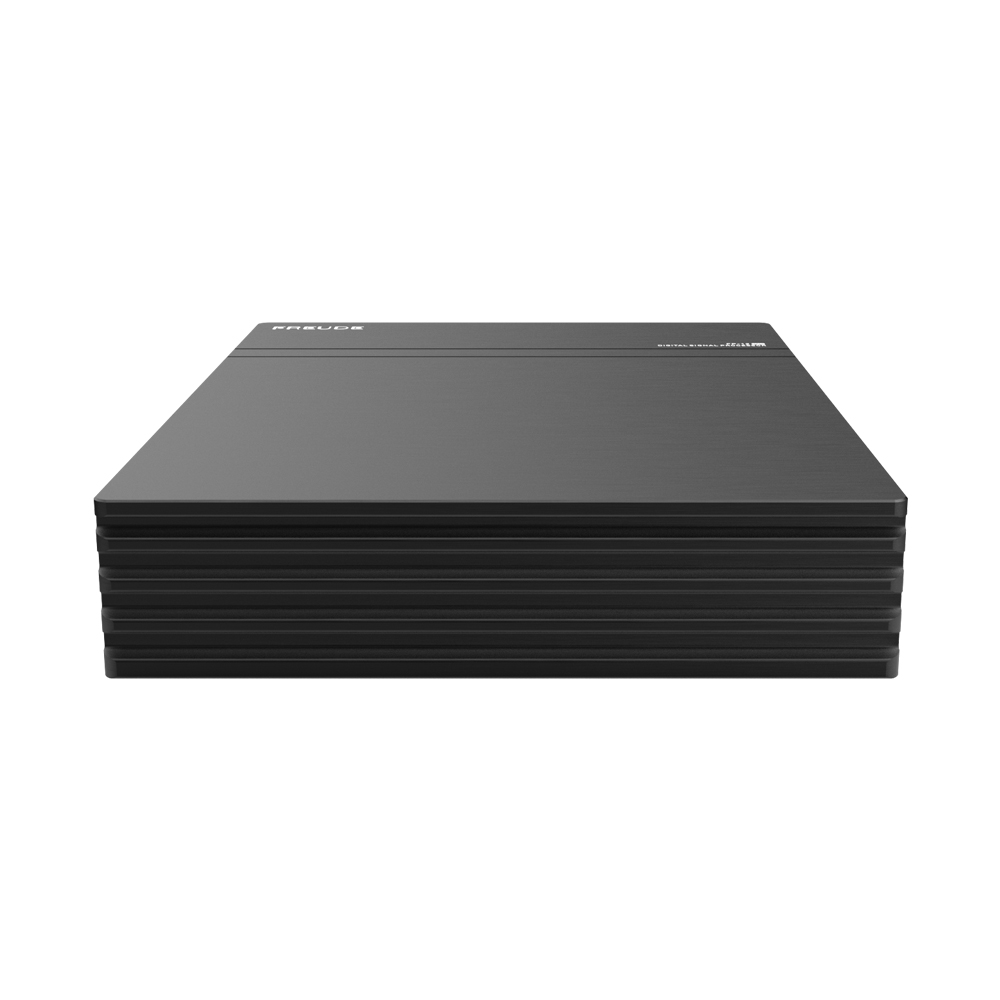

■ All-aluminum chassis for excellent heat dissipation
■ PC tuning -- AUDIO ARCHITECT
■ Plug-and-play, non‑destructive installation
| Model: | FP-12 V5 |
| Type: | 12 ch DSP with Amplifier |
| Power: | DC 9 V～17 V |
| Input Signal Type: | 12 ch high level, 2 ch Low Level, Optical Fibre, Digital BT, USB, OTG |
| Dynamic Range: | ≥102 dB |
| S/N: | ≥98 dB |
| Frequency Response: | 20 Hz ~ 20k Hz |
| Max Power: | 8 x 80W + 4 x 150W (bridge 2 x 300W) @ 4Ω |
| Nom Power: | 8 x 40W + 4 x 80W (bridge 2 x 160W) @ 4Ω |
| Output Signal Type: | 12 ch Low Level Output, 12 ch High Level Output |
| Output Signal EQ: | 31 Levels EQ |
| Net Weight: | 2.4 kg |
| Dimension(LxWxH): | 261.4 x 191 x 46mm |
| Wired Remote Control | Adaptable, sold separately ((FRC‑03） |
