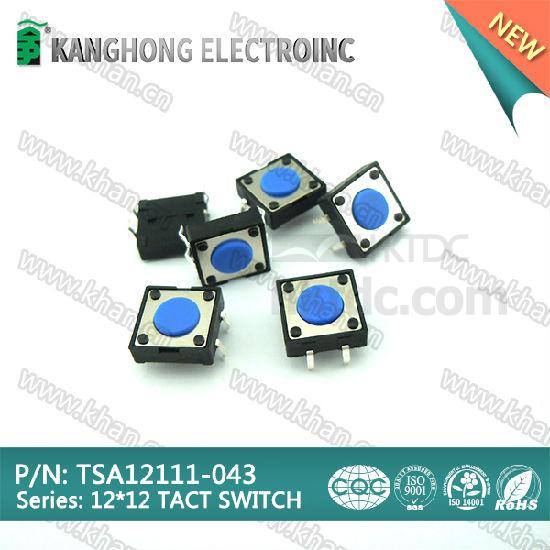

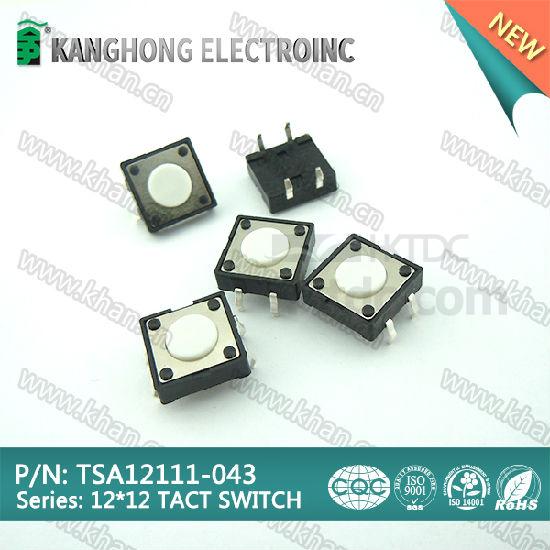

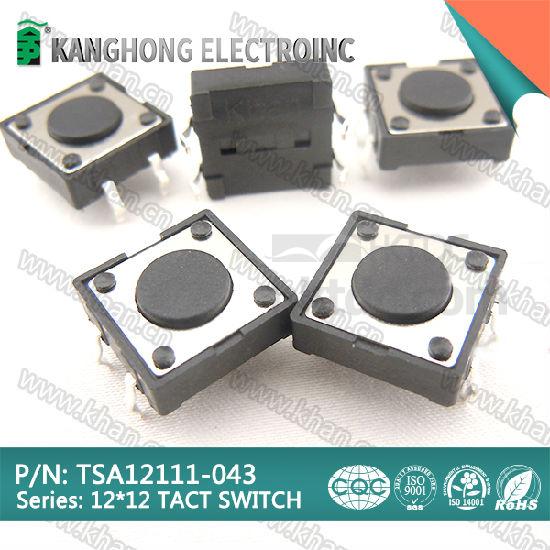

12 x 12mm Tact Switch, Pushbutton Switch with RoHS Compliant
Model No.:
TSA12111-043
Brand:
khan
Colour:
black body case with blue stem
Size:
12*12*4.3mm
Port:
Ningbo/Shanghai
Type of Payment:
T/T,Western Union,MoneyGram,paypal
Minimum Order Quantity:
1000pcs
Max. Voltage:
12VDC
Operating Temperature:
-25~+70
Max. Current:
50mA
Mechanical Life:
150,000 cycles above
Max. Working Pressure:
280gf±50gf
Protection Level:
IP64
Description
Contact Supplier
Description
12*12 Tact Switch, pusbutton switch
1: Surface mount and through hole available
2. Height: 4.3mm to 21mm
4. ROHS compliance

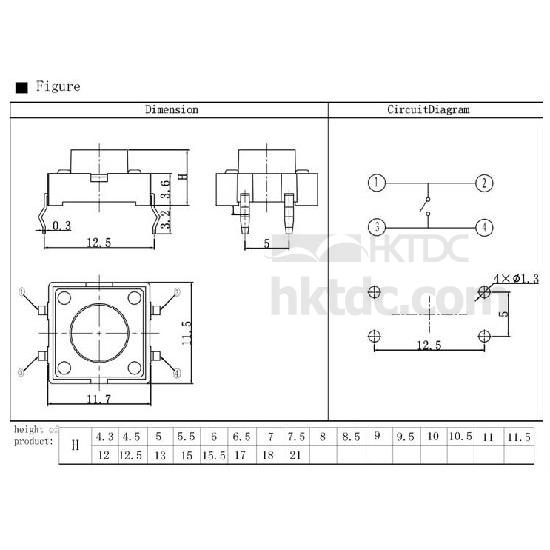

SPECIFICATION FOR TSA12111-043:
1、Environmental Temperature -25～+70℃
2、Relative Humidity (40℃)≤95%
3、Rated Load DC12V.50mA
4、Contact Resistance ≤0.03Ω
5、Insulation Resistance ≥100MΩ
6、Withstand Voltage AC250V 50Hz/1min
7、Electric Life 10 0000 Cycles Min
8、Operation force 280±50gf
9、Travel 0.3±0.1mm
1: Surface mount and through hole available
2. Height: 4.3mm to 21mm
4. ROHS compliance
SPECIFICATION FOR TSA12111-043:
1、Environmental Temperature -25～+70℃
2、Relative Humidity (40℃)≤95%
3、Rated Load DC12V.50mA
4、Contact Resistance ≤0.03Ω
5、Insulation Resistance ≥100MΩ
6、Withstand Voltage AC250V 50Hz/1min
7、Electric Life 10 0000 Cycles Min
8、Operation force 280±50gf
9、Travel 0.3±0.1mm
