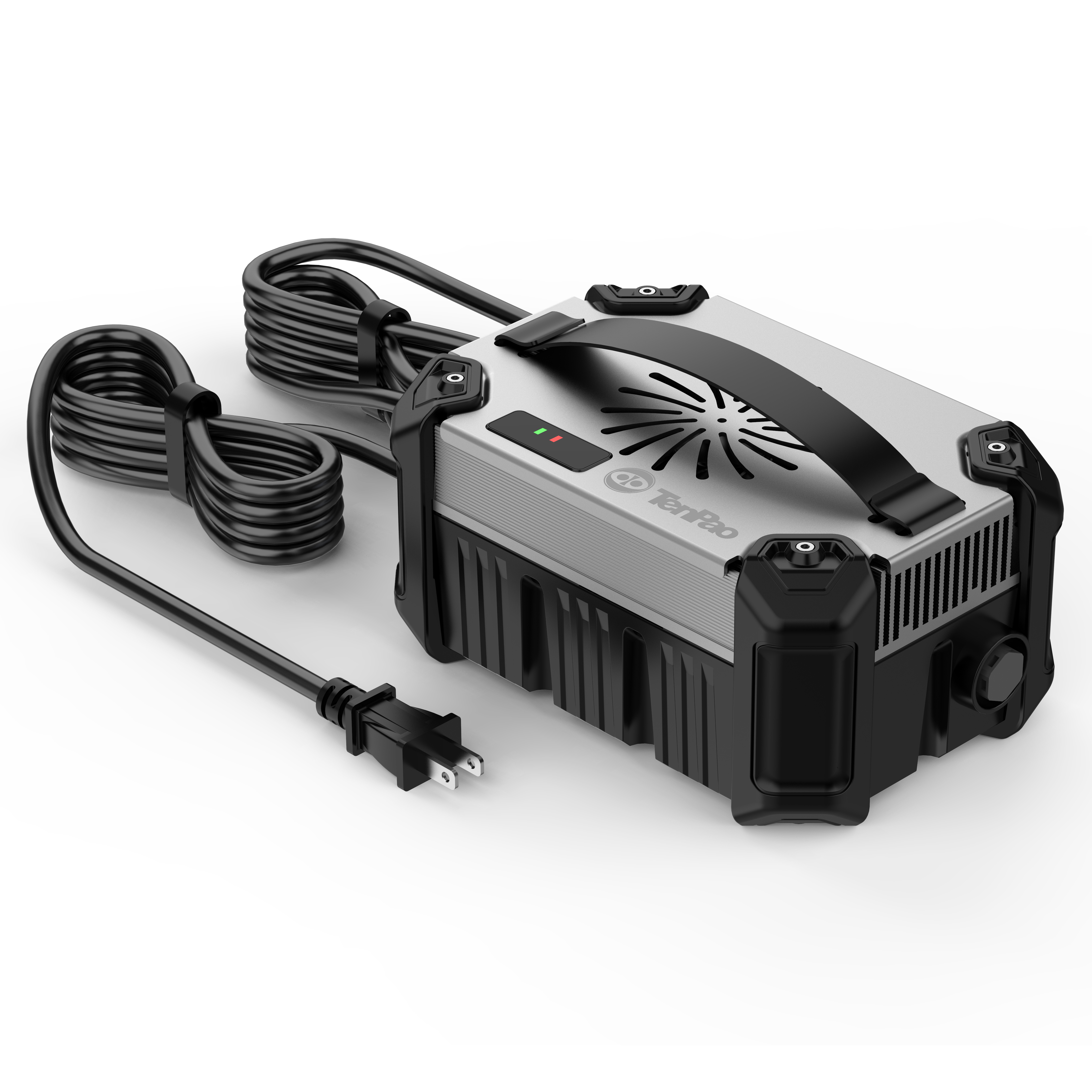

1200W Smart Battery Charger

Ten Pao Int'l Ltd

Enquire

Compare & Bulk Enquire

Brand:

tenpao

Model No.:

1200W Smart Battery Charger

Description

Contact Supplier

Product introduction：

High protection series smart charger adopts the design concept of automobile products, the professional waterproof design does not need to fill glue to reach IP65 protection grade, built-in DSP soft switch and digital communication technology, can quickly respond to control instructions, excellent performance in battery adaptability, can better match the battery charging curve, and achieve a safe and reliable effect.

Main feature：

Intelligent and efficient/Good heat dissipation/Small volume/Easy to carry/Wide range voltage/Flexible upgrade/Digital communication/IP65 Protection

	1200W		unit
AC Input
Input voltage range	180-265		Vac
AC current harmonics THD	<5		%
Power factor	>99
Efficiency	> 93@Full load		%
Max input current	12		Aac
DC output	Type 1	Type 2
Output rated voltage	60 (optional)	90 (optional)	Vdc
Output voltage range	CV:20-60	CV:30-88	Vdc
Charging current accuracy	≤5	≤5	%
Ripple	≤750	≤900	mVp-p
Max charging current	20	13.5	A
Communication method	CAN/485, UART/user define
Dimension	L198W133H97		mm
