120M HDMI Extender | Consumer Electronics

Shenzhen Pinwei Technology Co.,Ltd

120M HDMI Extender

Production Lead Time:

20 day(s)

Model No.:

PW-DT103

Brand:

PWAY

Colour:

Black

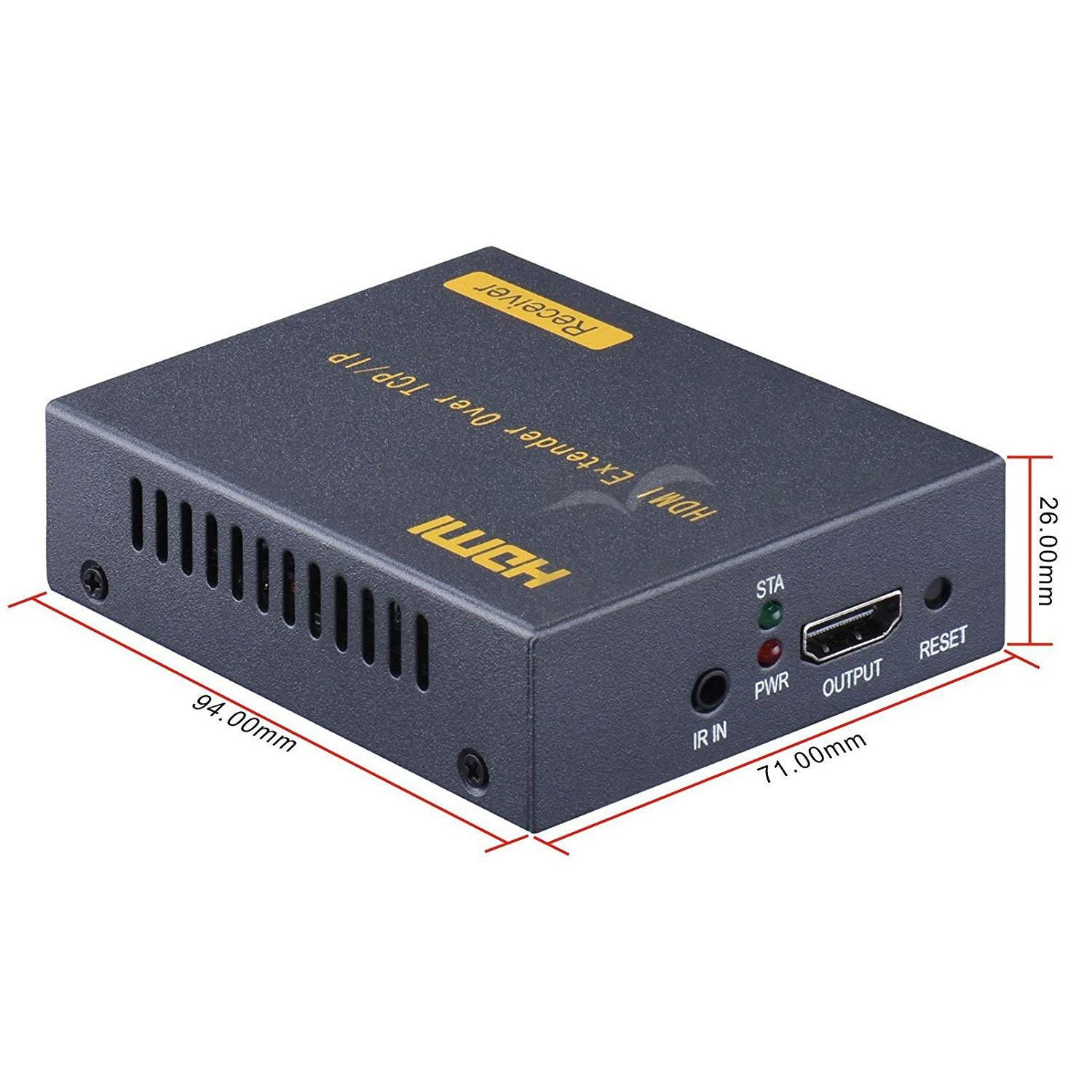

Size:

94 x 71 x 26mm

Port:

Shenzhen

Type of Payment:

T/T, Western Union, PayPal

Minimum Order Quantity:

200 set(s)

Description

Contact Supplier

120M HDMI Extender Over Single Cat5e/6 Cable Video Transmitter and Receiver Resolution Up To 1920*10
Description:
Transmits HDMI signal up to 120m by single cat5e/6 cable.
MJPEG technology, 100Mpbs low bandwidth transmission.
Standard TCP/IP, extends HDMI signal over switch.
Supports 1pcs of TX to maximum 253pcs of RX.
HDMI 1.3, HDCP 1.2; resolutions up to 1080P@60Hz.
Feature:
Transmits HDMI video and audio signals up to 120m over a single CAT5E/6 cable;
Support video resolution max up to 1920*1080@60Hz;
Support IR signal transmission;
Support over TCP/IP, one to many application with Ethernet switch;
Compliance with HDMI 1.3 and HDCP 1.2 standard;
High compatibility, can auto-match source and display device;
Built-in automatic adjustment system, make the image smooth, clear and stable;
Built-in ESD protection system;Simple to install, plug and play;

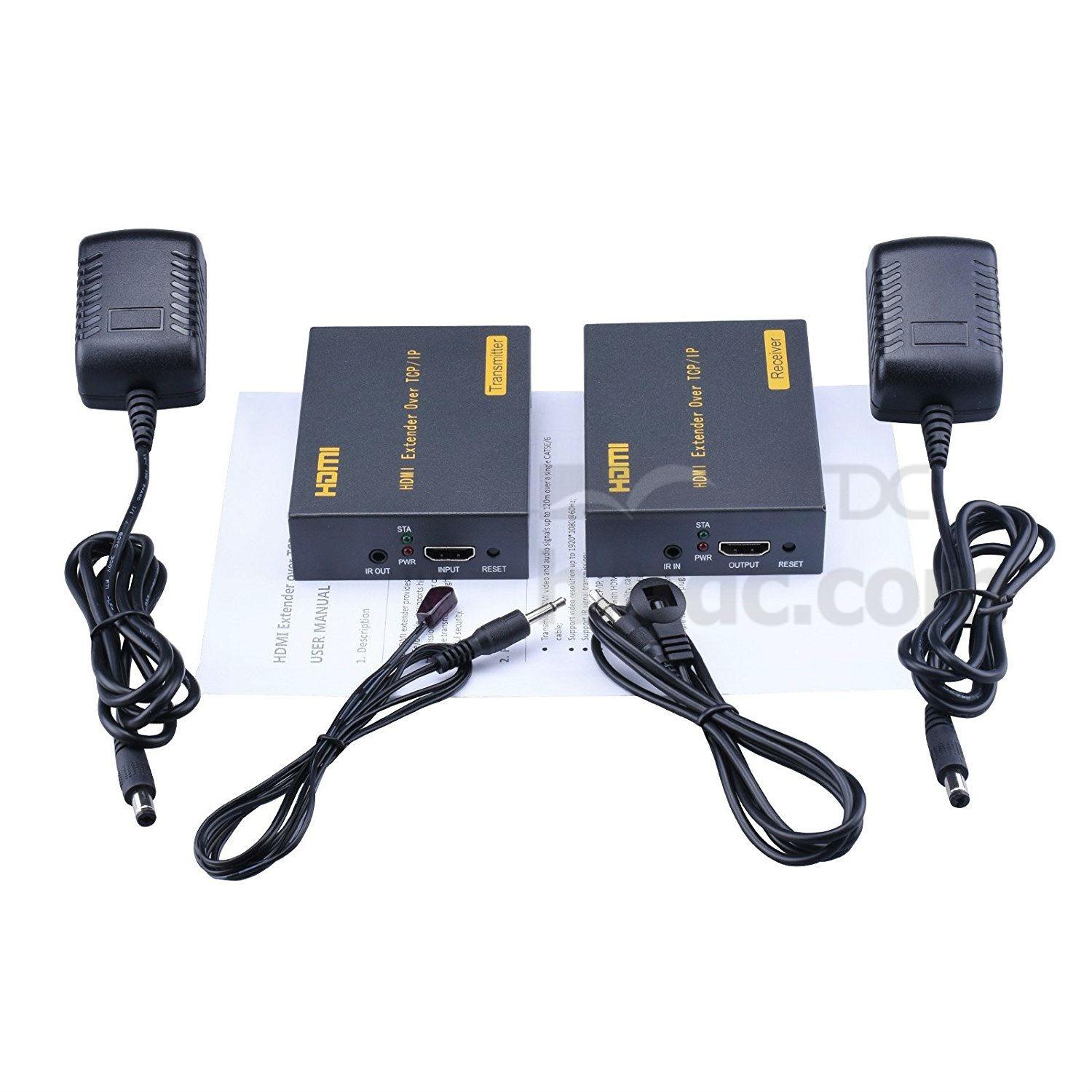

Package:
HDMI transmitter ……………………….……. 1 piece
HDMI receiver …………………………………. 1 piece
Power adapter ……………………………….... 2 pcs
IR TX/ RX terminal …………………………….. 1 pair
User manual …………………………………..… 1 piece
