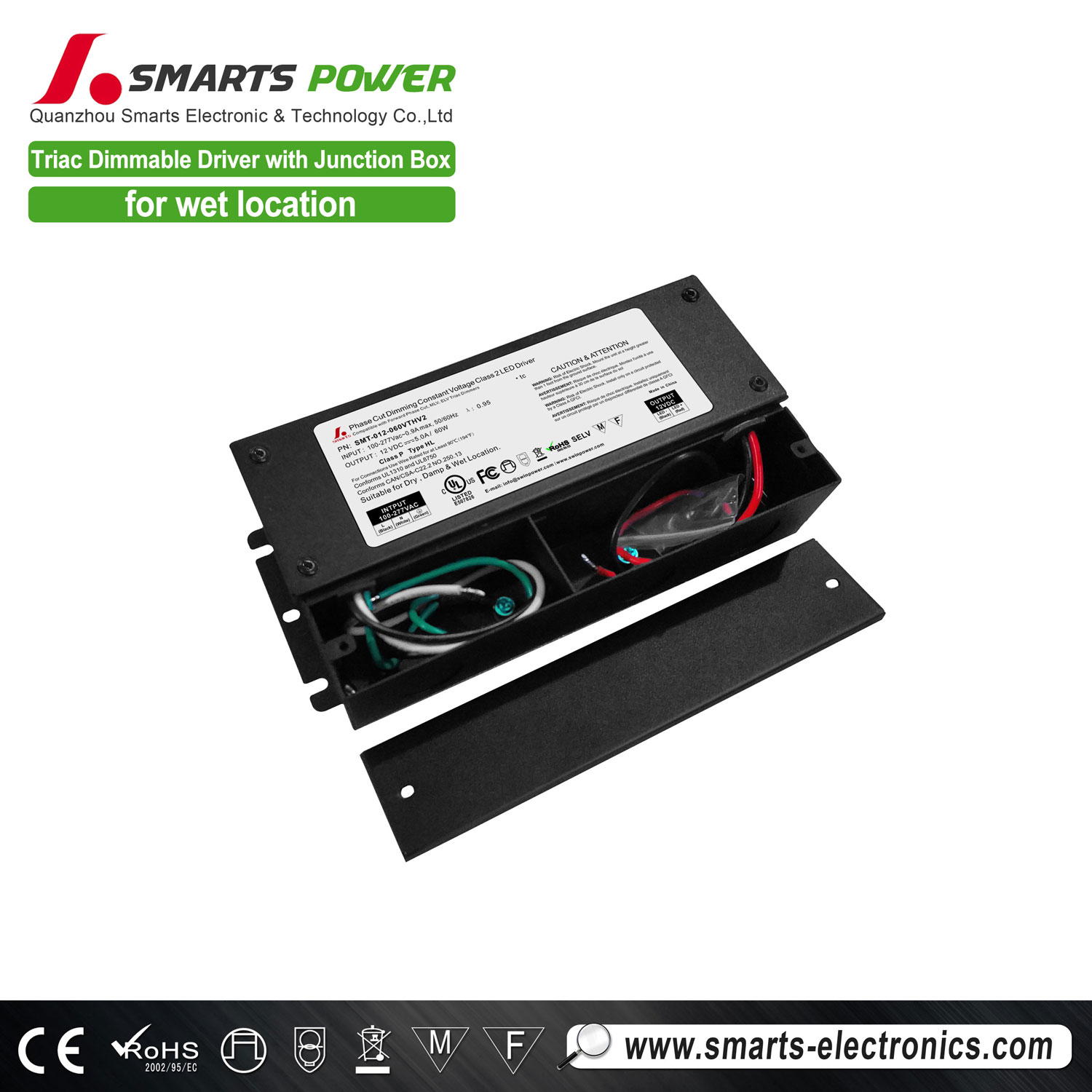

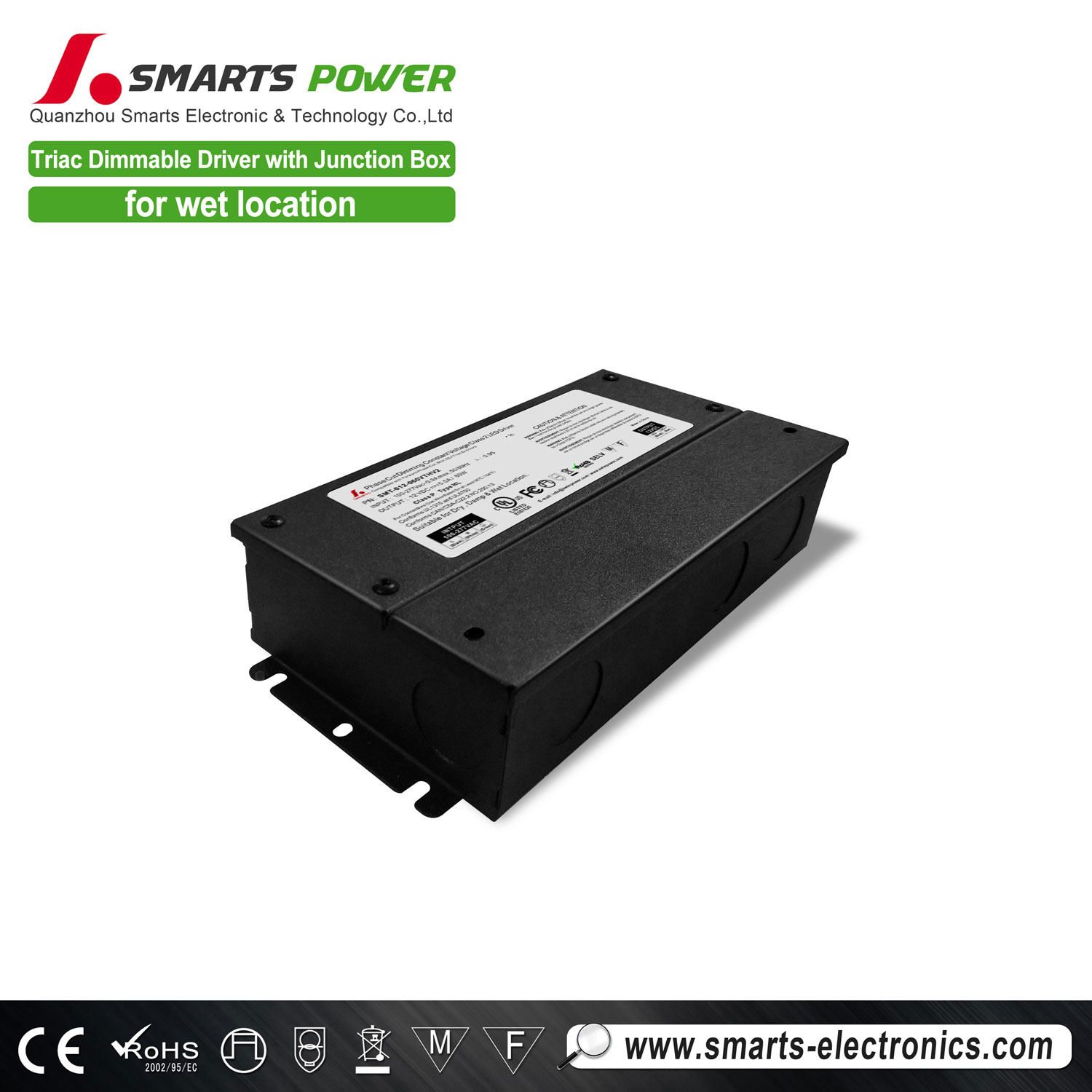

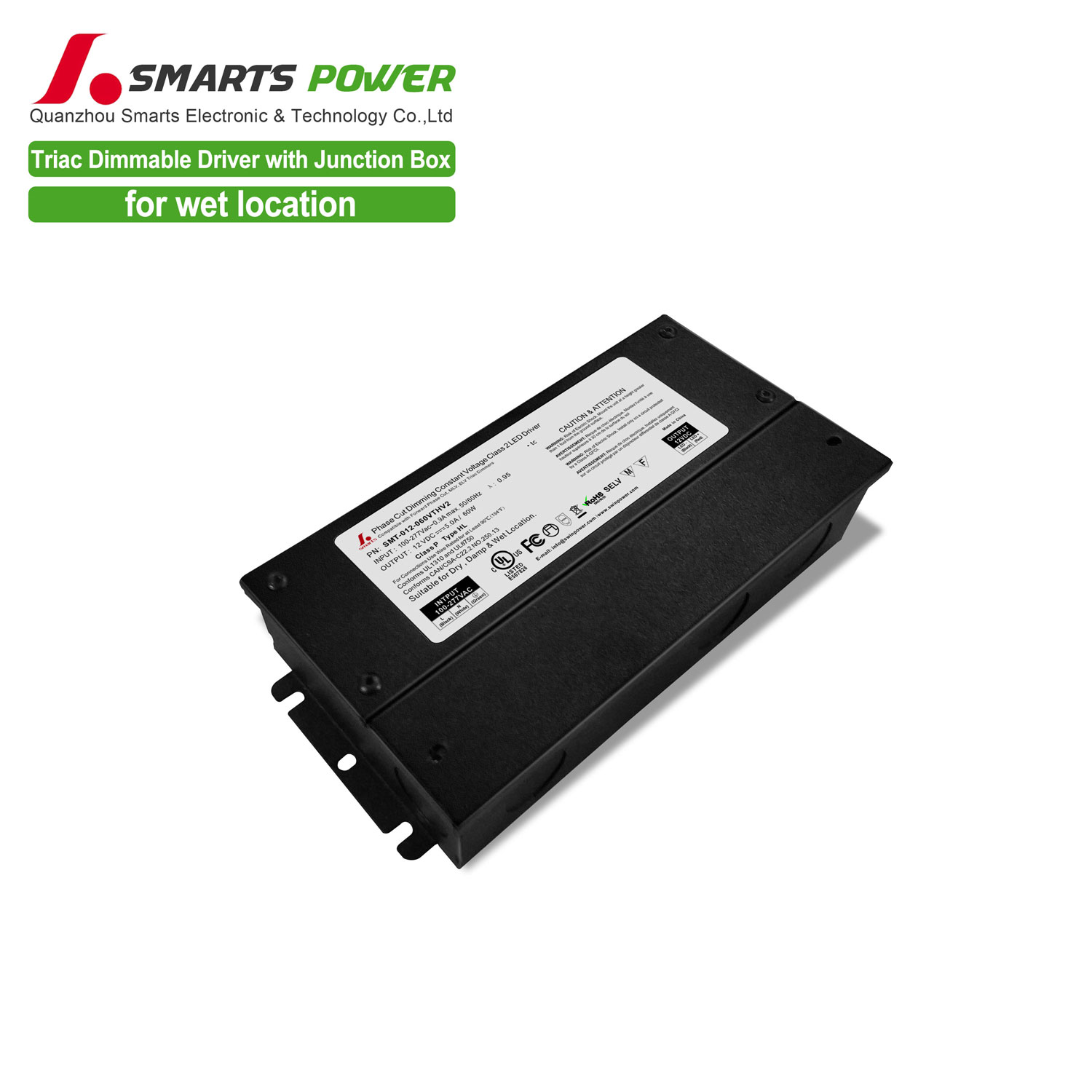

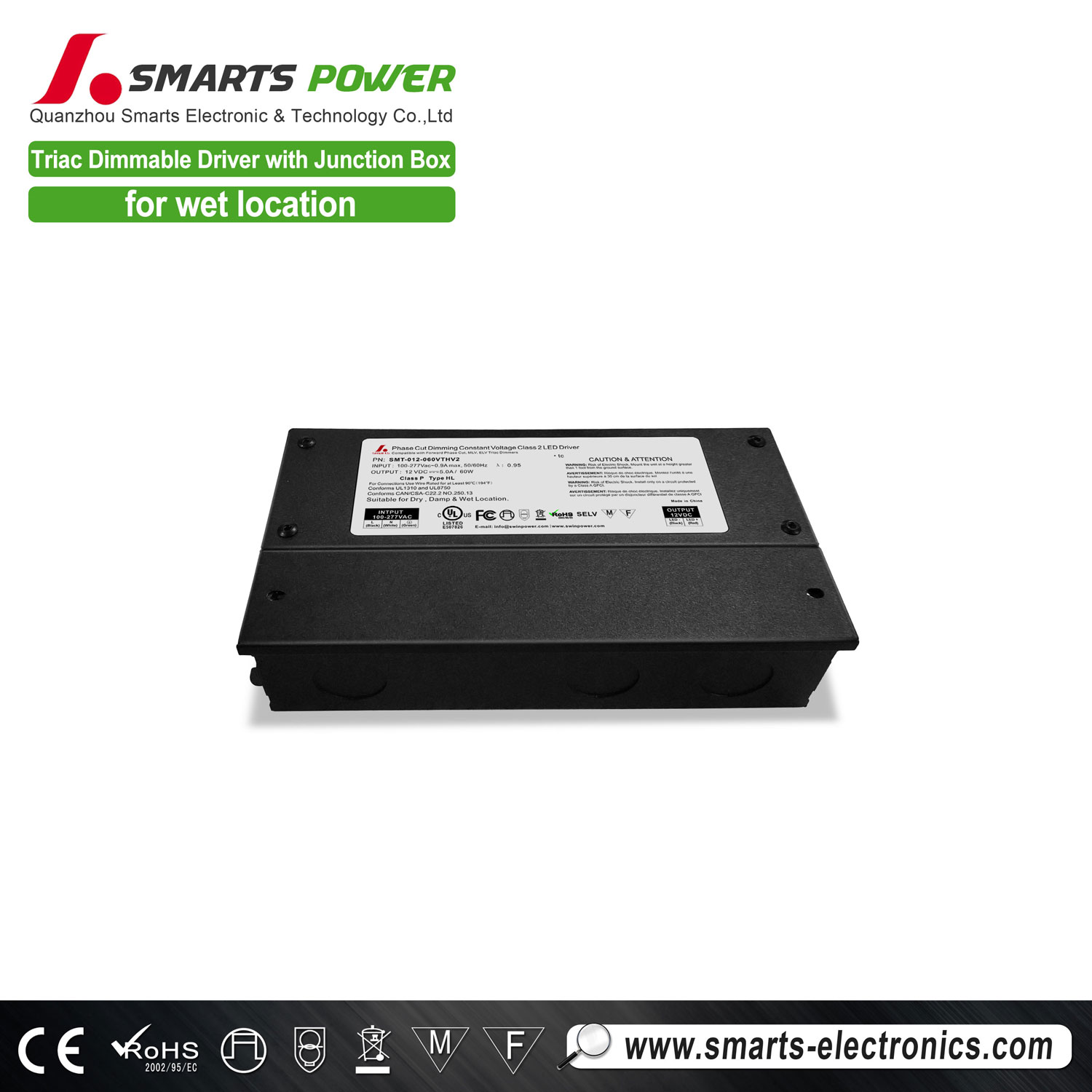

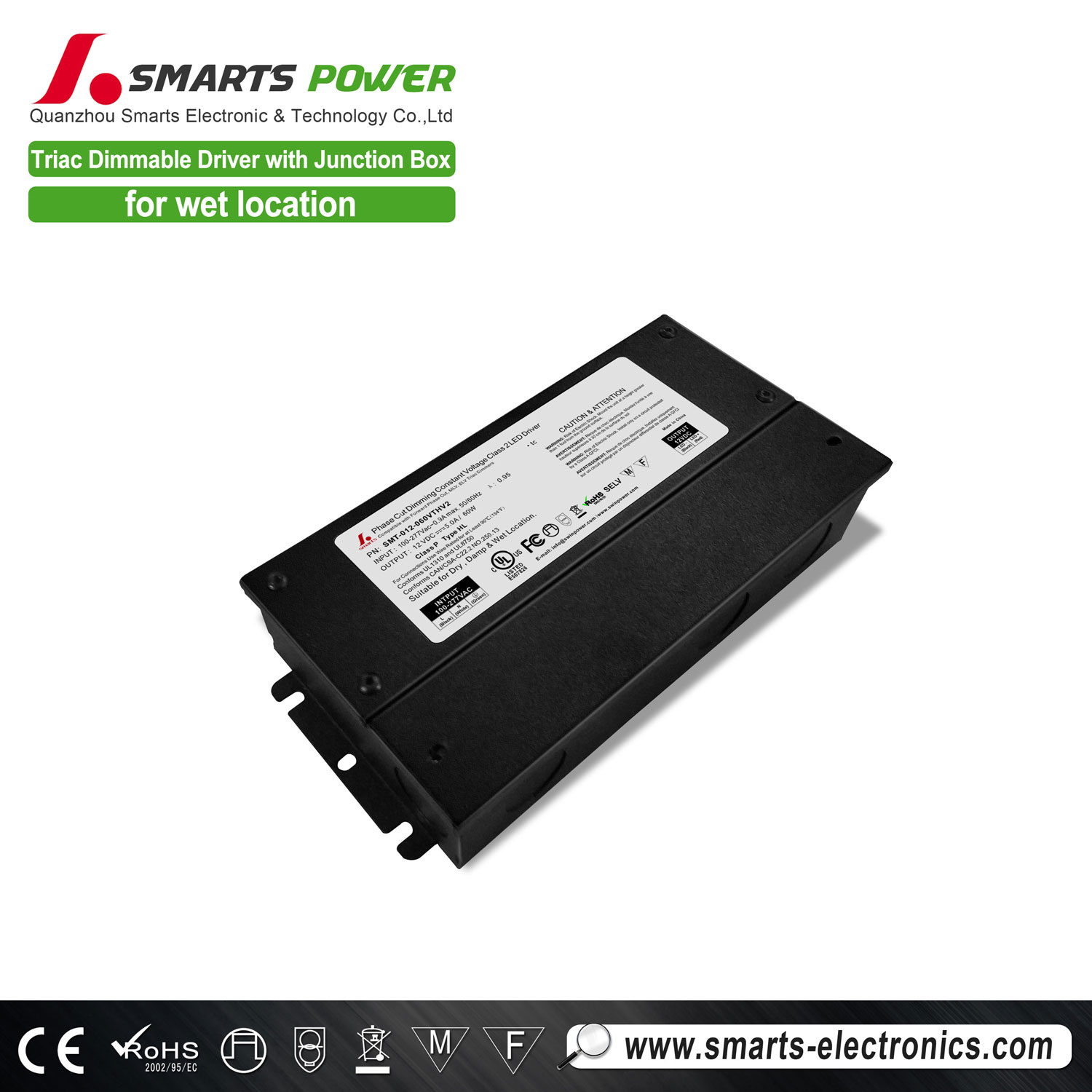

120V 277V Triac Dimmable Led Driver 12v 60w Led Power Supply

Production Lead Time:

7 day(s)

Weight:

1.1KG

Model No.:

SMT-012-060VTHV2 SMT-024-060VTHV2

Brand:

SMARTS

Colour:

Black

Size:

188 x 94.5 x 40mm(L*W*H)

Port:

Xiamen

Type of Payment:

PayPal, Western Union, Bank Transfer, Private Account, Alibaba Trade Assurance

Minimum Order Quantity:

1 piece

Power:

Low Power

Fitting:

led driver

Strip light:

Flexible, Mini, Linkable, Multi-Colour, Heavy Loading

Certification:

CE, RoHS , UL

Warranty:

7-years

Output Voltage(V):

12（24）VDC

Input Voltage(V):

100-277VAC

Input Signal:

single Input

Output Signal:

single Output

Description

Contact Supplier

Features

Output constant voltage
Input voltage range 100-277VAC
Built-in PFC function / PF>0.97
Efficiency >85% / Dimming range: 0~100%
Protections:short circuit/over voltage/over heat
Cooling by free air convection / Flicker-free
Work with leading edge and trailing edge triac dimmers available
PWM output, does not change the color index
Metal housing, suitable for dry, damp, wet location
Strong compatibility, flicker-free dimming
Suitable for LED lighting and moving sign applications
Compliance to worldwide safety regulations for lightings.
Compatible with Forward phase, Reverse phase, Triac, MLV, ELV Dimmers
7 years warranty

Dimming Operation

Output constant current level can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer.
Compatible with Leading edge or trailing edge triac dimmers, but trailing edge dimmers work better..
Please try to use dimmers with power at least 1.5 times as the output power of the driver.
