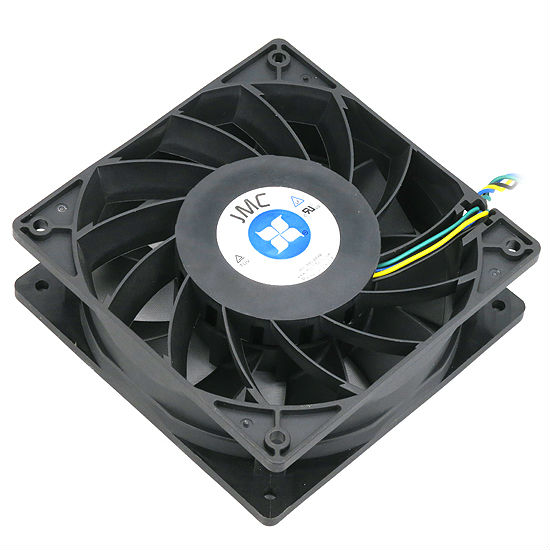

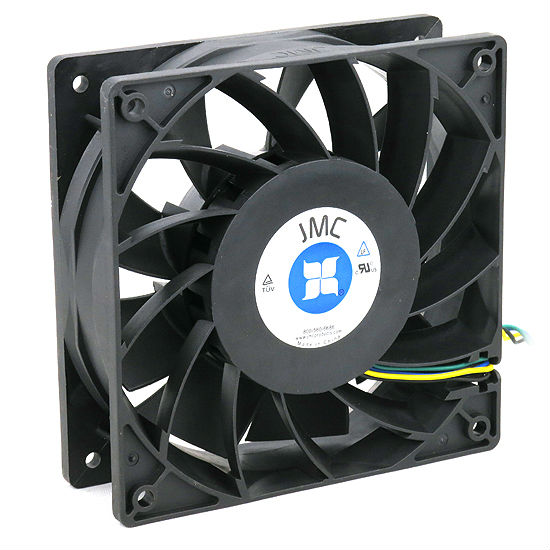

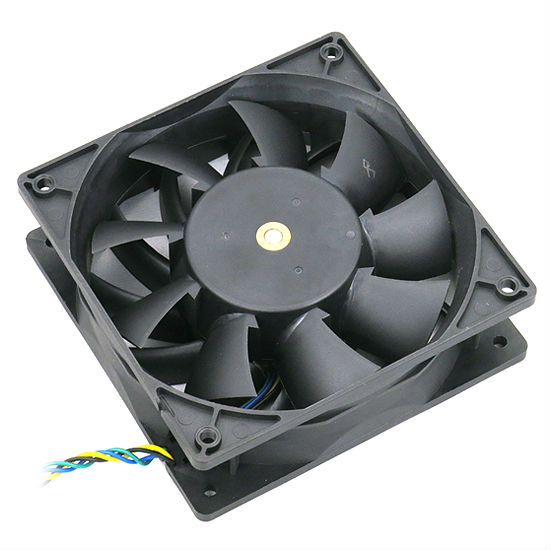

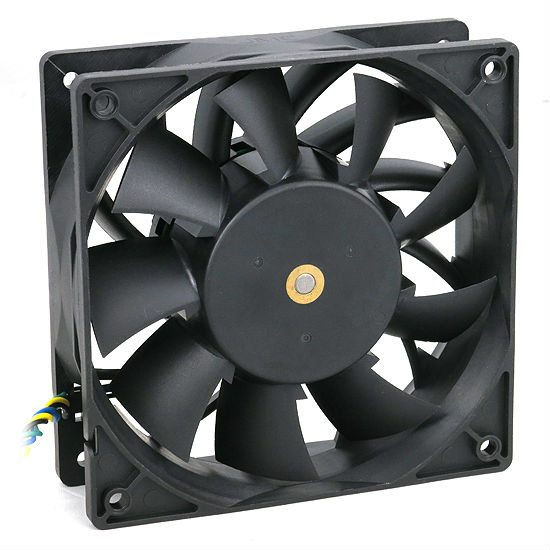

120x38mm FV DC Fan

Production Lead Time:

42 day(s)

Model No.:

12003B0003

Brand:

JMC

Colour:

Black

Size:

120mm x 120mm x 38mm

Port:

Hong Kong

Type of Payment:

T/T

Minimum Order Quantity:

120 piece(s)

Package:

Yes

Customised:

Yes

Description

Contact Supplier

This product is a high performance fixed vane DC fan for computers and electronic devices. Its fixed vane frame design can achieve higher airflow and air pressure comparing with the same form factor axial fan. It is most suited for system which has high system impedance and needs to dissipate large amount of heat

Size: 120 x 120 x 38 mm
Operating voltage : 10.8 - 13.2 Vdc
Speed: 3,000~4,500rpm
Air flow: 133.3~200 CFM
Pressure: 0.36 ~ 0.82 in H2O
Available with PWM signal
Ball Bearings
Also available in 24V & 48V
