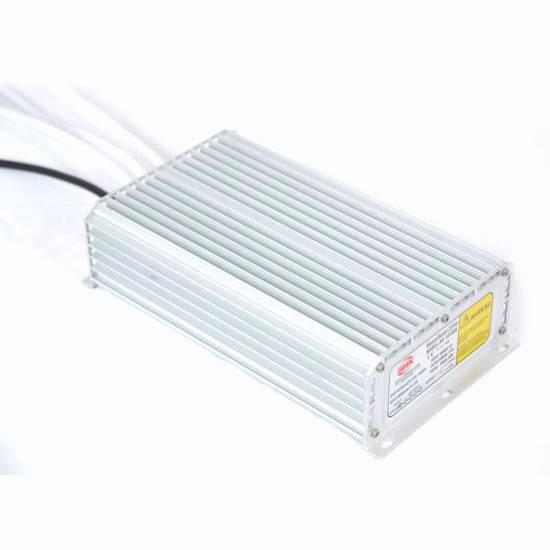

12V 200W IP67 Constant Voltage LED Power Supply
Production Lead Time:
3 day(s)
Model No.:
HV-12200K
Brand:
HONGKE
Colour:
Silver
Size:
238 x 130 x 60mm (L x W x H)
Port:
Zhuhai
Minimum Order Quantity:
10 pc(s)
Description
Contact Supplier
Description
Model : HV-12200K
Input Voltage Range: 170-250VAC
Frequency Range: 50～60Hz
Input Power: ≤250W
Inrush Current : Cold Start:40A/230VAC
Leakage Current : ≤0.75mA/240VAC
Output DC Voltage 12±0.5V
Rated Current 16.67A
Rated Power 200W
Ripple & Noise ≤600mVp-p
Hold Up Time ≤2s
Protection Over Loading 120～150%
Short Circuit Protection type : Hiccup mode, recovers automatically after fault condition is removed
High Temp. 100℃±10℃(Shut down, re-power on to recover)
Environment Working Temp. -25℃～+40℃(Refer to output load derating curve)
Storage Temp. -40℃～+60℃,10～95%RH
Voltage Resistance Input-Output AC 1.5KV / 5mA 5s
Input-Housing AC 1.5KV / 5mA 5s
Others IP Rating IP67
Dimension 238*131*60mm
Packing 475×298×185mm / 5PCS / Carton
Weight : 13.8kg / 5pcs / Carton
Input Voltage Range: 170-250VAC
Frequency Range: 50～60Hz
Input Power: ≤250W
Inrush Current : Cold Start:40A/230VAC
Leakage Current : ≤0.75mA/240VAC
Output DC Voltage 12±0.5V
Rated Current 16.67A
Rated Power 200W
Ripple & Noise ≤600mVp-p
Hold Up Time ≤2s
Protection Over Loading 120～150%
Short Circuit Protection type : Hiccup mode, recovers automatically after fault condition is removed
High Temp. 100℃±10℃(Shut down, re-power on to recover)
Environment Working Temp. -25℃～+40℃(Refer to output load derating curve)
Storage Temp. -40℃～+60℃,10～95%RH
Voltage Resistance Input-Output AC 1.5KV / 5mA 5s
Input-Housing AC 1.5KV / 5mA 5s
Others IP Rating IP67
Dimension 238*131*60mm
Packing 475×298×185mm / 5PCS / Carton
Weight : 13.8kg / 5pcs / Carton
