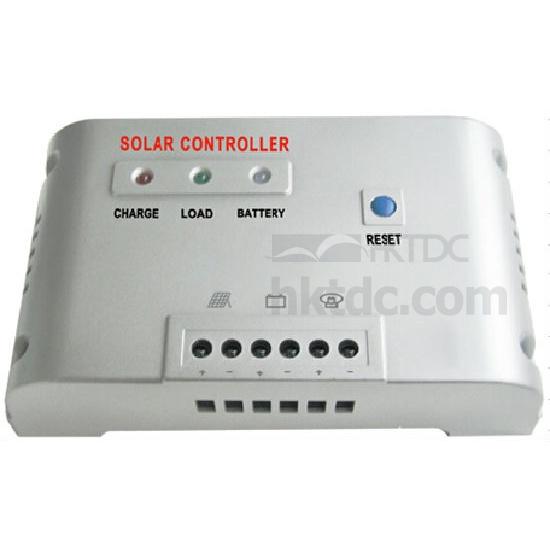

MPPT SOLAR CHARGE CONTROLLER
MPPT6—80 User Manual
Thank you for purchasing our MPPT solar charge controller. Please read these instructions before use.
1. SAFETY
People’s safety and property has been given full consideration when designing the
products. However the incorrect use method may cause the system breakdown or even
safety accident. For your safety and benefits, the following rules must be complied during
the operation.
Installation of this product shall be guidance from the professionals in this field or contact distributor
Prevent any liquid spattered on the controller. Do not clean the controller with wet cloth.
Keep the controller away from electrical heater, heating machine and other high temperature electrical
appliances; avoid the controller suffer from isolation directly.
Please check the rated voltage of solar panel, battery, and loads before connection. 12V rated voltages
is 12V, 24V rated voltages is 24V, 48V rated voltages is 48V.
Make sure connections between positive and negative poles of Solar panels, Battery and Loads are
correct.
The diameter of connecting cable must be matched with the requirements of the current.
The total rated current of solar panel and loads must be smaller than the controller.
Components of system must be correctly and firmly connected.
2. FEATURES
MPPT solar charge controller MPPT15-60: Compared with normal solar charge controller, this MPPT controller could
increase efficiency at 10%-30%.
This MPPT controller has perfect SOC function, control charge current, and supply power to the loads.
Function:
Always keep the battery on full voltage condition.
Prevent the battery from over-charging.
