12V1A AC DC Adapter

Model No.:

DQS151

Brand:

Colour:

Black, White

Size:

74 x 30 x 41.5mm

Port:

Shenzhen

Type of Payment:

T/T

Minimum Order Quantity:

1,000 piece(s)

Features:

with Switch

Package:

Yes

Customised:

Yes

Plug Type:

Type A

Weight:

90g

Standard:

EU, US, BS, AU, JP, KC

Description

Contact Supplier

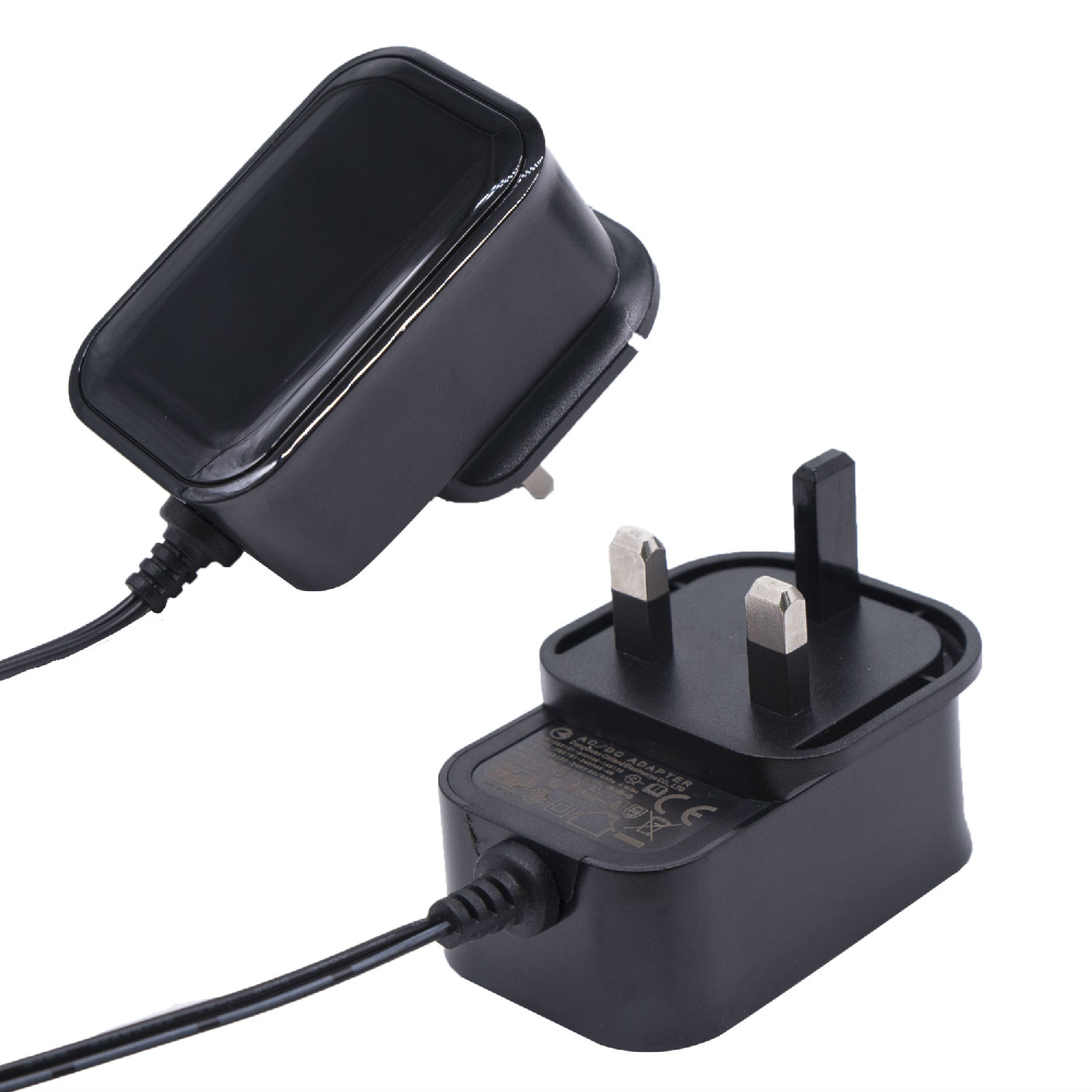

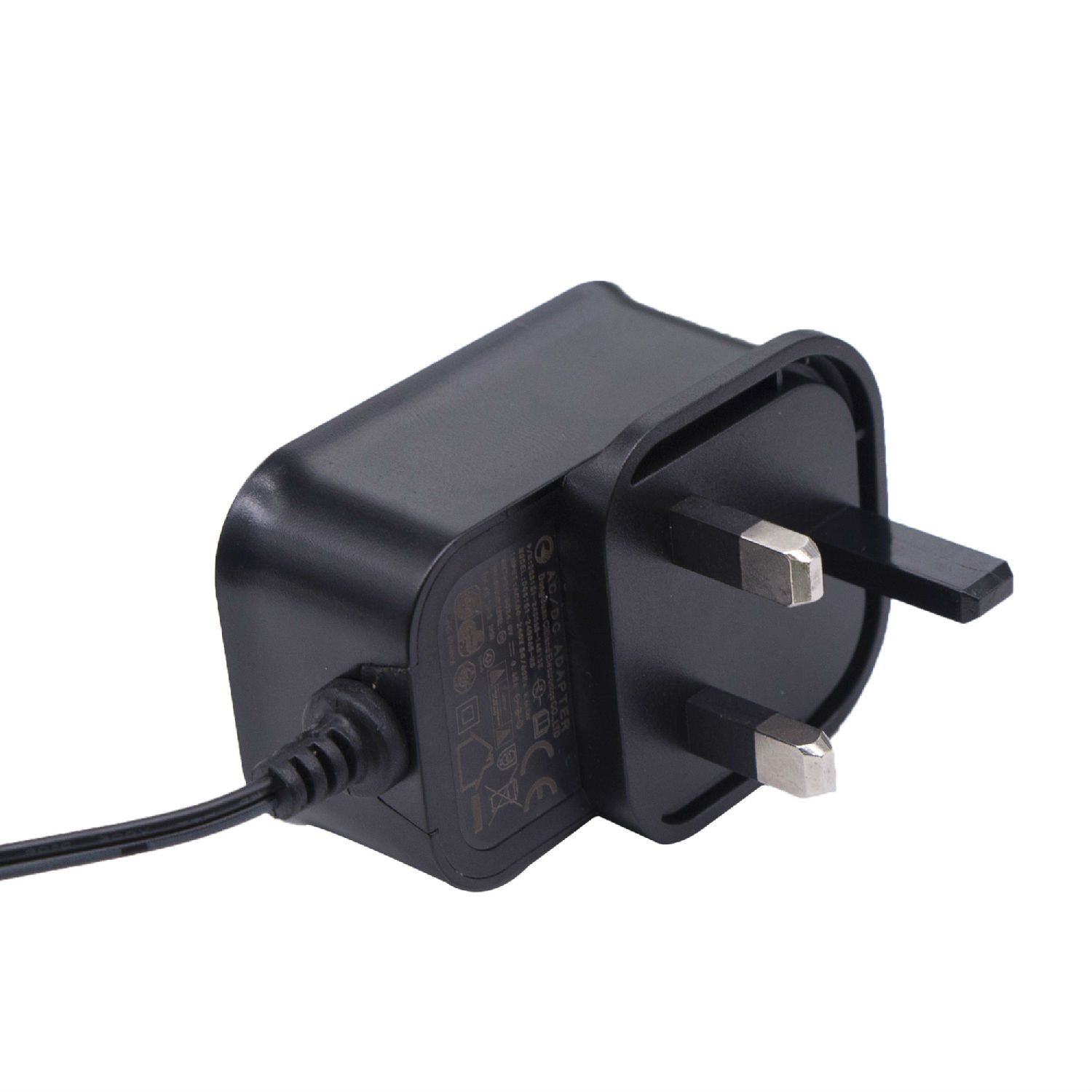

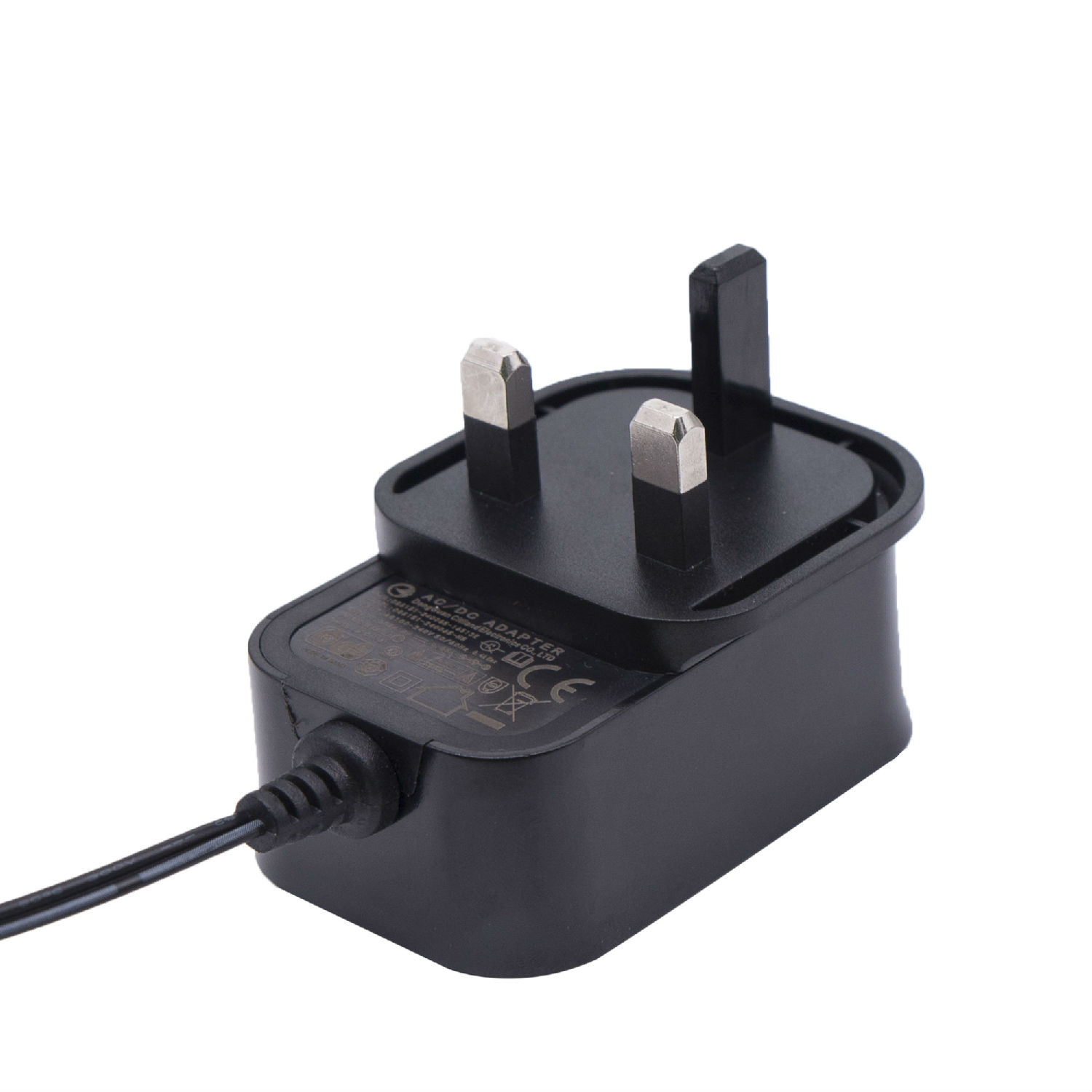

12V1A AC DC adapter power adapter with customized AC plug safety standards
Key Specifications/Special Features:
5V2A AC DC adapter
10W series external wall-mount AC/DC adapter, 5V2A
Switching power adapter (AC/DC adapter), class II, LPS, universal input
Customized designs are available
Model number:
Application of 5V2A AC DC Adapter:
- CCTV camera/LED lights/strips/LED torch/player/audio turntable/air humidifier/aquarium
- Water purifier
- Router/CCTV camera/LCD
- Medical machine/POS machine/beauty and health equipment/monitor/Fans.
- Pump/toys/display/digital photo frame/oven/other electronic products
Reliability of 18V 0.65A AC DC adapter:
100% full loading, 40°C, 4 hours each part of this series can be sold separately
MTBF: meet MIL-HDBK-217F over 50,000 hours, full loading, 25°C burn-in
Leakage current: 0.25mA, maximum at 264V AC
Withstanding voltage: 3kV, 1 minute, 10mA (maximum), between primary and secondary
Protections 5V2A AC DC adapter:
Over-voltage protection
Over-current protection
Short-circuit protection
Thermal shutdown capability
Features of 5V2A AC DC adapter:
High-reliability
High-efficiency consumption
With fuse, short-circuit protection
Environment-friendly, energy-saving, complying with the safe certification standard
Double insulated circuit board designed to protect your valuable gadgets from short circuit
Certifications of 5V2A AC DC adapter:
AS/NZS 60950:2000 and AS/NZS 60065
UL 60950 and GB 4943-2001
PSE IEC 60950 and EN60065
CE (low-voltage directive)
EN 60950:2009 and EN 60065
Standards: US Energy Star, CEC,
