12V1A Power Adapter | Parts, Components & Electrical Supplies

Shenzhen Fining Electronics Co., Ltd.

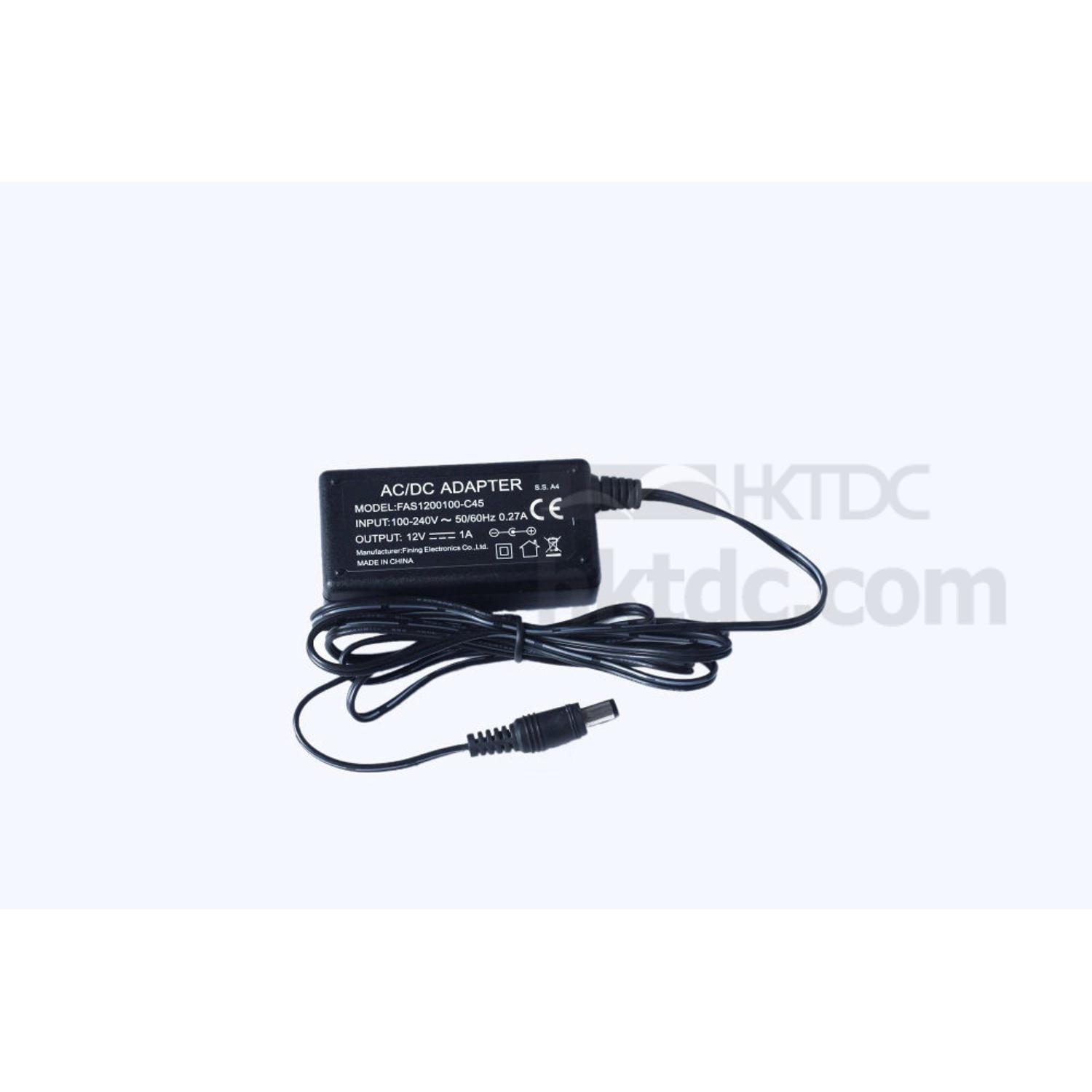

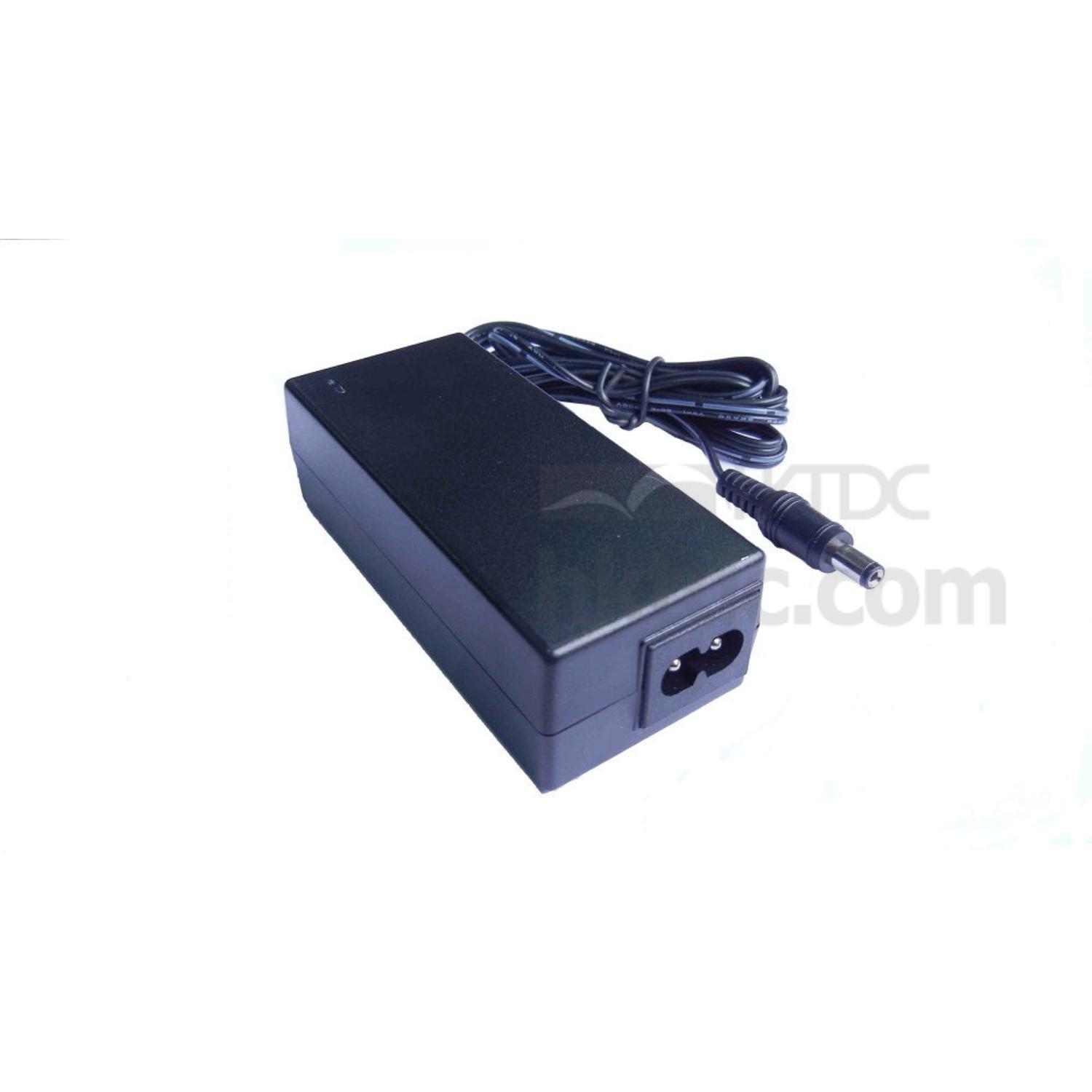

12V1A Power Adapter

Production Lead Time:

20 day(s)

Model No.:

Model：FAS1200100-C43

Brand:

Fining

Colour:

Black

Size:

77*38*22mm (L*W*H)

Port:

Shenzhen

Type of Payment:

Minimum Order Quantity:

500

Material:

ABS

Applicable Vehicle Type:

Bus, Camper, Car, Minibus, Minivan, Multi-Utility Vehicle (MUV), Recreational Vehicle (RV), Sport Utility Vehicle (SUV), Truck, Van

Weight:

72g

Features:

Power adaptor

Output Power:

12V 1A

Customised:

Yes

Voltage:

12V

Description

Contact Supplier

Model：FAS1200100-C43
Input：100-240VAC @47-63Hz；
Output: Rated voltage 12VDC±5%, rated current 0-1A；
Efficiency：higher than 70%(full load）；
Inrush current：<40A;
Leakage current:<0.5ma;
Hi-pot test: primary to secondary 3KVAC/3mA ( 1min@50Hz );
Protection：Over voltage protection(115%--150%),Over current protection(115%--150%),Short circuit protection
Working temperature：0 to +40℃；
Storage temperature：-20℃ to +65℃；
Standard：EN60950-1；EN61000；EN55022 Class B、EN55024、EN61000-3-2、EN61000-3-3
MTBF：life＞50,000 hours；
Burning test：ambient 40±5℃,humidity 0％~93％, 100Vac～240Vac/50Hz, full load：80%~100% /2~4 hours
Dimension：77*38*22mm (L*W*H)
Weight：72g(without AC cable）
Package：white box（106*69*50mm）
