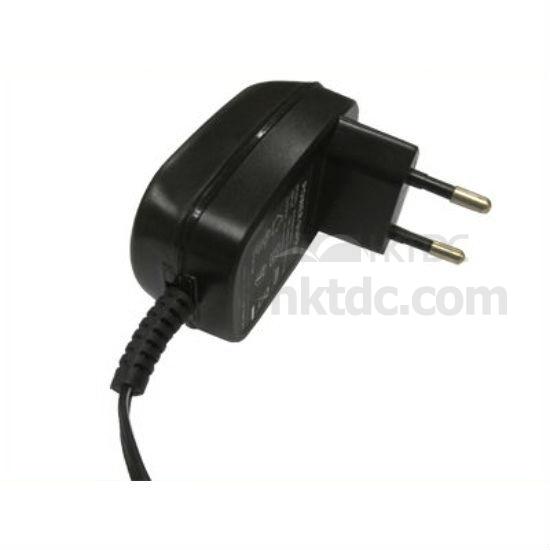

12V1A Switching Power Supply
Production Lead Time:
5 day(s)
Model No.:
P120W1000
Brand:
Panfore
Colour:
Black, White
Size:
65mmx40mmx32mm
Type of Payment:
TT, LC, PayPal
Package:
Yes
Type:
Electrical Plug
Description
Contact Supplier
Description
Electrical Specification
- Input Voltage Range: 90~264Vac
- Frequency: 50/60Hz
- AC current: 0.3A
- Inrush Current: 30A/230Vac
- Leakage Current: 0.25mA/240Vac
- AC connector: Euro two round pin
- Output Voltage: 12.0V
- Output Voltage: 11.4-12.6V
- Output Current: 1.0A
- Line regulation: ±1%
- Load regulation: ±5%
- Efficiency: Meet energy star level V (EUP)
- No load power consumption <0.3W
- Protection: Overload protection, Short Circuit protection
- Working Temp.: 0~40℃
- Working Humidity: 20%~90% RH non-condensing
- Storage Temp. & Humidity: -20℃~85℃, 10%~95% RH
- Approved by CE, FCC, UL, EMC, C-TICK
- 74.5mm*30mm*41mm (L*W*H)
