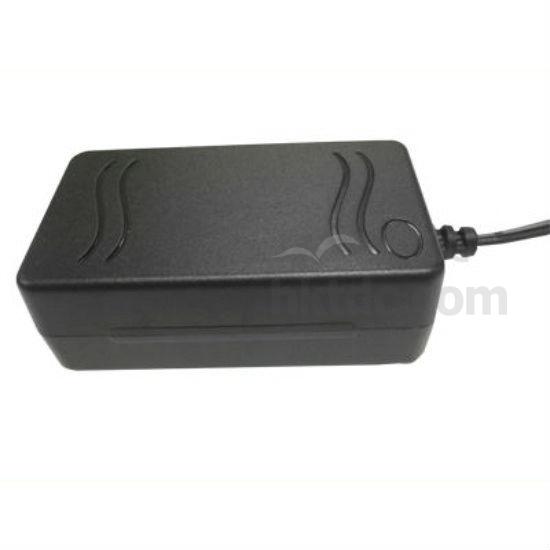

12V2A DC Adaptors
Production Lead Time:
5 day(s)
Model No.:
P120D2000
Package:
Yes
Customised:
Yes
Output Type:
DC
Connection:
Desktop
Usage:
Switching Power
Place of Origin:
Mainland China
Description
Contact Supplier
Description
Electrical specification
- Input voltage range: 90~264Vac
- Frequency: 50/60Hz
- AC current: 0.6A
- Inrush current: 30A/230Vac
- Leakage current: 0.25mA/240Vac
- Output voltage: 12Vdc
- Output voltage range: 11.4 - 12.6Vdc
- Output current: 2.0A
- Line regulation: ±1%
- Load regulation: ±5%
- Efficiency: >80%
- No load power consumption <0.3W
- Protection: overload protection, short circuit protection
- Working temp.: 0~40℃
- Working humidity: 20%~90% RH non-condensing
- Storage temp. & humidity: -20℃~85℃, 10%~95% RH
- Approved by UL,CE, EMC,FCC, C-TICK
- 78mm x 45mm x 27.5mm (L x W x H)
