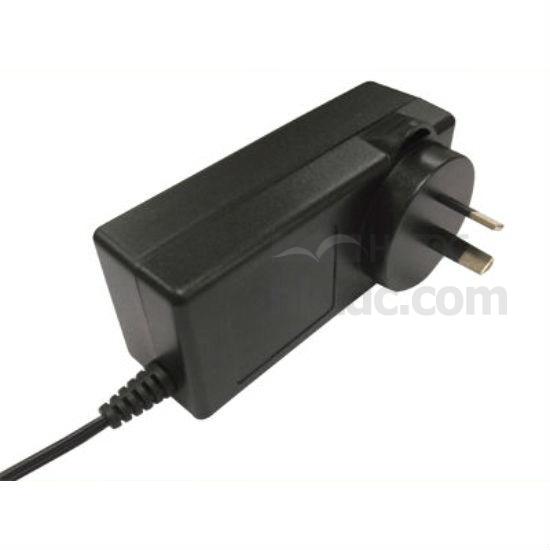

12V3A AC to DC Adaptors
Production Lead Time:
5 day(s)
Model No.:
P120W3000A
Brand:
Panfore
Colour:
White, Black
Package:
Yes
Customised:
Yes
Output Type:
DC
Connection:
Plug In
Usage:
Switching Power
Place of Origin:
Mainland China
Description
Contact Supplier
Description
Electrical Specification
- Input Voltage Range: 90~264Vac
- Frequency: 50/60Hz
- AC current: 0.8A
- Inrush Current: 30A/230Vac
- Leakage Current: 0.25mA/240Vac
- AC connector：SAA plug
- Output Voltage: 12.0Vdc
- Output Voltage Range: 11.4-12.6Vdc
- Output Current: 3.0A
- Line regulation: ±1%
- Load regulation: ±5%
- Efficiency: Meet energy star level V(MEPS)
- No load power consumption <0.3W
- Protection: Overload protection, Short Circuit protection
- Working Temp.: 0~40℃
- Working Humidity: 20%~90% RH non-condensing
- Storage Temp. & Humidity: -20℃~85℃, 10%~95% RH
- Approved by UL,CE, FCC, C-TICK
- 105mm*45mm*27.8mm (L*W*H)
