12W Adaptor
Model No.:
12W adaptor
Package:
Yes
Customised:
Yes
Description
Contact Supplier
Description

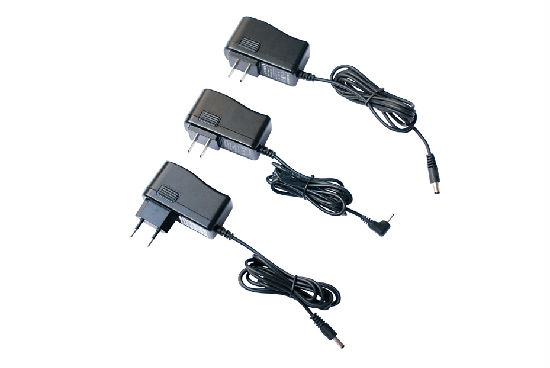

12W Wall Type AC Adaptor
Feature:plastic case,small volume,high efficiency,energy star standard,over voltage,over current,short circuit protection
Input Specification:
input voltage:90-264Vac 47-63Hz
inrush current:40A/230V
line regulate:±1% Max
Output specification:
output voltage tolerance:±5%
ripple&noise(mVp-p):﹤1% output voltage
load regulate:±5% Max
start time:≤5S(240Vac input,load 100%)
Output current:0-2.5A
low standby power:0.3W Max
MTBF:up to 50000 hours at full load at 25℃
Output protection:
over load protection:protect in 110%-140% rated watt,auto-recovery
over voltage protection:limited voltage
short circuit protection:auto-recovery after short circuit
Insulation:input to output Hi-pot:3000Vac/5mA 1Min
Resistance:input to output resistance:≥100MΩ , 500Vdc
Environment:operating temperature: 0℃-45℃ 10%-90%RH
storage temperature: -20℃-85℃ 10%-90%RH
Size:74*41*30mm 75*40*38.5(interchangeable type)
Safety standard:CCC、CE、UL、CEC、FCC、CUL、CSA、ERP、CB、KC、PSE
Feature:plastic case,small volume,high efficiency,energy star standard,over voltage,over current,short circuit protection
Input Specification:
input voltage:90-264Vac 47-63Hz
inrush current:40A/230V
line regulate:±1% Max
Output specification:
output voltage tolerance:±5%
ripple&noise(mVp-p):﹤1% output voltage
load regulate:±5% Max
start time:≤5S(240Vac input,load 100%)
Output current:0-2.5A
low standby power:0.3W Max
MTBF:up to 50000 hours at full load at 25℃
Output protection:
over load protection:protect in 110%-140% rated watt,auto-recovery
over voltage protection:limited voltage
short circuit protection:auto-recovery after short circuit
Insulation:input to output Hi-pot:3000Vac/5mA 1Min
Resistance:input to output resistance:≥100MΩ , 500Vdc
Environment:operating temperature: 0℃-45℃ 10%-90%RH
storage temperature: -20℃-85℃ 10%-90%RH
Size:74*41*30mm 75*40*38.5(interchangeable type)
Safety standard:CCC、CE、UL、CEC、FCC、CUL、CSA、ERP、CB、KC、PSE
