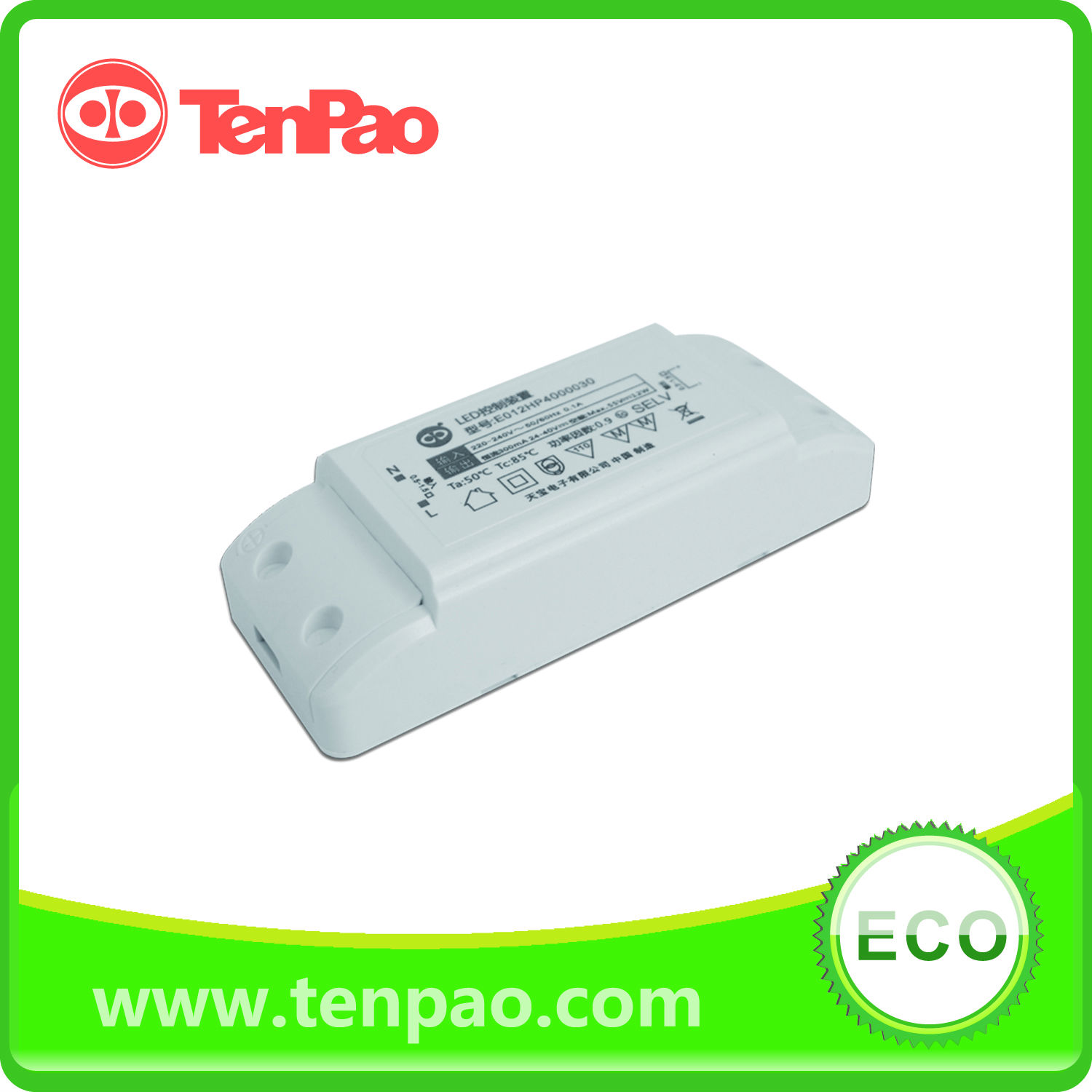

12W LED Driver Indoor Lighting
Model No.:
E012HP
Brand:
Ten Pao
Size:
115 x 45 x 27.5mm
Warranty:
3 Years
Output Voltage(V):
18Vdc-24Vdc, 28Vdc-42Vdc | 42Vdc-60Vdc, 50Vdc-70Vdc
Input Voltage(V):
176~264Vac 47-63Hz
Description
Contact Supplier
Description
- Series: E012HP
- Features: Economic model;Constant-current design; High power factor;
- Full protective cabinet; Elegant appearance;
- Isolation design; Natural convection cooling; 3 years warranty;
- Output: 18Vdc-24Vdc | 28Vdc-42Vdc | 42Vdc-60Vdc | 50Vdc-70Vdc
- Output Current: 500mA | 300mA |200mA | 180mA
- Output Power: 12W
- Constant Current Precision: ±5%
- Input Voltage: 176~264Vac 47-63Hz
- Power Factor: >0.95
- Efficency: 81% | 82% | 84% | 84%
- Over Load Protection: Hiccup mode, auto recovery
- Over Voltage Protection: Hiccup mode, auto recovery
- Short Circuit Protection: Hiccup mode, auto recovery
- Operating Temperature: -20℃ to~+60℃
- Safety Standards: CCC GB19510/CE EN61347-2-13
- EMC Standards: EN55015/GB17743
- Dimension(mm): 115 x 45 x 27.5mm (L x W x H)
- Main Application: Panel light; Grille light; Down light
