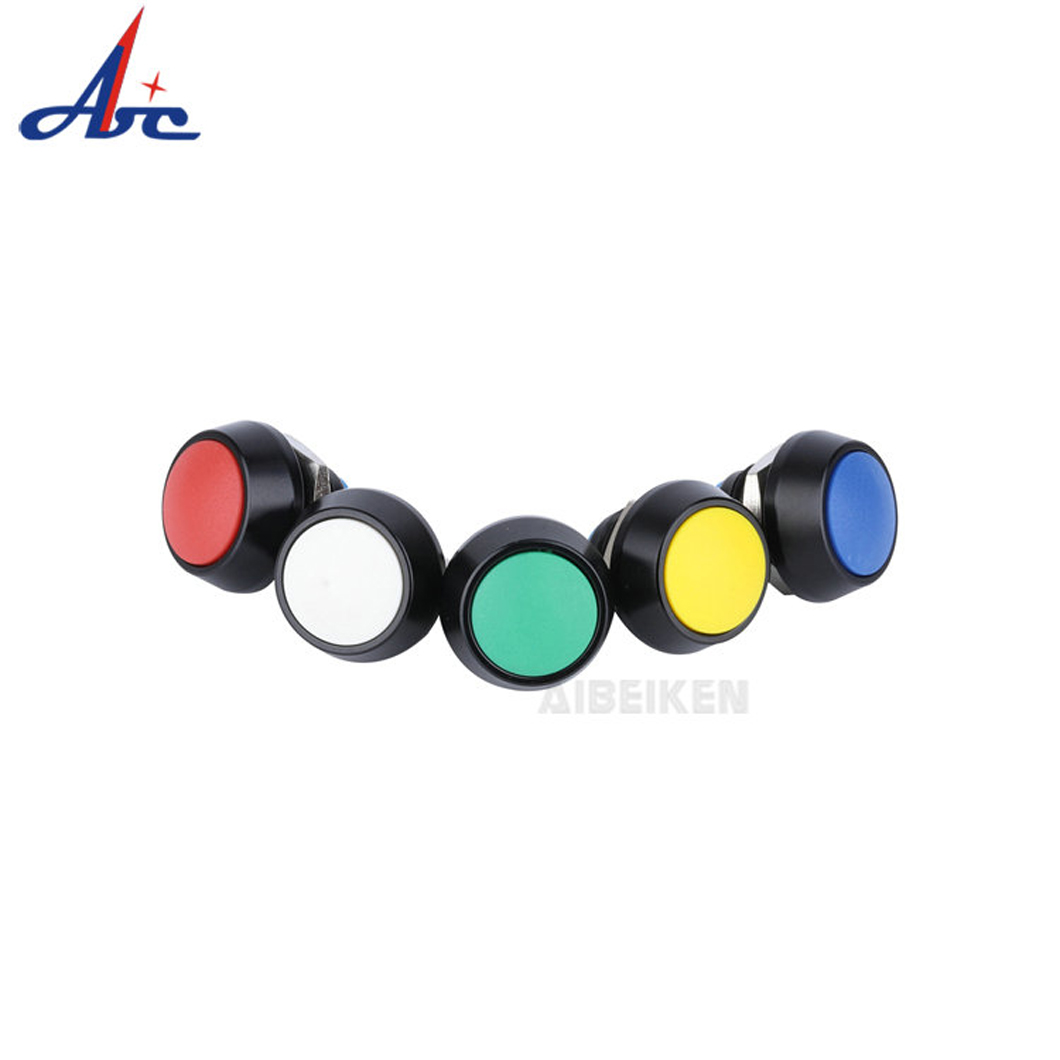

12mm Momentary Push Button Switch
Production Lead Time:
7 day(s)
Model No.:
IB12U-Q10J-AL
Brand:
ABILKEEN
Colour:
Red, Yellow, Blue, White, Green, Black
Size:
12mm mounting hole size
Package:
Yes
Customised:
Yes
Max. Voltage:
250VAC
Operating Temperature:
-20-+55
Max. Current:
3A/5A
Mechanical Life:
500,000 cycles
Protection Level:
IP65 / IP67
Description
Contact Supplier
Description
- Momentary Type: Push & Hold - ON, Release – OFF
- Easy to Install: Screw type terminals, don't need to solder
- IP65 Waterproof & IK10 Protection: Rustproof, can be used in wet or dust environment
- Widely Application : Great for Box Mod, Car Boat Vehicle push button switch12V , Kill Switch ,Horn Button Switch, PC Power Switch or any circuit controls ,electronic DIY equipment
- Features:
- Easy to install, waterproof, shockproof, durable
- The switch will be on when you push button, and it will be off when you undo button
- This switch can be used for circuit control in electromagnetic starter, relay and other electric circuits.
Specifications:
- Mounting Cut Hole: Approx.12mm
- Operation Type: Momentary (Self Return)
- Switch Contact: 1NO (Normally Open)
- Max Switch Rating: 3A/36VDC

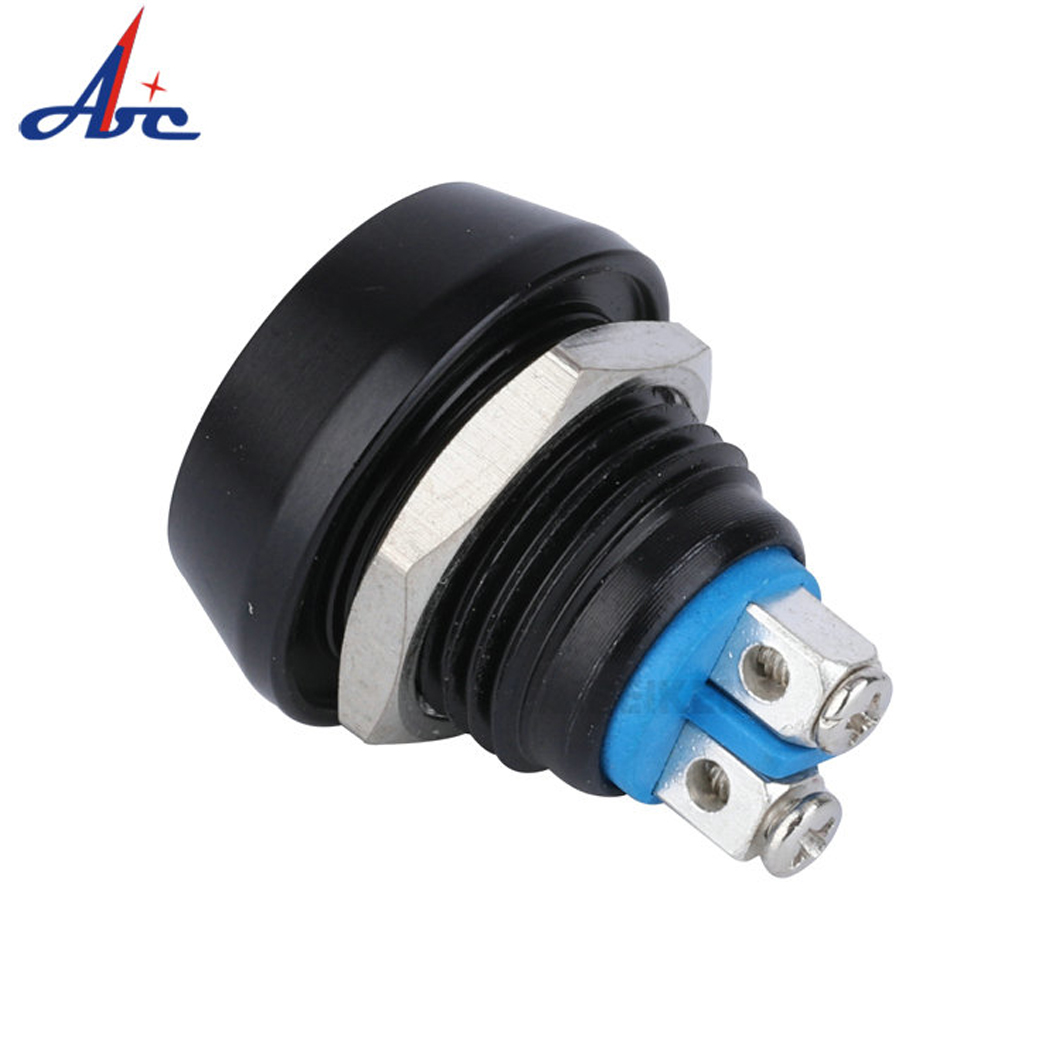

- Terminal Type: Screw Terminal
- Operation Temperature: -20° ~ + 55°
