13.3 inch Display 1920*1080 TFT LCD Liquid Crystal AHVA Display Panel
Share this page
US $15.00 - US $30.00
Production Lead Time:
25 day(s)
Shipping Method:
Support Express · Sea freight · Land freight · Air freight
Model No.:
MTF133FD05A-V3
Brand:
Microtech-lcd
Size:
13.3inch
Customised:
Yes
Description
Contact Supplier
Description

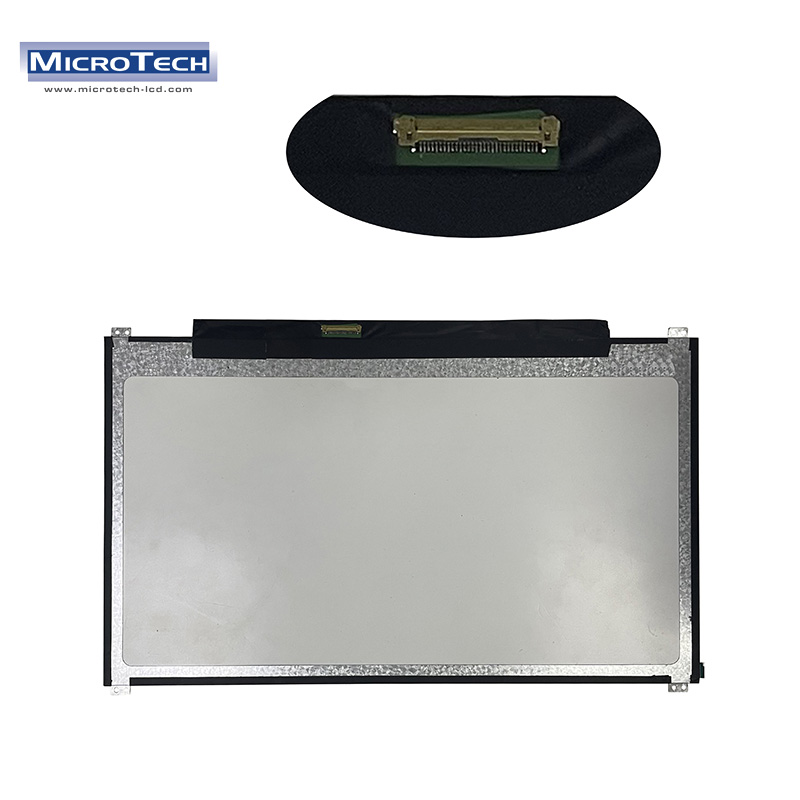

13.3 inch display 1920*1080 TFT LCD liquid crystal display panel

MTF133FD05A-V3 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that
uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel and a
driving circuit.This TFT LCD has a 13.3 inch diagonally measured active display area with (1920 horizontal
by1080 vertical pixel) resolution.
Parameter
Specification
Unit
Remarks
Outline Dimension
305.1(H) *178.0(V) x2.60(D)
mm

Display area
293.76(H) *165.24(V)
mm

Number of Pixel
1920RGB (H) * 1080 (V)
pixels

Pixel pitch
0.153(H) x 0.153(V)s
mm

Pixel arrangement
RGB Vertical stripe


Display mode
AHVA, Normally Black


Color Filter Array
RGB vertical stripes


Backlight
White LED


Weight
TBD
g

Electrical Interface
EDP
