13.3 inch TFT LCD touch screen 1920*1080 HD EDP interface 1000Nits CTP LCD screen

Microtech Technology Co Ltd

Enquire

Compare & Bulk Enquire

US $30.00 - US $80.00

Production Lead Time:

25-45 day(s)

Shipping Method:

Support Express·Sea freight·Land freight·Air freight

Brand:

Microtech

Model No.:

MTF133FD18A-V1(1000Nits)

Customised:

Yes

Size:

13.3inch

Description

Contact Supplier

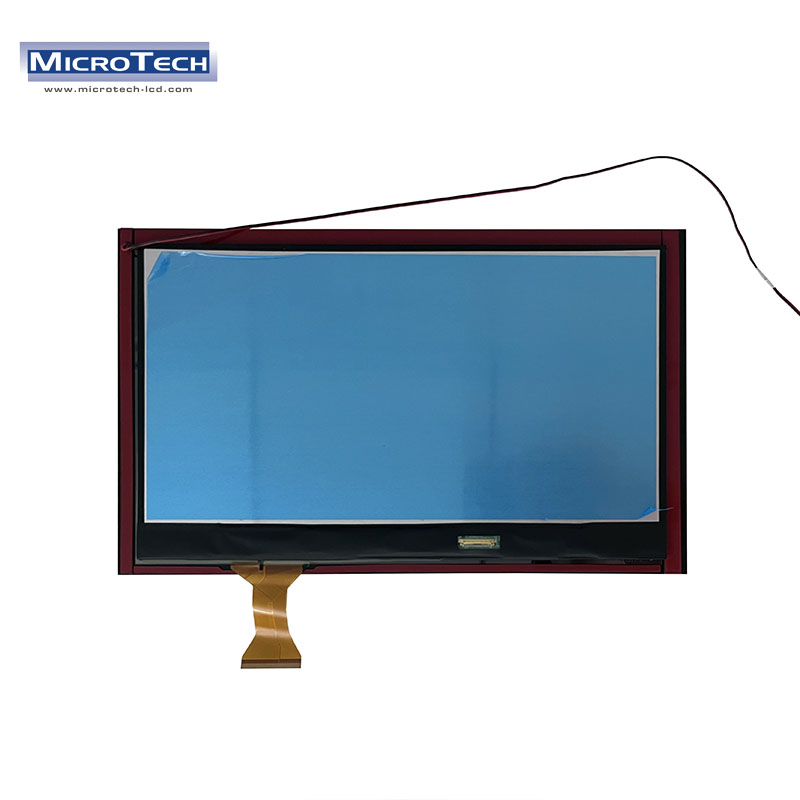

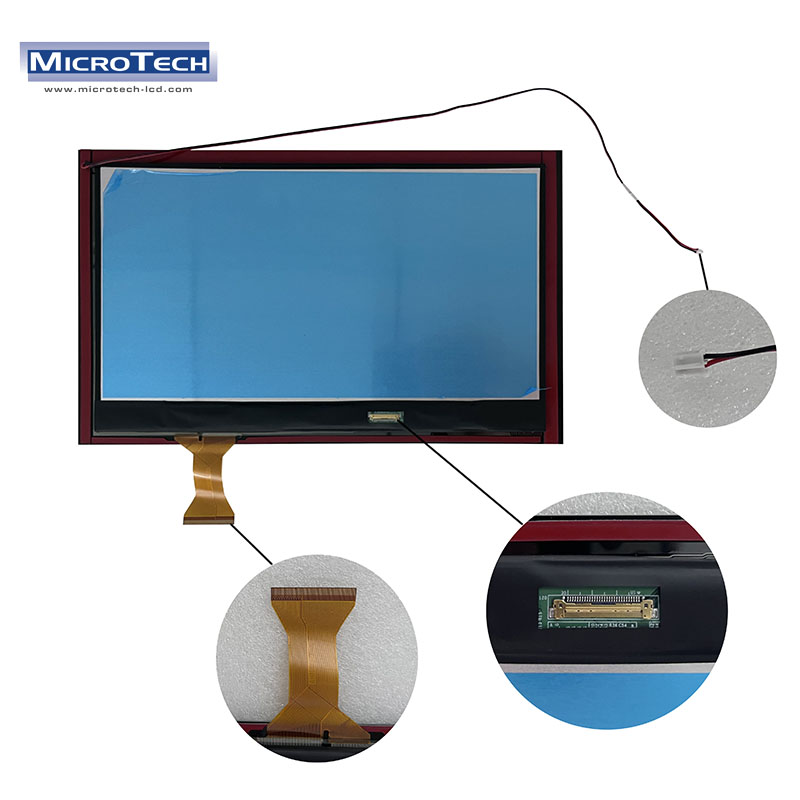

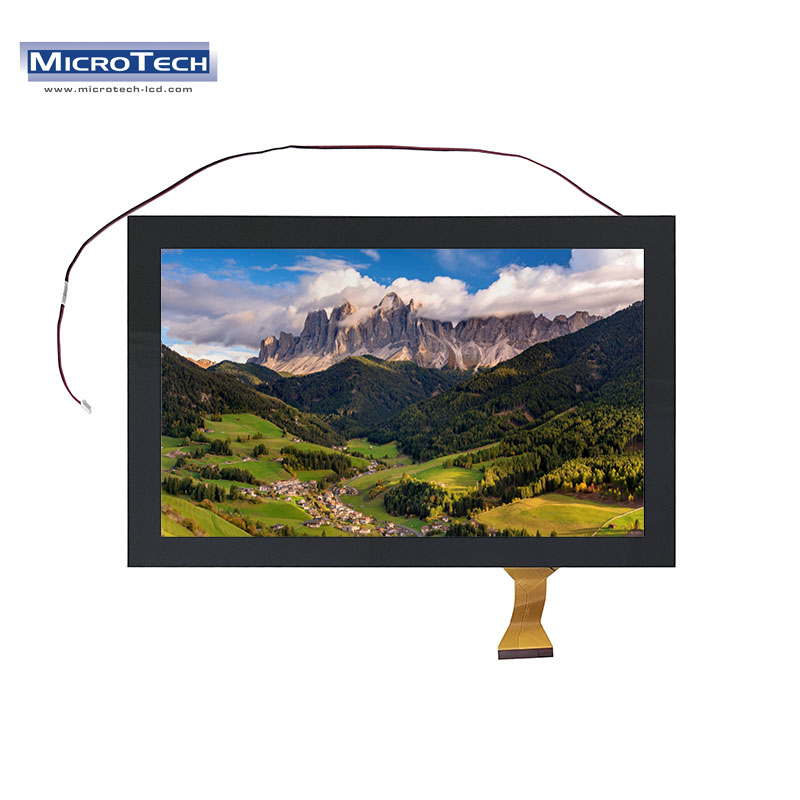

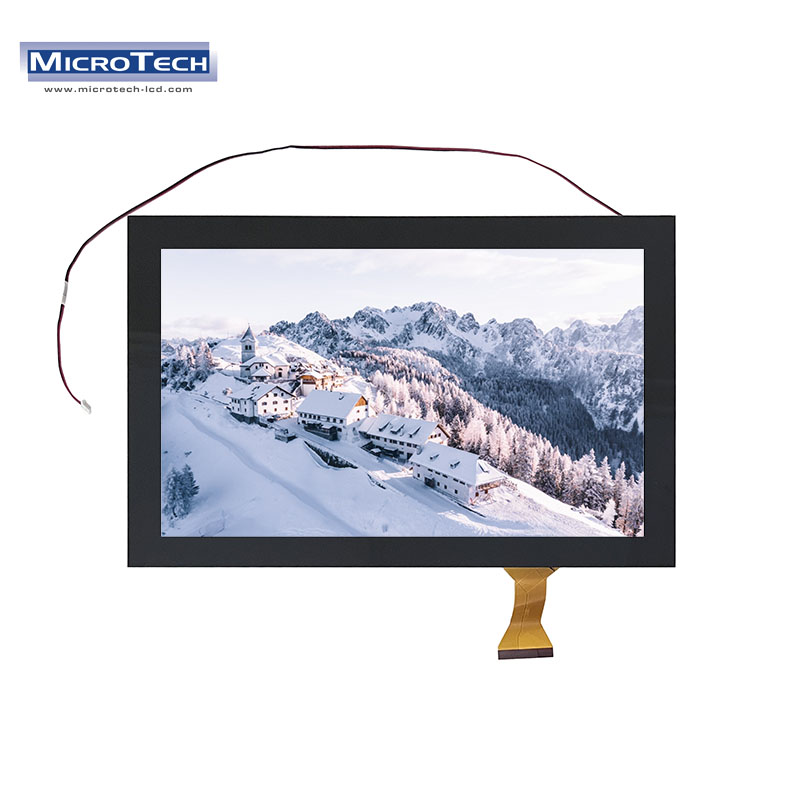

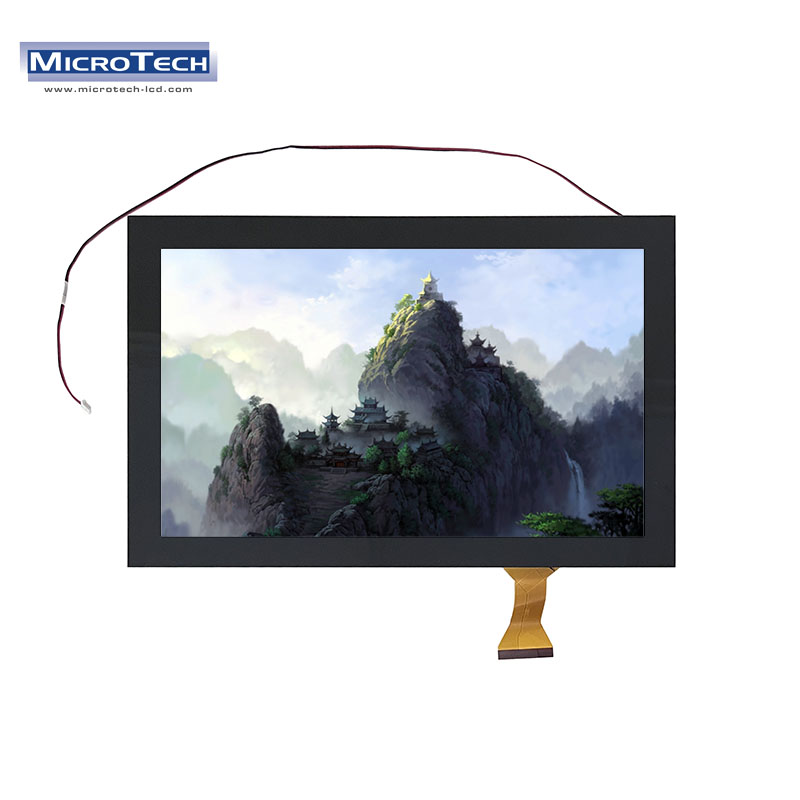

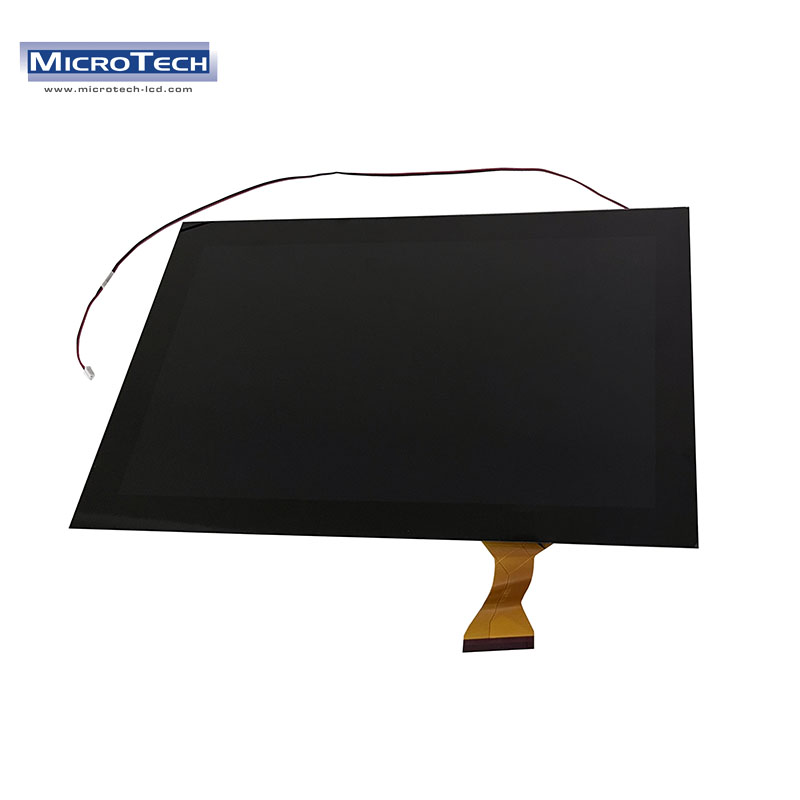

This module is a color active matrix TFT LCD module using amorphous silicon TFT's (Thin Film Transistors) as an active switching devices. This module has a 13.3 inch diagonally measured active area with Full-HD resolutions (1920 horizontal by 1080 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this module can display 16.7 M colors.

 2 lane eDP interface with 2.7Gbps link rates
 Thin and light weight
 16.7M color depth, color gamut 72%

Parameter	Specification	Unit	Note
Display size	13.3H (Diagonal)	inch
Active area	293.76H) x165.24(V)	mm
Pixel Format	1920(H) x1080(V) (1 pixel = R + G + B dot)	pixel
Pixel pitch	0.153(H) x 0.153 (V)	mm
Pixel configuration	R, G, B vertical stripe
Display mode	Normally black
Surface treatment of front polarizer	Anti-glare coating: (3H)

[Note 3-1]Outline dimensions is shown in page 13
[Note 3-2]Without war page and deflection.
