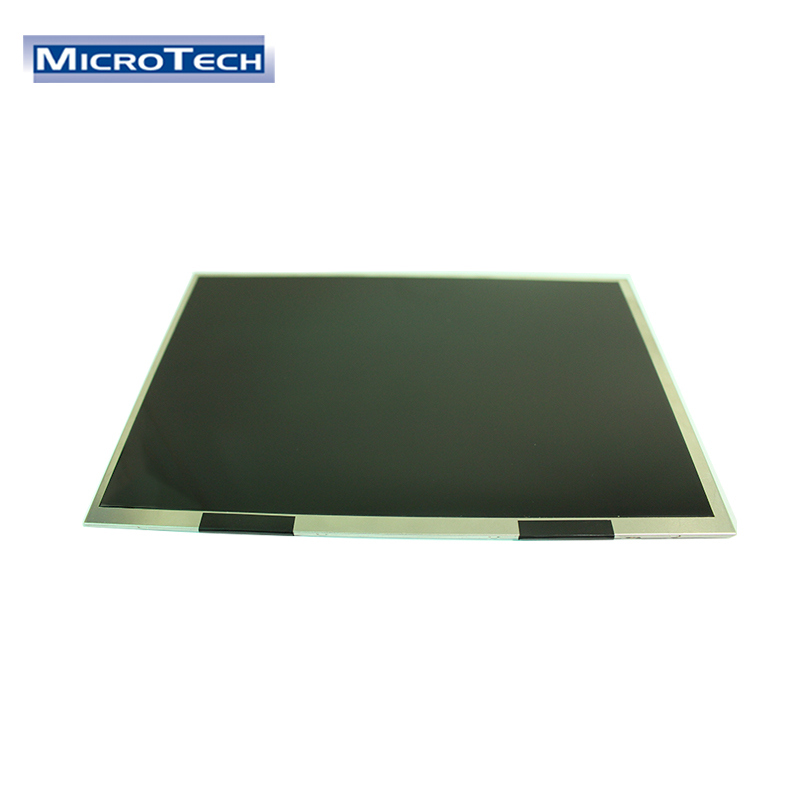

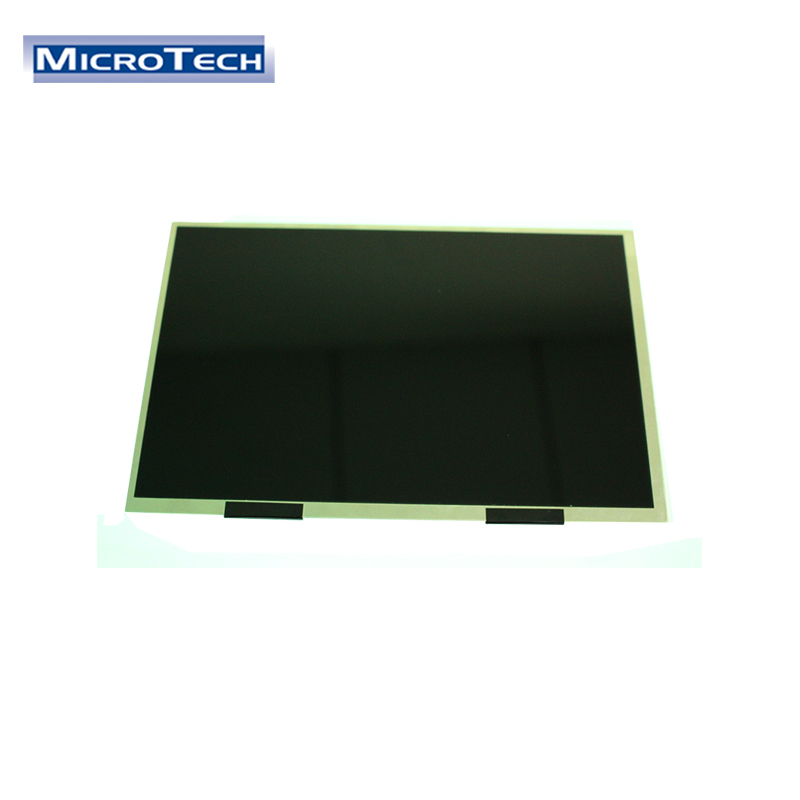

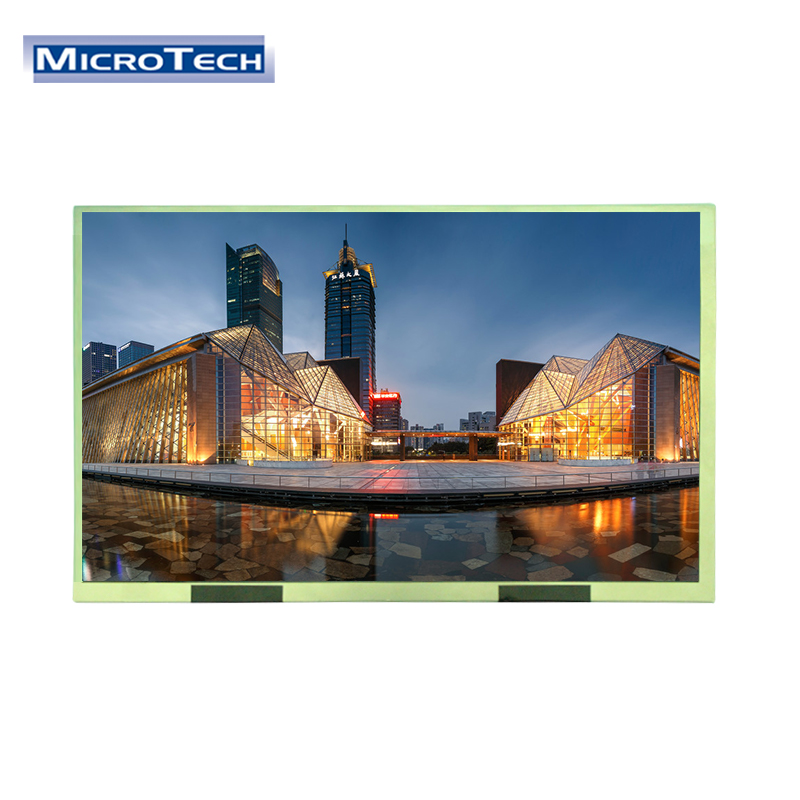

14.0 inch High-Definition Display TFT LCD Panel 1920*1080 LED Controller with Backlight Drive
Share this page
US $5.00 - US $15.00
Production Lead Time:
25-45 day(s)
Shipping Method:
Support Express · Sea freight · Land freight · Air freight
Brand:
Microtech-lcd
Model No.:
MTF140FD09A-V1
Customised:
Yes
Size:
14.0
Description
Contact Supplier
Description

14.0 inch High-Definition Display TFT LCD Panel 1920*1080 LED Controller with Backlight Drive

  • This module is a color active matrix LCD module incorporating Oxide TFT (Thin Film Transistor). It is composed of a color TFT-LCD panel, driver ICs, a control circuit and power supply circuit. Graphics and texts can be displayed on a 1920×3 (RGB)×1080 dots panel with 262144(6 bit) colors by using eDP (Embedded Display Port) Ver1.2 interface and supplying +3.3V DC supply voltage for TFT-LCD panel driving.
  • In this TFT-LCD panel, color filters for excellent color performance is incorporated to realize brighter and clearer pictures, making this Module optimum for use in multi-media applications.
  • Optimum viewings are in all directions.
  • 9 serial-5 parallel LED structure.
  • Backlight-driving LED controller is built in this Module.
  • This module is capable to support SDRRS (Default as enable) / SSC(Default as disable). This module do not support PSR/MBO/NVSR/G-Sync features
Item
Specification
Unit
Panel Size
14.0”
inch
Number of Pixels
1920*RGB(3)*1080
pixels
Active Area
309.31(H) * 173.988(V)
mm
Pixel Pitch
0.1611(H) * 0.1611 (V)
mm
Outline Dimension
315.85(H)*186.12(V)*2.85 (D)
mm
Number of Colors
16.7M
-
Display Mode
Normally Black
-
Display Format
RGB vertical stripe
-
Luminance (cd/mA2)
220(TYP.)
nit
Interface
eDP
-
Backlight
White LED
-
Operation Temperature
-30〜+70
Storage Temperature
-40〜+60
Weight
TBD
g
