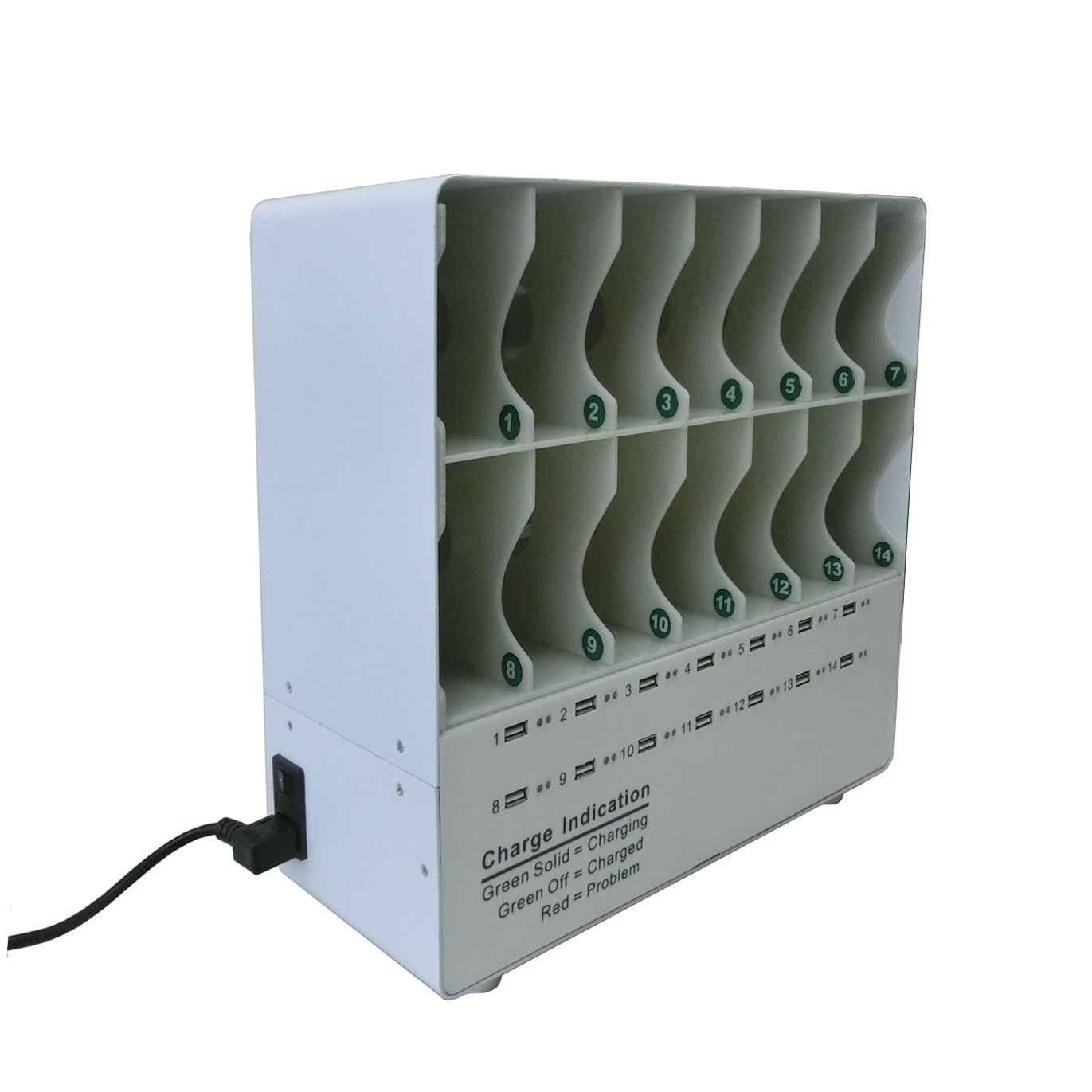

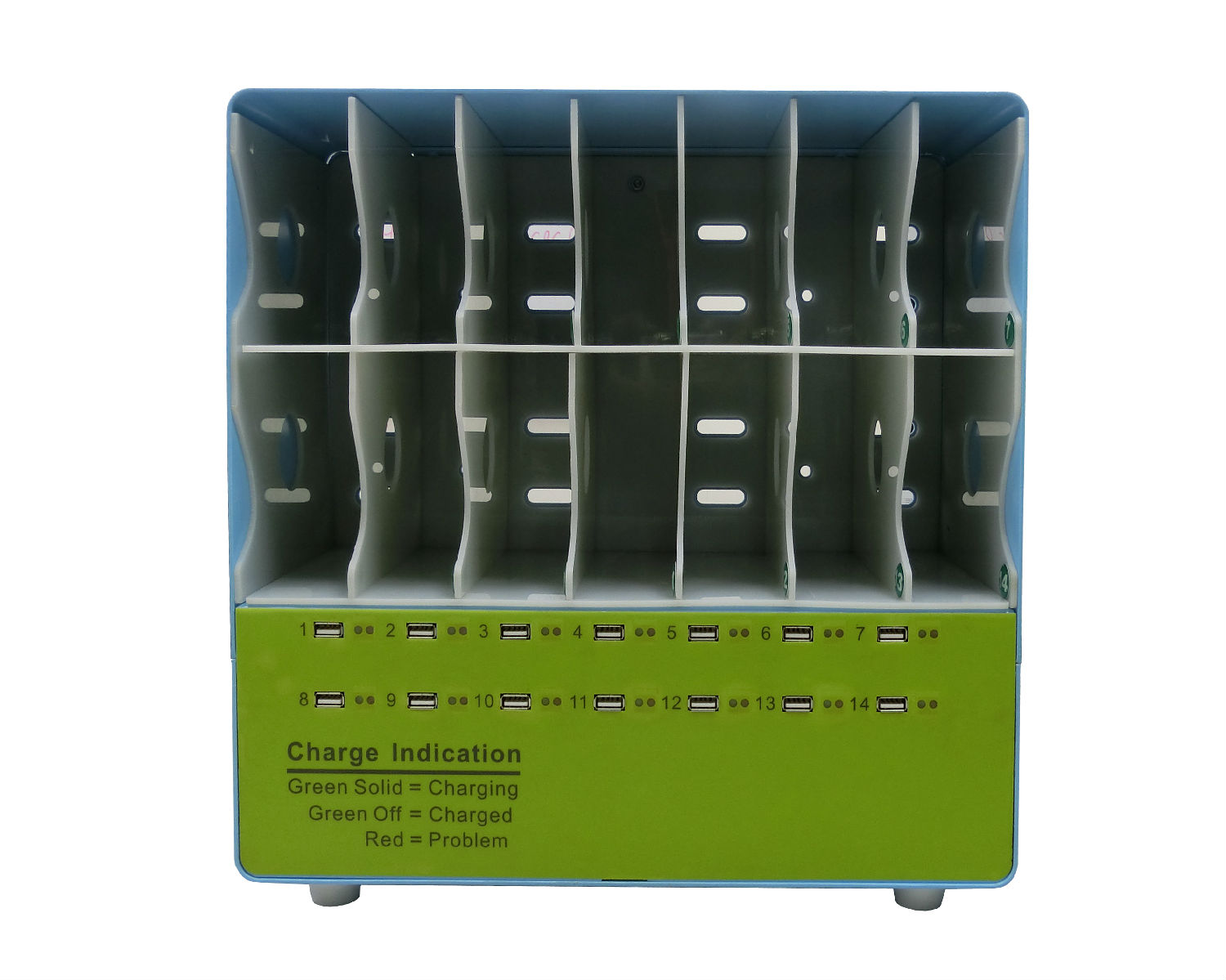

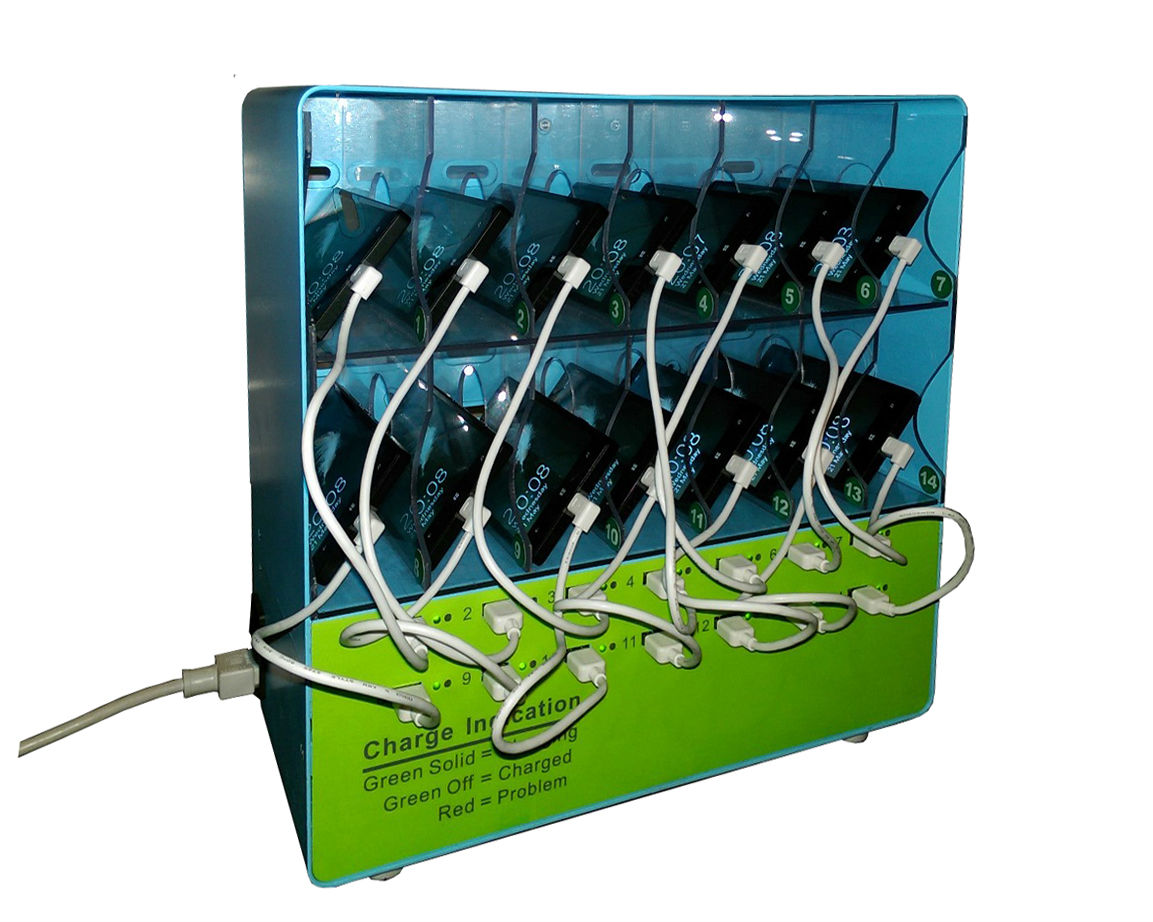

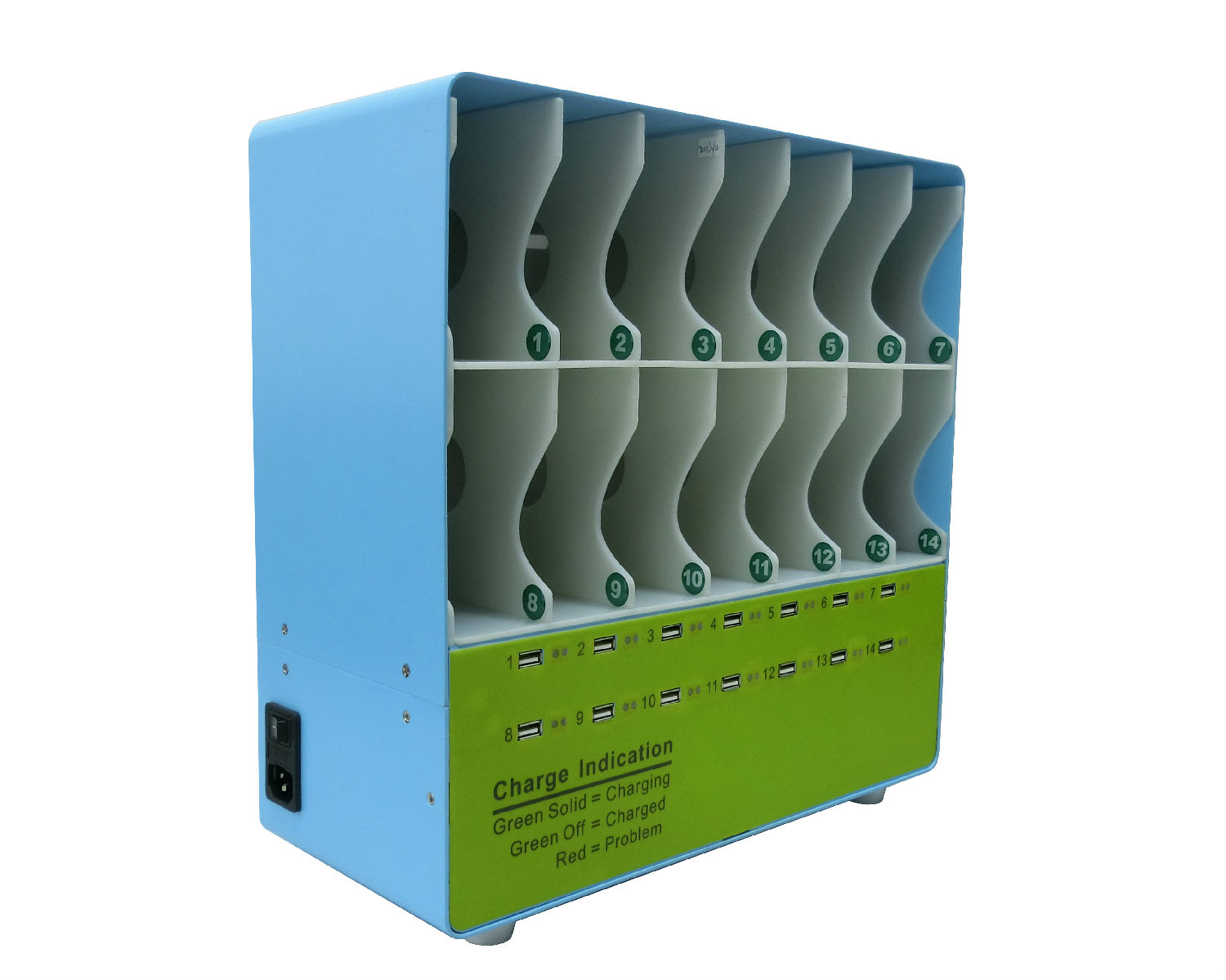

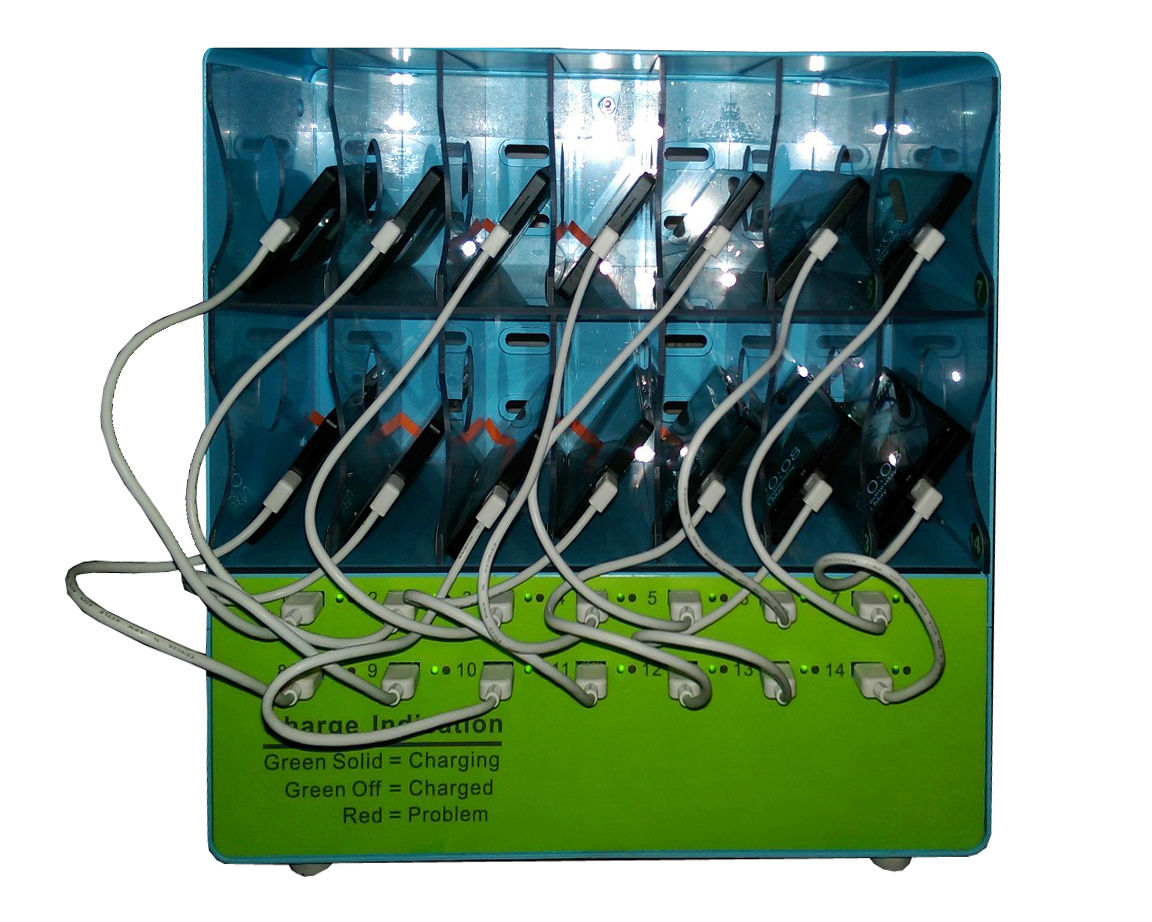

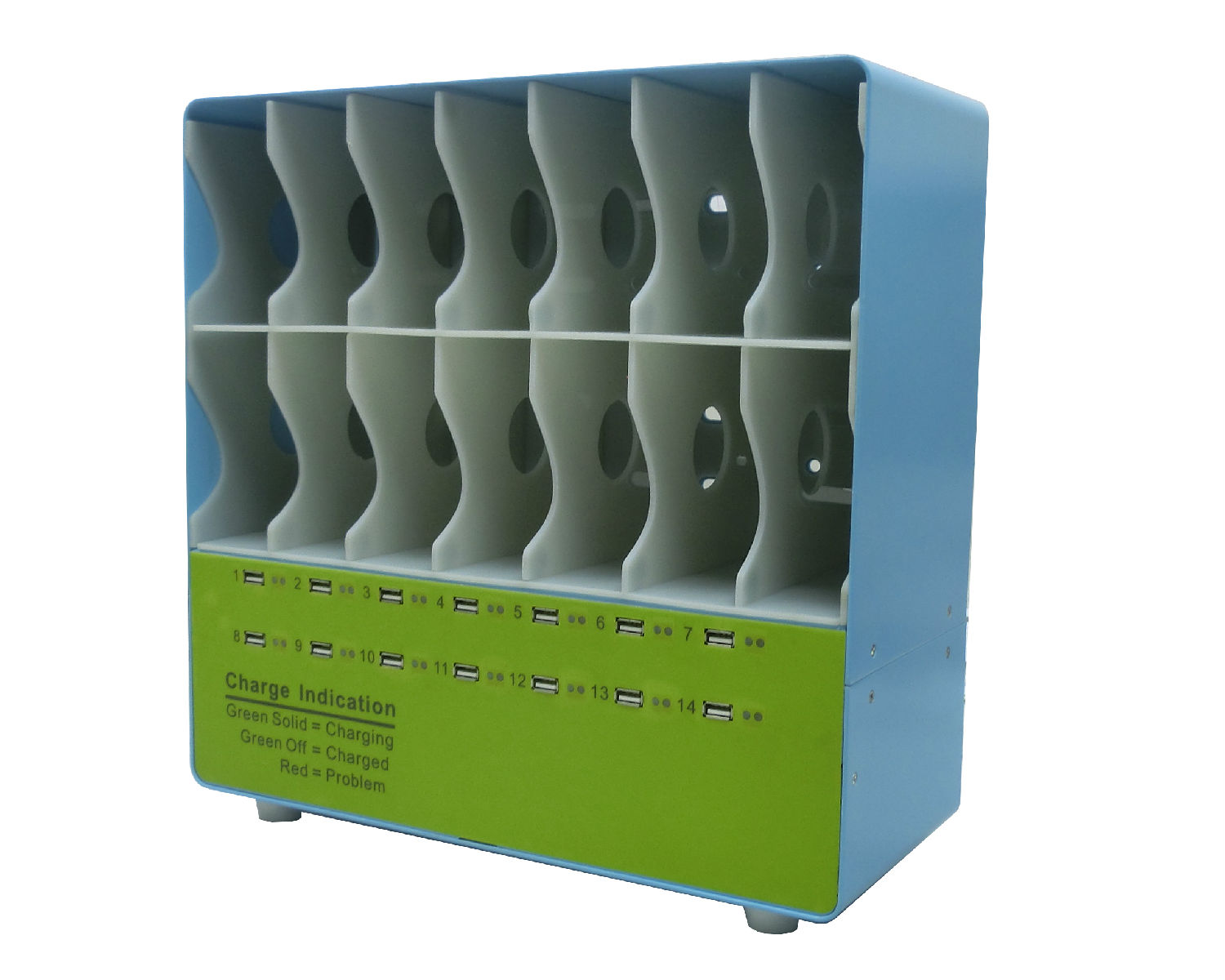

14 Port USB Charging Station for Mobile Phone Devices
Production Lead Time:
5 - 35 day(s)
Model No.:
D42S06.MPD3.xy
Brand:
Prodigy™
Colour:
White Grey
Size:
358.87mm (L) x 163.58 mm (W) x 367.79 mm (H)
Port:
Hong Kong
Type of Payment:
Bank Transfer, TT, PayPal, Western Union
Minimum Order Quantity:
1 unit(s)
Products Status:
Stock
Package:
Yes
Interface Type:
USB 2.0
Description
Contact Supplier
Description
Product Overview
Specifications
- An ergonomically designed 14 ports USB Charging station that can charge connected mobile devices.
- Supply up-to 3 Amp current per port
- Supported mobile devices
- Apple iPhone / iPod
- Microsoft Lumia
- Other similar Phones
- Charges up to 14 USB accessories, including Apple™ iPhone / iPod, Microsoft™ Lumia and similar mobile devices.
- System designed for hot plug support and takes care of current surge during insertion / removal of device
- Inbuilt thermal protection system protects individual ports when continuous heavy overload and short circuits increases the power dissipation, thereby limiting the current overload at the individual port level
- Short circuit threshold limited to 3 Ampere per port, protecting the system from over loading or short circuit of any of the connected devices
- Visual indication system provides port status – charging / charged / problem
Specifications
- USB Ports: 14 Ports
- Port Power: 15 W (Max)
- Port Voltage: 5V USB
- Port Current: 3A (Max)
- AC Input
- Voltage Range: 90~132VAC / 180~264VAC (factory select)
- Frequency Range: 47 ~ 63 Hz
- AC Current: 4A (115VAC) / 2.2A (230VAC)
- Material: Aluminum Powder Coated
- Color: White. Other colors are available on request.
- Dimensions: 358.87mm (L) x 163.58 mm (W) x 367.79 mm (H)
- Weight: 5.6 KG
- Certifications: Internal Power Supply unit certified for UL 60950-1 Safety regulations.
- USB Cable: Mini_USB / USB_A / 2.5A / 30 cm / White
- Order Part Number: PE43-USB_AM30W
- AC Power: IEC60320 230VAC 1.5m right angle
- Order Part Number: PE45-PWRAC1.5x
- x = power plug type based on country.
- Earthquake protection system
- Order Part Number: PE45-EQ-10mm
