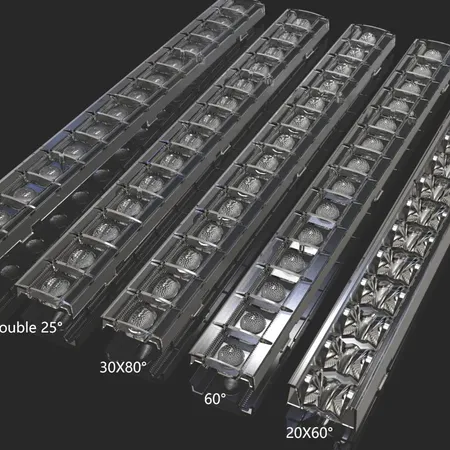

ZHAGA standard 1x14LEDs Linear lens 280mm compatible with double 2835LED and 3030LEDs

The 1x14LED linear lens is designed for 2 pieces of 2835LED or 3030LED with a narrow width of 30mm size.

The 14LEDs lens complies with ZHAGA standard assembly.

Model: ASL280D30H14LED

Diameter: 280mm

Height: 9.48

Angle: 60°, 90°, 20°X60°, 30°x80°

Material: PMMA

Transmittance: 93%

LED Applications: "2835""3030" LED

Lighting applications: Linear Lighting

Our Services

• Innovative in LED Optical Engineering and Manufacturing Services
• Quick response (Quick-turn of new development)
• Strong R&D Team (Excellent engineering team with 10 years of experience), committed to bringing our customers the best LED optical designs.
• Production (Advanced equipment, Tooling dimensional accuracy is within 0.01mm, Optical finishing accuracy is within 0.001mm, Tolling lifetime can reach 500,000 shots.)
• Marketing (Wide range of products)
• One-stop service for private mold optics design, and mass production.
• Services (Thorough and satisfactory before & after-sales service)
