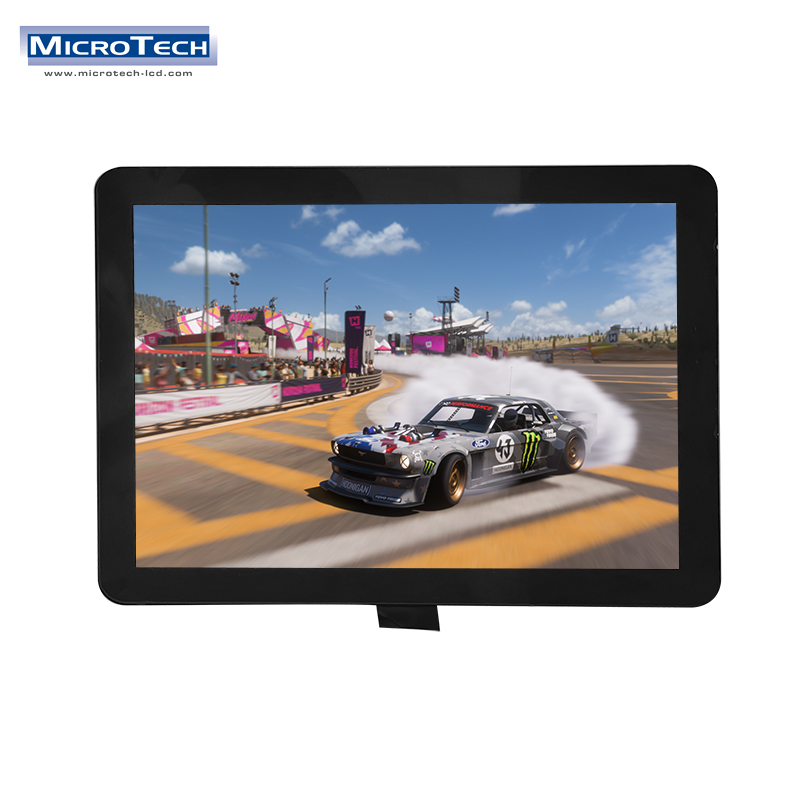

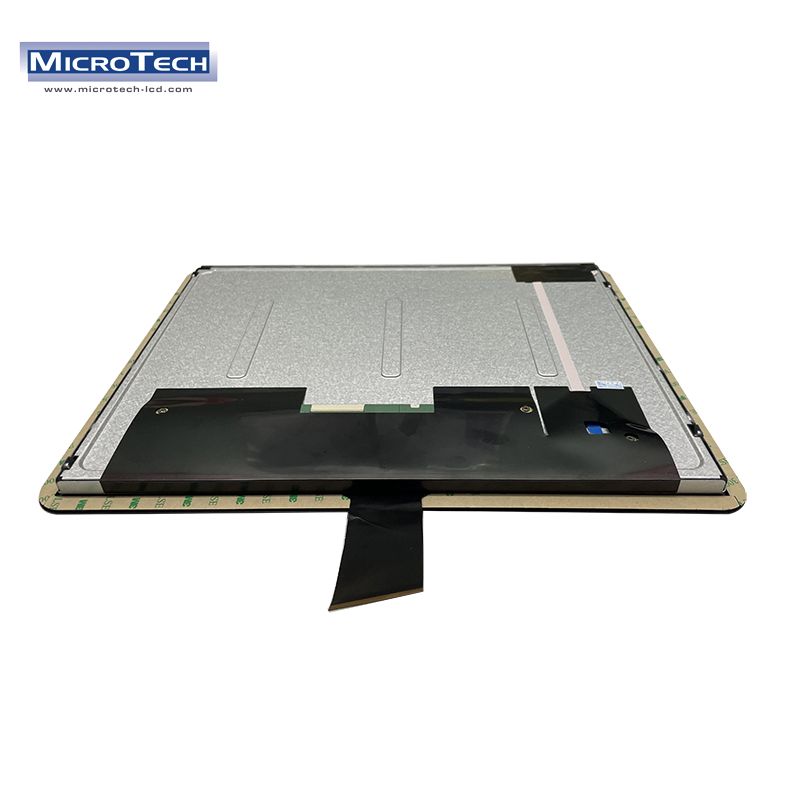

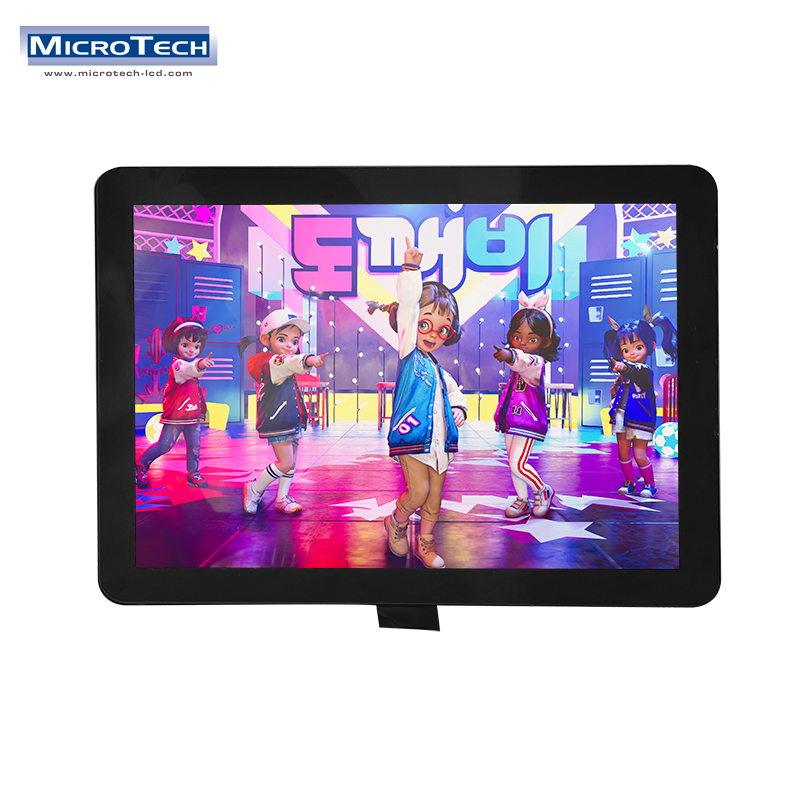

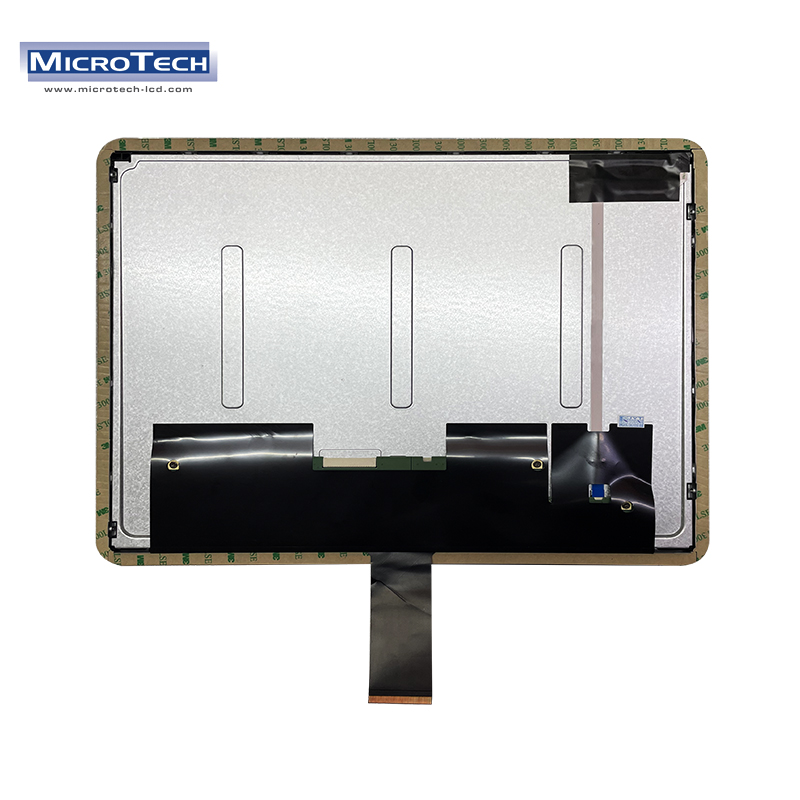

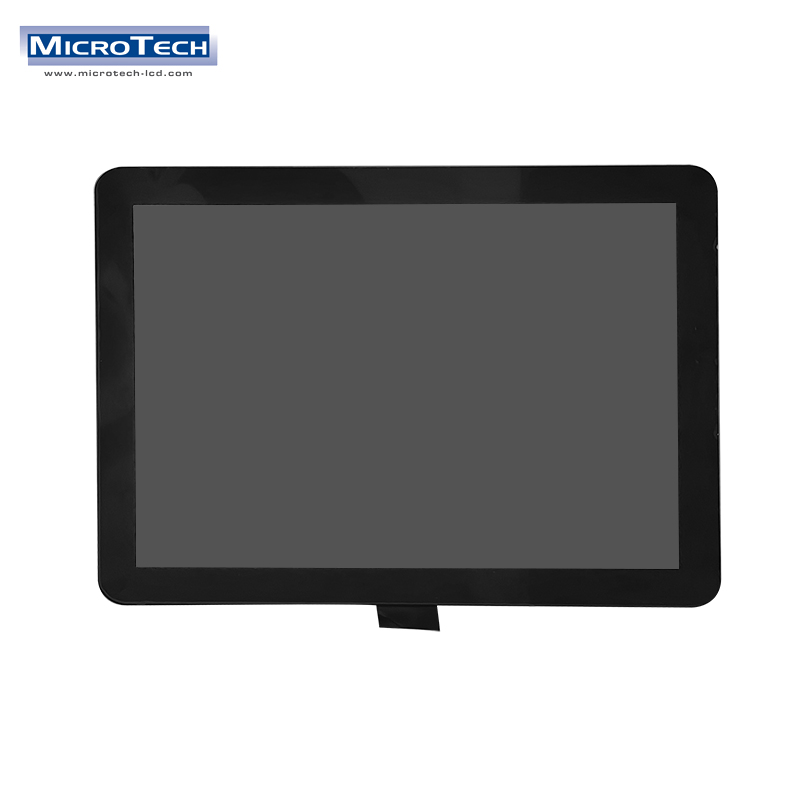

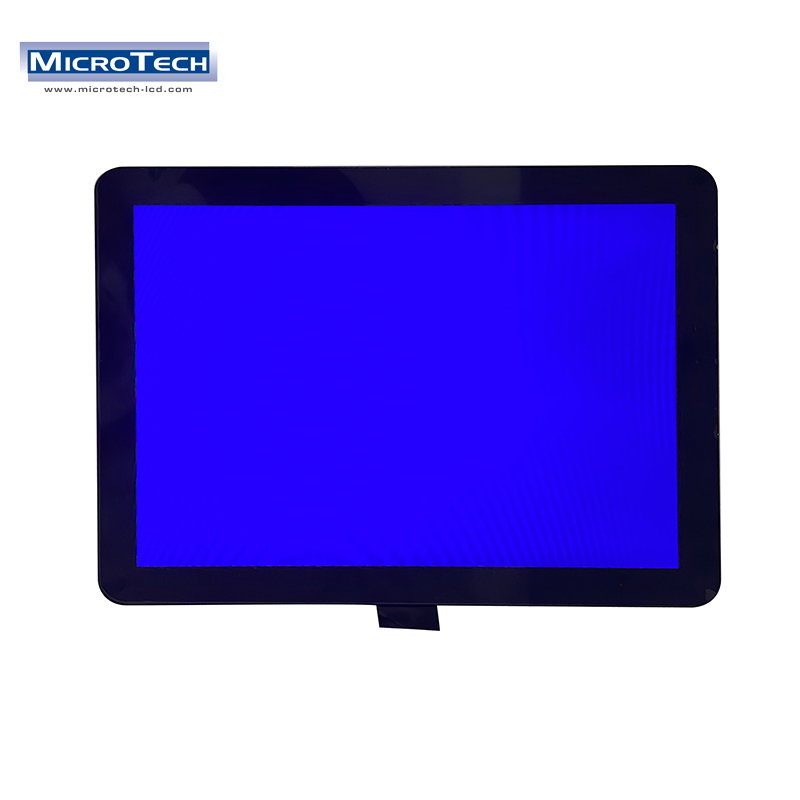

15.0 inch 1024*768 TFT LCD touch screen 20 pin CTP LVDS interface

US $30.00 - US $60.00

Production Lead Time:

25-45 day(s)

Shipping Method:

Support Express · Sea freight · Land freight · Air freight

Brand:

Microtech

Model No.:

MTF150XA05A-V1+CTP

Customised:

Yes

Size:

15.0inch

Description

Contact Supplier

MTF150XA05A-V1 is a 15.0” TFT Liquid Crystal Display IAV module with LED Backlight units and 20 pins LVDS interface. This module supports 1024 x 768 XGA mode and can display 16.2M/262k colors. The PSWG is to establish a set of displays with standard mechanical dimensions and select electrical interface requirements for an industry standard 15.0” XGA LCD panel and the LED driving device for Backlight is built in PCBA.

- XGA (1024 x 768 pixels) resolution

- DE (Data Enable) only mode

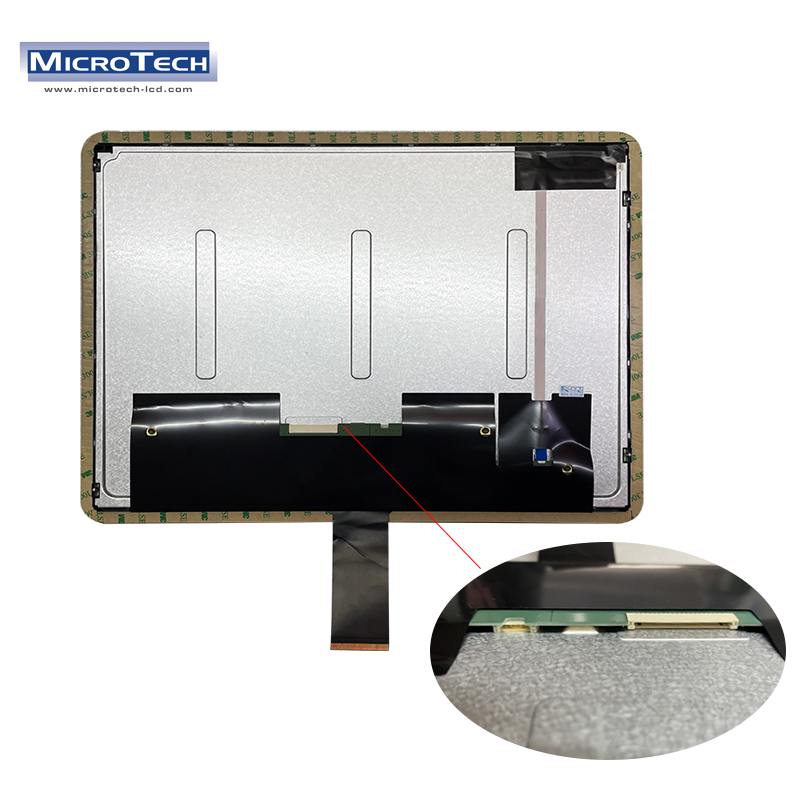

- LVDS Interface with 1pixel/clock

- PSWG (Panel Standardization Working Group)

- Wide operating temperature.

- RoHS compliance

-TFT LCD Monitor

- Factory Application

- Amusement

- Vehicle

	Specification	Unit	Note
Active Area	304.1 (H) x 228.1 (V) (15.0" diagonal)	mm	(1)
Bezel Opening Area	307.4(H) x 231.3(V)	mm	(1)
Driver Element	a-Si TFT active matrix	-	-
Pixel Number	1024xR.G.Bx768	pixel	-
Pixel Pitch	0.297(H) xO.297(W)	mm	-
Pixel Arrangement	RGB vertical Stripe	-	-
Display Colors	16.2M/262K	color	-
Display Mode	Normally Black	-	-
Surface Treatment	Hard Coating (3H), Anti-Glare	-	-
Module Power Consumption	7.4	w	Max.
