15.6 inch 1920*1080 TFT LCD module 1000Nits EDP interface apply to laptop Screen

US $35.00 - US $60.00

Production Lead Time:

25-45 day(s)

Shipping Method:

Support Express · Sea freight · Land freight · Air freight

Brand:

Microtech

Model No.:

MTF156HAN02.1_Ver1.0(1000Nits)

Customised:

Yes

Size:

15.6inch

Description

Contact Supplier

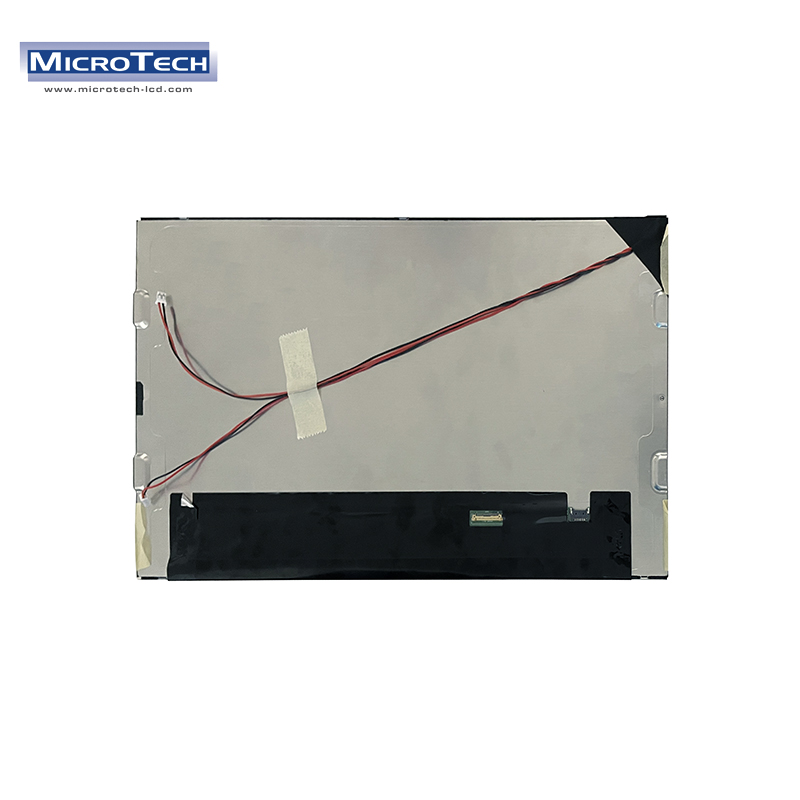

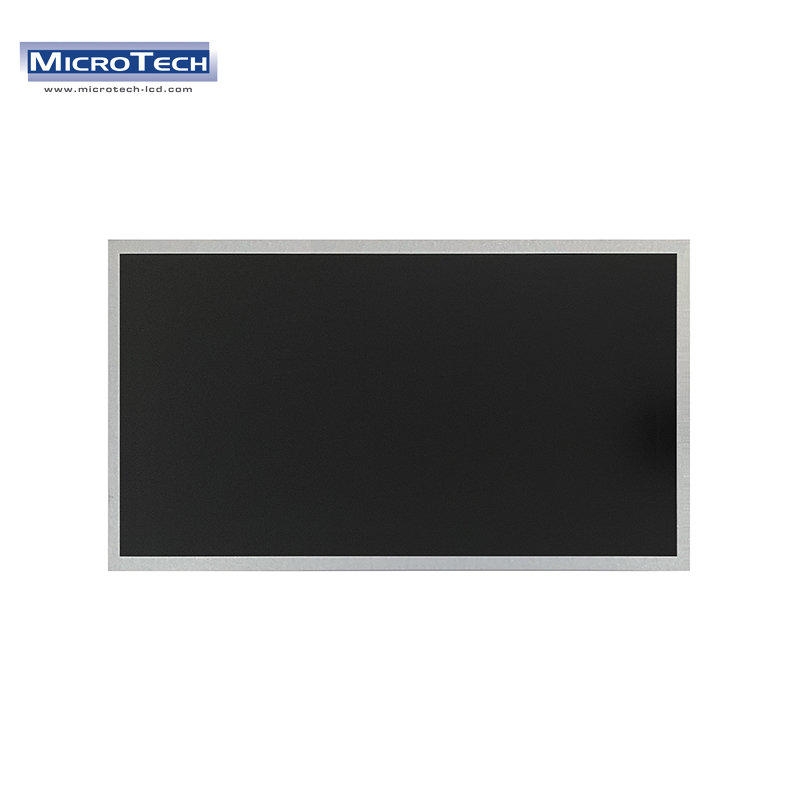

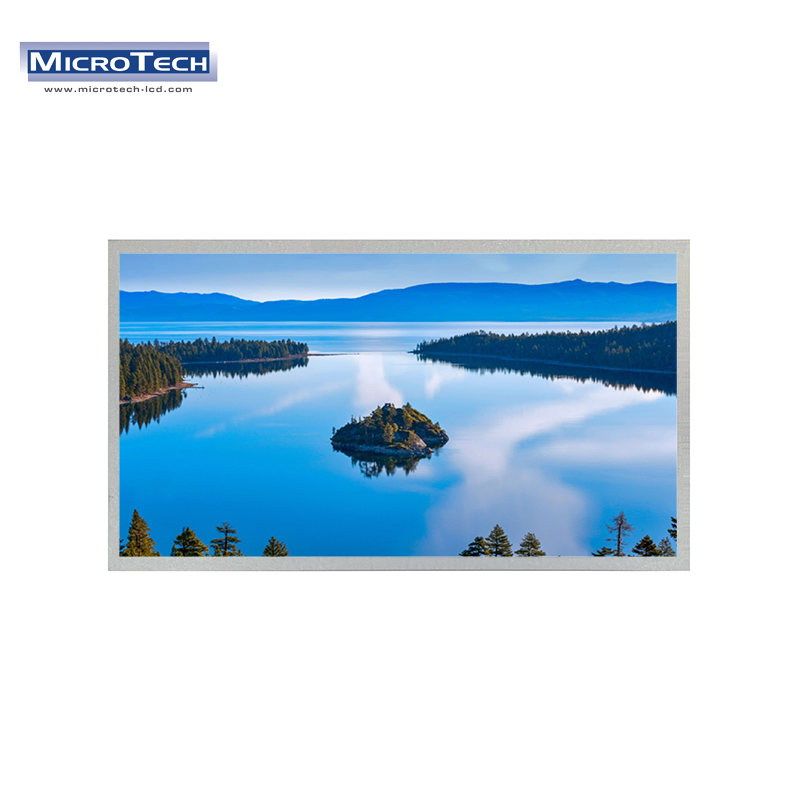

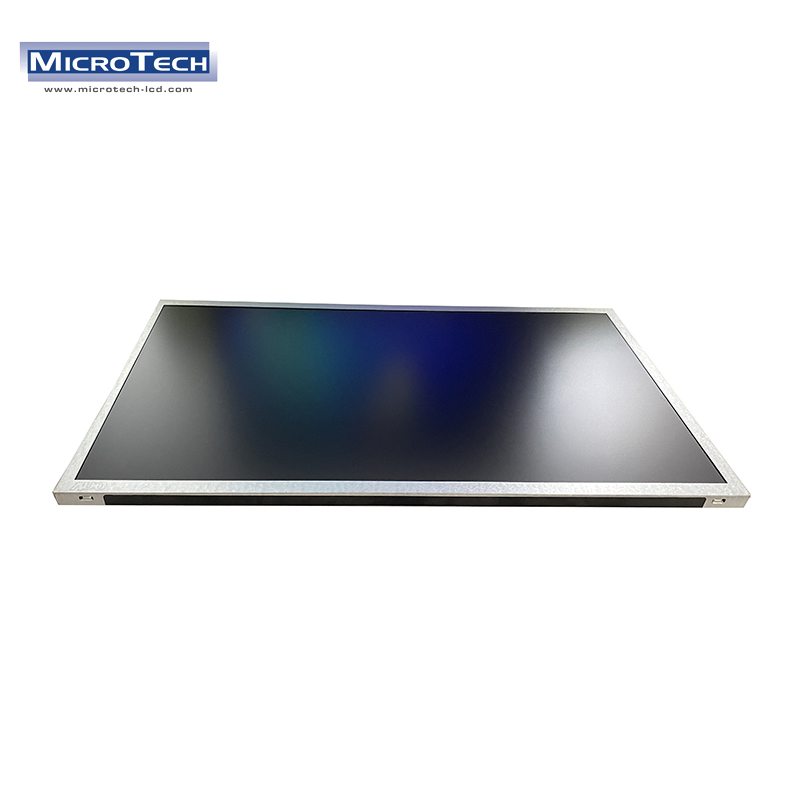

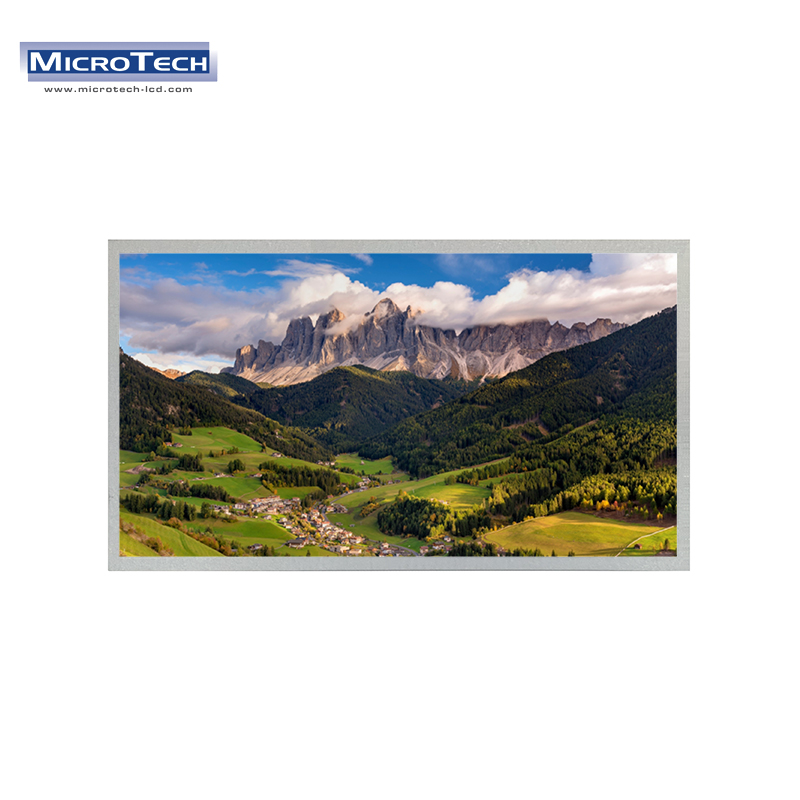

MTF156HAN02.1_Ver1.0(1000Nits) is a Color Active Matrix Liquid Crystal Display composed of a TFT LCD panel, a driver circuit, and LED backlight system. The screen format is intended to support the 16:9 FHD, 1920(H) x 1080(V) screen and 16.7M colors ( RGB 8-bits) with LED backlight driving circuit. All input signals are eDP (Embedded DisplayPort) interface compatible. MTF156HAN02.1_Ver1.0(1000Nits) is designed for a display unit of notebook style personal computer and industrial machine.

Items	Unit	Specifications
Screen Diagonal	[mm]	15.6”
Active Area	[mm]	344.16 x 193.59
Resolution		1920x3(RGB) x 1080
Pixel Pitch	[mm]	0.17925x0.17925
Pixel Arrangement		R.G.B. Vertical Stripe
Display Mode		AHVA, Normally Black
Nominal Input Voltage VDD	[Volt]	+3.3 (Typ.)
LCD Power Consumption	[Watt]	0.98 (Max.)
LED Power Consumption	[Watt]	10.4 (Max.)
Weight	[Grams]	600 (Typ), 660 (Max)
Physical Size Include bracket	[mm]		Min.	Typ.	Max.
		Length	363.3	363.8	364.3
		Width	215.4	215.9	216.4
		Thickness		8.8

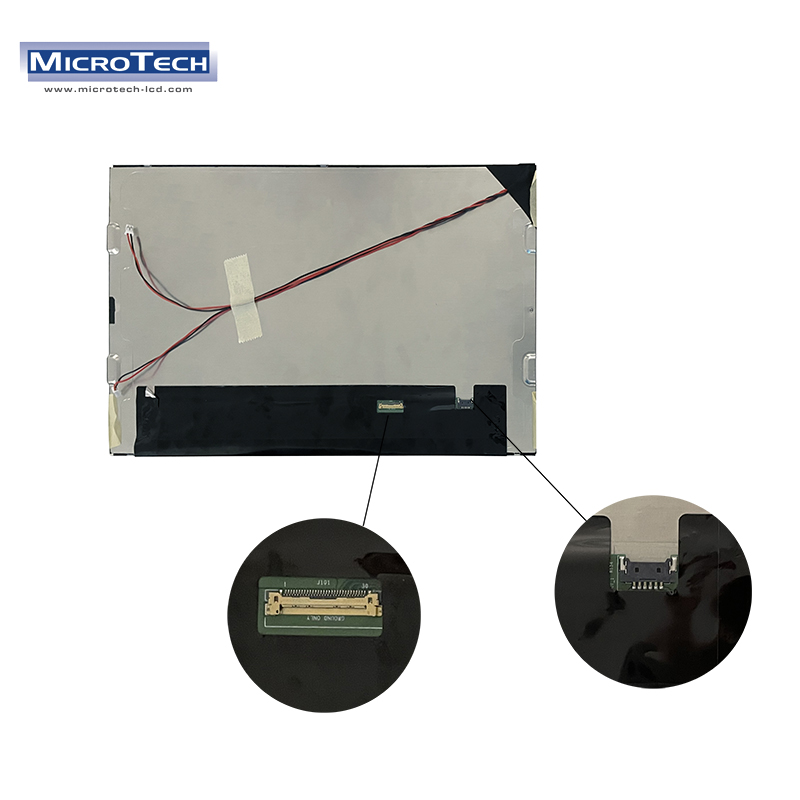

Electrical Interface		2 Lane eDP
Surface Treatment		Anti-glare, 3H
Support Color		16.7M colors ( RGB 8-bits)
Temperature Range Operating Storage (Non-Operating)	[℃] [℃]	-20 to +70 (+70°C as panel surface temperature) -20 to +70
RoHS Compliance		Yes
