faytech 15" OpenFrame Touchscreen PC

faytech´s Aluminium Touch PC series consists of flat, sturdy Touch PCs with numerous connectors and application possibilities.



faytech´s Touch PCs are distinguished from standard PC systems by a silent operation and greater stability, particularly through the robust aluminum housing and by the lack of moving parts.



faytech´s Touch PCs are perfect for the use in industrial application, in the POS, in the machine control, building automation, digital signage and many other application fields.

15" Open Frame Touchsreen PC

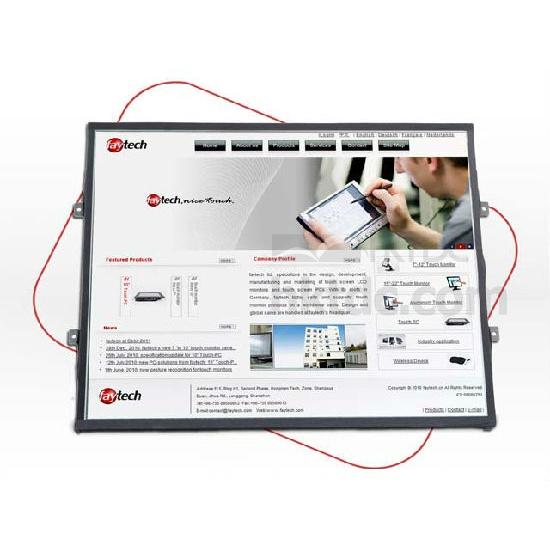

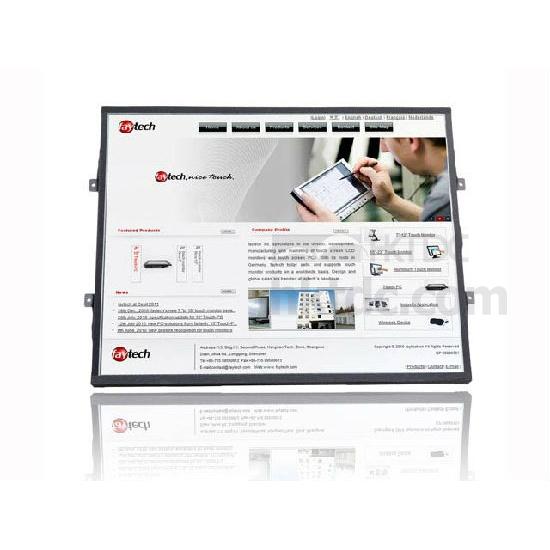

FT 152XOF 15" OpenFrame Touchscreen PC
case (cm) L x W x H:33.10 x 25.35 x 5.20
Aspect ratio:4:3
Physical resolution:1024x768
Brightness (cd/m2):250
Contrast:500:1
Visual Angle horizontal; vertical (°):150;130
Backlight / Backlight Lifetime (hours):LED / 40,000
5-wire resistive
Touch Panel-driver:Windows, Linux, Mac
actual Linux Ubuntu preinstalled

CPU:Intel® Atom™ processor N2600 (optional N2800)
Chipset (North/South Bridge)Intel® NM10
Memory:1x2GByte DDR3 SODimm
BIOS:64Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 2.0, Wfm 2.0, SM BIOS, ACPI 3.06
Hard Drive (swapable):32GSSD
Graphic:AMD HD7410M with 512M memory
Audio-Chip:Realtek 887 8channel high definition audio codec, Audio Amplifier EUA 2012A
Network:2 x Realtek PCIe Gb LAN 8111F

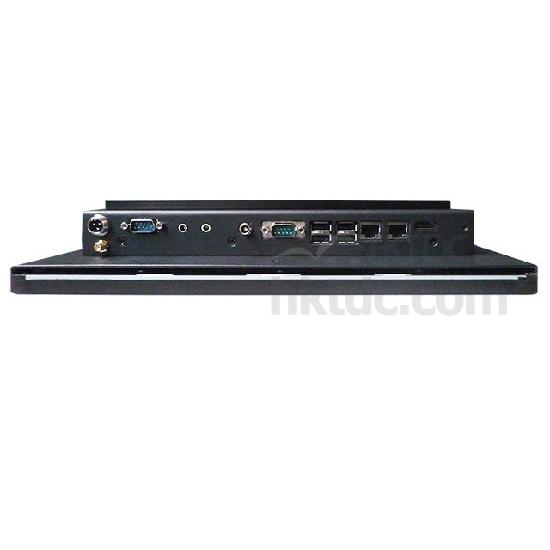

External Connectors:1x HDMI port;4x USB 2.0, 1x COM port (RS232/485; 5V/12V);2x10/100/1000Mbit RJ45

Ports;2x W-LAN-Antenna connectors;Power On/Off;1x screwable 12V DC-In
Driver:WinXP, Win7, Win8; Linux; 32Bit/64Bit
