150W Desktop Adapter | Mobile Phones, Tablets & Digital Accessories

Dongguan Dongsong Electronic Co., Ltd.

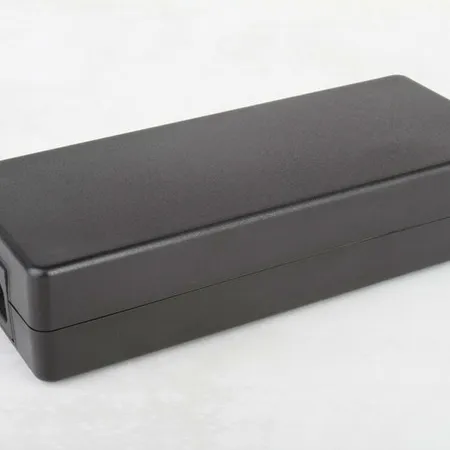

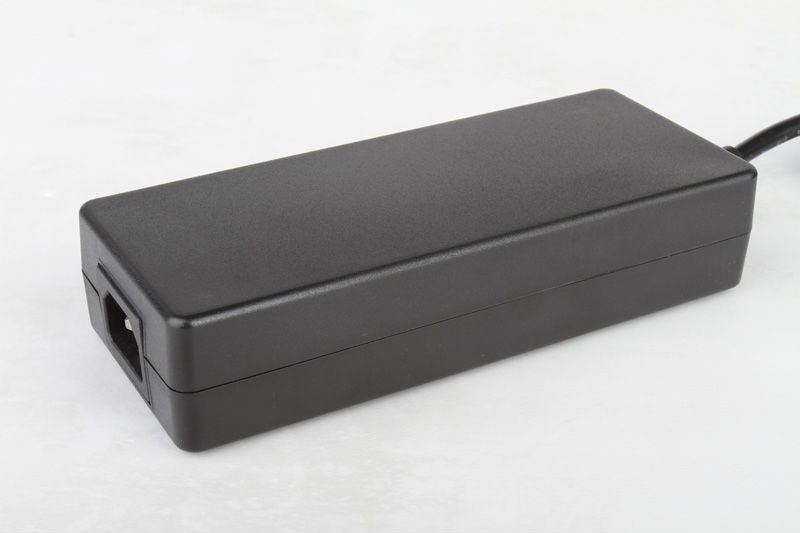

150W Desktop Adapter

Production Lead Time:

20 day(s)

Model No.:

DYS6150-XXXXYYYYW

Brand:

Colour:

ANY

Size:

172.0 x 72.5 x 33.5mm

Package:

Yes

Customised:

Yes

Output Type:

Connection:

Desktop

Usage:

IT and AV Equipments

Place of Origin:

Mainland China

Description

Contact Supplier

Input: Input range: 100-240V AC (full range), 50/60Hz
Input current (rms): 2.5A at 90VAC, 1.2A at 264V AC (maximum)
Output: Output voltage: DC 42V DC
Output voltage regulation ±5% at constant voltage mode
Output current: 3.5A
Maximum power (Po): 150W (maximum)
Protections: over-current, over-voltage and short-circuit
Energy-saving: CEC DOE MEPS efficiency level VI
Environmental protection: RoHS/PAHs/REACH Safety and EMC: ETL, FCC, CE, GS, and RCM Operation temperature range: 0 to +40°C ambient
Storage temperature: -20 to +80°C MTBF: 25,000 hours at 80% load and 25°C ambient temperature
Weight: about 600g Dimensions: 172.0 x 72.5 x 33.5mm
