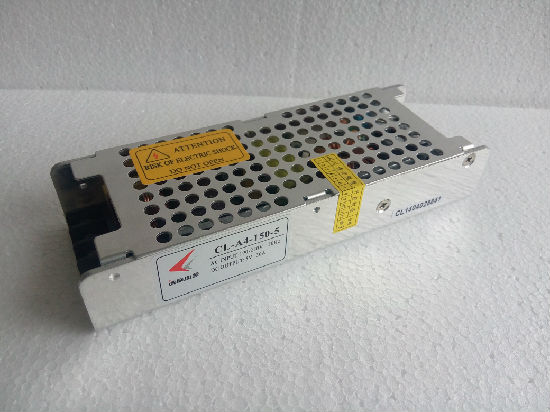

150W LED Driver
Package:
Yes
Customised:
Yes
Input Voltage:
220V
Output Power:
101 - 200W
Output Type:
Single
Description
Contact Supplier
Description
- Built-in EMI filter
- 100% full load burn-in test
- Protections: over voltage/over current/short circuit
- 2 year warranty
- AC input voltage range:
170-264V AC - Input frequency: 47-63Hz
- Output adjustment range: v1: ±10%
- Output over load protection: 110-150%
- Withstand voltage:
- I/ P-O/ P: 1.5KV AC/ 1 min
- I/ P-F/ G: 1.5KV AC/ 1min
- Rise time: 50 ms
- Hold up time: 20 ms
- Working temperature: -30~+50
- Storage temperature: -40~+85
- Safety standards: design fefer to GB4943.UL60950.EN60950
- EMC standards: design refer to GB9254.EN55022 class A
- MTBF: >50,000 hours
- Cooling method: convection
- Model type output voltage output current size
