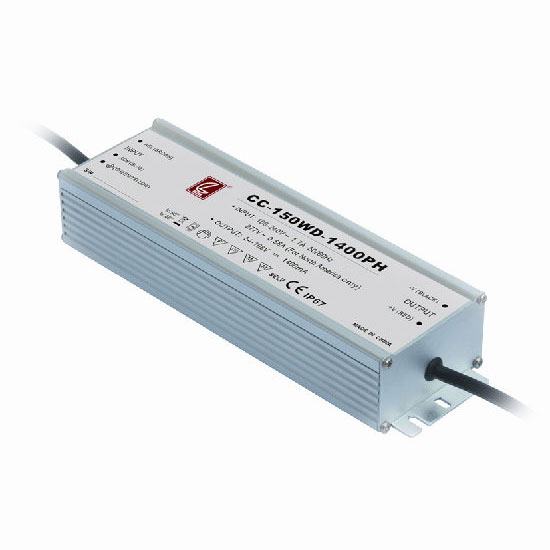

150W LED Driver
Share this page
Production Lead Time:
28 day(s)
Size:
228 x 68 x 40mm
Description
Contact Supplier
Description
This LED driver is sturdily built with an aluminum casing for long-lasting use. It can provide a consistent current flow to ensure the steady performance of your lights. Installation is easy and simple.
  • Fully sealed aluminum case, IP67 level.
  • Universal AC input/full range.
  • Built-in active PFC function, PF reaches to 0.99.
  • High efficiency, low loss, high reliability.
  • Protections: short circuit, over voltage, over heat.
  • Meets 4KV surge immunity level.
  • CQC, CE, TUV, UL approval.
  • 5-year warranty.
  •  AC input voltage range:  90-305VAC.
  • Input frequency: 47-63Hz.
  • AC inrush current: cold start, 70A/230VAC.
  • Start time: 2,500mS at full load.
  • Output over voltage protection: 110%-130% rated output voltage.
  • Withstand voltage: I/P-O/P: 3.75KVAC, I/P-FG: 2KVAC, O/P-FG: 0.5KVAC.
  • Working temperature: -40°C ~+70°C (refer to temperature derating curve).
  • Storage temperature:  -40°C ~+85°C @100% 20%~95%RH (non-condensing).
  • Safety standards: EN60598-1, EN60950-1, EN61347-2-13.
  • EMC standards: EN55015, EN55022 class B, EN61000-3-2 class C.
  • Cooling method: free air cooling convection.
