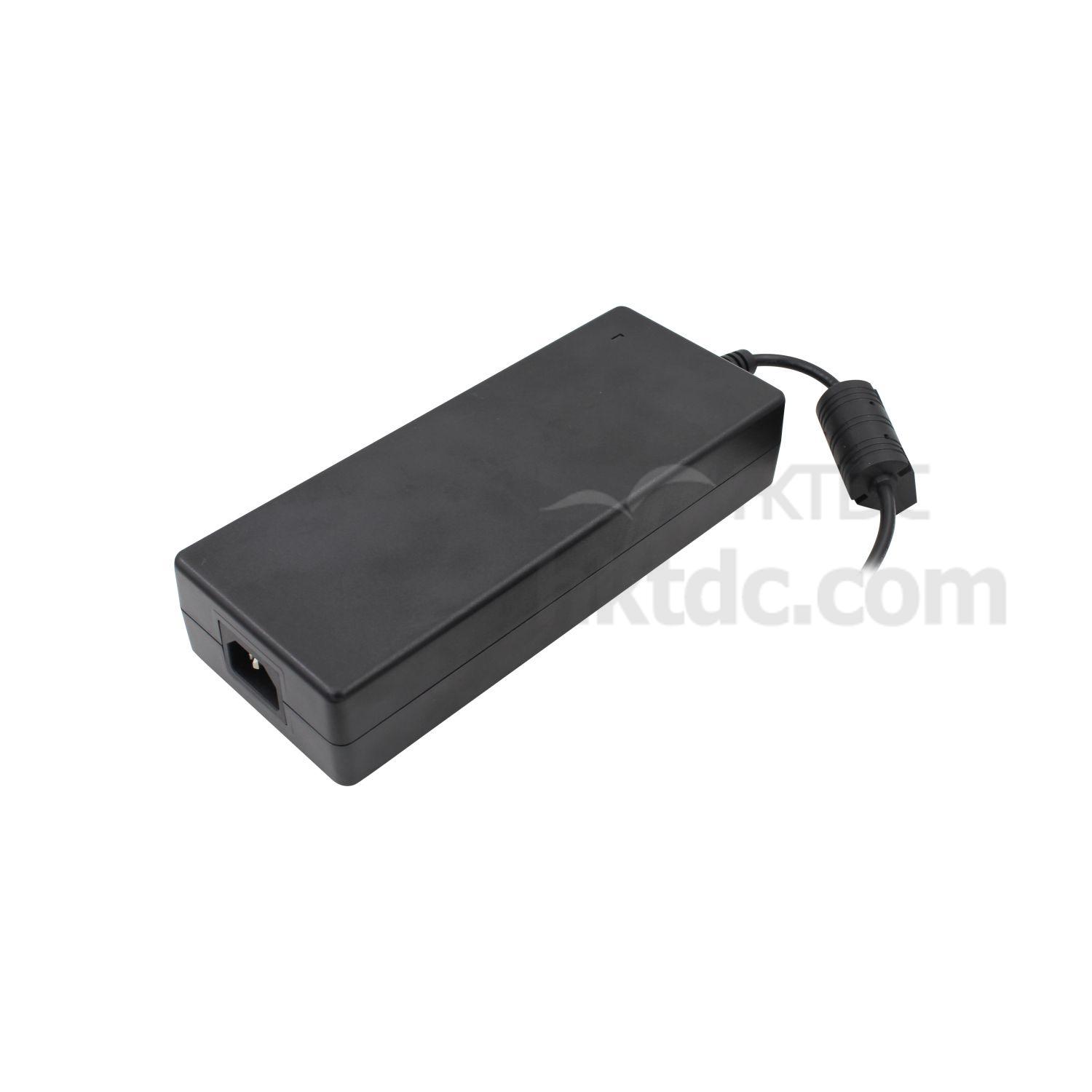

150W Medical Power Adapter Desktop
Model No.:
UES150-SPAZ
Brand:
FUHUA
Colour:
Black
Size:
190(L) x 71.5(W) x 37(H)mm
Port:
FOB Hong Kong
Minimum Order Quantity:
1,000 piece(s)
Package:
Yes
Customised:
Yes
Output Voltage:
11.0-48.0V
Input Voltage:
100 - 240VAC
Output Frequency:
50-60Hz
Output Power:
150W
Output Current:
0.01-11.00A
Output Type:
Single
Place of Origin:
Mainland China
Description
Contact Supplier
Description
Product features:
Input:
Environmental:
Protection:
Safety approvals
- Lamp safety approvals, medical & ITE safety meet
- 2 MOPP input to output isolation
- DOE efficiency level VI
- European CoC V5 tier 2
- Suitable for medical equipment up to class BF
- Leakage current ≤ 100μA
- ≤0.15W standby power
- 12V to 48V outputs, up to 150W
- Up to 5000m operating altitude
- 4 types of AC inlet
- Meet 4KV surge immunity IEC61000-4-5
Input:
- Input voltage range: 90-264VAC
- Frequency range: 47-63Hz
- Input current: 2.5A at 90V AC
- Inrush current: 120A max at 240V AC cold start
- Touch leakage current: class I & class II ≤ 100μA at 264VAC
Environmental:
- Operating temperature: -20 to 40°C
- Storage temperature: -20 to 60°C
- Operating humidity: 10% to 90% RH, non-condensing
- Storage humidity: 5% to 90% RH
- Operating altitude: 5,000m
Protection:
- Overload: 120-170% rated output power, auto recovery
- Over voltage: 120-150% rated output voltage input to reset
- Short circuit: trip and restart (hiccup mode)
Safety approvals
- CB/IEC61347,EN 61347, UL8750
- IEC60601-1, UL/ANSI/AAMI ES60601-1, EN60601-1
