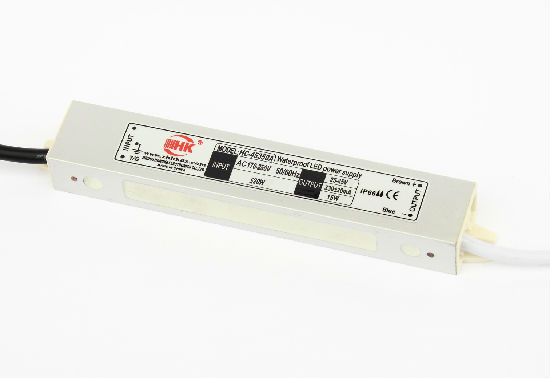

15W 350mA 25-45V IP67 Constant Current LED Driver
Share this page
Production Lead Time:
3 day(s)
Model No.:
HC-45330A
Brand:
HONGKE
Colour:
Silver
Size:
220 x 29 x 20mm
Port:
Zhuhai, Shenzhen
Type of Payment:
T/T, L/C
Minimum Order Quantity:
50 piece(s)
Description
Contact Supplier
Description
  • Input voltage range: 170-250V AC.
  • Frequency range: 50-60Hz.
  • Input power: ≤23W.
  • Inrush current cold start: 25A/240V AC.
  • Leakage current: ≤0.75mA/240V AC.
  • Output DC voltage: 25-45V.
  • Rated current: 330±20mA.
  • Rated power: 28W.
  • Ripple & noise: ≤600mVp-p.
  • Hold up time: ≤2s.
  • Protection over loading: 120-150%.
  • Short circuit protection type: hiccup mode, recovers automatically after fault condition is removed.
  • High temp.: 100℃±10℃ (shut down, re-power on to recover).
  • Environment working temp.: -25℃-/+ 40℃ (refer to output load derating curve).
  • Storage temp.: -40℃-/+ 60℃, 10-95% RH.
  • Voltage resistance input-output: AC 1.5kV/5mA 5s.
  • Input-housing: AC 1.5kV/5mA 5s.
  • Others IP rating: IP67.
  • Dimension: L182 x W30 x H20mm.
  • Packing: 325 x 205 x 215 mm/50pcs/carton.
  • Weight: 11.2kg/50pcs/carton.
