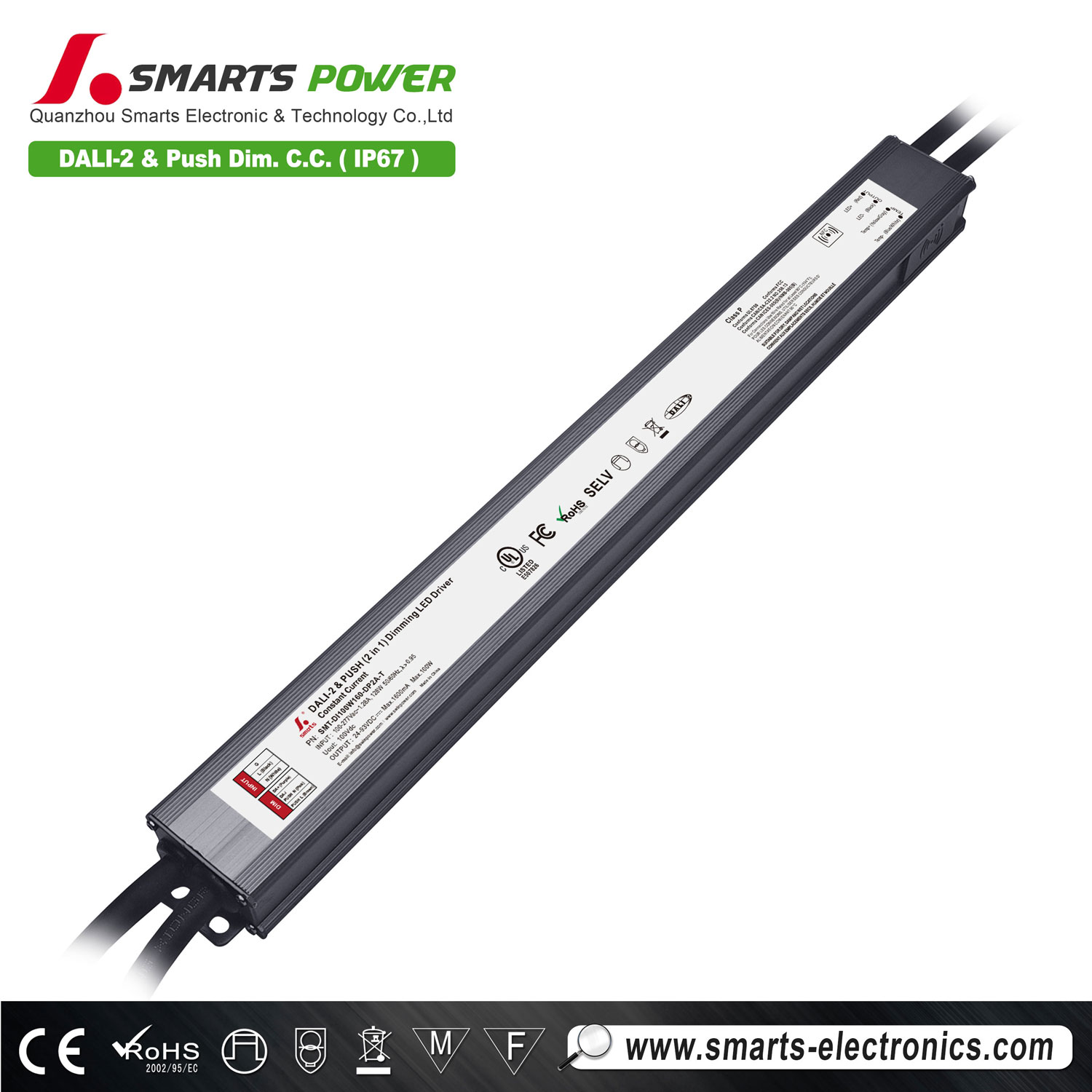

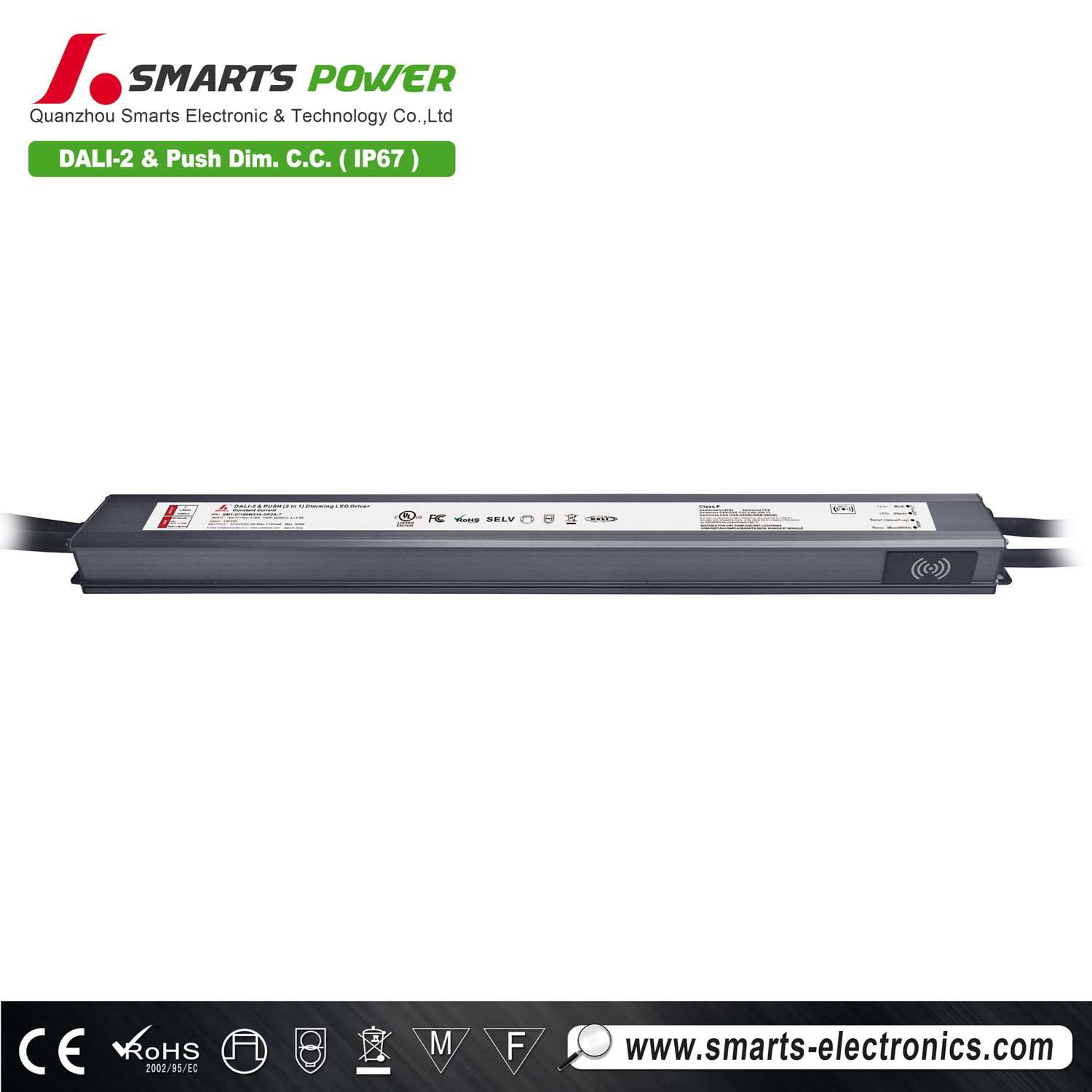

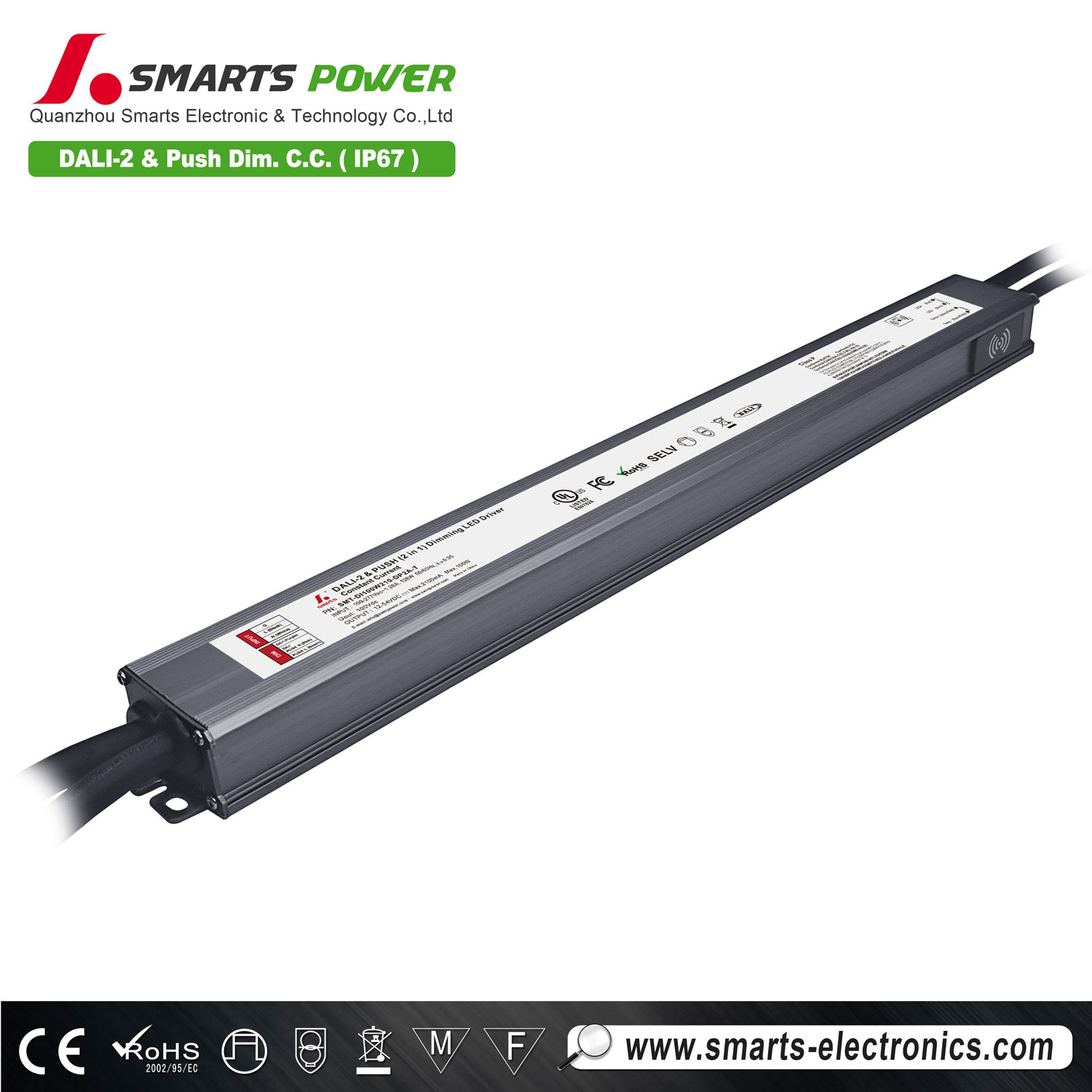

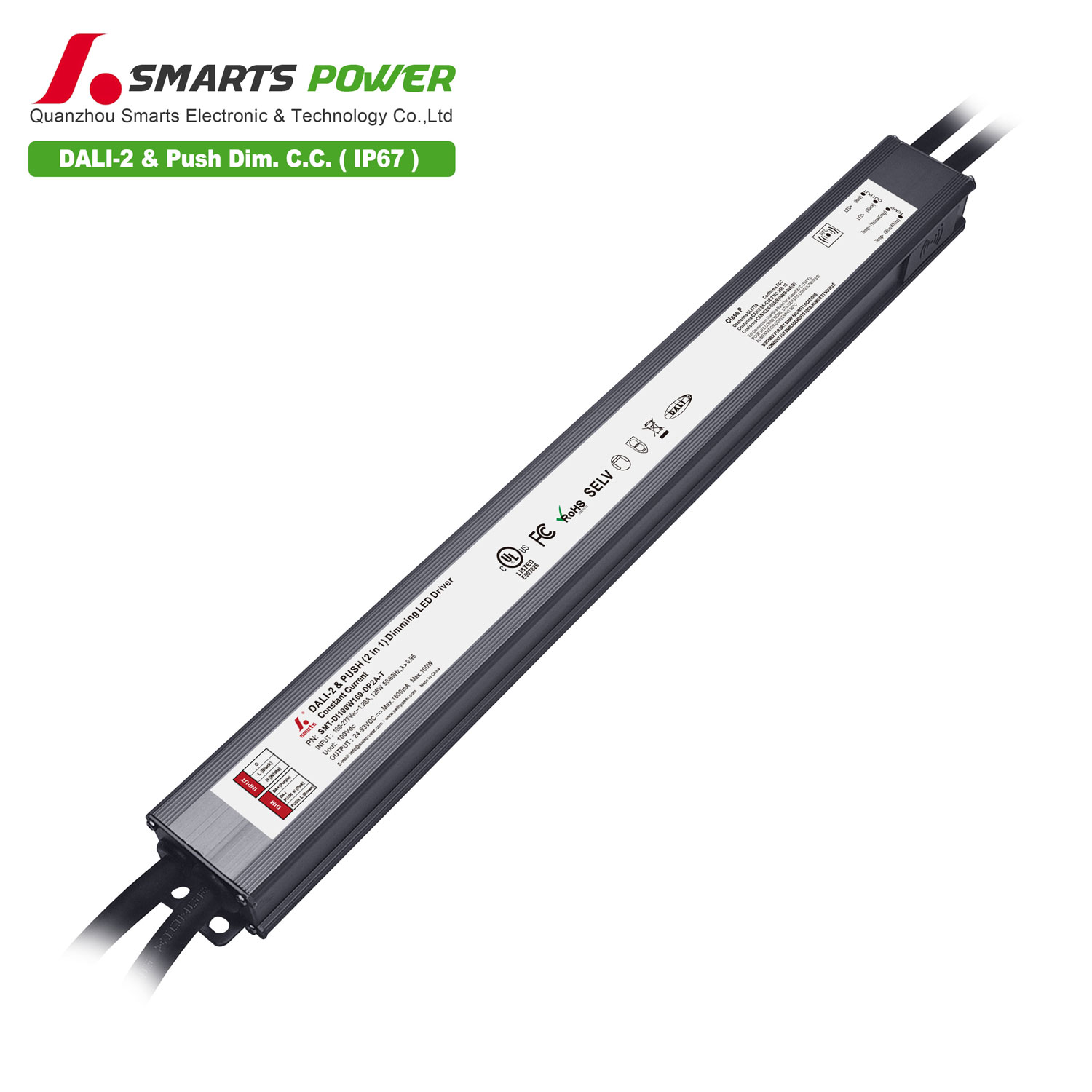

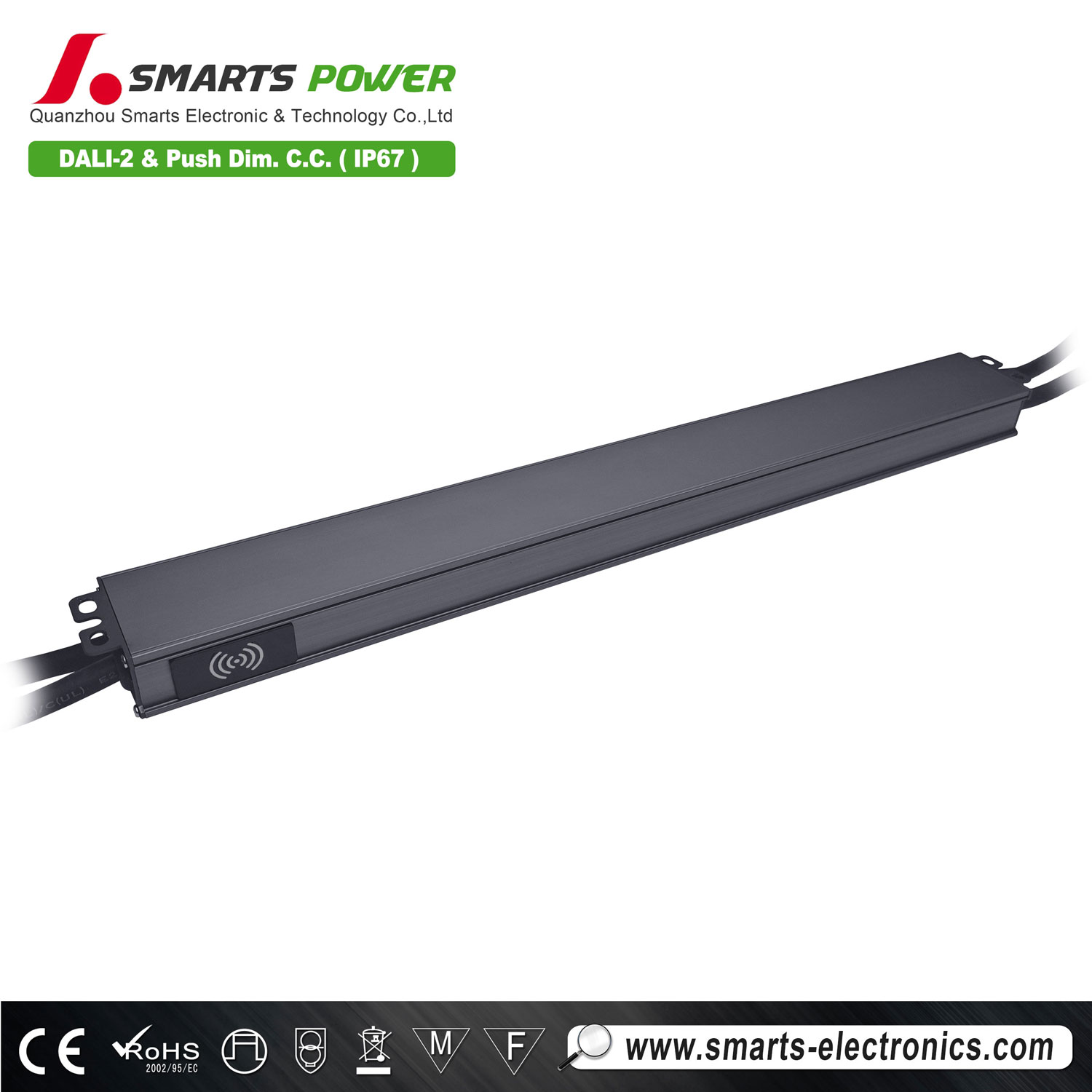

1600mA 2100mA constant current waterproof DALI-2 PUSH dimmable led driver 100w

Output:

Constant Current

Range:

100-277VAC

PFC design:

Built-in active PFC function

Efficiency(MAX):

Up to 89%

Protections:

Short circuit/ Over load/ Over temperature/Over voltage

Heat dissipation:

Cooling by free air convection

Waterproof performance:

IP66(EU); for dry, damp and wet locations(US)

Min load:

1200mA Min load is 24V 1600mA Min load is 12V

Dimming range:

0.3%-100%(4KHz)

Application:

Suitable for LED lighting and moving sign applications

Description

Contact Supplier

Model		SMT-DI100W160-DP2A-T	SMT-DI100W210-DP2A-T
Certificate		UL/FCC/CE /ClassP/TYPE HL/SELV/ RoHS / Reach/ENEC/ICES/UKCA
Output	Rated current	160mA-1600mA	210mA-2100mA
	DC Voltage	24-93VDC	12-54VDC
	Rated power	100Wmax
	Current Tolerance	Output current ± 30mA
	Line Regulation	<0.1%
	Load Regulation	<0.1%
	Voltage Range	100-277VAC
Input	Frequency Range	47 - 63Hz
	Power Factor (Typ.)	>0.99@120VAC 60Hz >0.98@230VAC 50HZ >0.97@277VAC 60HZ
	No load power (Max)	<2W
	Standby power (Max)	<0.5W
	THD(Typ.) @ full load	<5.5%@120VAC <9.5%@230VAC <10.5%@277VAC
	Efficiency @ full load	>89.8%@120VAC 60Hz >91.7%@230VAC 50HZ >91.3%@277VAC 60HZ	>88.8%@120VAC 60Hz >90.7%@230VAC 50HZ >90.7%@277VAC 60HZ
	AC Current (Max.)	<1.28A
	Inrush Current (Typ.)	23.2A,398us @50%Ipeak 120VAC 48.8A,171us @50%Ipeak 230VAC 58.7A,404us @50%Ipeak 277VAC	24.8A,412us @50%Ipeak 120VAC 56.8A,120us @50%Ipeak 230VAC 68.4A,580us @50%Ipeak 277VAC
	Leakage current	<0.5mA
Protection	Short Circuit	Hiccup mode, recovers automatically after fault condition is removed
	Over voltage	Hiccup or constant power mode, reboots automatically after fault condition is removed
	Over temperature	Ambient temperature over 55℃±5℃ to reduce output to 50%; The ambient temperature drops to 45℃ ±5℃and automatically recovers. Ambient temperature over 75℃±5℃ to reduce output to 0%; The ambient temperature drops to 45℃ ±5℃and automatically recovers.
Environment	Working TEMP	-40~+50℃ (see below derating curve)
	Working Humidity	20 -90%RH non-condensing
	Storage TEM.,Humidity	-40 - +80℃,10 - 95% RH
	TEMP.coefficient	±0.03%/℃(0 - 50℃)
	Vibration	10~500Hz, 5G 12min./1 cycle, period for 72min. each along X,Y,Z axes
Safety & EMC	Safety standards	EN61347-1 EN61347-2-13(EU) & UL8750 (US)
	Withstand voltage	I/P-O/P:3.75KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC (EU) I/P-O/P:1.8KVAC I/P-FG:1.8KVAC O/P-FG:1.8KVAC (US)
	Strobe test standard	IEEE 1789 Flicker free
	Surge Immunity Test	AC Power Line:Differential Mode 2 kV, Common Mode 4 kV
	Isolation resistance	I/P-O/P:100MΩ / 500VDC / 25℃ / 70%RH
	EMC Emission	EN55015 EN61000-3-2,3(EU) & FCC Part15 Subpart B; ANSI C63.4:2014(US)
Others	Net Weight	600g
	Dimension	365.838.523.6mm (LWH)
	Packing	5531387 30pcs /CTN
Notes	1. All parameters NOT specially mentioned are measured at rated load and 25℃of ambient temperature.
	2. To extend the driver's using life, please reduce the loading at lower input voltage .
	3. LED driver Meets the harmonic emissions requirements of ANSI C82.77-10.
