175mm cutout led down light COB 50w 60w 70w CB SAA
US $32.50 - US $75.00
Production Lead Time:
7-15 day(s)
Shipping Method:
SEA/AIR
Brand:
KWT/OEM
Customised:
Yes
Feature:
Patent Design
Material:
Aluminum
Including Bulbs:
Yes
Is Dimmable:
Yes
Light Source:
LED
Lighting Style:
Modern
Model No.:
DLC0638B
Pattern:
Recessed
Size:
D190*H168mm
Weight:
1.23kg
Dimming Type:
Triac/1-10v/DALI
Description
Certification & Document
Contact Supplier
Description

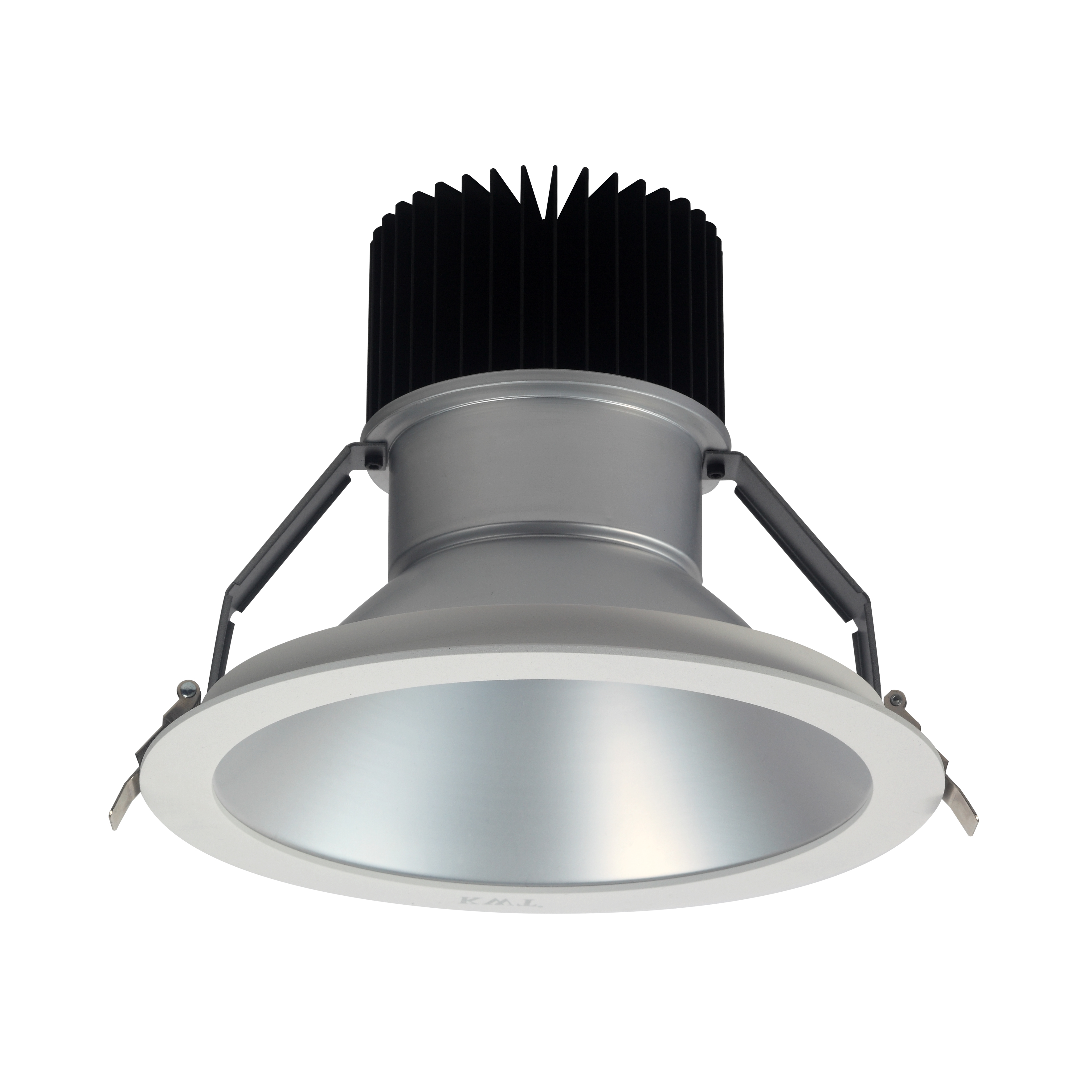

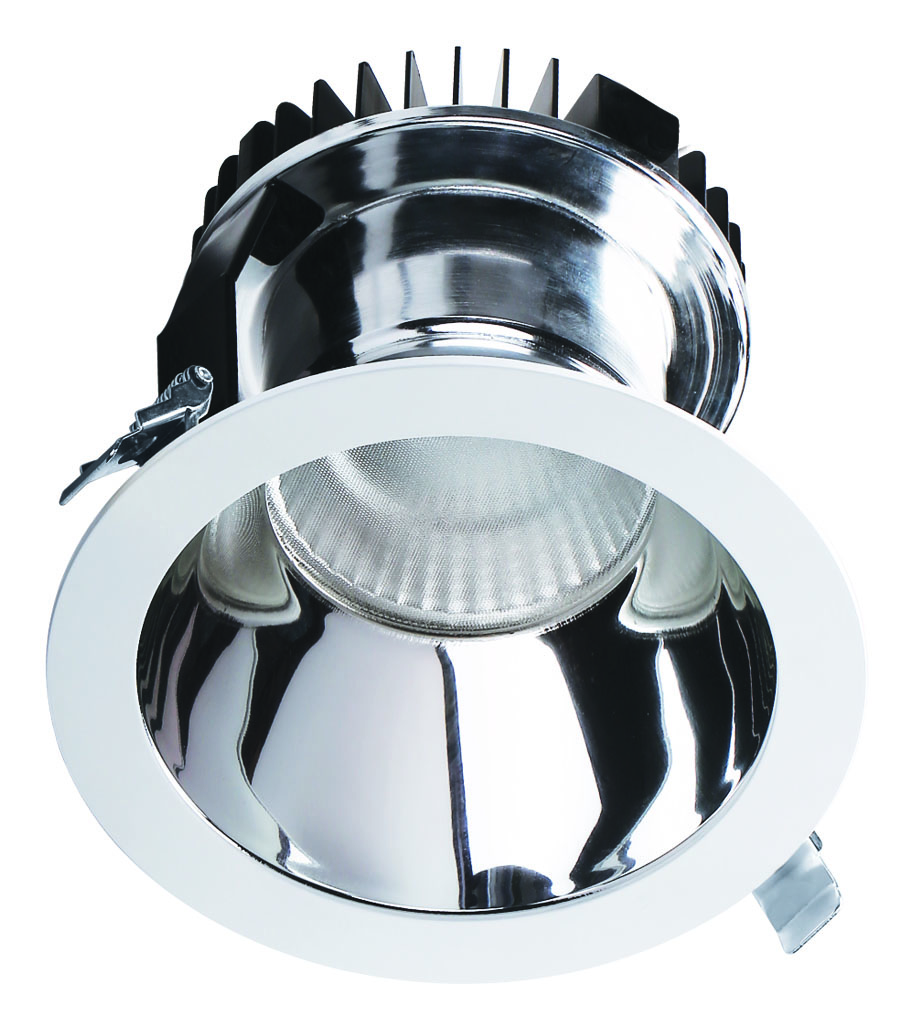

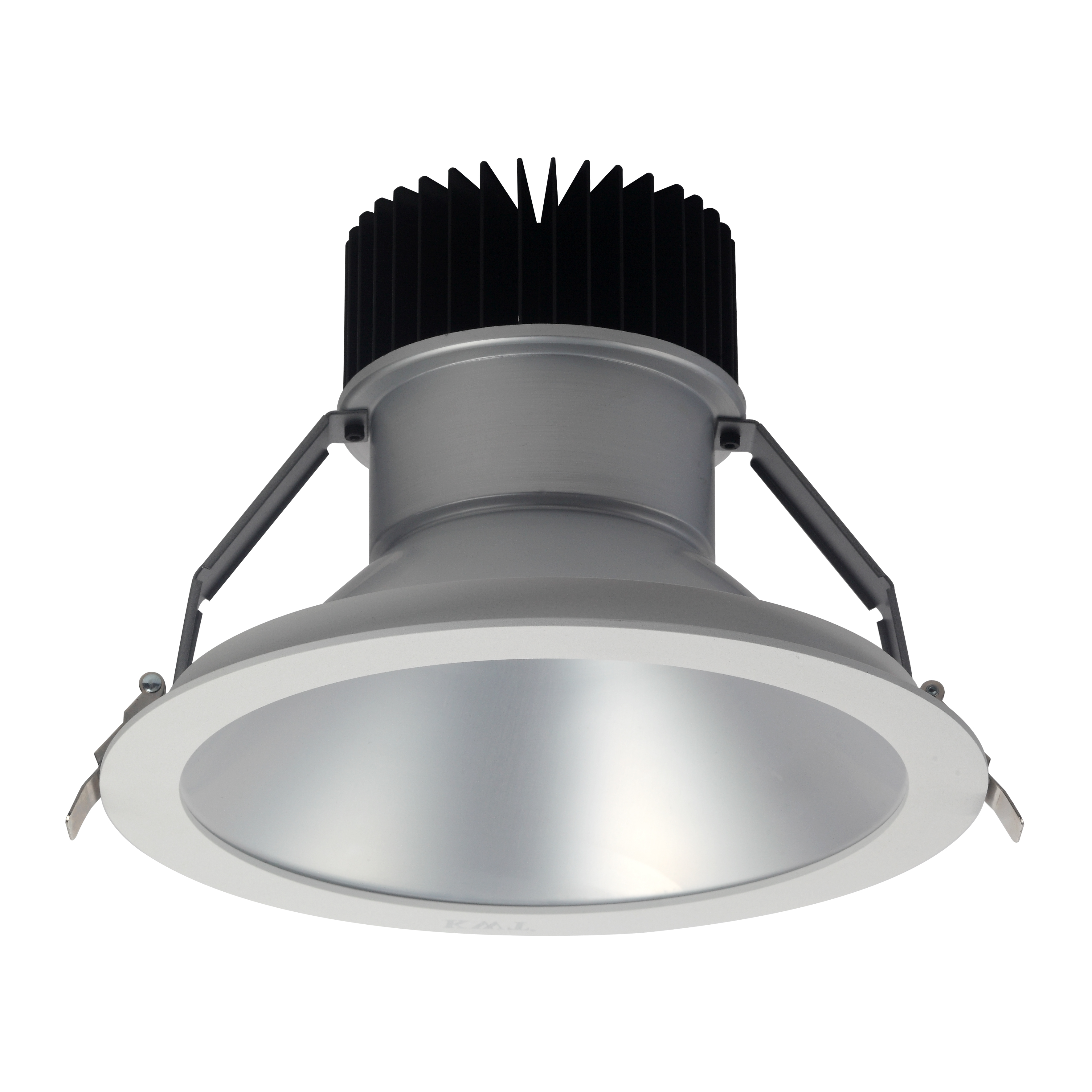

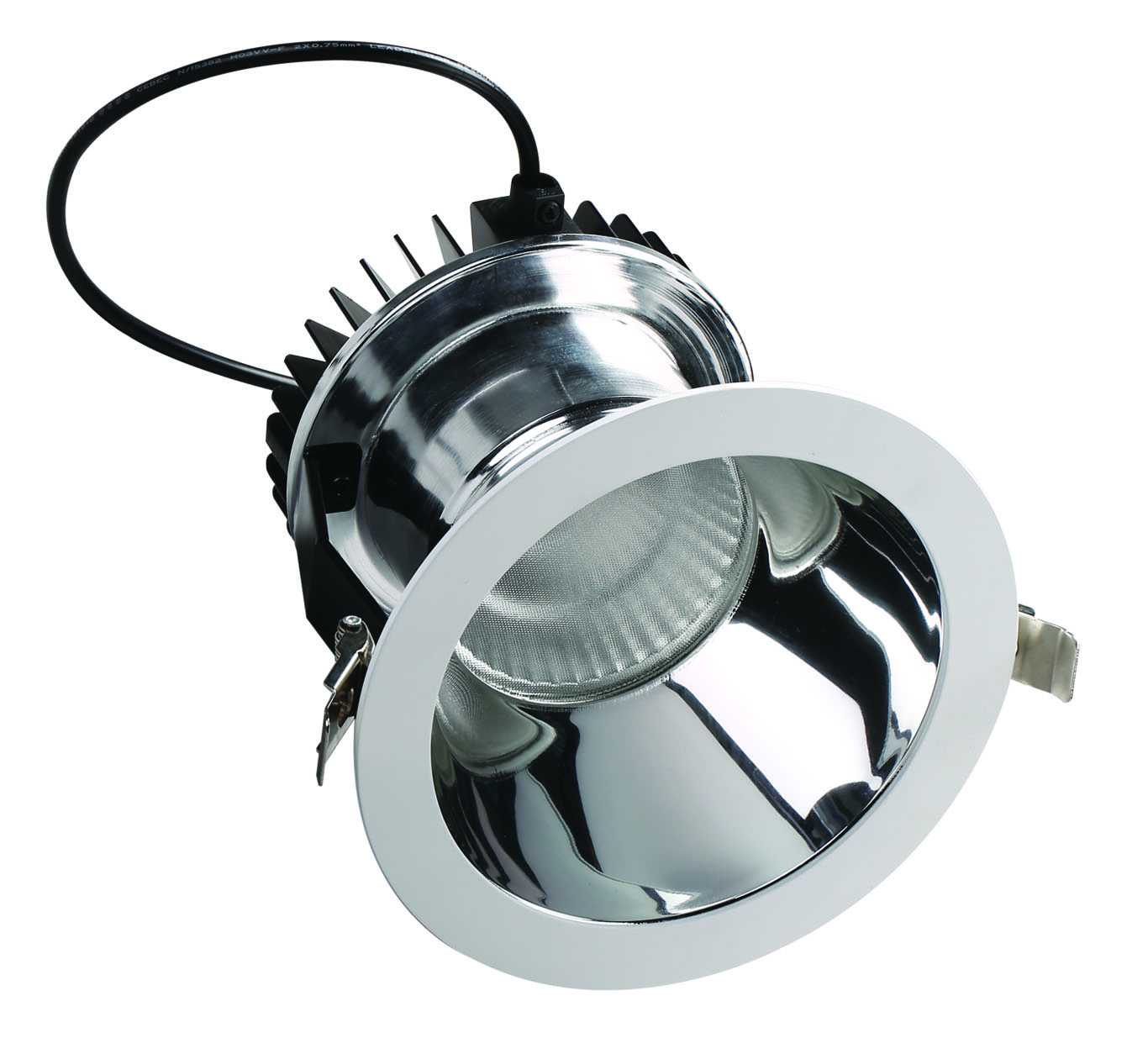

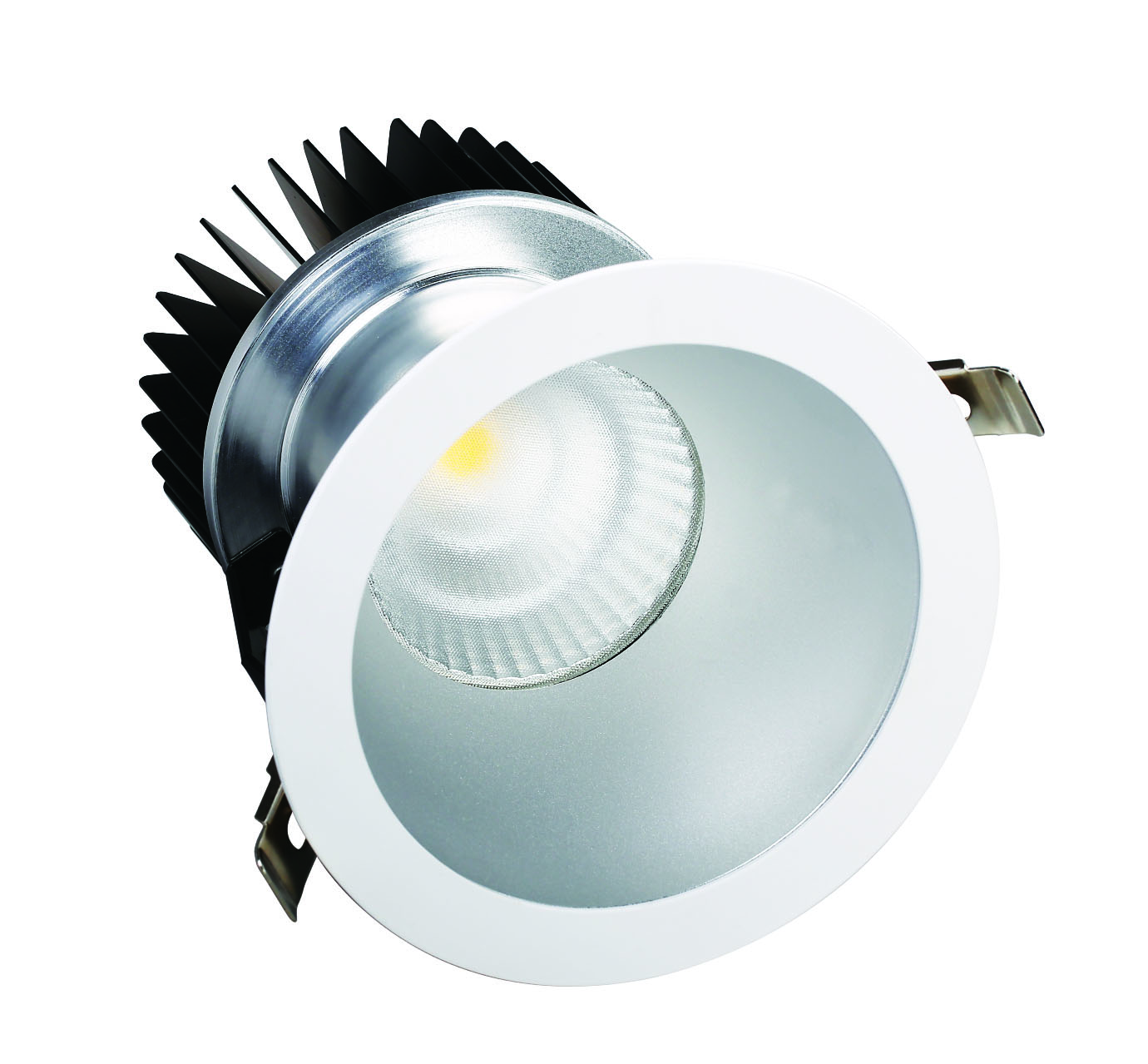

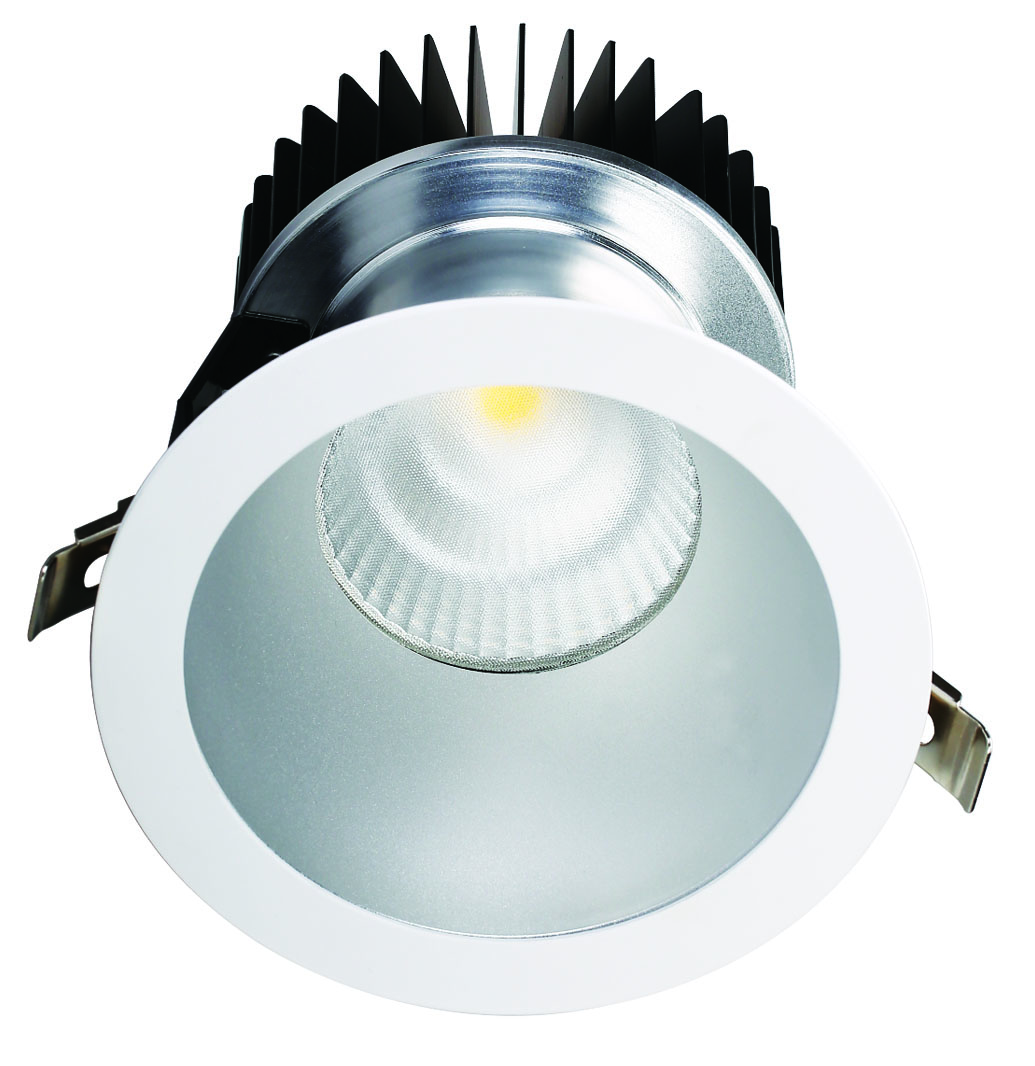

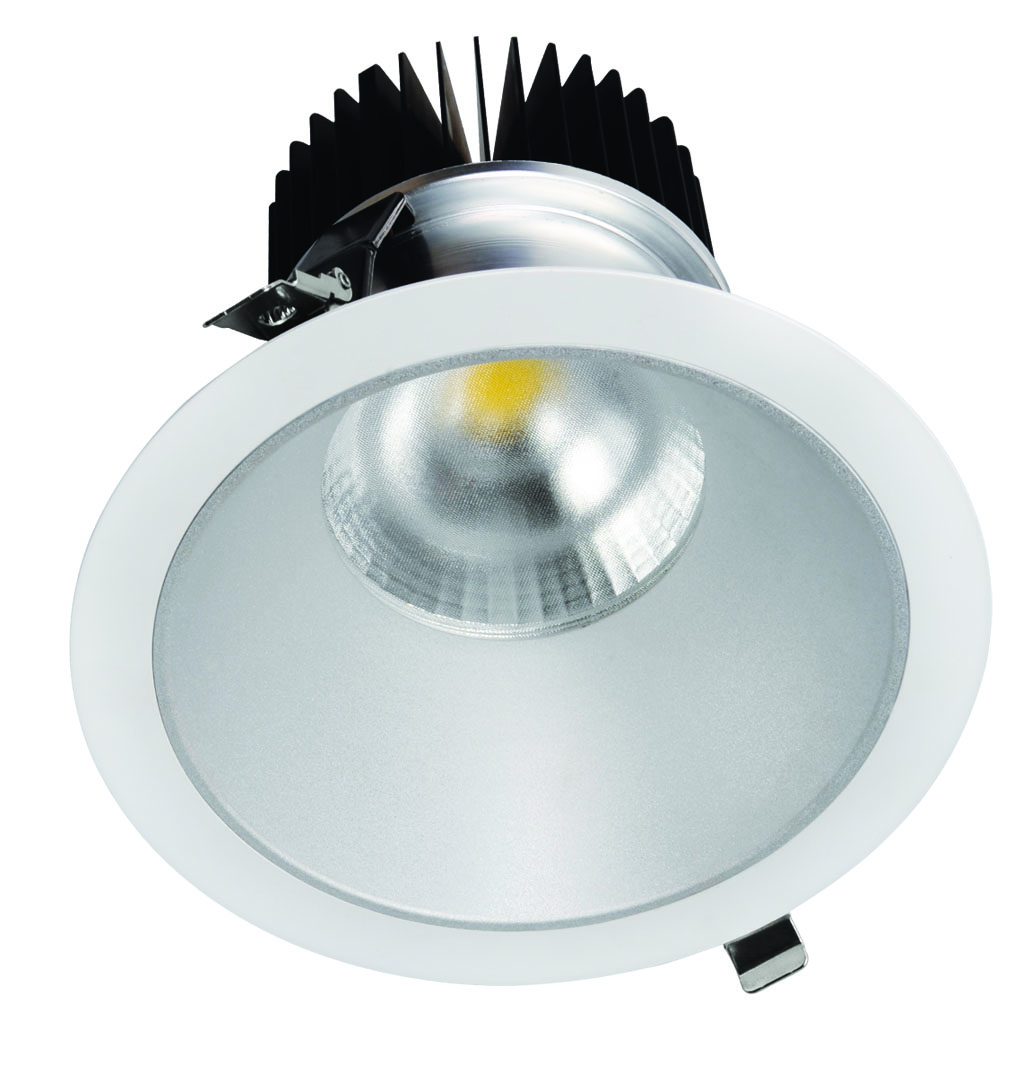

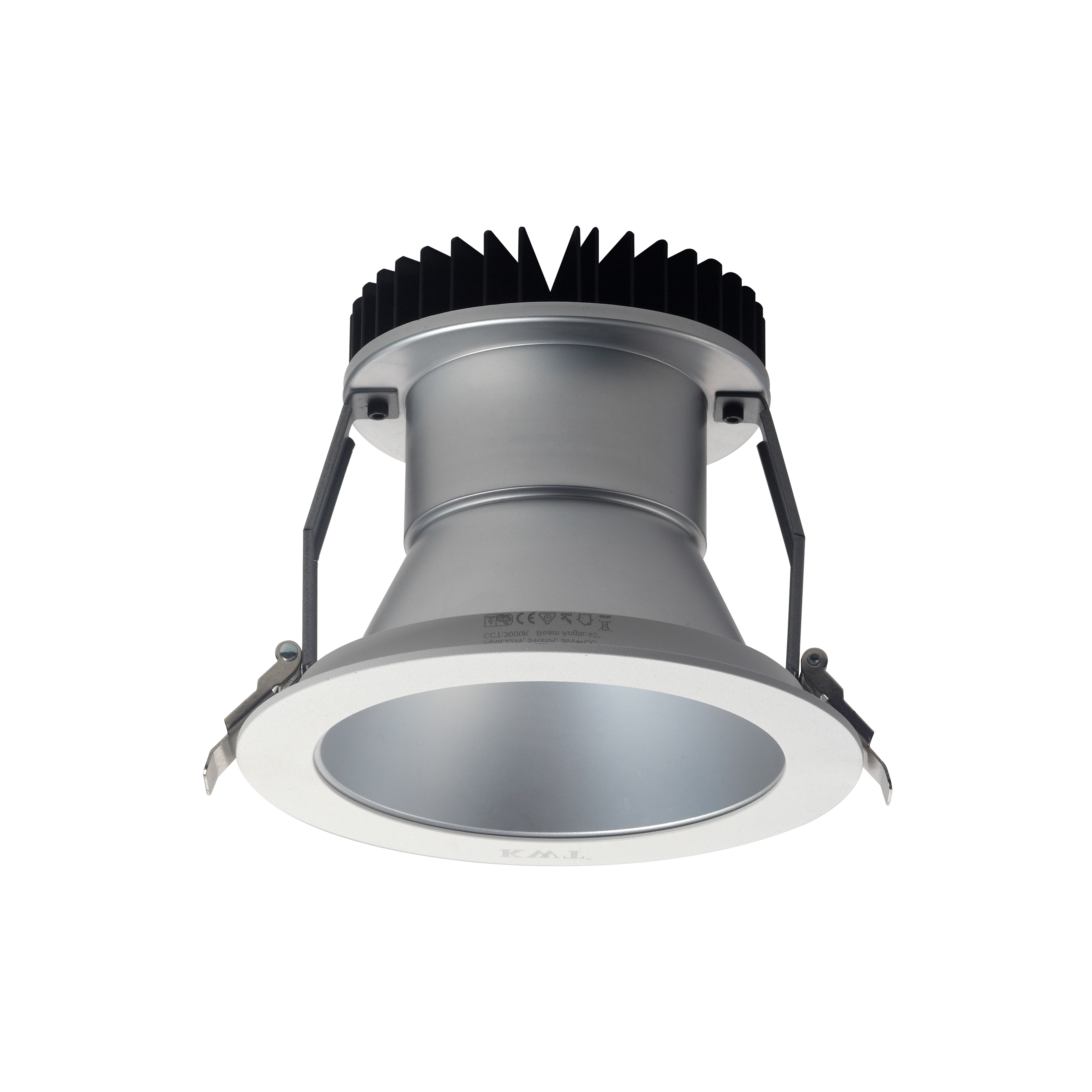

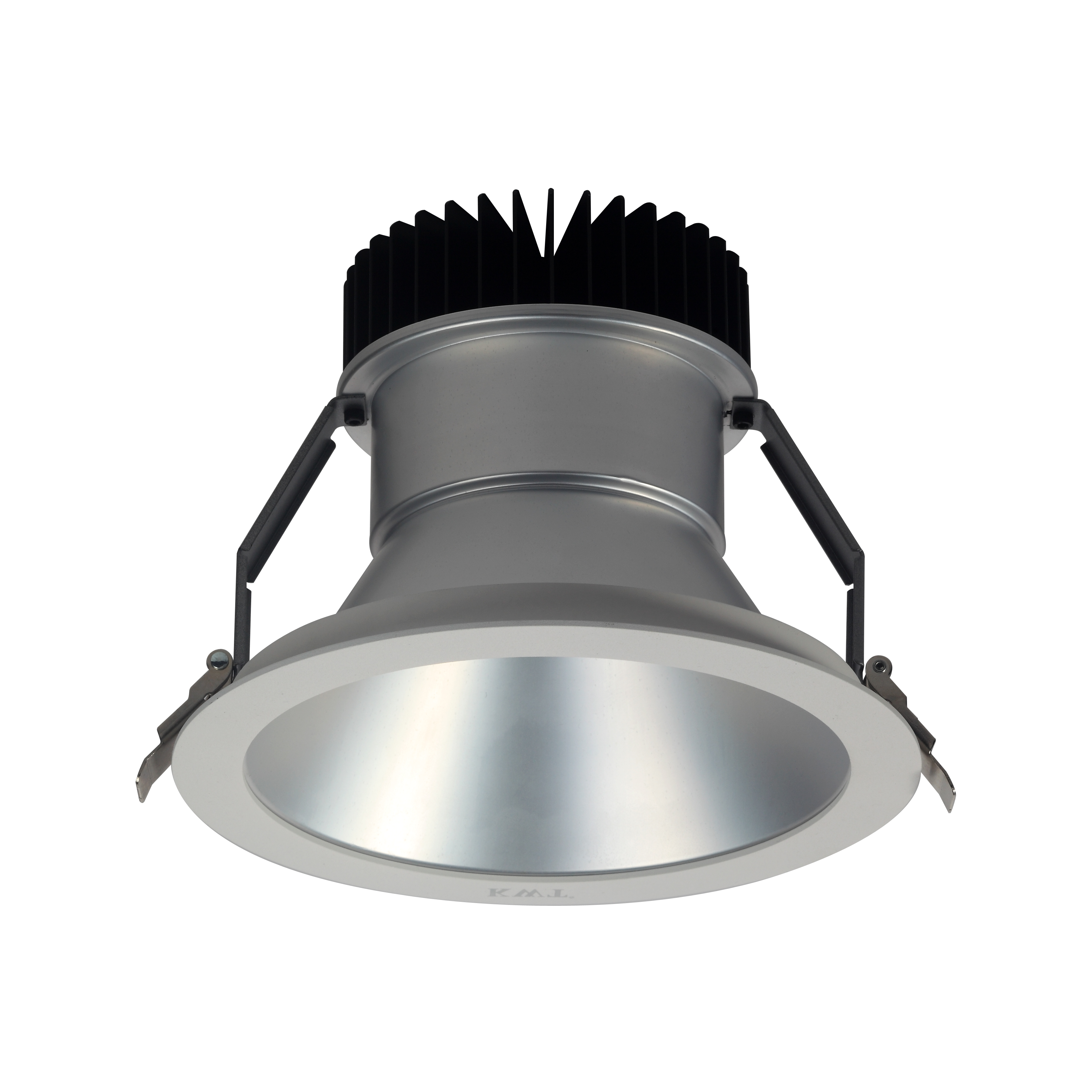

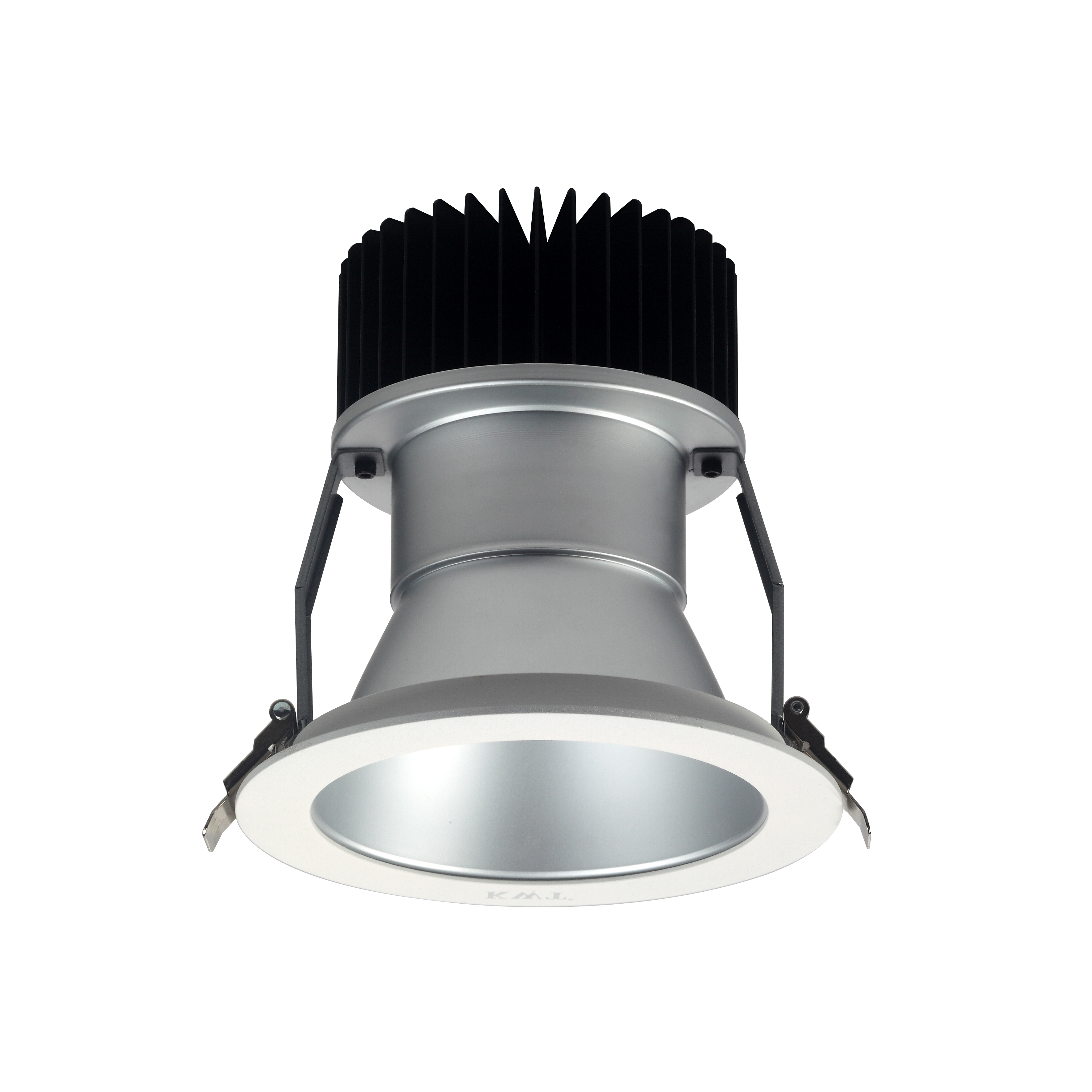

175mm cutout led down light COB 50w 60w 70w CB SAA
DLC0638-B are originally researched and developed by KWT, pure
aluminum heat sink, the general design requirements with two reflector
cups, two times optical principle, frost glass diffuser, first optics to use PC
reflector, reflective rate>95％ , second optics to use 1090 reflector, top
quality CITIZEN LEDs, with KWT high quality exterior driver, dimmable,
good heat sink, brilliant quality, more than 40,000 hours life span.
Nominal wattage | 38W |
Input | 100-240/220-240VAC 50/60Hz |
Output | 36VDC |
Color temperature | 3000K/4000K |
Color rendering index= | RA>80 |
Beam angle | 25°/45°/50° |
3000k Luminous flux | 25° 3660lm/45° 3610lm/50° 3520lm |
4000k Luminous flux | 25° 4020lm/45° 3810lm/50° 3830lm |
Finish Color | White/black |
Product color | No Dim/Triac Dim/1-10V Dim |
Cut out diameter | 175-180mm |
Operation temperature | -20℃-50℃ |
Warranty | 5years |
Product features
·High brightness, Low SDCM﹤3, low light decline
·High efficacy, high illuminance, accurate beam angle
makes comfortable illumination atmosphere
·Refined components and design, guarantee a long
life span of over 40,000 hours
·Easy installation, for wide applications
·Exterior driver triac dimmable (200-240v input)and 1-10v
dimmable (100-240v input)
Packing Details:
Product model | DLC0638-B | |
Packaging unit | Folding carton box | Shipping carton box |
Packaging Qty | 1pcs | 12pcs |
Dimensions | 205×230×210mm | 630×470×445mm |
Volume | 9.91dm³ | 131.77dm³ |
Gross weight | 1.23kg | 19.12kg |
Installation:
1.Open the hole in the ceiling
2.Connect the power lead with the terminal block of the led
driver (Picture two)
3.As shown in the following figure, the lamps mounted in
the mounting hole, and ensure string (Picture three)
