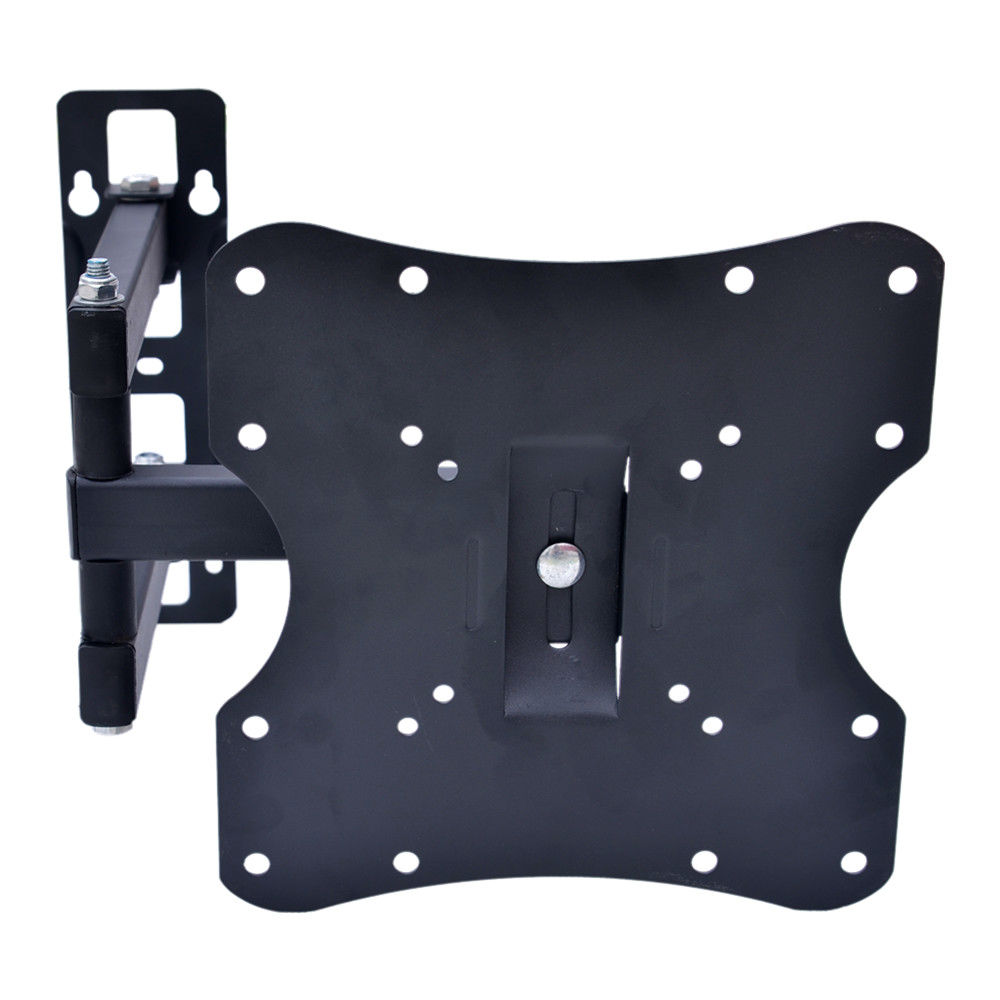

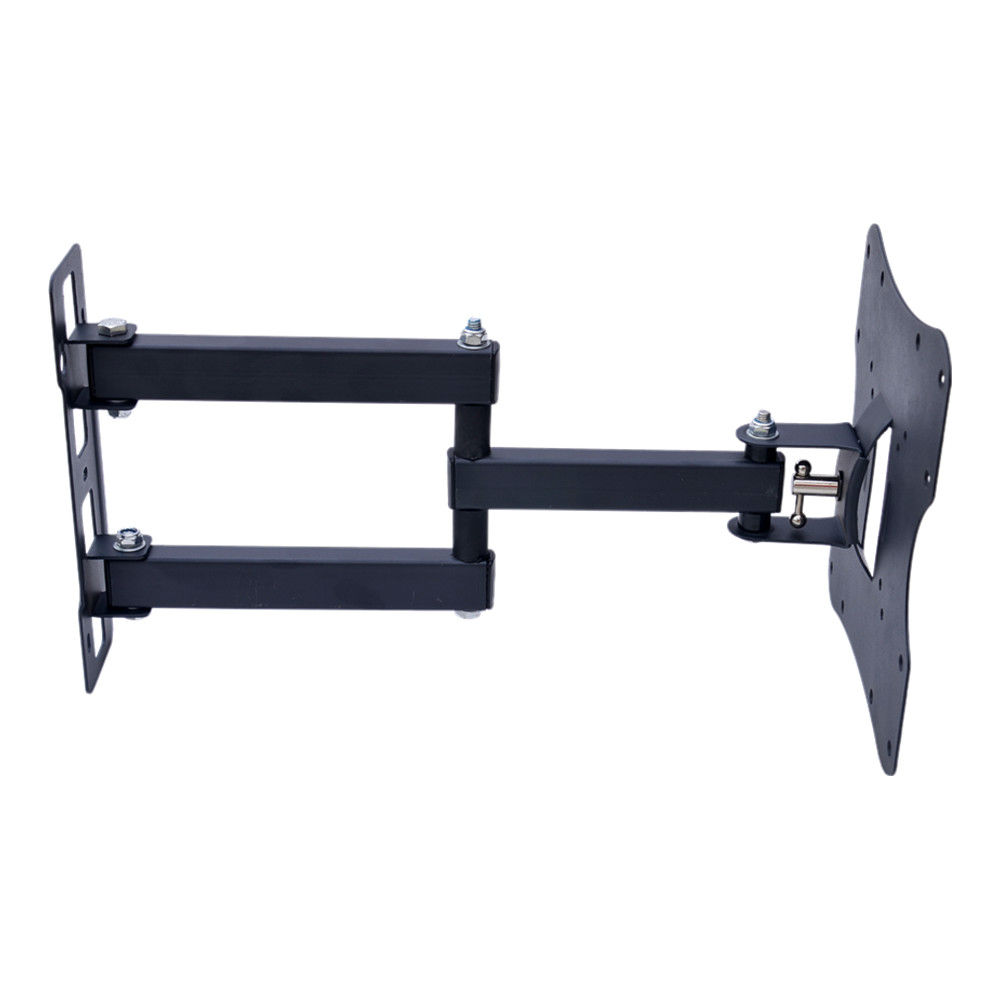

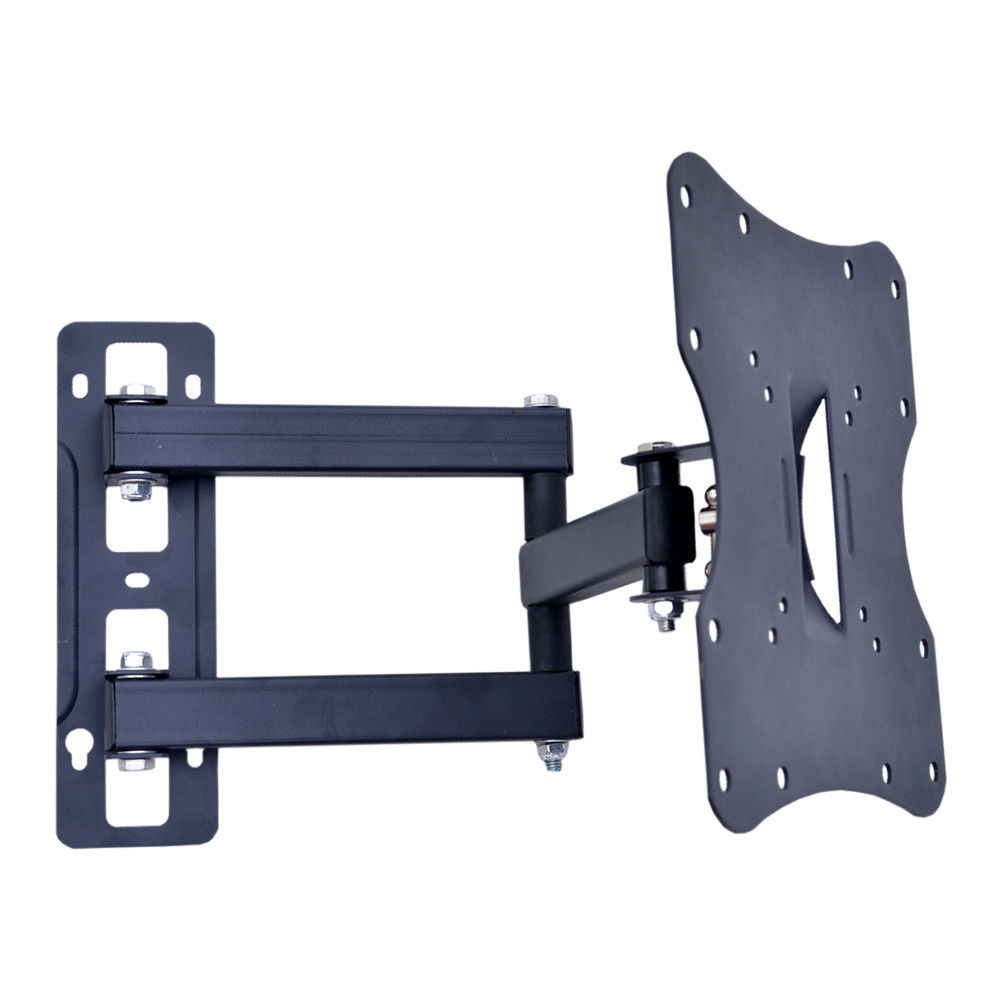

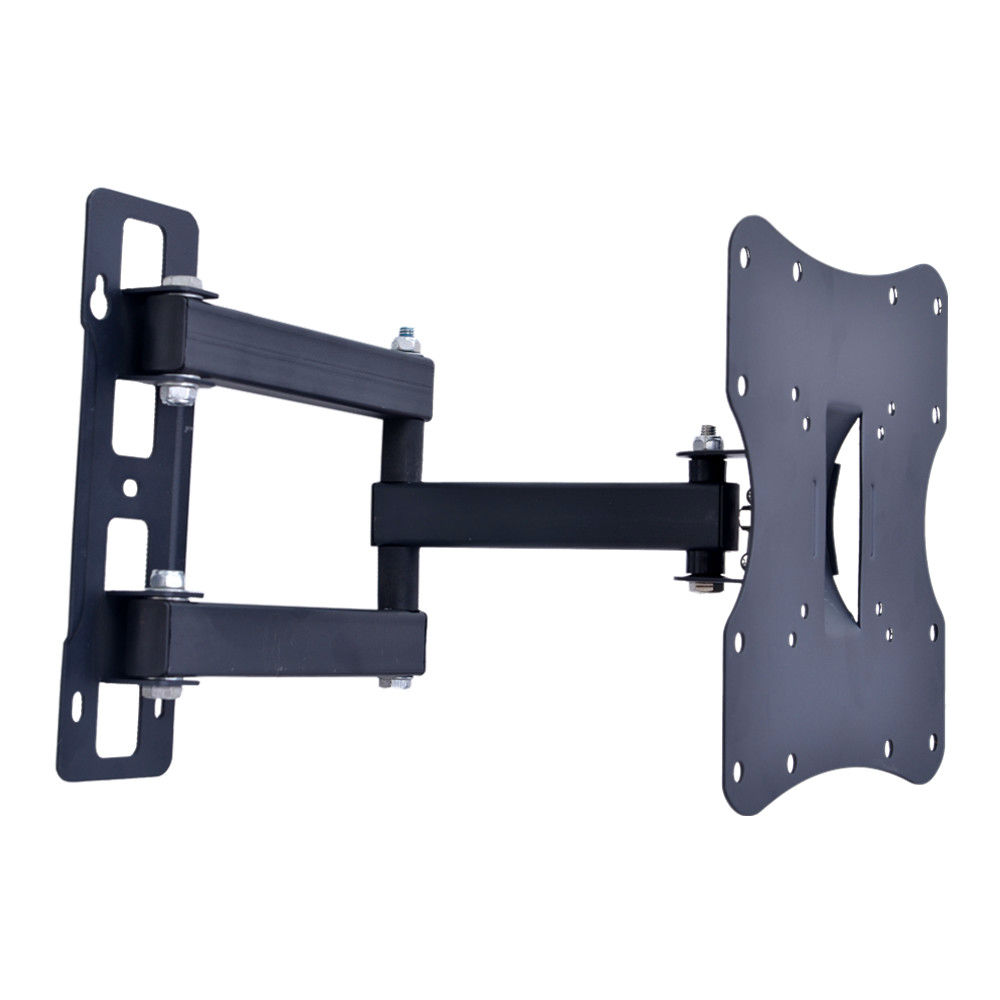

180 Degree Swivel 30 Degree Tilting Full Motion TV Bracket Mount
Model No.:
QC-L104
Brand:
OEM
Colour:
Matt Black
Size:
300x270x90mm
Port:
Guangzhou or Shenzhen
Type of Payment:
30% deposit T/T in advance, 70% balance payed before shipment
Minimum Order Quantity:
500pcs
Package:
Yes
Customised:
Yes
Material:
Cold-Rolled Steel
Description
Contact Supplier
Description
Products Features:
1. Extended Swivel Arm:
Extended arm offers wide-angle optimum viewing position.
2. Angle Free Tilt Function:
By self-locking mechanical construction, it provides effortless adjustment of viewing angle without tightening the knob.
3. Super Low Profile:
Super low profile design saves the room space and makes your TV looks like a picture hanging on the wall.
Technical Specifications:
Product Name: Full motion LCD LED PLASMA TV wall mount bracket
Model Number: QC-L104
Suggested Screen Size: 14"-37"
Max.Hole Pattern: 200x200mm
VESA: 100x100, 200x200 etc.
MAX. Load Weight: 20kg / 44lbs
Distance to Wall: 80-400mm
Swivel: 180 degree
Tilting: +15 degree/-15 degree
Material: Cold Rolled Steel / SPCC
Thickness of Material: 2.0mm
Surface Finish: Powder Coating
Available Color: Matt Black
Bubble Level: YES
Installation: Solid wall, Single Stud
1. Extended Swivel Arm:
Extended arm offers wide-angle optimum viewing position.
2. Angle Free Tilt Function:
By self-locking mechanical construction, it provides effortless adjustment of viewing angle without tightening the knob.
3. Super Low Profile:
Super low profile design saves the room space and makes your TV looks like a picture hanging on the wall.
Technical Specifications:
Product Name: Full motion LCD LED PLASMA TV wall mount bracket
Model Number: QC-L104
Suggested Screen Size: 14"-37"
Max.Hole Pattern: 200x200mm
VESA: 100x100, 200x200 etc.
MAX. Load Weight: 20kg / 44lbs
Distance to Wall: 80-400mm
Swivel: 180 degree
Tilting: +15 degree/-15 degree
Material: Cold Rolled Steel / SPCC
Thickness of Material: 2.0mm
Surface Finish: Powder Coating
Available Color: Matt Black
Bubble Level: YES
Installation: Solid wall, Single Stud
